The new features of F405-miniTE compared with F722-miniSE(EOL)

    F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware, some features will be removed on F722 due to limited flash.
    The advantage of F722 is all UARTs have builtin inversion which is not needed when CRSF protocol is widely used on new receivers.
    Redesigned target MATEKF405TE support 8x bi-directional DSHOT.
    Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
    Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE support 8motors+3servos in INAV/BF multirotor mixer
    InvenSense GEN3 IMU ICM42605

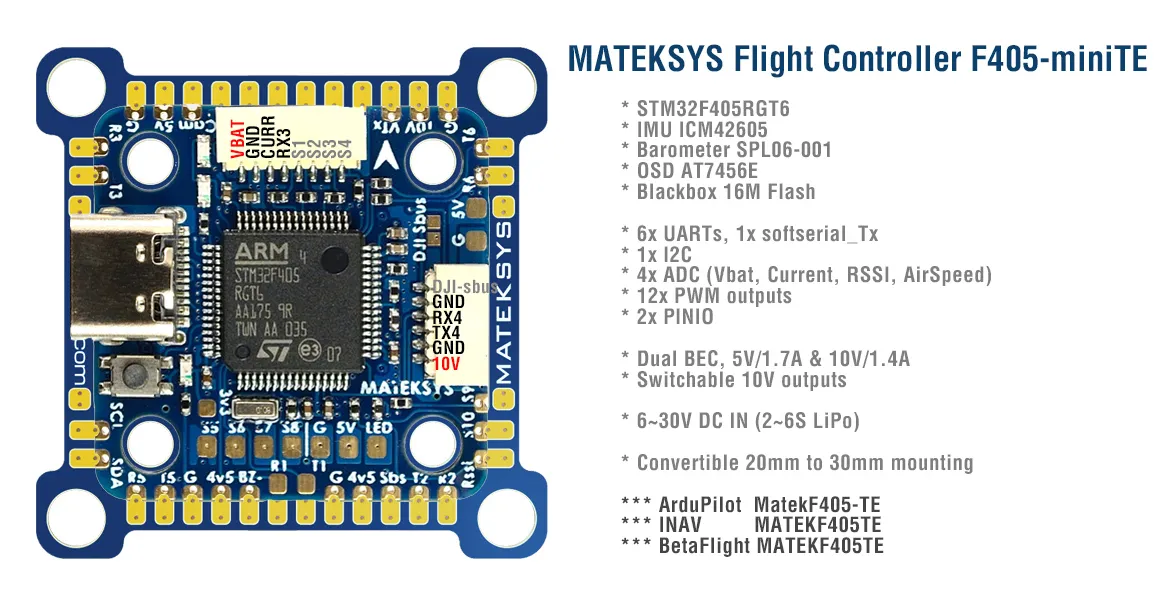

FC Specifications

    MCU: STM32F405RGT6
    IMU: ICM42605
    OSD: AT7456E
    Baro: Goertek SPL06-001 (I2C)
    Blackbox: 16M-byte Flash memory
    6x UARTs,  1x Softserial_Tx option
    12x PWM outputs (8x Dshot)
    1x I2C
    4x ADC (VBAT, Current, RSSI, Airspeed)
    2x PINIO
    1x SH1.0_8pin connector (Vbat/G/Curr/R3/S1/S2/S3/S4)
    1x SH1.0_6pin connector for DJI FPV Air Unit
    3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

    Dual BEC, 5V 1.7A & 10V 1.4A
    10V output ON/OFF switchable
    Convertible 20mm to 30.5mm mounting

Power

    Input: 6~30V (2~S LiPo)
    BEC: 5V 1.7A,  Max.2A
    BEC: 10V 1.4A  for VTX or DJI Air Unit
    For stable 10V output, input voltage should > 11V,  when input voltage =<11V, output = 90% input voltage.
    Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
    No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

    ArduPilot: MatekF405-TE
    INAV: MATEKF405TE (not available in INAV configurator for now)
    BetaFlight: MATEKF405TE

Physical

    Mounting
        20 x 20mm/Φ3mm with Silicon Grommets
        20 x 20mm/Φ2mm with Silicon & Brass Grommets
        30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
    Dimensions:  28 x 28 mm
    Weight: 5g

Including

    1x FC F405-miniTE
    1x 20mm to 30.5mm conversion plate(blue PCB)
    6x Silicon grommets M4 to M3
    6x Brass grommets M3 to M2
    1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
    1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit
