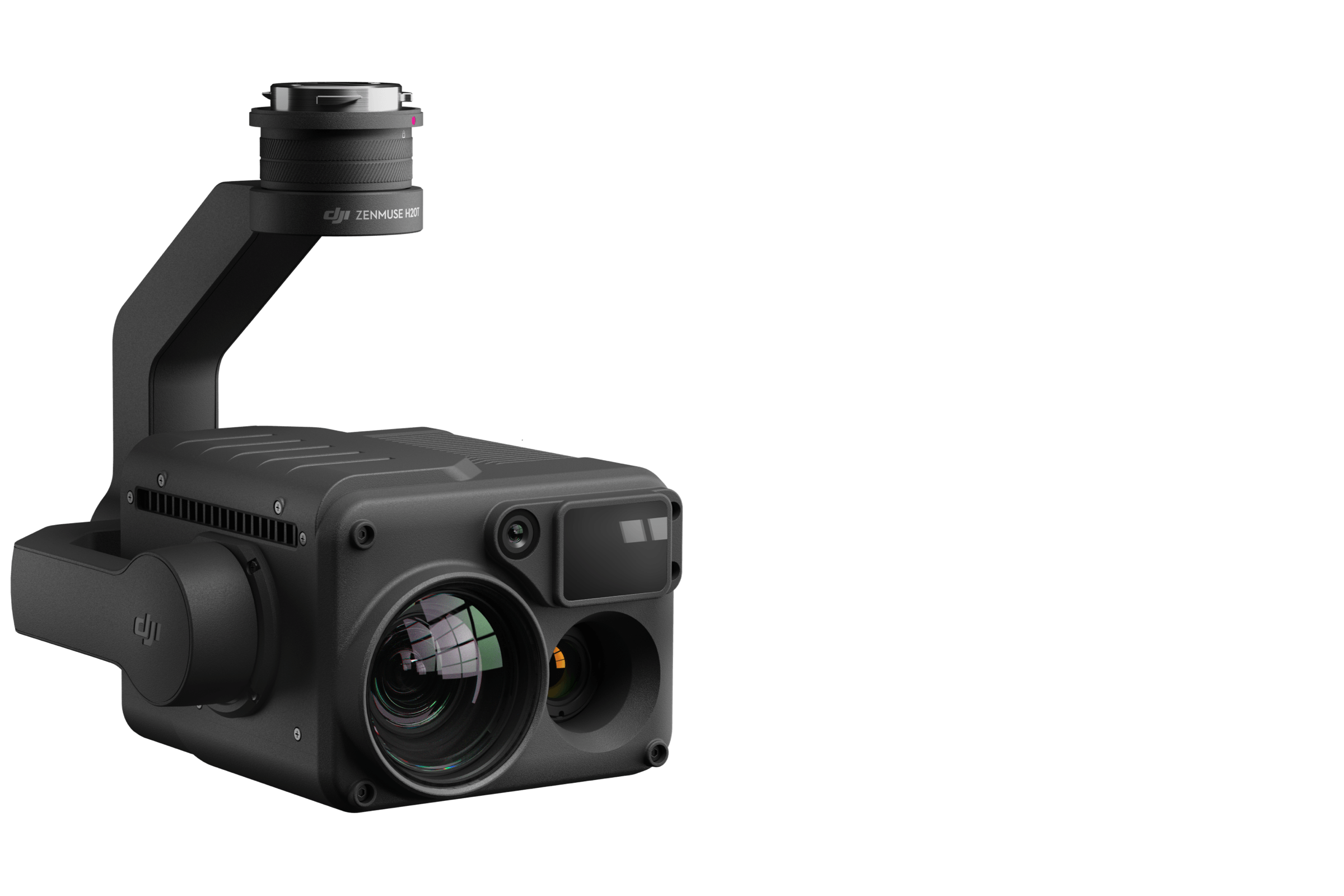

Zenmuse H20T (SP)

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

This is a special order item. Please contact us prior to purchasing to confirm availability and pricing.

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Powerful Zoom Camera

• 23× Hybrid Optical Zoom, 200× Max Zoom
• 20 MP 1/1.7” CMOS Sensor
• Video Resolution: 4K/30fps

Wide Camera

• Equivalent Focal Length: 24mm, DFOV: 82.9°
• 12 MP 1/2.3” CMOS Sensor

Laser Rangefinder

• Range: 3 m – 1200 m
• Accuracy: ± (0.2 m + D×0.15%)

Radiometric Thermal Camera

• DFOV: 40.6°
• Resolution: 640×512, Frame Rate: 30fps
• Thermal Sensitivity: ≤ 50mk@f1.0 (NEDT)

Multi-Sensor Payloads

See the full picture without missing any details wherever and whenever your mission takes place.

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in a wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view; advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
