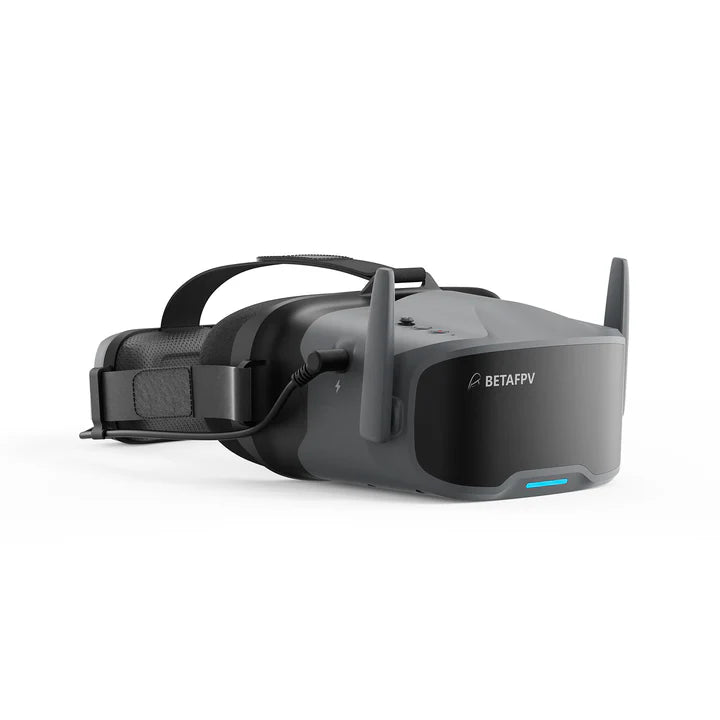

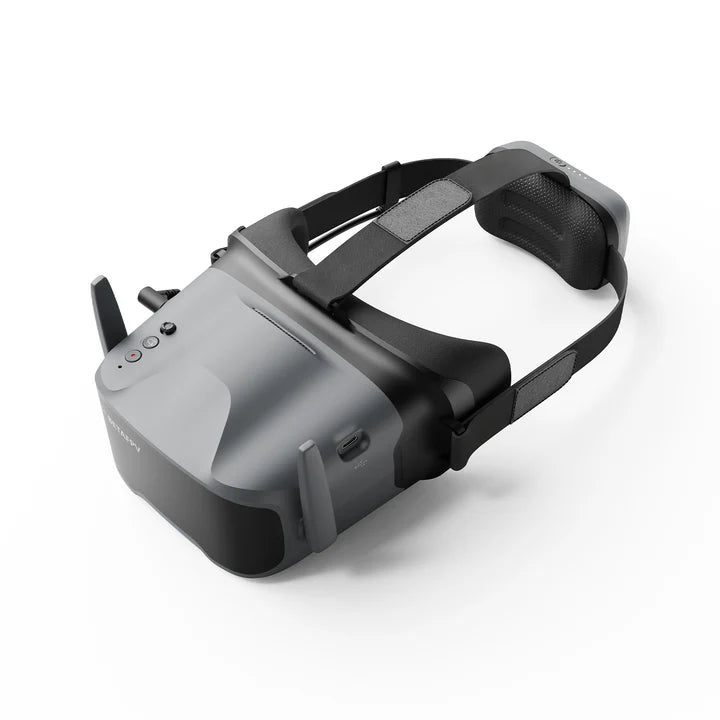

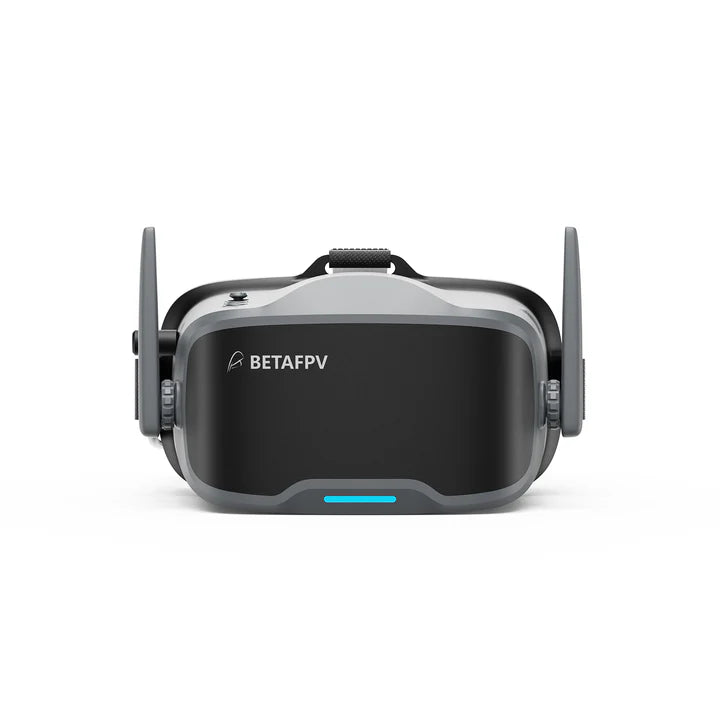

VR04 HD FPV Goggles (HD Version)

Designed for total immersion and comfort, the VR04 HD FPV Goggles feature a spacious, glasses-friendly interior so you never have to remove your eyewear, plus contoured face padding and a soft rubber nose bridge that block outside light for focused, extended sessions. The VR04 HD comes with a 2600mAh battery for 3‑hour runtime, while the VR04 HD Pro upgrades to a 3800mAh battery for 4‑hour runtime and supports live feed output to external displays via a Type-C with DP support. Both models offer one‑button 1080p recording directly to a microSD card (up to 1TB), letting you effortlessly capture and relive every flight in crisp detail. Fully compatible with the P1 Air Unit, they give you the flexibility to build your own setup or fly bind‑and‑fly models—delivering a premium, comfortable, and immersive FPV experience for every pilot.

Package Includes:

1x VR04 HD FPV Goggles

1x Adjustable Headband

2x 18650 2600mAh Battery

1x User Manual

Features:

• Glasses-Friendly Fit: Spacious interior lets you wear your glasses comfortably while flying.
• Full Light-Blocking Design: Contoured face padding and a soft nose bridge seal out glare for total immersion.
• Live Feed Output (VR04 HD Pro): Stream your flight view to external displays and share the experience with others.
• P1 Air Unit Compatibility: Bulid your own whoops with P1 Air Unit or bind and fly with P1-supported models.
• Long-lasting Battery: Supports up to 3 hours (VR04 HD) or 4 hours (VR04 HD Pro) of continuous use and can be conveniently powered by any 2–6S whoop batteries.


• One-Button Recording: Instantly capture smooth HD footage directly to the goggles with a single press.


Specifications:

• Size: 168.8x182.1x98.5mm
• Weight: 400g±10g (batteries excluded)
• Display Screen: LCD

• Screen Size: 4.5 inch
• Screen Resolution: 1920*1080
• Transmission Range: >400m
• Bitrate: Max 25Mbps
• Batteries: 2600mAh (VR04 HD), 3800mAh (VR04 HD Pro)
• Runtime: About 3 hours (VR04 HD) / 4 hours (VR04 HD Pro) in normal mode

• Charging Port: Type-C port on the headband battery holder
• Card Slot: MicroSD card (Not included), Supports FAT32 system, maximum 1T storage
• Recording Resolution: 1080P@60fps


Diagram:

VR04 HD:

VR04 HD Pro:

Total Immersion & Comfort

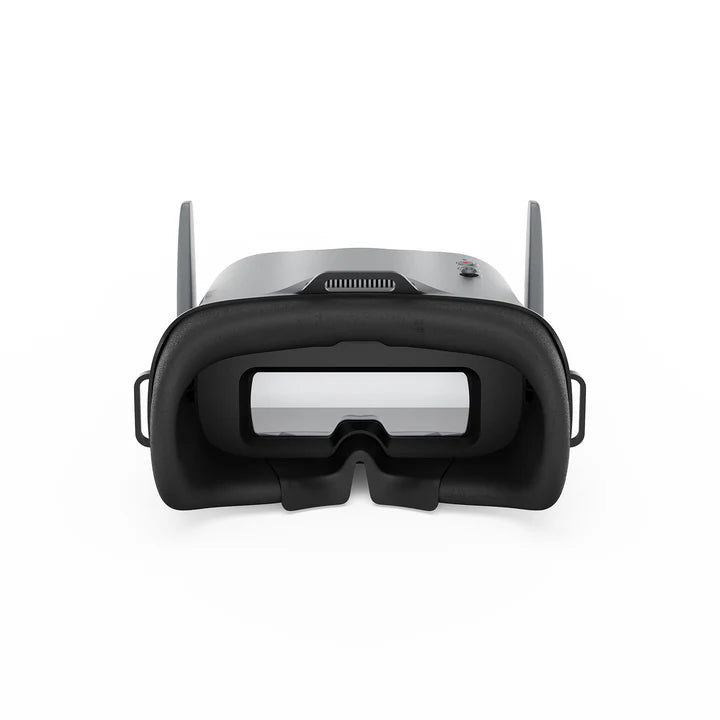

The VR04 HD FPV Goggles are designed for extended-wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. Premium PU face padding ensures a secure, comfortable fit, while a soft silicone nose bridge seals out external light to deliver a fully immersive flight experience.

Power Flexibility

The VR04 HD is powered by two 2600mAh batteries for up to 3 hours of use, while the VR04 HD Pro features two 3800mAh batteries for up to 4 hours of use on a single charge. For added flexibility, both models can also be powered directly by any 2‑6S whoop battery—ideal for extended sessions or quick-swap setups.

Record & Replay

The VR04 HD goggles deliver stunning clarity with a 1920×1080 screen resolution, bringing your flights to life in vivid detail. It also supports smooth 1080P@60fps recording—simply press the record button to capture HD footage directly to a microSD card with support for up to 1TB of storage. Relive your most thrilling moments anytime, in crisp high definition, with no extra gear required.

How to Record A Video?

• Insert a microSD card (maximum 1TB) into the card slot;
• Short press the record button to start recording, a red dot appears;

• To stop the recording, short press the button again.

VR04 HD Pro: Live Feed Output

The VR04 HD Pro features a Type‑C port that supports live video streaming via DisplayPort (DP) protocol. So you can share your live flight view with external displays, capture footage on larger screens, or let spectators experience the action alongside you.

VR04 vs. VR04 HD vs. VR04 HD Pro

Wide Compatibility

The VR04 HD goggles are compatible with the P1 Air Unit for custom builds, and are bind-and-fly ready with whoops like the Meteor75 Pro P1—so whether you're building or flying straight out of the box, an immersive HD flight is just a connection away.

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

• BETAFPV VR04 HD goggles, Aquila20 P1, Meteor75 Pro P1
• HGLRC Draco
• More coming soon!

Firmware Compatibility Notes:

1. To ensure seamless compatibility with third-party ArtLynk protocol equipments (such as HGLRC Draco), please verify that your BETAFPV devices are updated to firmware version V2.0.5 or later.
2. The air unit needs to be updated via the ground station. First make sure the ground station and air unit are on the same firmware version, then proceed to update the air unit. And firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44).
