U10 METHANE GAS LEAK DETECTOR
Description
SPECIAL ORDER: This item may be subject to limited in-store availability, contact to confirm the pickup/delivery window.

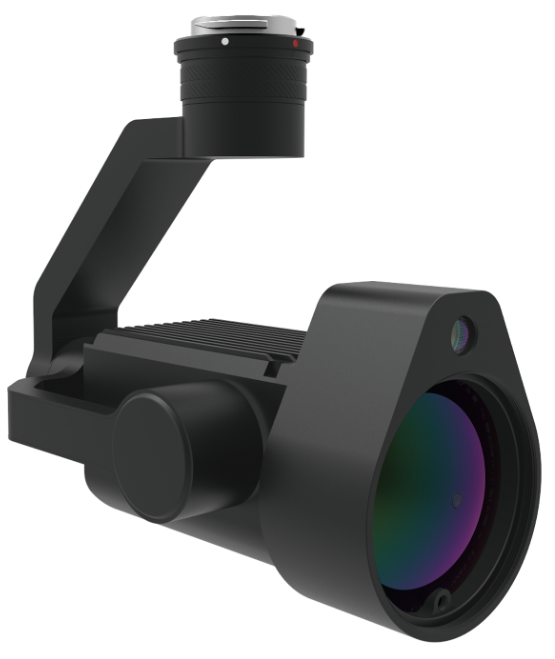

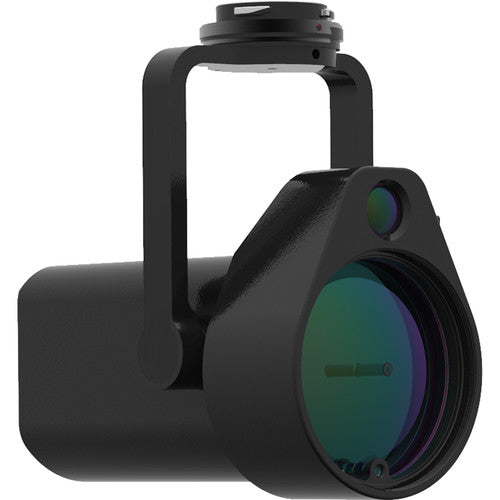

U10 UAV BASED LASER METHANE LEAKAGE DETECTOR
The U10 is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to 100 m away, or at a concentration as low as 5ppm.m. Powered by DJI SkyPort, the U10 can be seamlessly integrated with DJI Matrice 200 Series V1 and V2 platforms.
Accurate Results from Afar:
Get real-time readings on the concentration of methane from up to 100 m away, adjust the pitch of the gimbal to pinpoint gas leaks in dangerous or hard-to-reach areas while keeping personnel safe.
Visualize the Detection:
The high sensitivity allows detection at a concentration as low as 5ppm.m. Receive concentration data in just 25 ms, so you can make decisions quickly. Gain an aerial overview of the suspected leakage site through the 720p visual camera.
Automated Workflows:
Plan flight missions and view flight paths, monitor gas concentration levels and historical trends in real-time, and flag specific points along the flight route for abnormalities, and generate inspection reports – all through the α-ONE iOS application.
APPLICATIONS
Use DJI’s leading drone platforms equipped with the U10 to inspect and maintain facilities like Liquid Natural Gas plants, gas storage tanks, and gas pipelines in areas such that are difficult for human operators to access, such as mountains or rivers. With the U10,users can detect and monitor methane leakages accurately to make informed response decisions quickly.
Specifications
|
Method of Detection |
TDLAS
|
|
Stationary Detection Limit
|
5 ppm·m
|
|
Response Time
|
25 ms (0.025s) |
|
Sampling Rate
|
500KHz
|
|
Detection Concentration Range |
0~50,000 ppm·m |
|
Detection target
|
Methane（CH4）
|
|
Detection Laser |
Class IIIR
|
|
Operating Temperature
|
-20 ~ 50℃
|
|
Operating Humidity
|
<90%RH, no condensation
|
|
Size
|
155 x 90 x 100 mm
|
|
Max Detection Distance
|
100 m
|
|
Camera
|
Video at 720p |
| Supported Aircraft |
DJI Matrice 200 Series, Matrice 200 Series V1/V2, DJI Matrice 300
|
