ToolkitRC | ID: I-R7-1

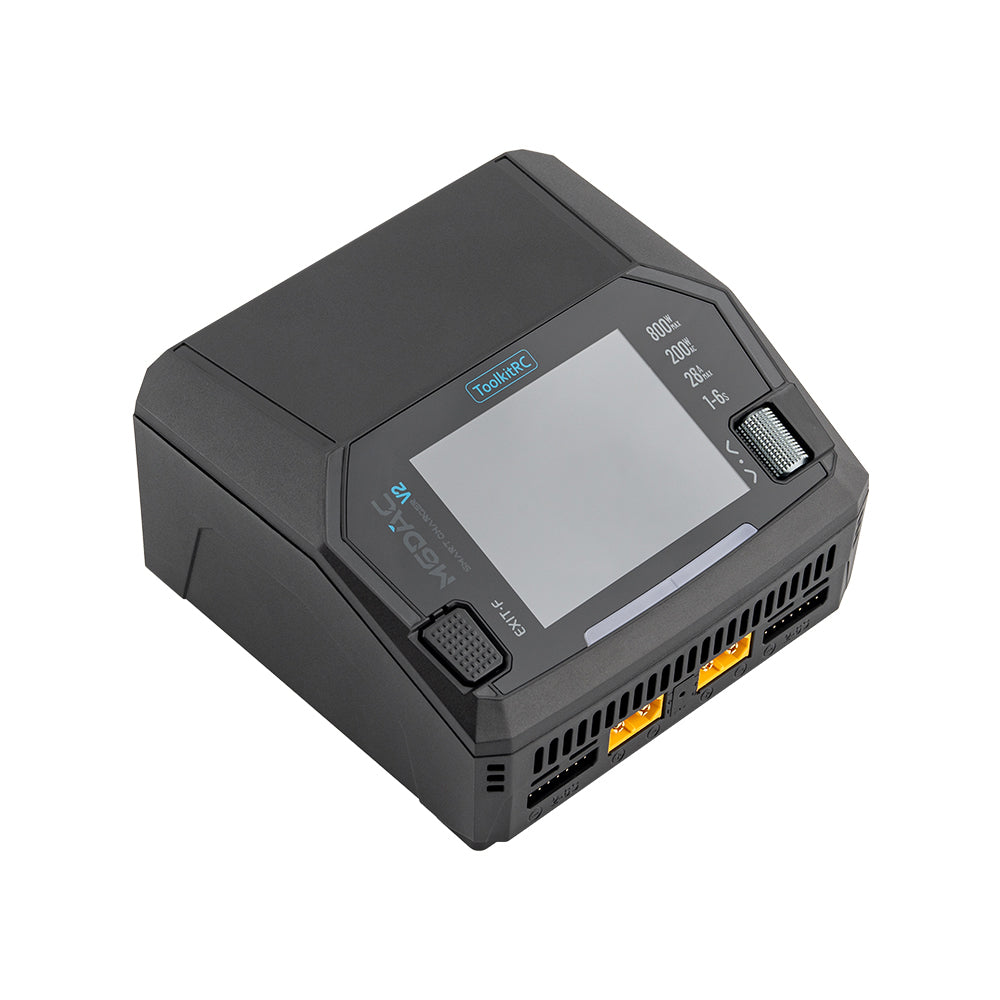

ToolkitRC M6DAC V2
Elevate your charging capabilities with the ToolkitRC M6DAC V2, delivering up to 800W power and dual 16A outputs. It supports a diverse array of battery types, including LiPo, LiHV, LiFe, LiIon, LTO, NiMH, and NiCd. Features include a 65W super-fast charging mode, a compact form factor, and a dynamic light strip. Benefit from intelligent dual output management, a sharp 2.8" IPS LCD, adaptive fan control, and extensive safety features, all designed to meet professional demands with precision and efficiency.
Package Includes:
1x ToolkitRC M6DAC V2
1x North American Power Cable
Specifications:
| Product size | 116×112×63mm |
| Product weight | 570g |
| Packing size | 164×135×68mm |
| Packaging weight | 700g |
| LCD | IPS 2.8” LCD 320×240px |
| Input voltage | AC 100-240V @MAX 220W |
| DC 7-28V@MAX 32A | |
| Type of battery | LiPo LiHV LiFe Lilon LTO @1-6S |
| NiMH @1-16S Pb@1-10S | |
| Balance current | 1000mA @2-6S |
| Balance accuracy | <0.005V |
| Charging power | 1.0-16.0A @ 400W/CH, 28A@700W SYNC |
| Discharging power | 1.0-16.0A @ 400W Bridge Discharge |
| 1.0-16.0A @ 400W/CH Recycling | |
| 0.1-3.0A @ 15W/CH Normal | |
| Power output | 0.5-16.0A @1.0-28.0V @400W /CH |
| TYPEC output | 65W MAX 20.0V 3.25A or Upgrade |
| USB protocol | PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0 |
| AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC |
