Sequre | ID:

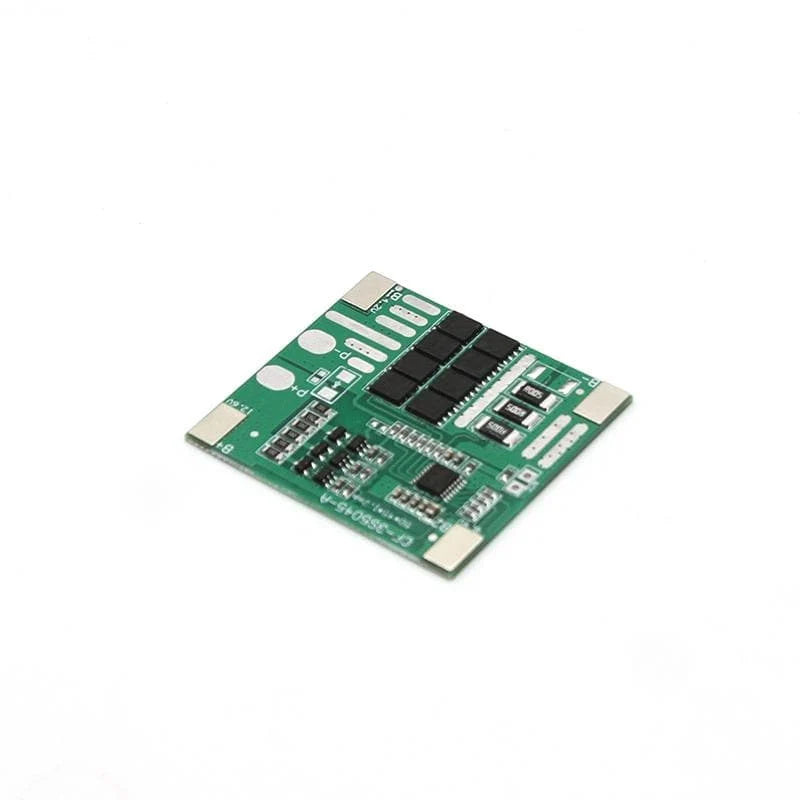

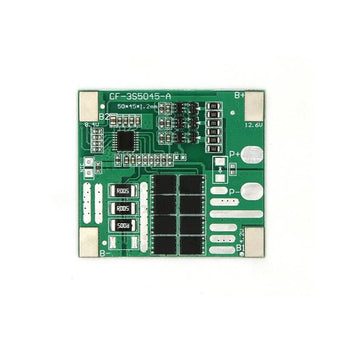

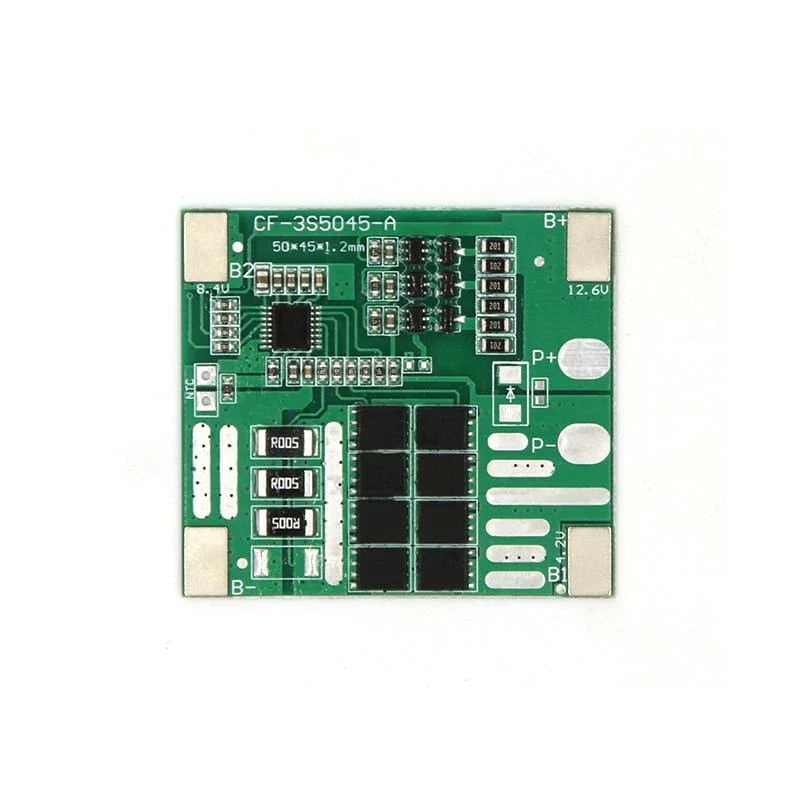

Sequre 3S 25A Lithium Battery 18650 Charger BMS
This Sequre BMS module is designed for use with Li-ion batteries such as the 18650.
Package Includes:
1x Sequre 3S 25A Lithium Battery 18650 Charger BMS
NOTE: Lithium batteries are inherently dangerous. In order to reduce accidents, please know the professional knowledge of this module before buying. Assemblers need to have professional operating knowledge and experience. Non-professionals should not use it without authorization.
| Specifications: | |
|
Overcharge protection |
Detection voltage：4.25±0.025V |
|
Detection delay：100±50ms |
|
|
Release voltage：4.15±0.05V |
|
|
Over discharge protection |
Detection voltage：2.7±0.1V |
|
Detection delay：100±50ms |
|
|
Release voltage：3.0±0.1V |
|
|
Balanced voltage |
Detection voltage：4.2±0.025V |
|
Detection delay：100±50ms |
|
|
Balanced voltage：42±5mA |
|
|
Discharge overcurrent protection |
Detection voltage：100mV |
|
Detection delay：1000±500ms |
|
|
Current protection：60±10A |
|
|
Short circuit protection |
Trigger condition: external short circuit |
|
Detection delay：300us |
|
|
Release condition: disconnect the load |
|
|
Temperature control protection |
Charging working temperature: can be customized |
|
Discharge working temperature: can be customized |
|
|
Release condition: recover within working temperature |
|
|
Self-consumption |
Work power consumption：≦35uA |
|
Sleep over discharge power consumption：≦10uA |
|
|
range of working temperature：-30/+80℃ |
|
