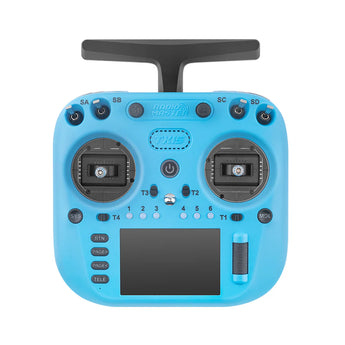

RadioMaster TX15 Radio Controller

RadioMaster sets a new standard in open-source remote controls with the TX15. Powered by the STM32 H7 chip, this controller delivers ultra-responsive EdgeTX operation, rapid model switching, and swift script execution. Its 4GB flash memory, expandable via MicroSD, offers ample space for models, scripts, sounds, and themes. Equipped with a LR1121 Semtech transceiver, it supports 2.4GHz and 900MHz ExpressLRS for extended range and minimal latency. Designed for demanding RF conditions, the TX15 includes a smart battery circuit for longer flight times and a foldable antenna for enhanced portability and signal strength. The integrated gyro with TiltX/TiltY enables advanced controls like switch activation and camera panning through simple tilts. A 3.5-inch IPS touchscreen with 262k colors and 600 nits brightness ensures clear visibility even in sunlight. Featuring V5.0 hall sensor gimbals in six colors, advanced cooling, USB-C charging, SIM connectivity, firmware updates, and customizable shoulder switches, the TX15 offers professional-grade reliability and versatility. For those seeking more, the TX15 MAX provides premium enhancements.

Package Includes:

1x TX15 Radio Controller (ELRS 2.4G/FCC)

1x Signature Carry Case

1x Short 2-position Latching Shoulder Toggle Switch Assembly

1x Short 2-position Momentary Shoulder Toggle Switch Assembly

1x 18650 Battery Tray

1x USB-C Cable

1x Screen Protector

1x 1.5mm Hex Wrench

4x High Tension Gimbals Springs

2x Gimbal Stick Set Screw

1x Stickers Set

1x User Manual

1x Inventory Card

Features:

• Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
• Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: V5.0 Hall sensor gimbals
• Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
• Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
• Foldable Antenna: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Interchangeable Shoulder Switches: Customize your controls to match your flying style.
• Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink

Specifications:

Item: TX15 Radio Controller

Size: 178*168*81mm

Weight: 605g (without battery)

Frequency: 2.400GHz OR Sub-G 900MHz

Internal RF: ELRS 2.4GHz / Sub-G 900MHz

Supported Protocols: Express-LRS

Cooling Fan: Yes

Transmitter Module: Built-in ELRS

Built-in Flash Size: 4GB

Built-in Microphone: Yes (Future expansion)

Built-in Gyro: Yes (ICM-42607-C)

MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)

Antenna Gain: 2dB (transmit power adjustable)

Current: 875mA at max power output

Voltage Range: 6.6 - 8.4V DC

Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)

Module Firmware: ExpressLRS

Channels: Max 16 channels (Receiver dependent)

Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

Connectivity: USB-C

Gimbals: V5.0 Hall sensor gimbals (standard)

Gimbal Sticks: M4

Upgrade Method: USB-C (UF2)

Module Bay: JR-compatible module bay for additional modules
