Holybro | ID: J-R1-38

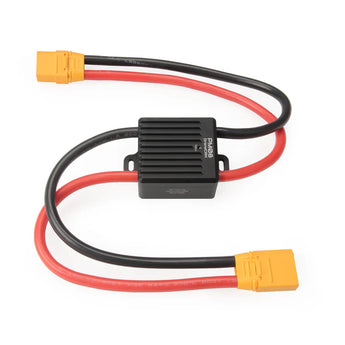

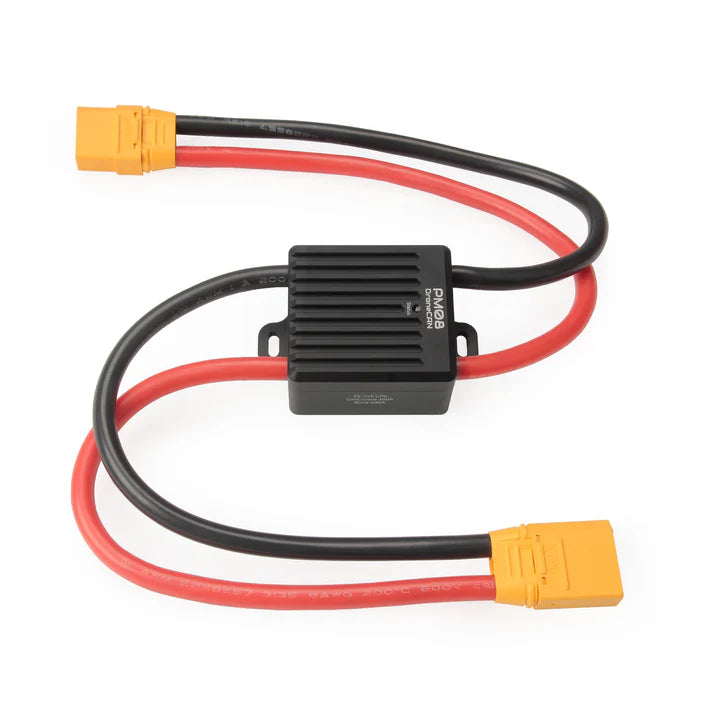

Holybro PM08-CAN Power Module 14S, 200A
Features:
- Supports 2-14S & 200A Cont, 400A Burst
- DroneCAN Communication Protocol
- Small & Compact Design
- Two 5V Outputs with Independent BEC IC and Circuitry
- Separated Sensor and BEC Board to Minimize Electrical Noise Interference
- Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
- High Accuracy Temperature Sensor for Temperature Monitor
-
High-Efficiency Aluminum Heat Dissipation Shell
- Software toggle for CAN termination resistance
Specifications:
Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Burst current
400A @ 25℃ 1 sec
1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Wire gauge: 8 AWG (high-strand silicon-insulated)
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature:-25℃~85℃
Software-Controlled CAN Termination
Firmware upgrade: Support
Calibration: Support
Pinout:
Interface Type:
- Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
-
Battery IN/OUT Options:
- XT90 Connectors
- Tinned Wires
- XT90 & Ring Terminals
Status LED
- Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flashed
- Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
- Flashing slowly (one-second intervals): CAN is successfully connected
Mechanical Spec
- Size: 45mm×41mm×26mm (Not Include Cable)
- Weight: 185g (Include Cable)
