HappyModel | ID: E-R1-6

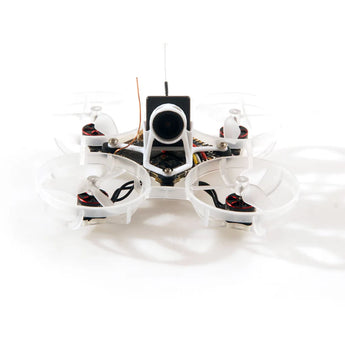

Happymodel Mobula6 Freestyle (HDZero)
This Mobula6 Freestyle comes equipped with the amazing HDZero system, letting you fly FPV in much higher quality than analog!
Item may vary from pictures
Package Includes:
1x Mobula6 Freestyle (HDZero Edition)
1x Propeller Set
1x Hardware Packet
Motor Specifications:
Mode: SE0702 KV28000
Configuration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.49g
Cells(Lipo):1S only
Propeller Specifications:
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm
Flight controller Specifications:
SuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
ESC Specifications:
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
RX Specifications:
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
VTX Specifications:
Composite HD Video interface
1S Input
25mW/200mW RF output
25.5×25.2 M2 soft mounting
Antenna Retention
32.4×32.5mm (29x29mm inner)
4.5grames/4mm Thickness (w/o shielding)
Camera Specifications:
Image Sensor : 1/3”
Resolution: 720@60fps 4:3
LENS: FOV D:150° H:120° V:98°
Shutter: Rolling Shutter
Net Weight: 1.6g (With Cable)
Dimensions: L14mm*W14mm*H13mm
