Flywoo | ID: L-R2-42

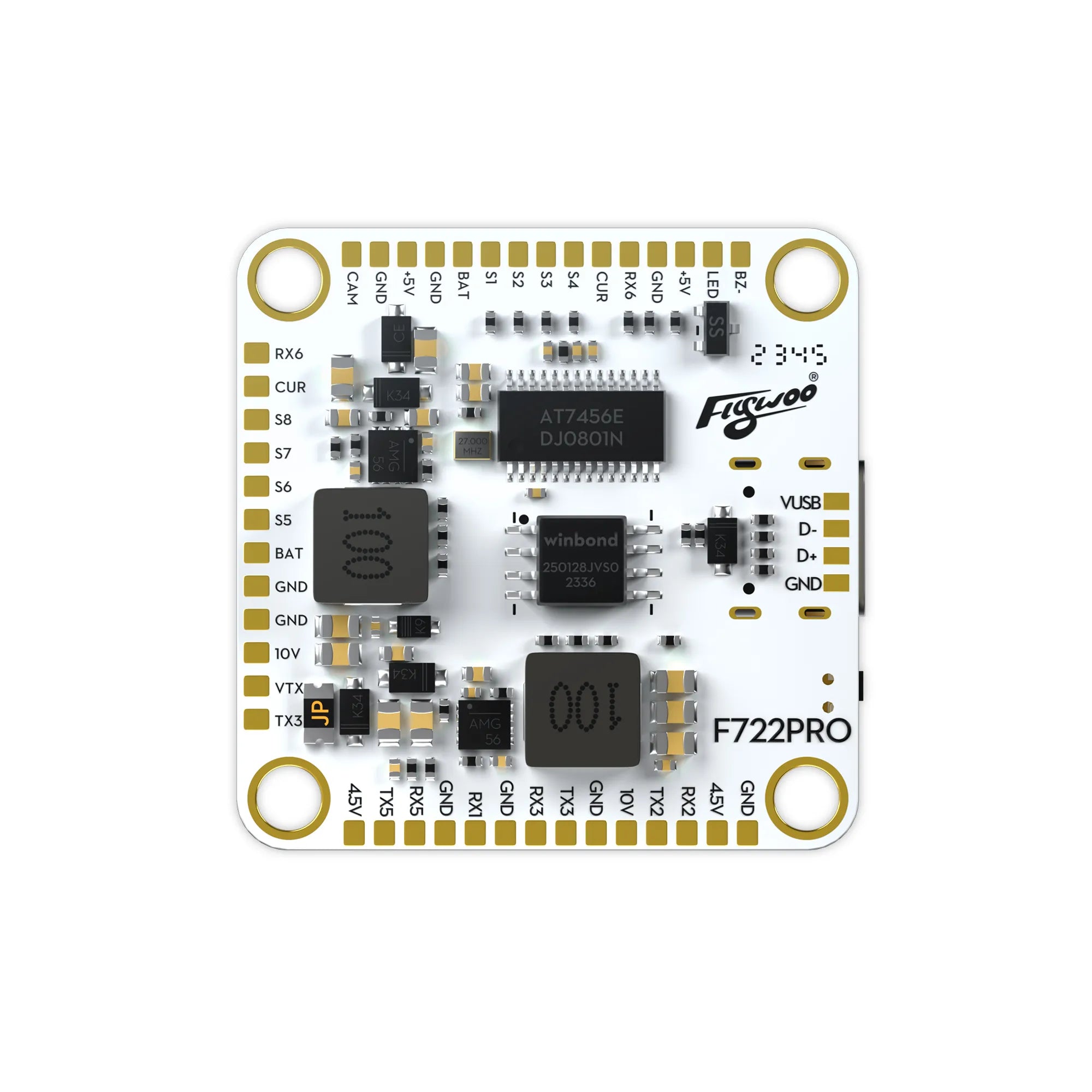

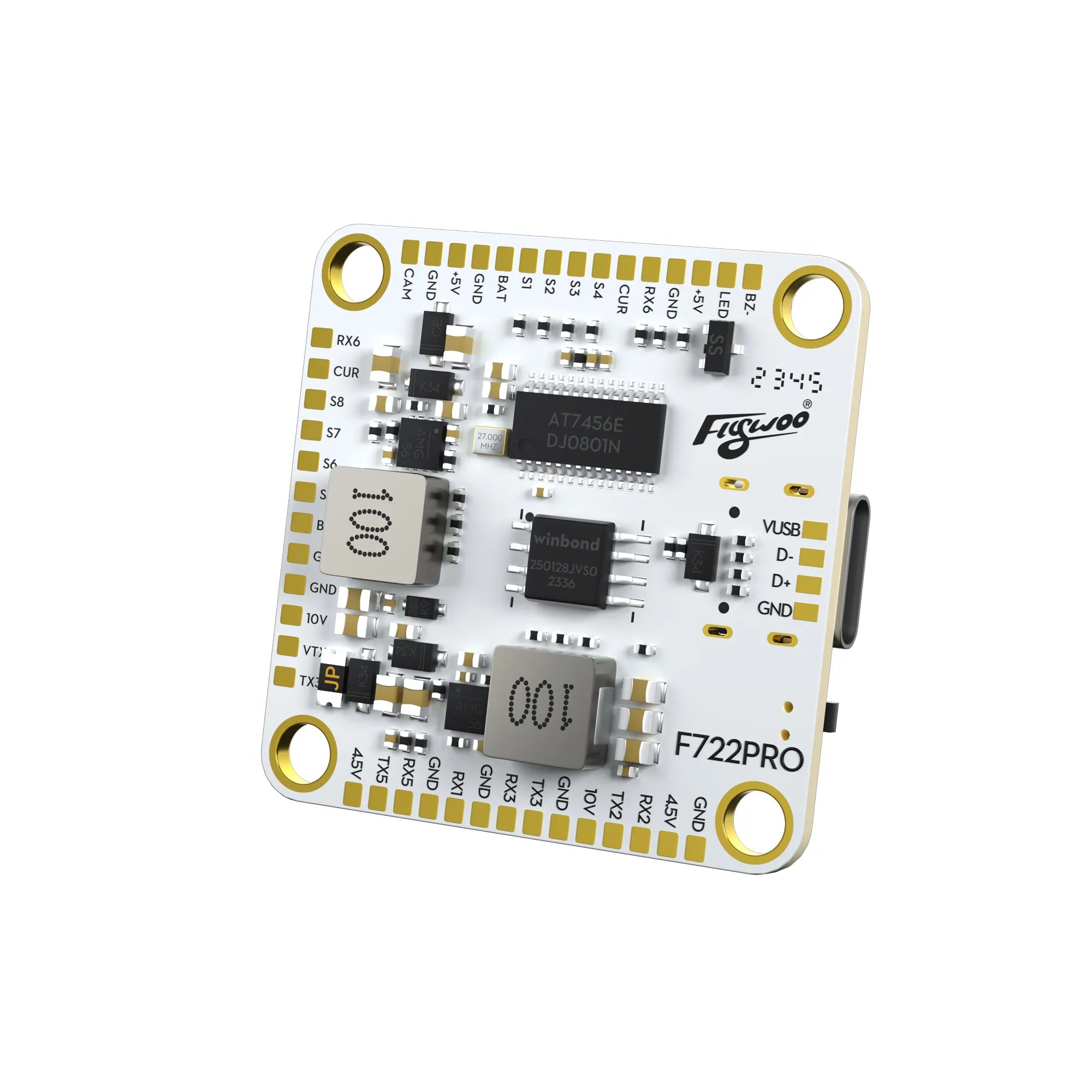

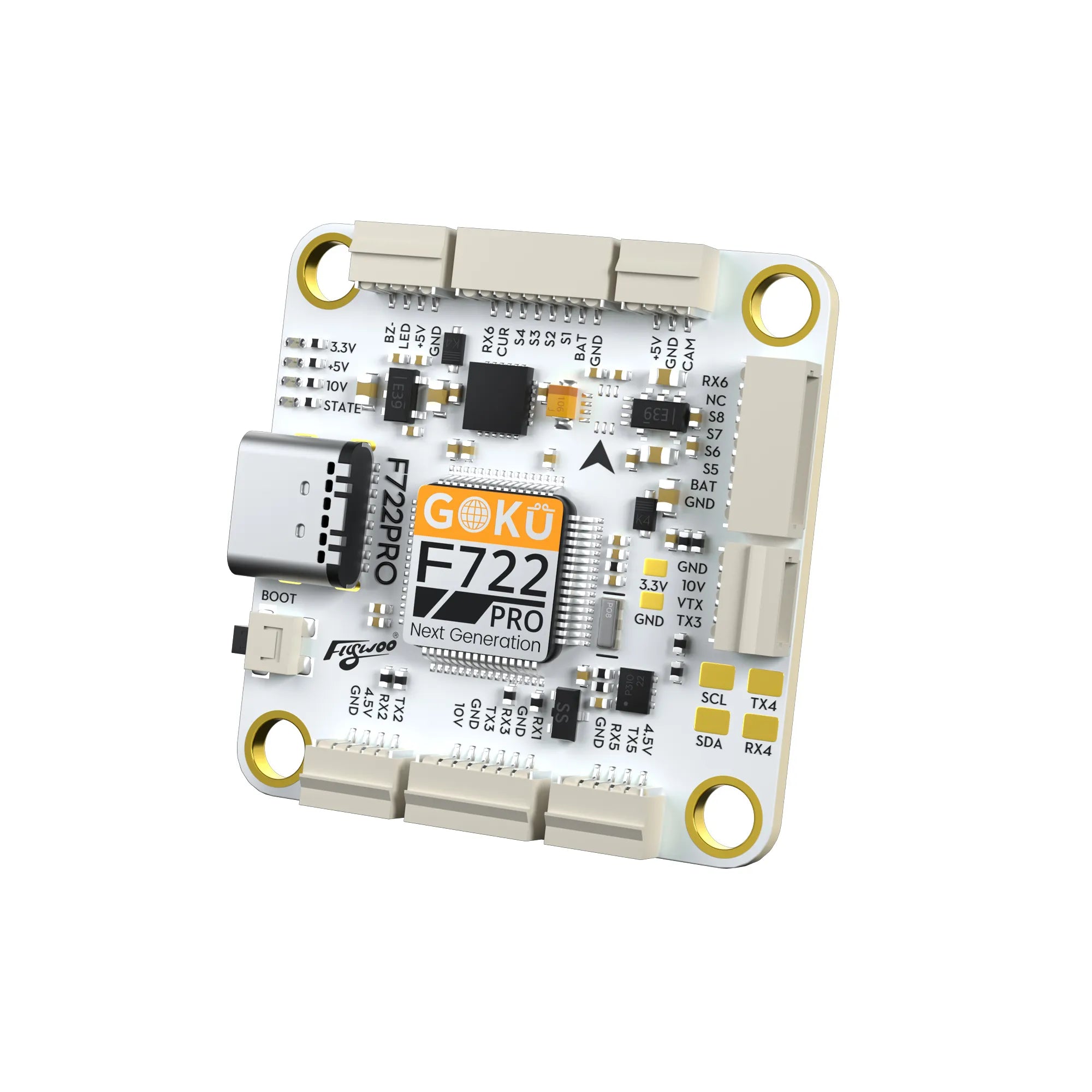

GOKU F722 PRO V2 30X30 Flight Controller O4/O4 Pro Plug N Play (ICM42688)
The new generation F722PRO flight controller from FLYWOO not only offers a standard 30.5mm size, high-performance STM32 F722 main control, and MPU6000 \ ICM42688 gyroscope, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.
It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.
Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.
Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI's advanced digital transmission system with their builds.
Package Includes:
1x FC&ESC Connection Cable
1x Buzzer Connection Cable
1x GPS Connection Cable
1x DJI O3 Connection Cable
1x Receiver Connecton Cable
4x M3 Shock-Absorbing Ball
7x M3 Rubber Ring
1x Analog VTX Connection cable
1x Camera Connection Cable
Highlights：
-
High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
-
Precision gyroscope: Features the MPU6000 \ ICM42688 gyroscope for improved control precision and enhanced flight stability.
-
Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
-
Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
-
Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.
-
Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
-
Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
Specifications：
- Product Name: GOKU F722PRO
- BF Flight Controller Firmware: FLYWOO F722PRO
- INAV Firmware: FLYWOO F7
- MCU: STM32F722
- Gyroscope: MPU6000 \ ICM42688
- OSD: AT7456E
- Barometer: DPS310 / SPL06
- Black Box: 16MB
- UARTS: 1/2/3/4/5/6
- Input Voltage: 7.4V-26V/2-6S LiPo
- BEC: 10V3A/5V3A
- Flight Controller Size: 37mm x 37mm x 8mm
- Mounting Holes: M3 30x30mm

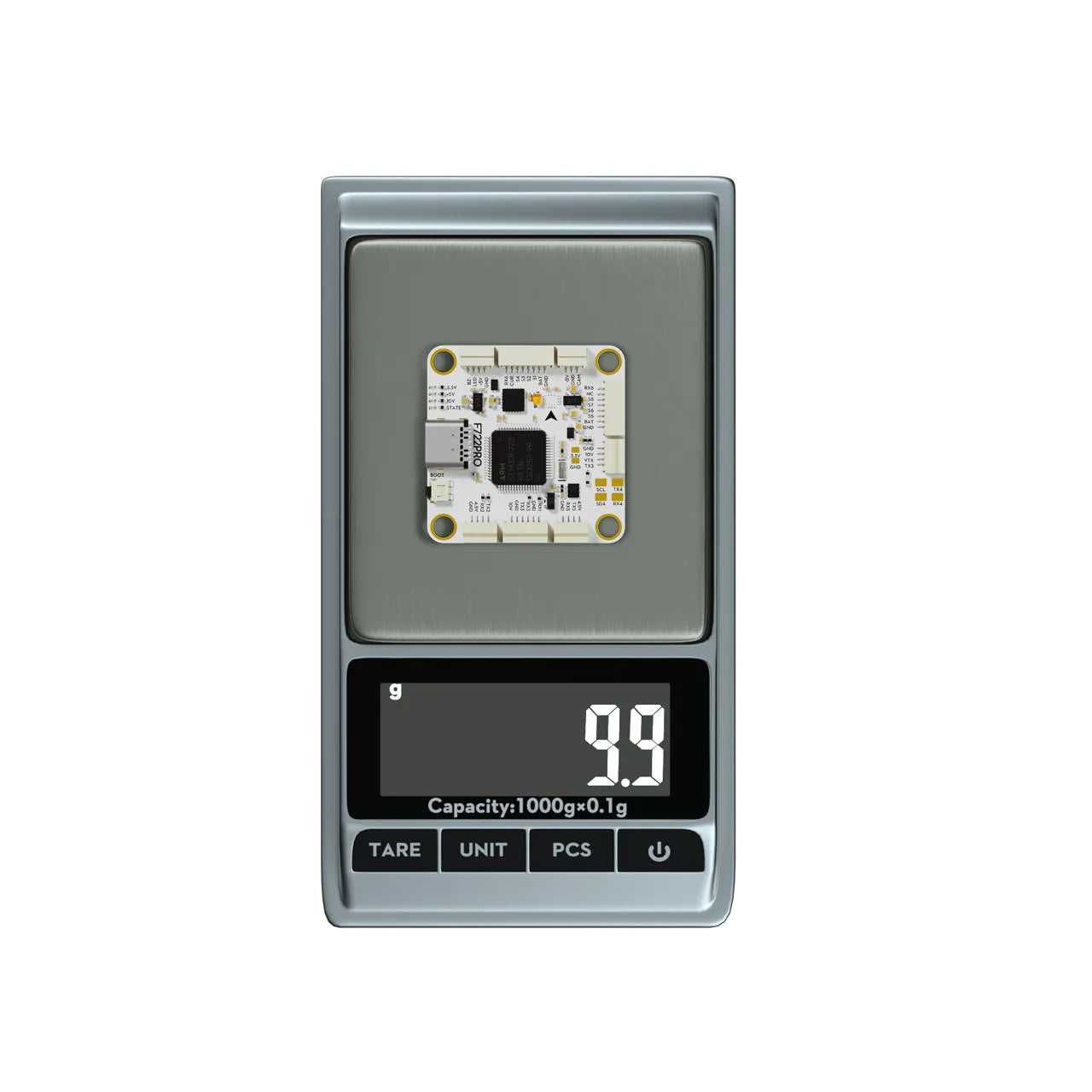

- Weight: 9.9g
