GEP-F22-35A AIO

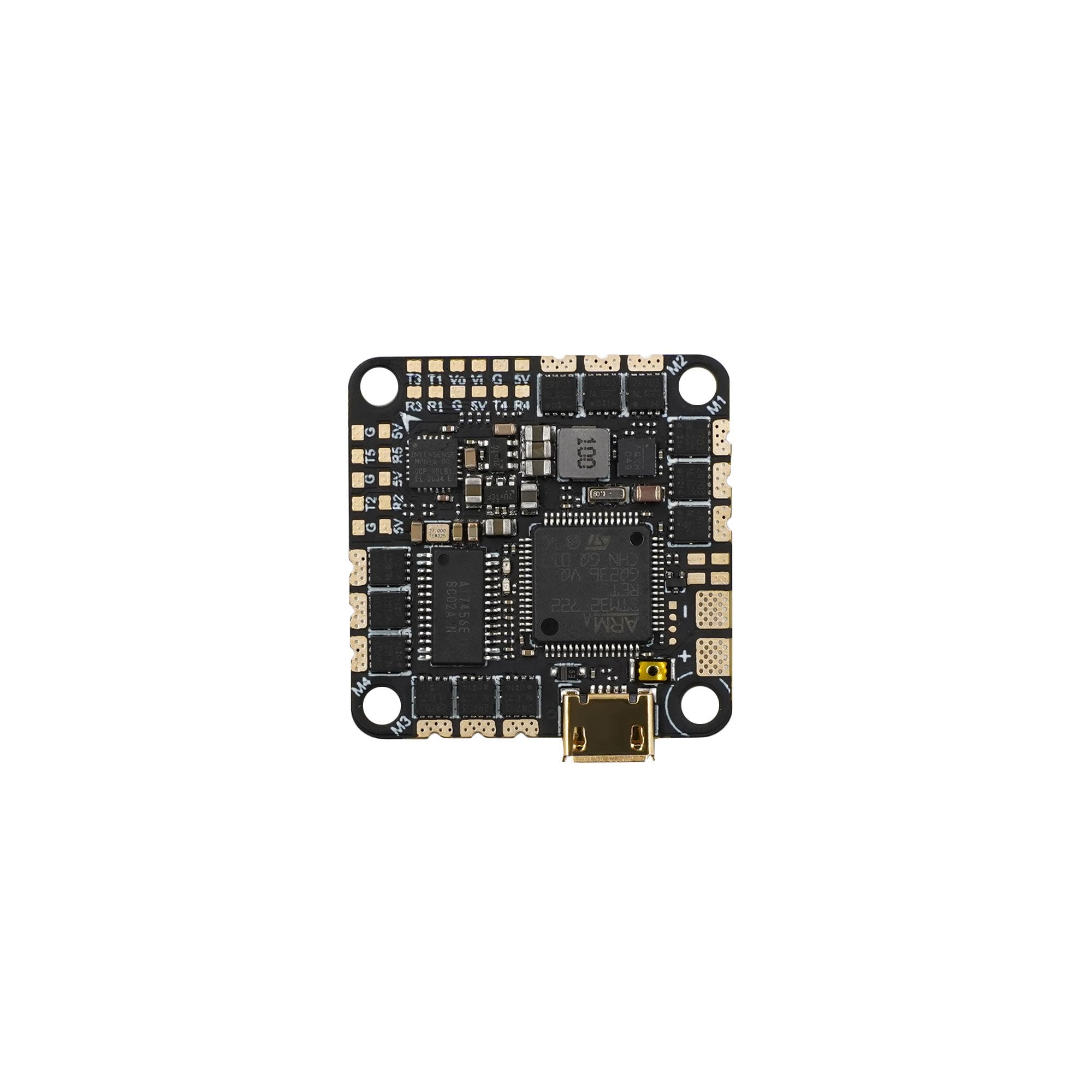

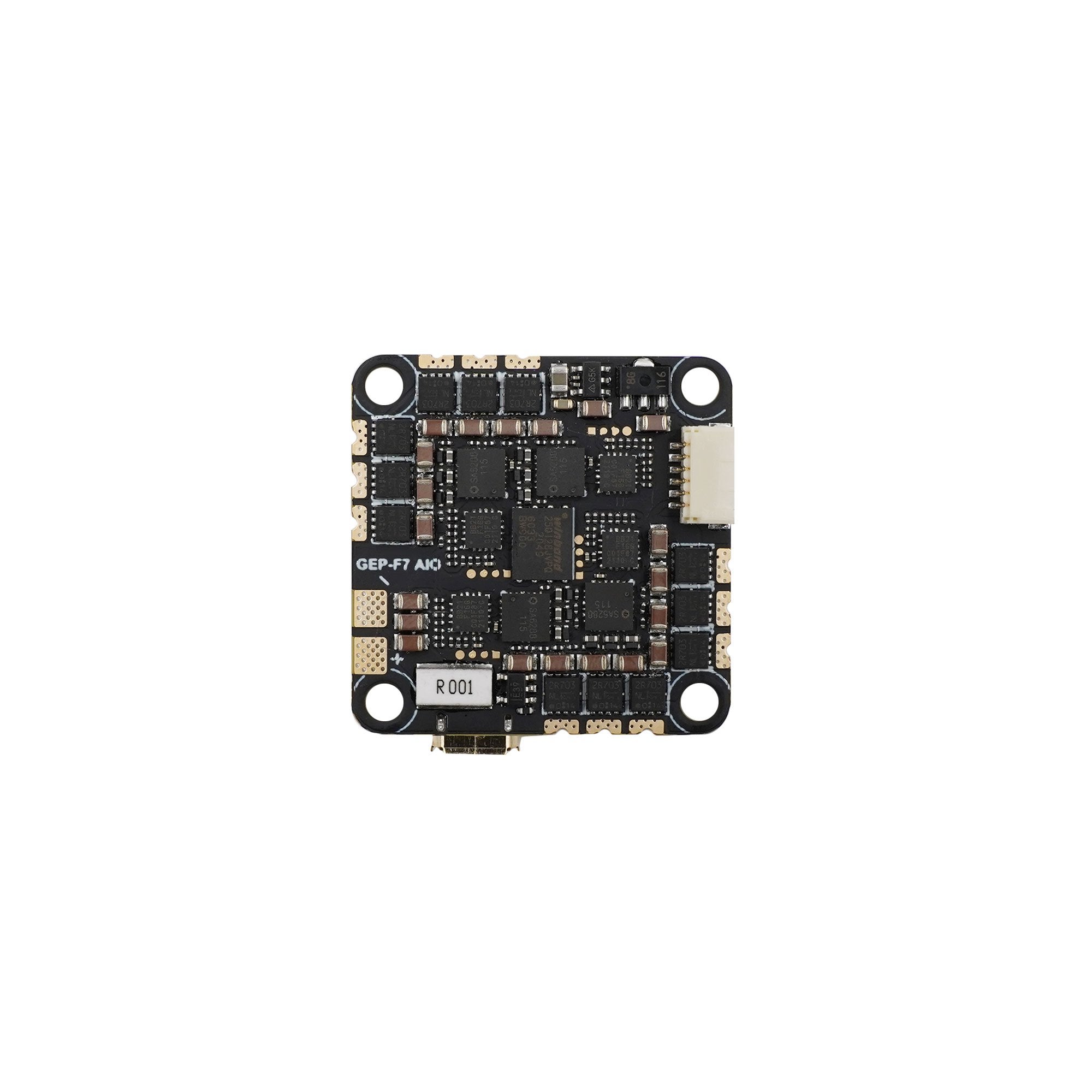

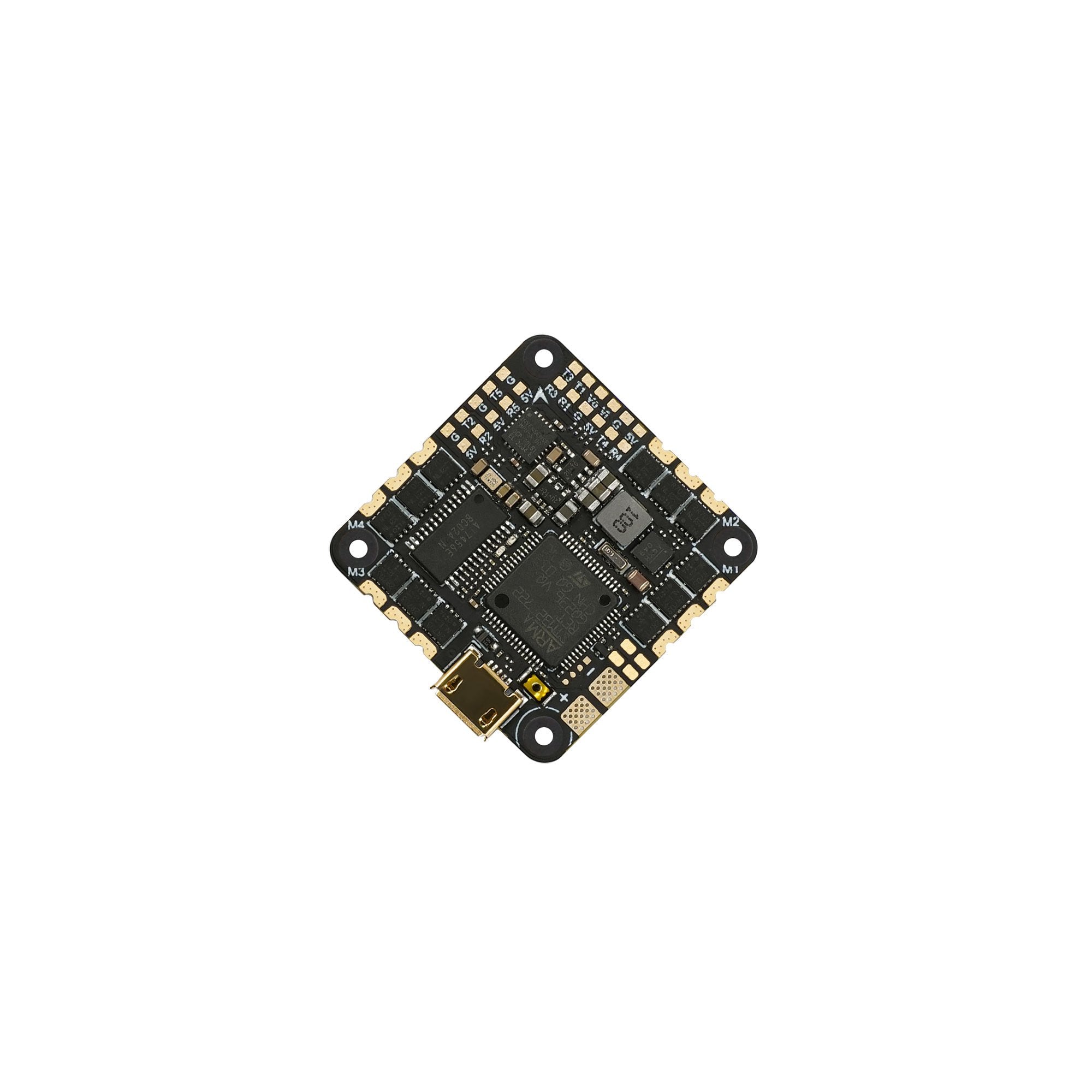

GEPRC F722 35A AIO

The GEPRC F722 AIO is equipped with an F722 FC and 35A 2S-6S BLS ESC. This AIO stack adopts MCU STM32F722, which gives a powerful performance and higher computing speed. It features 5 full UART ports and can connect more external devices. GEPRC designed a 6-pin connector for the DJI Air Unit, just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current (40A burst), supports 2-6S lipo batteries, brings the drone a stronger flight performance. Support OSD parameter adjustment, buzzer, led, and other functions. It is 8.8g ultra-lightweight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market!

FEATURES

• MCU: STM32F722, with strong performance and higher computing speed.
• It has 5 full UART ports, which connect more external devices
• 3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play.
• The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
• Support OSD parameter adjustment, buzzer, led, and other functions.
• 8.8g ultra-lightweight
• 26.5mm * 26.5mm mounting hole, suitable for most frames

SPECIFICATIONS

• Model Name:GEP-F722-35A AIO
• MCU:STM32F722
• IMU:ICM 42688 gyro/accelerometer(SPI)
• Firmware target:GEPRC_F722_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper: YES
• LED:YES
• USB: Micro USB
• BEC output:5V@1A
• Integrated LC Filter
• ESC MCU:8BB21F16G
• Continuous current:35A
• MAX current:40A (10s)
• Input:2~6S
• Supports:Dshot600,Oneshot,Multishot
• BlackBox: 16Mb
• Traget:G_H_30
• Size:32x32mm Board
• Installing Hole: 26.5×26.5mm, M2
• Weight: 8.8g

PACKAGE CONTENTS

• 1 x GEP-F7-35A AIO
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitance
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping ring

MANUAL

• F722-35A AIO USER MANUAL
