Flywoo | ID: B-R2-35

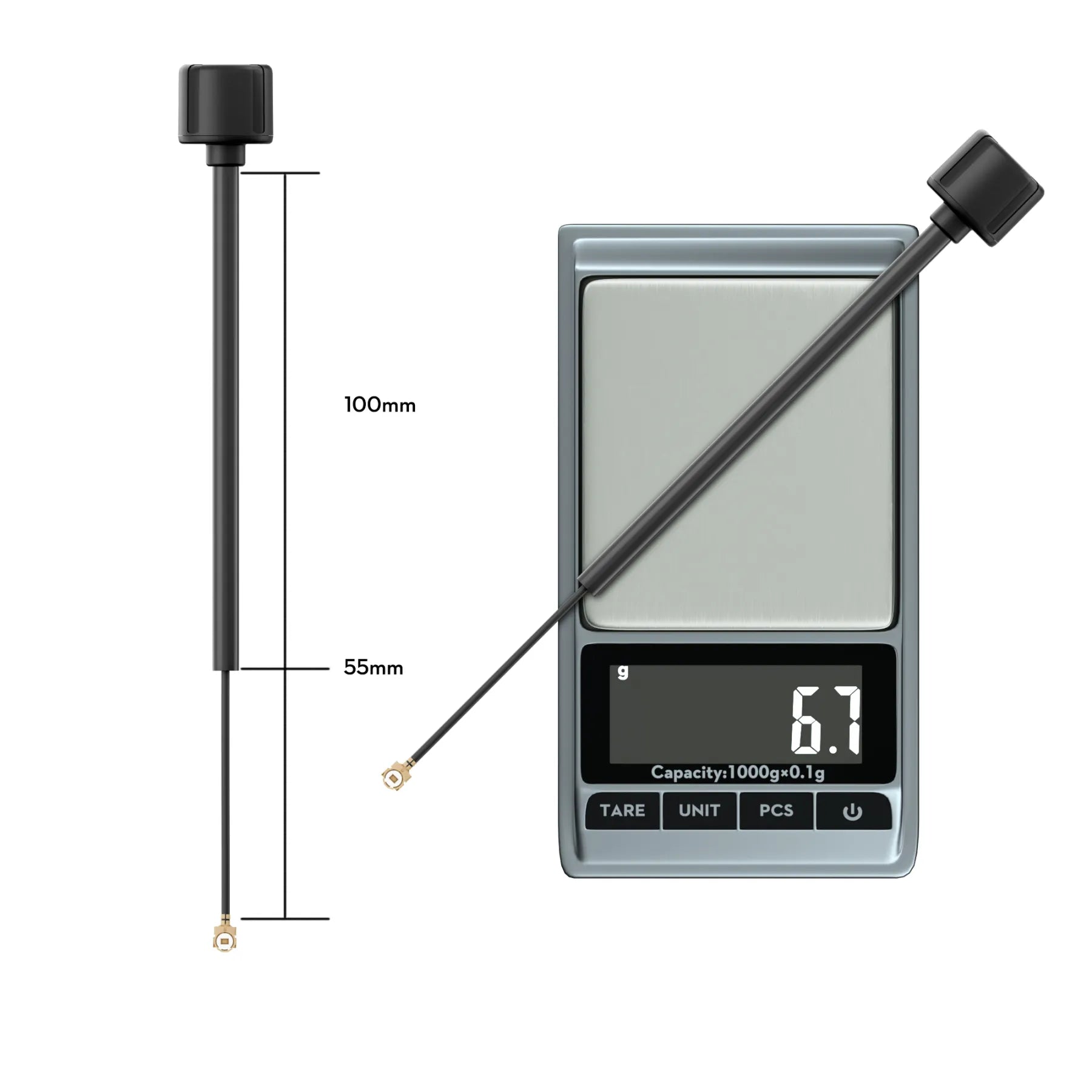

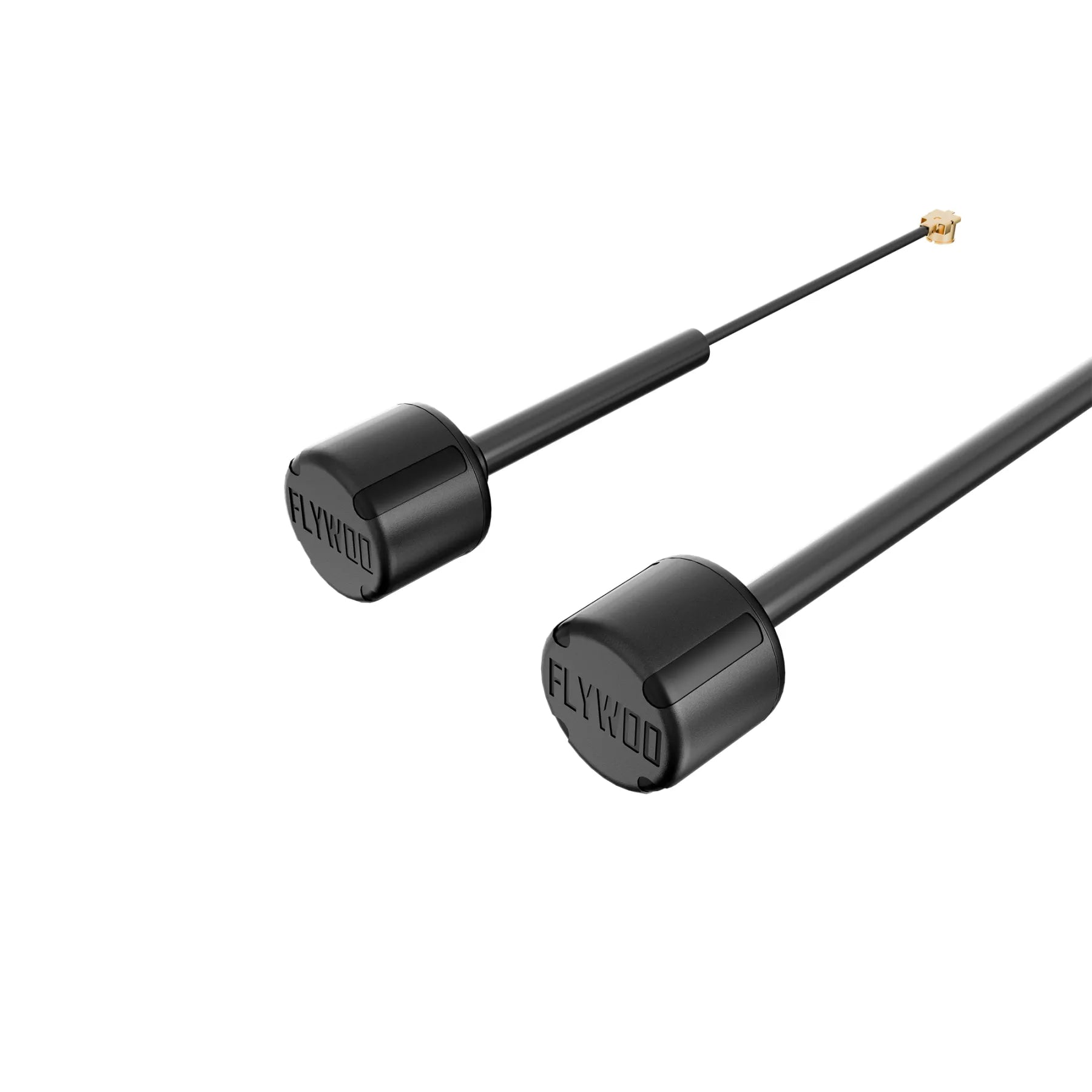

Flywoo LDS UFL 170mm (100mm+55mm) LHCP Antenna
Built for aggressive FPV flights: This LDS-integrated 5.8G circularly polarized antenna fixes the pain points of traditional FPC \ Cloverleaf antennas (easy breakage, glitchy signals) with a rigid, crash-resistant build. Pair that with a stable omnidirectional signal and compact, lightweight design—it’s perfect for freestyle/racing drones in high-intensity flying scenarios.
Package Includes:
1x Flywoo LDS UFL 170mm (100mm+55mm) LHCP Antenna
Features:
- LDS Rigid & Durable: Laser-structured circuitry + hard plastic carrier (all-in-one build) – anti-crash, anti-bend
- The advanced LDS structure effectively minimizes transmission loss.
Specifications:
- Specifications
- Bandwidth：5.3GHz～6GHz
- Polarization: LHCP
- Gain: 1.8dBi
- SWR: ≤1.35
- Radiation Efficiency: 85%
- Cross Polarization Suppression: -30dB
- Antenna Design: LDS
- Shell Material: ABS
- Antenna housing diameter： 15mm
