Flywoo | ID:

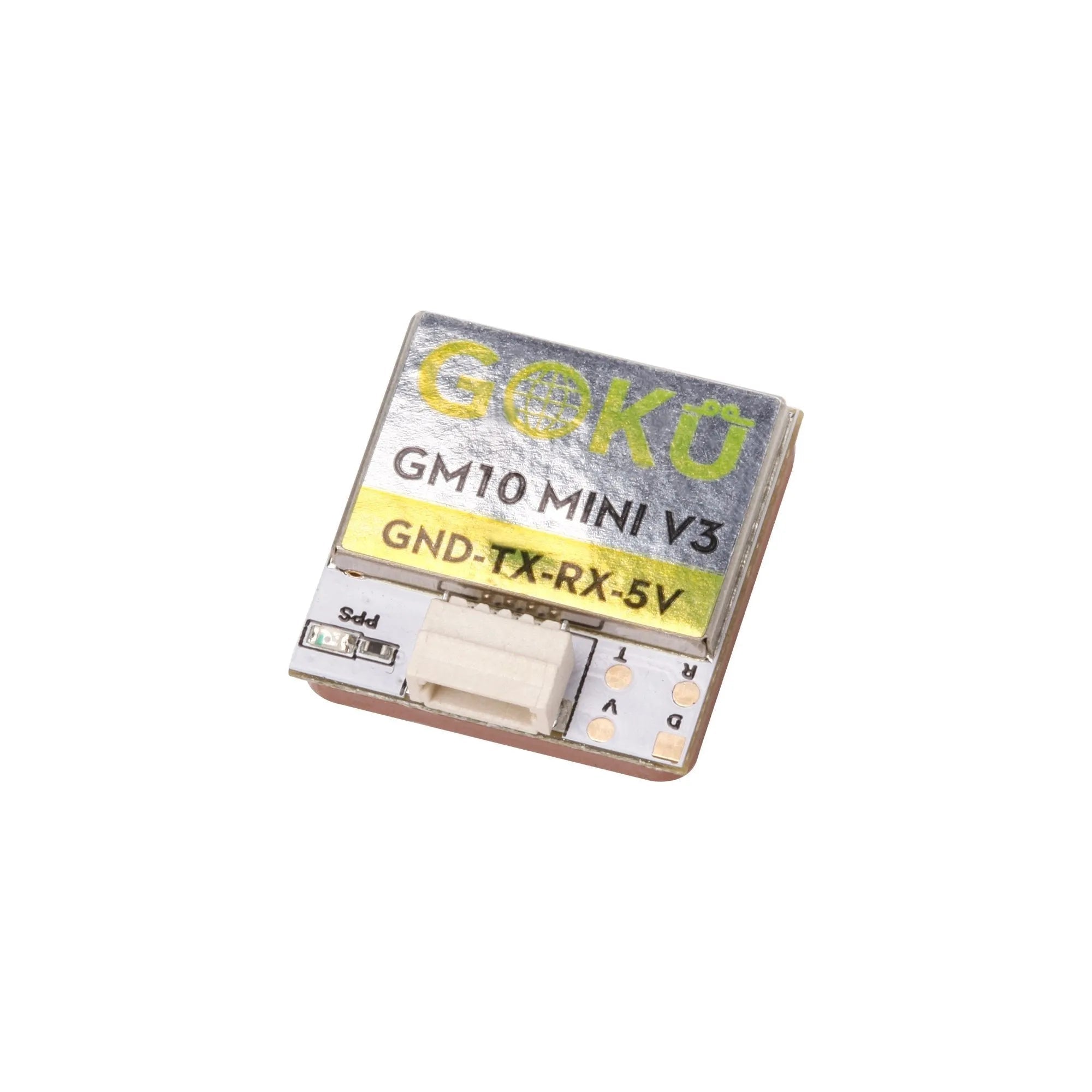

Flywoo GOKU GM10 Mini V3 GPS
GOKU GM10 V3 GPS series is here! Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

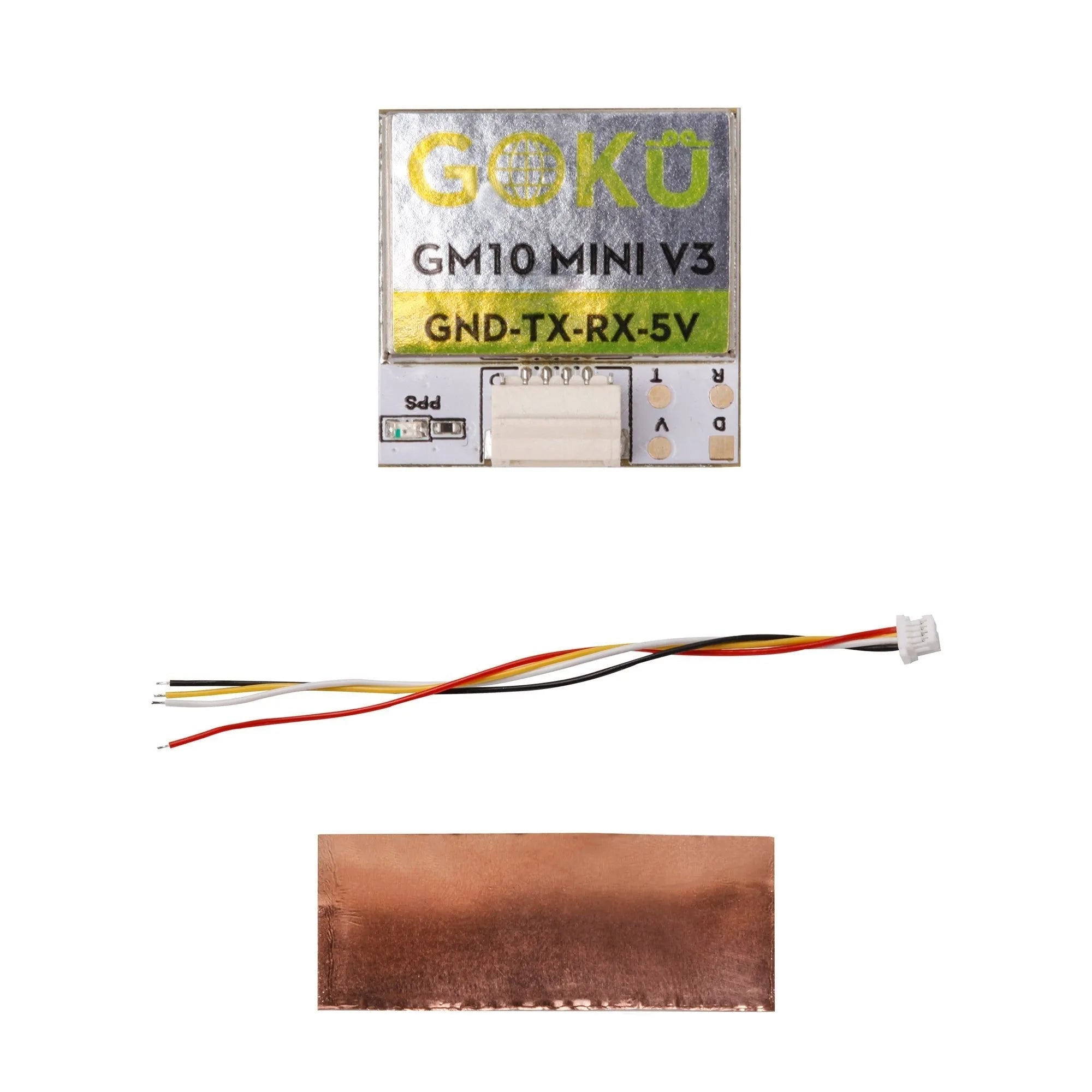

Package Includes:
1x GM10 MINI V3 GPS
1x 100mm Cable
1x Copper Foil
NOTE: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
BETAFLIGHT: Use firmware above 4.3.0
INAV: Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
Specifications:
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity:
Tracking : -162dBm
Reacquisition : -160dBm
upport Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage ：5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator:
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

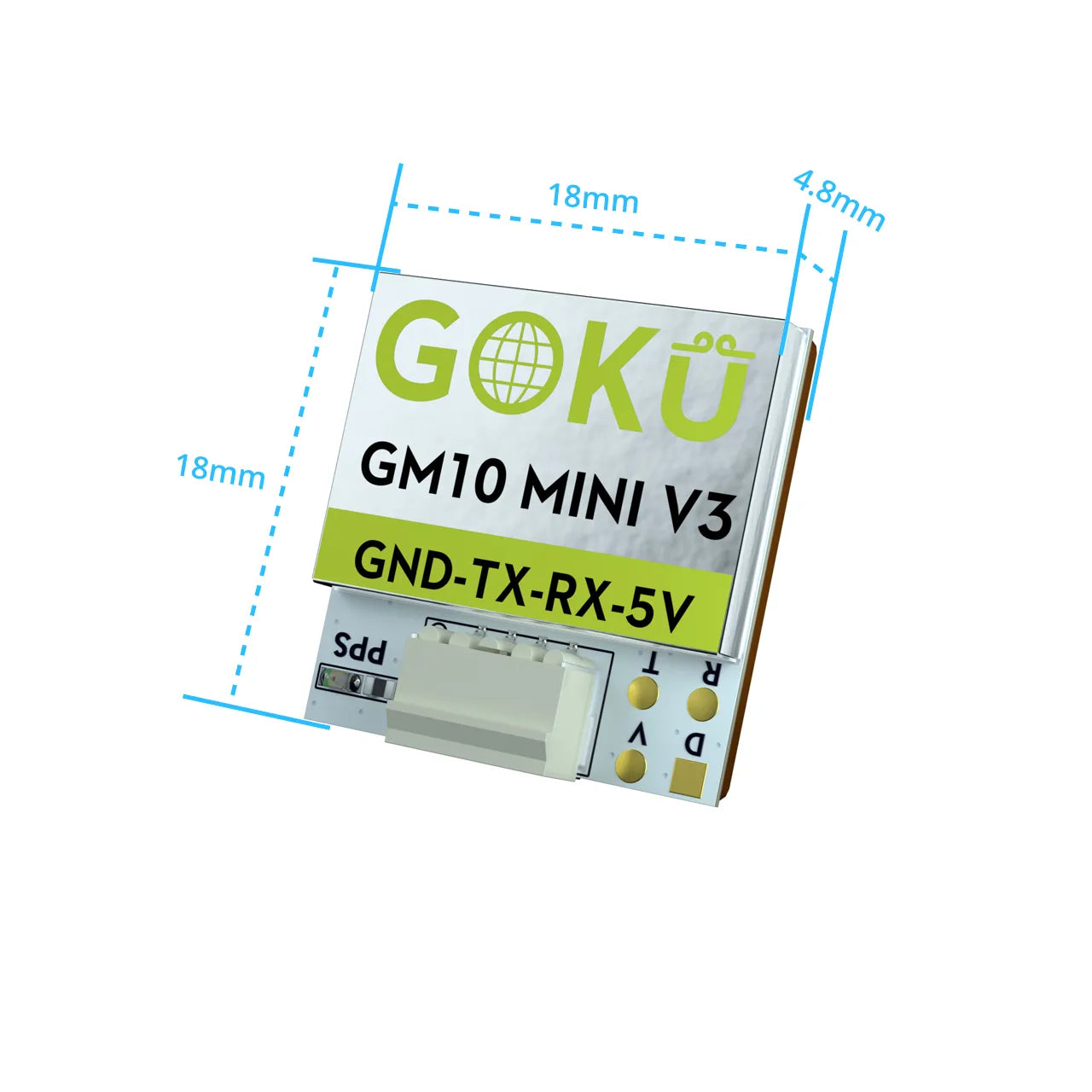

The Module’s Pins: GND TX RX 5V
