Flywoo DJI O4 Wide Air Unit Set (I469D)

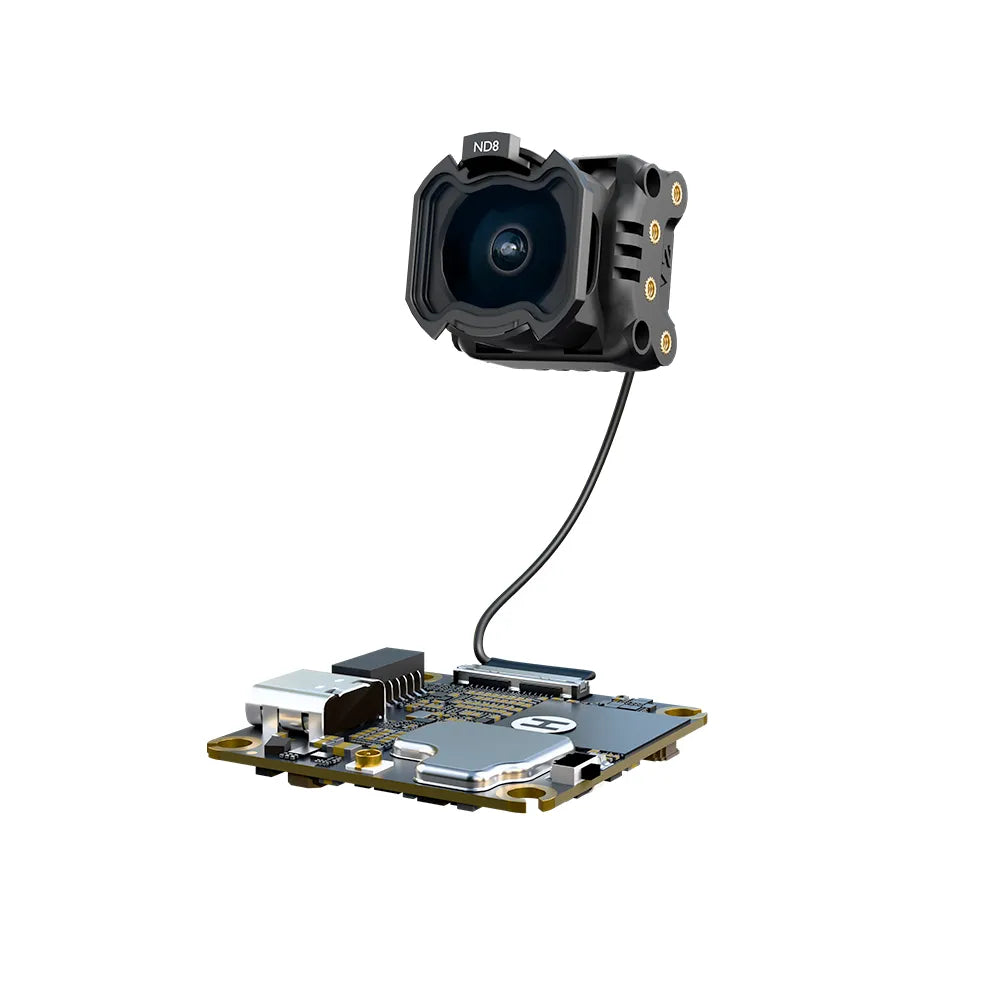

DJI O4 WIDE Air Unit is the wide-angle version of the standard O4 Air Unit. Only the lens changes: the original 117.6 degree wide-angle lens is upgraded to a 159 degree ultra-wide FOV lens, while transmission performance, recording specs, body weight, built-in storage, and core specifications stay the same as the standard version.

At just 13g including the camera, it is built for 2-inch and smaller micro FPV drones. The 1/2-inch CMOS sensor records up to 4K/60fps, and the 159 degree ultra-wide field of view helps reduce blind spots in tight indoor spaces, gap flying, and close-range freestyle.

Powered by O4 digital transmission, it supports latency as low as 20ms and up to 10km range under FCC standards. H.265 encoding keeps 1080p/100fps live view crisp, while Racing mode supports up to 8 pilots at the same time. Canvas Mode, customizable OSD, 23GB built-in storage, and a 30 x 30 mm mounting footprint make it flexible for cinewhoops, micro freestyle builds, and creative FPV setups.

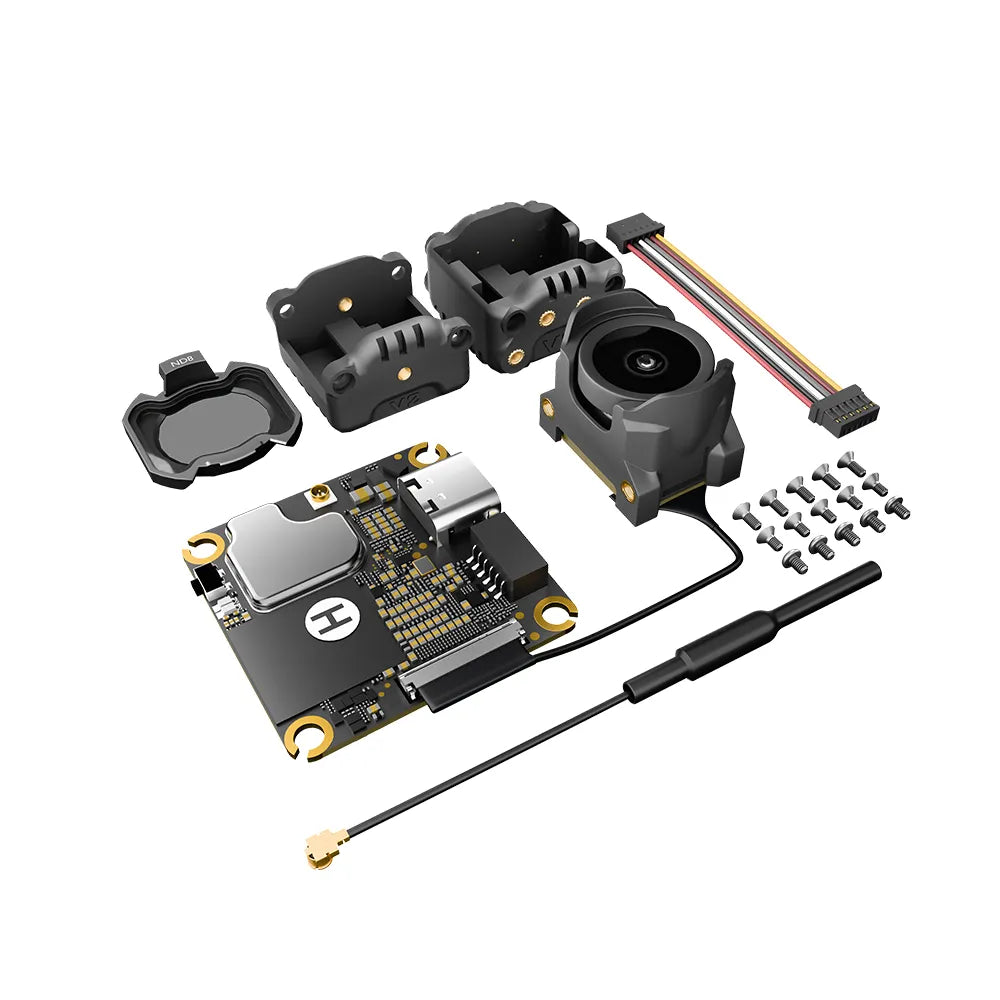

Package Includes:

1× O4 Wide Air Unit

1× O4 Wide UV V2

1× 18mm Camera Shell

1× 20mm Camera Shell

1× 50mm coaxial cable

1× O4 Antenna

1× 6-Pin Wire Harness 5cm

5× M2×3 Cross Head Screws5× M2×4 Cross Head Screws

5× M2×3 Round Head Screws

Feautres:

• 10km O4 HD Digital Transmission: Same transmission performance as the standard O4 Air Unit, with up to 10km stable range under FCC standards and H.265 encoding for smooth 1080p/100fps live view.
• 20ms Low-Latency Racing Mode: Racing mode reduces latency to as low as 20ms and supports up to 8 aircraft racing simultaneously for responsive stick input.
• 1/2-inch Sensor + 159 Degree Ultra-Wide Imaging: The 1/2-inch CMOS sensor records 4K/60fps video, while the 159 degree ultra-wide FOV reduces blind spots for indoor gaps and close-range freestyle.
• 13g Lightweight + 23GB Built-in Storage: 13g total weight including camera, made for 2-inch and smaller micro frames, with 23GB onboard storage and no extra SD card required.
• Canvas Mode Custom OSD: Canvas Mode and Betaflight OSD support let pilots arrange flight data freely on the goggles display.

Specifications:
