Benewake  |  ID: L-R6-36

Benewake TFS20-L LiDAR Module

$62.99
Frais d'expédition calculés à l'étape de paiement.

10 exemplaires disponibles
BW-1005

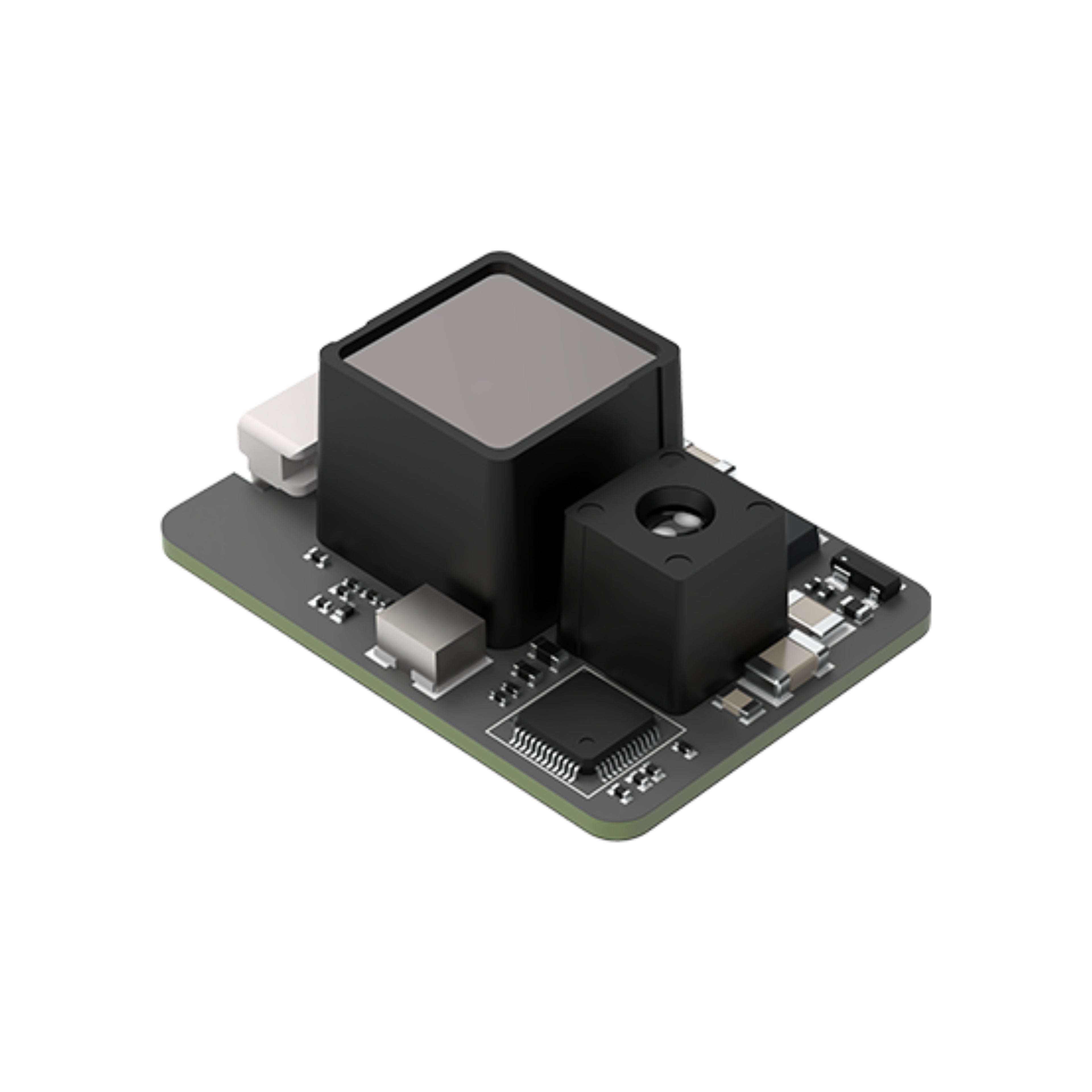

The TFS20-L is a compact single-point LiDAR module featuring an integrated single-channel dToF ranging system with an infrared-enhanced SPAD sensor capable of measuring distances up to 20 meters. It employs a fully integrated SPAD chip, advanced histogram statistical algorithms, and a rapid TDC architecture to deliver precise distance measurements. The module also provides strong sunlight resistance of 15 meters at 100 KLux and includes a reflectivity correction function for enhanced accuracy.

Package Includes:

1x TFS20-L UART

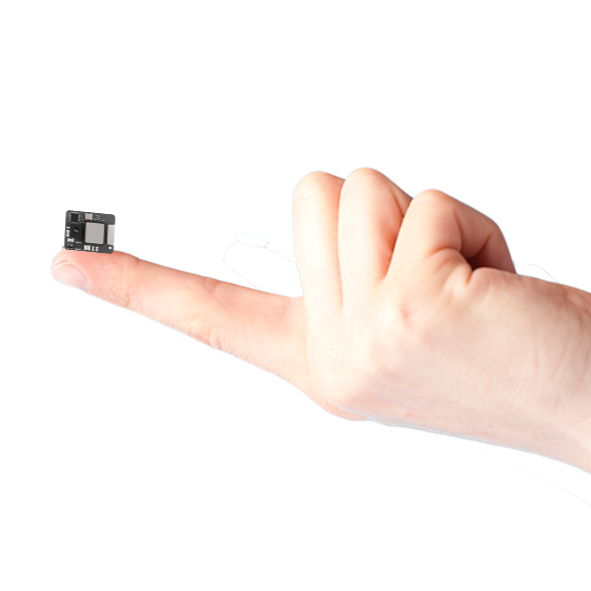

Compact size, High performance

With a compact size, lightweight design, accurate and long-range measurement capabilities, and excellent distance measurement performance even under strong ambient light, it is an excellent choice for miniature dToF applications.

Feature-rich, Diverse applications

The TFS20-L integrated power module operates on a single 3.3 V power supply and features built-in temperature compensation. It supports I²C and UART interfaces, making it easy to integrate and use. With its compact and reliable optical packaging, it is suitable for a wide range of applications, including consumer drones, service robots, and the Internet of Things.
