SpeedyBee | ID:

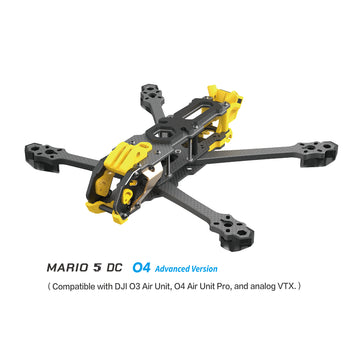

SpeedyBee Mario 5 Frame O4 Series
The Mario5 from SpeedyBee has been reborn with DJI O4 Pro support! Take to the skies with this rugged airframe.
Package Includes:
1x Frame Kit
Specifications:
| Model | SpeedyBee Mario 5 Frame |
| Mario 5 DC Wheelbase | 227mm |
| Mario 5 DC Weight | 129 ±5g (3D Printed Parts Excluded) |
| 170 ±5g (3D Printed Parts and Injection) | |
| Mario 5 XH Wheelbase | 226mm |
| Mario 5 XH Weight | 126 ±5g (3D Printed Parts Excluded) |
| 167±5g (3D Printed Parts and Injection) | |
| Top Plate Thickness | 2.5mm(T300 3K) |
| Middle Plate Thickness | 2.0mm(T300 3K) |
| Bottom Plate Thickness | 2.5mm(T300 3K) |
| Arm Thickness | 6mm(T300 3K) |
| Camera Mounting Screw | 7mm |
| 3D Printed Parts | Yellow TPU |
| Battery Anti-Slip Pad | Silicone 3mm |
| Motor Spring Hole Position | Φ8mm |
| Compatible Propeller Size | Max 5.1 Inch |
| Motor Mounting Hole Distance | 16-19mm |
| FC Mounting Hole | 30.5x30.5(M3) |
| VTX Mounting Hole | 20x20(M2) / 25.5x25.5(M2) |
| Head Material | Aviation Aluminum Alloy |
| Aluminum Column Material | 7075 D5*23mm/D46*22mm |
| Internal Mounting Height | 23-31mm |
| Receiver Installation Space | 25*13*6mm |
| Suitable Capacitor Size | Φ10mm*20mm |
| GPS Installation Size | 18*18*7 |
| Camera Compatibility | 19mm/20 |
