BetaFPV | ID: L-R10-9

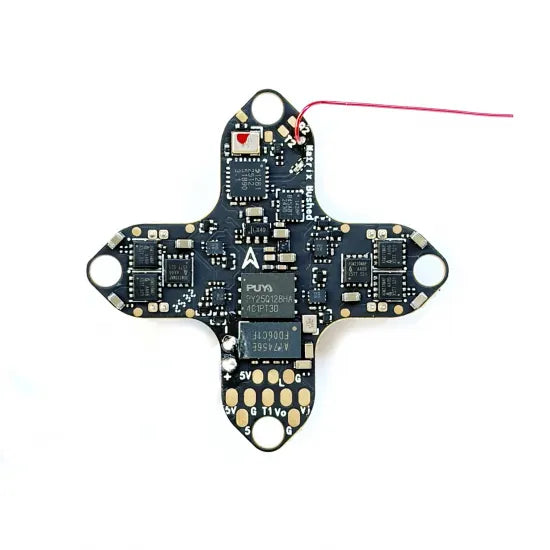

Matrix 1S Brushed Flight Controller G4 4n1 V1.1
The Matrix 1S Brushed Flight Controller G4 4n1 V1.1 delivers a powerful flight experience for brushed builds.
Package Includes:
1x Brushed FC
1x Accesories Packet
Specifications:
- MCU: STM32G473CEU6 (168MHz)
- Gyro: ICM42688P
- Blackbox Memory: 16MB
- Sensor: Voltage & current
- BEC: 5V/3A
- UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
- UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
- ESC: 12A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
- USB Port: SH1.0-4Pin
- OSD: AT7456E (4IN1 version only)
- HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
- Motor Plug: JST1.25-3Pin
- Battery Connector: BT2.0
- Mounting Size: 25.5mm x 25.5mm
- Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
- Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)
