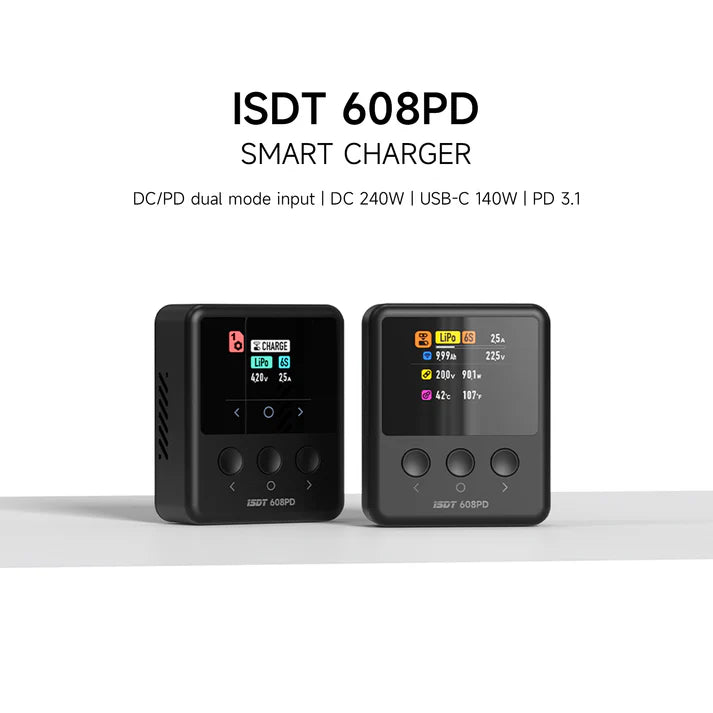

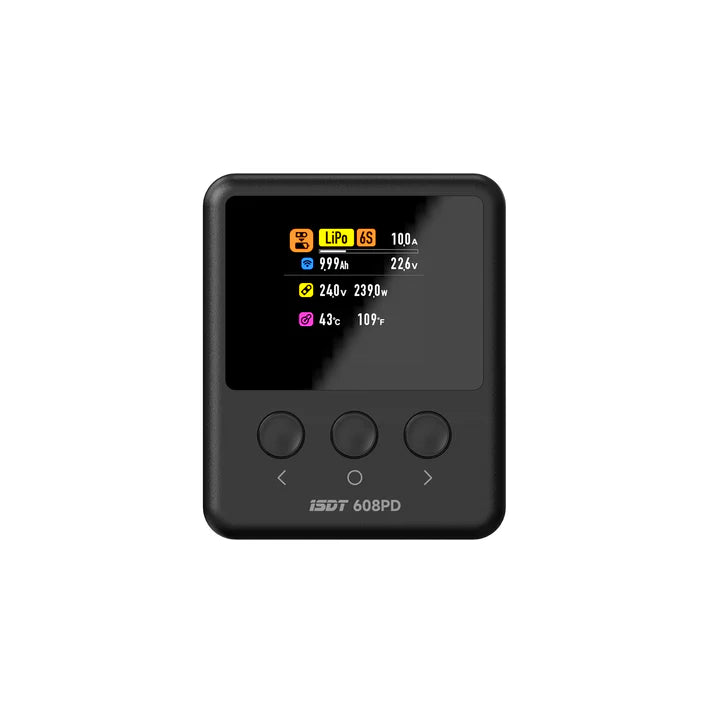

ISDT 608PD Lipo Charger (1-6S)

The 608PD charger from ISDT is perfect for travellers.

Package Includes:

1x 608PD USB-C PD Charger

Features:

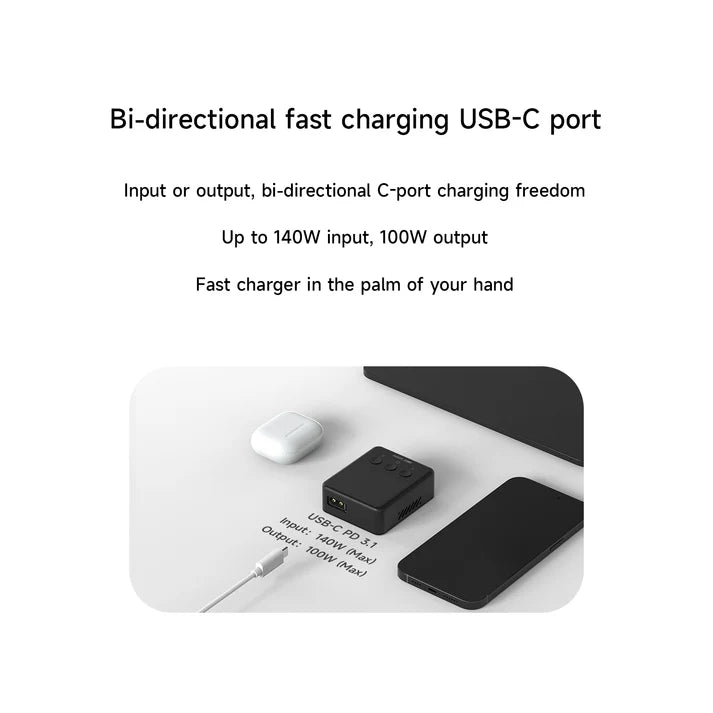

• New generation of pocket chargers：DC 240W high power / max 10A output with USB C 140W/5A max output,meet your multi-scenario high power for Lipo battery charger needs.
• Truly intelligent charger:  Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.

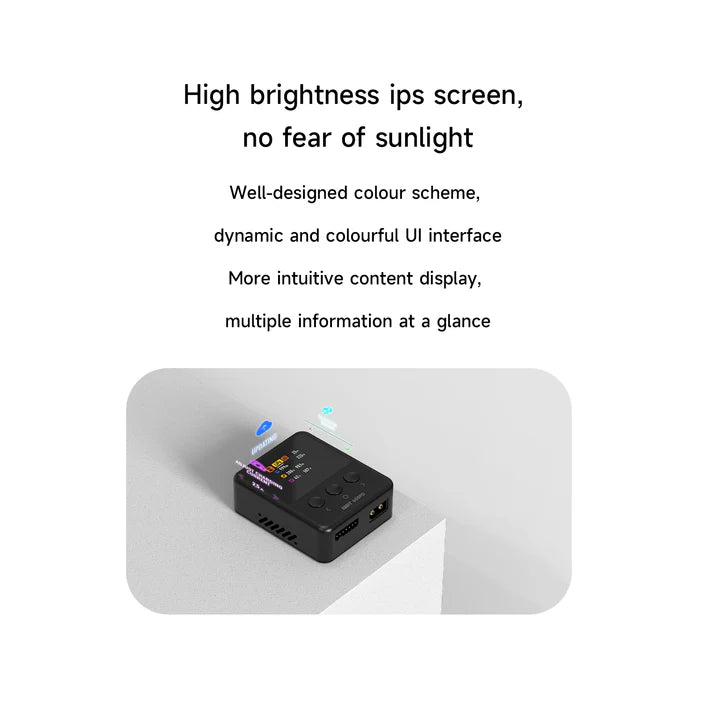

• IPS screen：Low power consumption, 1.5 inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.

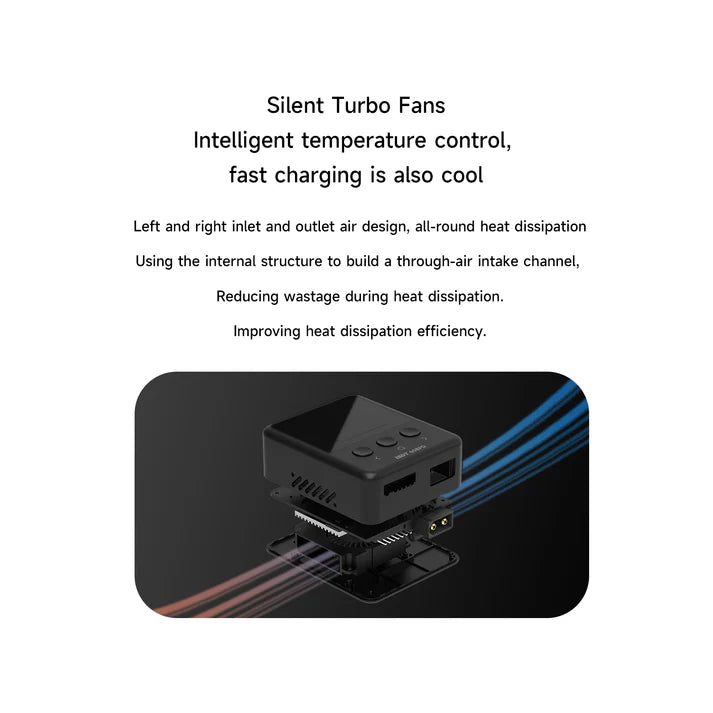

• Powerful cooling system：Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

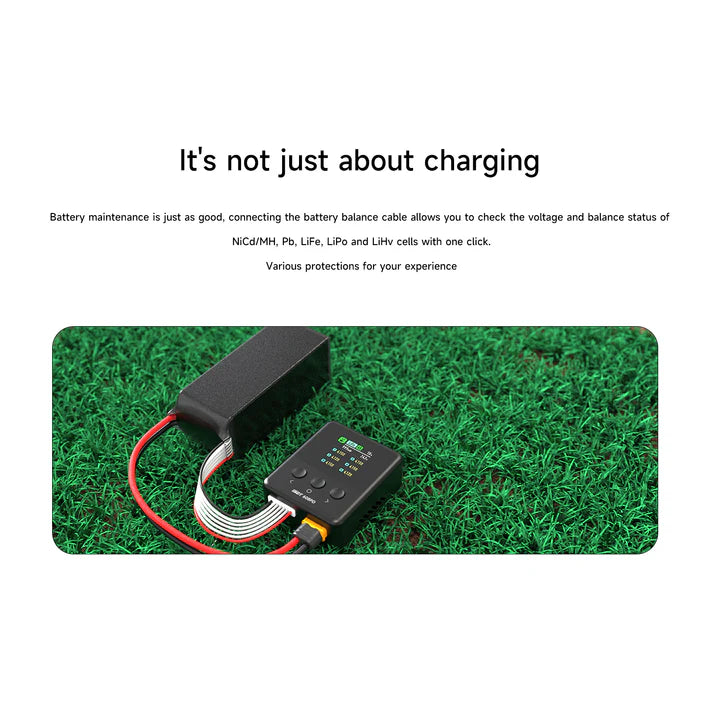

• Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

Specifications:

Maximum Input Current: DC 10A,USB-C 5A

Input voltage range: DC 5-30V, USB-C 5-28V

Output Voltage Range: DC 3.0~30V

Charging Current: 0.5~10.0A

Maximum charging power: 240W/10A,140W/5A

Maximum Discharge Power: USB-C 100W/5A

Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S

Balance Current: 0.8A/Cell Max

Operating Temperature: 0~40℃ Storage Temperature: -20~60

Abnormal battery voltage alarm: Support

Alarm for string number setting error: Support

Dimension: 72.5×60×26.6mm

Weight: 85g(±10%)
