Holybro PM03D (Without XT30 Pre-soldered)

The Holybro PM03D, without pre-soldered XT30 connectors, offers regulated power supply, current consumption, and battery voltage measurements through a 6pin 2.00mm CLIK-Mate cable using I2C digital protocol. It can be used with flight controllers that have an I2C power monitor, such as the Pixhawk 5X and up. This product is suitable for multi-rotors like the X500 V2 and comes with both XT-30 and XT-60 connectors for motor ESCs and battery, as well as two 5V BEC and a selectable 8V/12V output for various peripheral devices.

Package Includes:

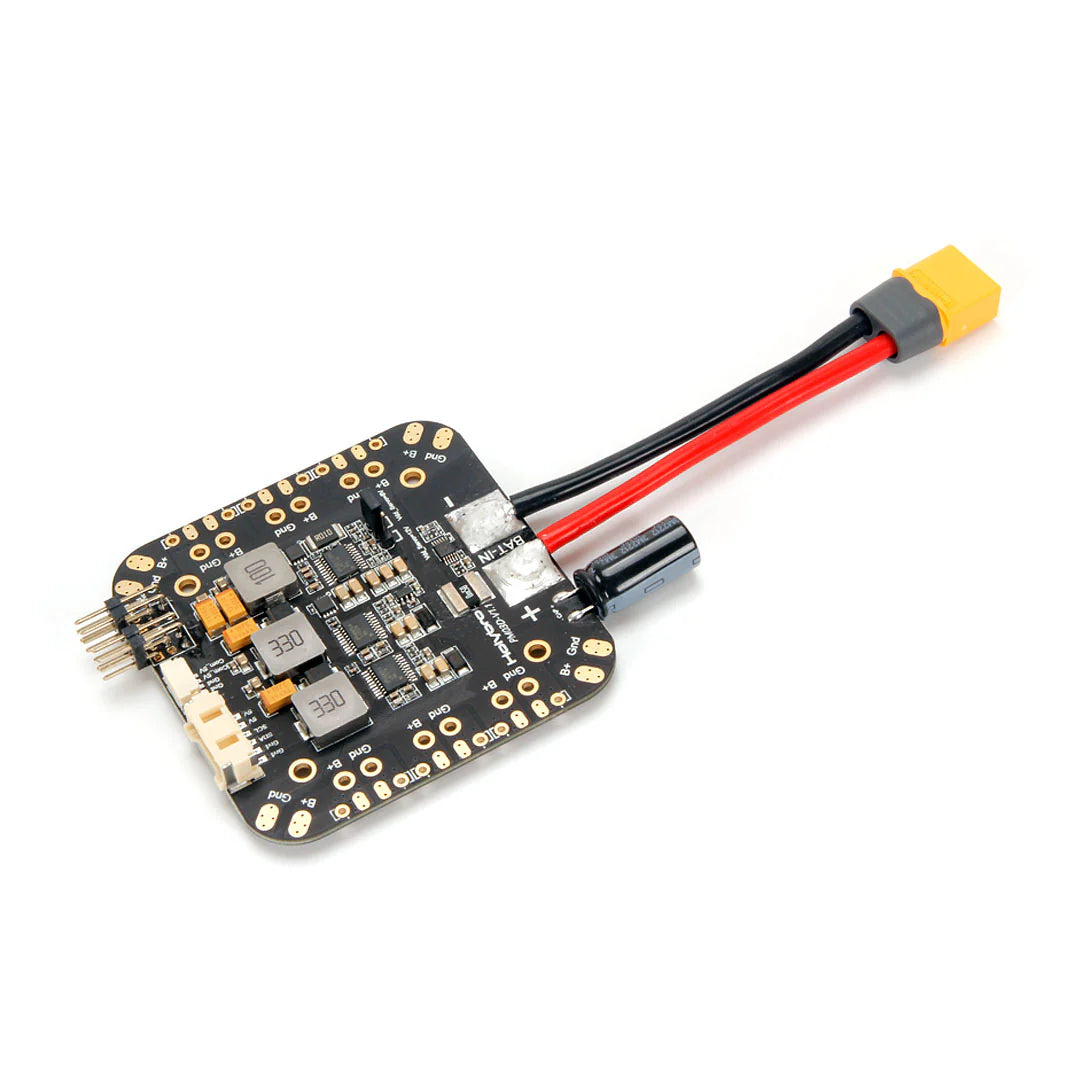

1x PM06 board

1x 80mm XT60 connector wire (pre-soldered)

1x Electrolytic capacitor: 220uF 63V (pre-soldered)

1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)

1x 4pin JST GH to USB Type C

1x 4pin JST GH to barrel plug (2.1*5.5mm)

1x 4pin JST GH to barrel plug (2.5*5.5mm)

1x 4pin Pin Dupont Cable (2pc)

1x Nylon standoffs & nuts

Features

• Plug & play, no additional setup required for QGroundcontrol & Mission Planner

• XT-30 connectors and solder pads for easy motor ESC connection

• Onboard voltage regulators: two 5.2V & one selectable 8V/12V

• 5V/A ports for powering companion computer or peripheral devices

• Selectable 8V or 12V triple row pin header for powering peripheral device

Specifications:

• Maximum input voltage: 6S battery

• Rated current: 60A

• Max current: 120A (<60 Sec)

• Max current sensing: 164A

• Connections:

  • XT-60 for battery

  • XT-30 for motor & peripheral device (battery voltage)

  • Solder pads in each corner (battery voltage)

  • CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)

  • JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)

  • 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)

  • 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)

• Dimension: 84*78*12mm (excluding wires)

• Mounting: 45*45mm

• Weight: 59g
