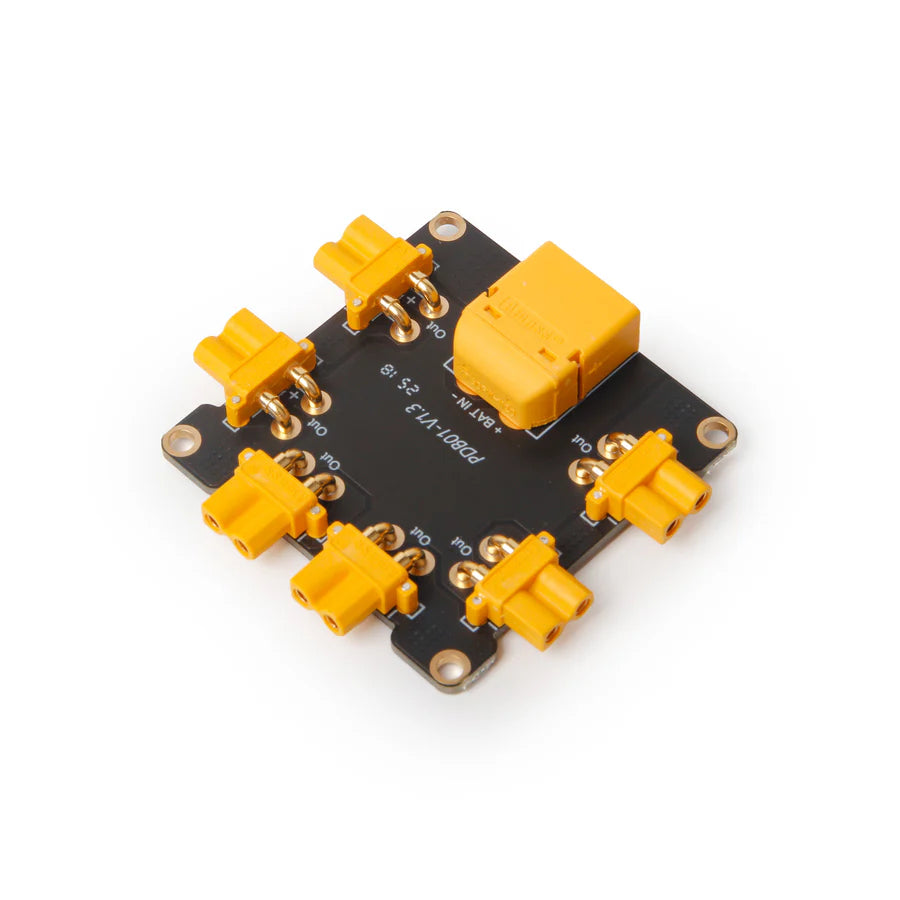

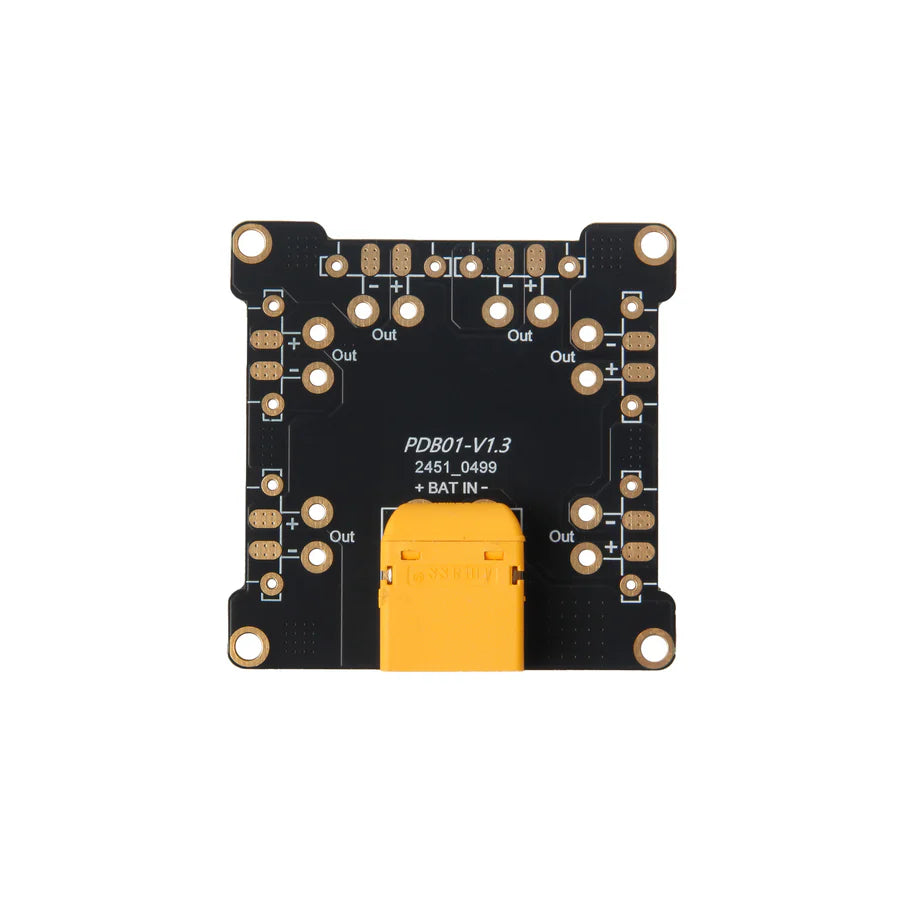

Holybro PDB Board

This Power Distribution Board (PDB) is designed specifically for use with the PM02 and PM02D Power Modules. Power modules that have integrated power distribution, like the PM03, PM06, and PM07, do not need this PDB.

Package Includes:

1x PDB Board

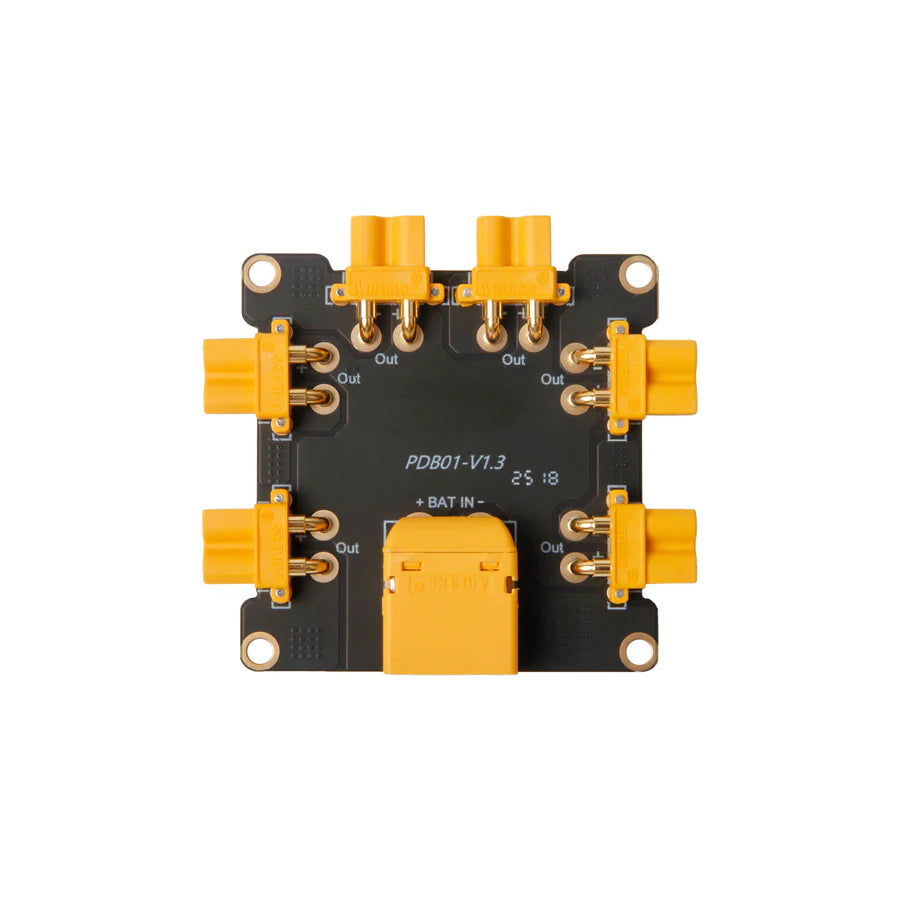

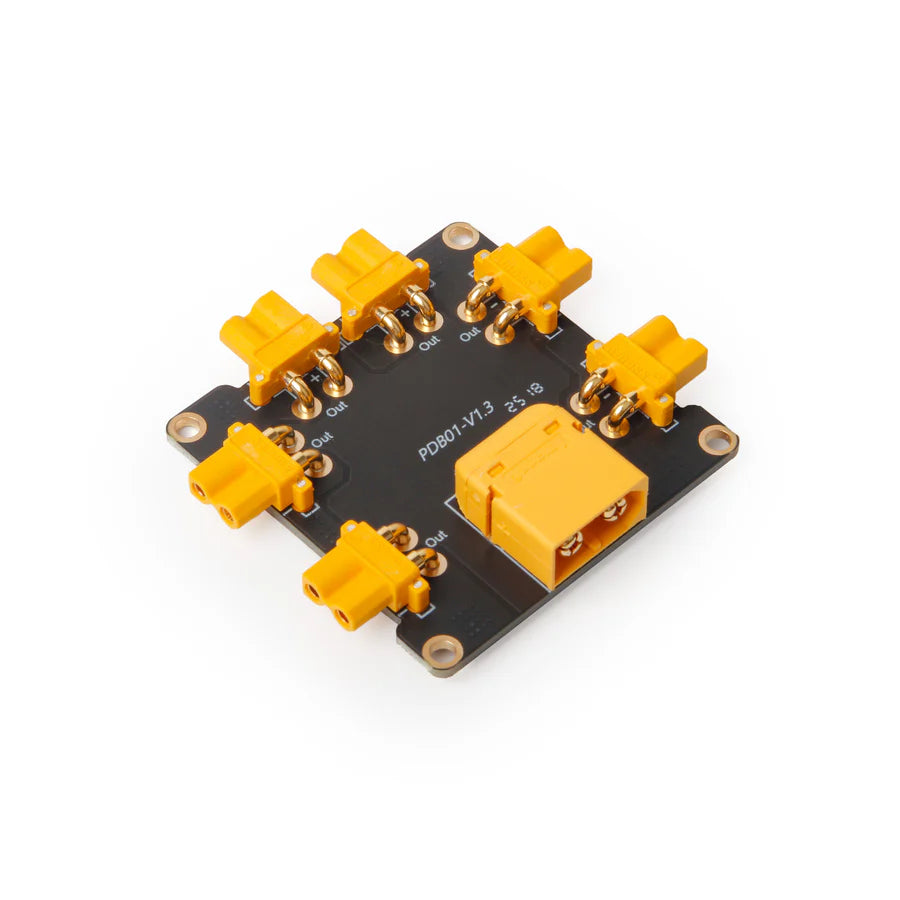

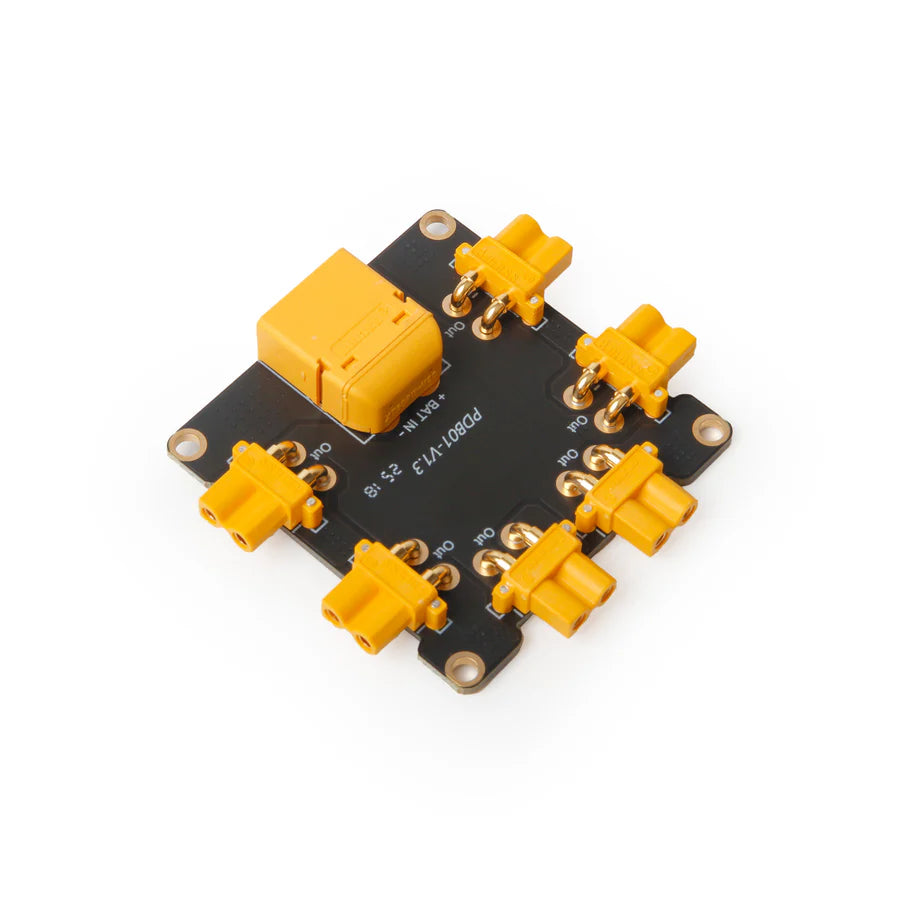

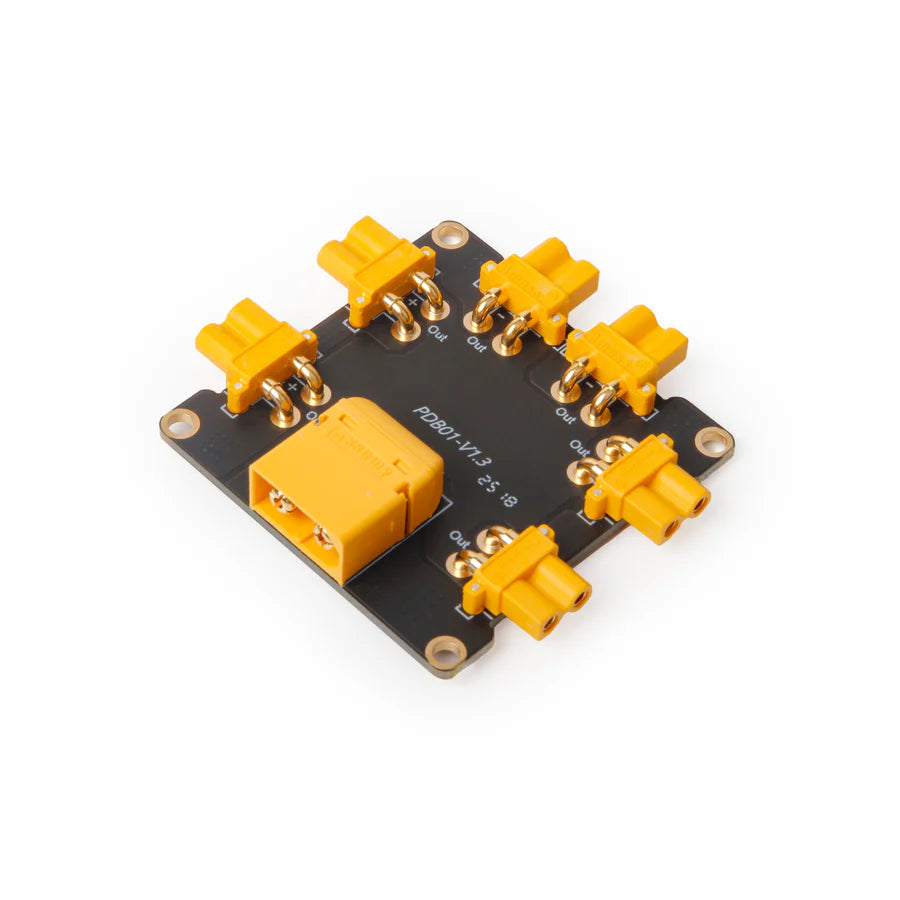

There are two options, with or without XT30 pre-soldered.  The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

• Pre-soldered XT60 for Power Module & Battery
• Rated Current: 60A
• Max Current: 120A (<60 sec)
• 45x45mm Mounting Holes

Dimensions:


Wiring diagram
