Holybro | ID: L-R1-49

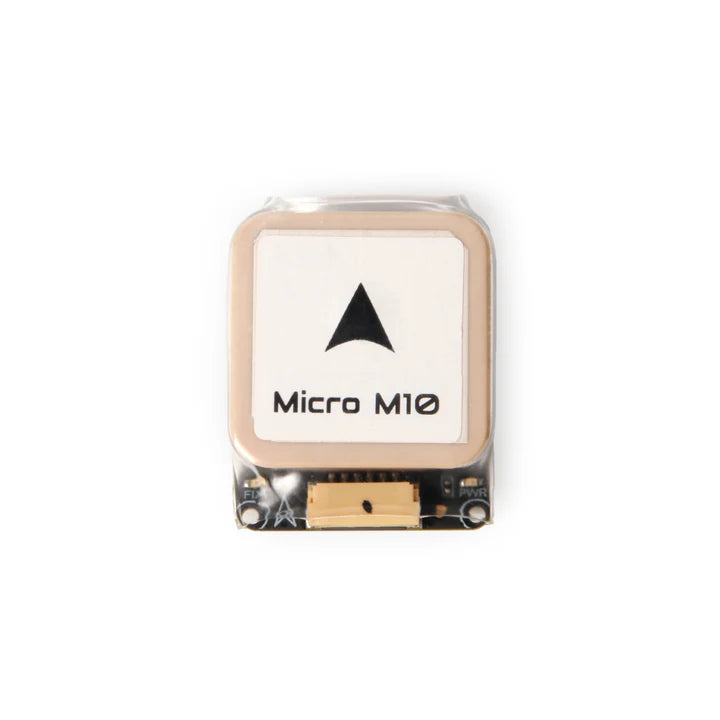

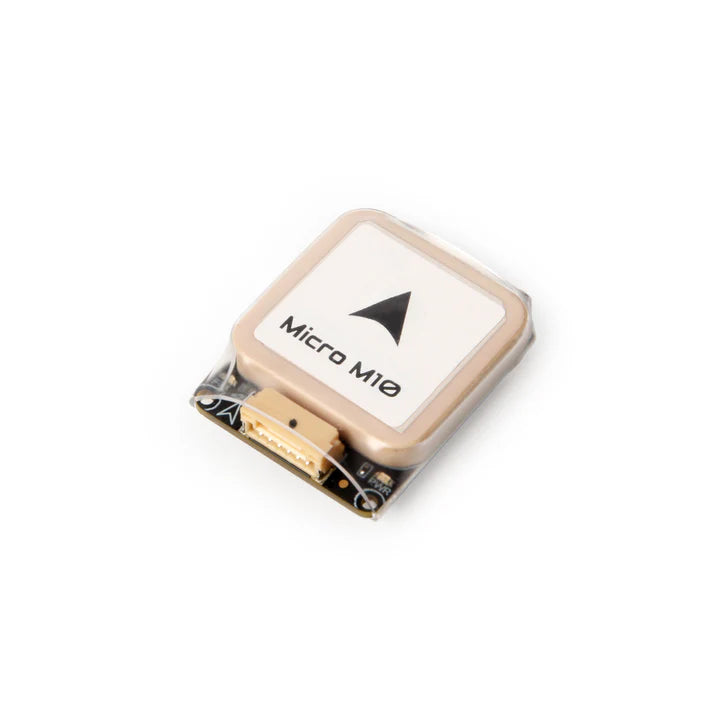

Holybro Micro M10 GPS (No Case)
These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently. It also comes with the IST8310 compass.
The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
Package Includes:
1x M10 GPS
1x Data Wire
High-Speed Drone GPS Comparison:
This blog post put the Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.
Features:
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- IST8310 Compass
- Small Form Factor
Specifications:
| Holybro Micro M10 GPS | Holybro Micro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS |
Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS |
| Frequency Band | - GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1 |
- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1 |
| Compass | IST8310 | IST8310 |
| Output Protocol | - UBX (U-blox) - NMEA |
- UBX (U-blox) - NMEA |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS) |
Up to 25 Hz (4 concerrent GNSS) |
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS QZSS: L1S |
EGNOS, GAGAN, MSAS and WAAS QZSS: L1S |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |
| Port Type | JST-GH-6P | JST-GH-6P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | |
| Antenna Gain | 1.5dbi | |
| Antenna LNA Gain | 22dB | |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |
| Dimension | - 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case) |
- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case) |
| Weight | - 14g (w/o Case) - 16g (With Case) |
- 14g (w/o Case) - 16g (With Case) |

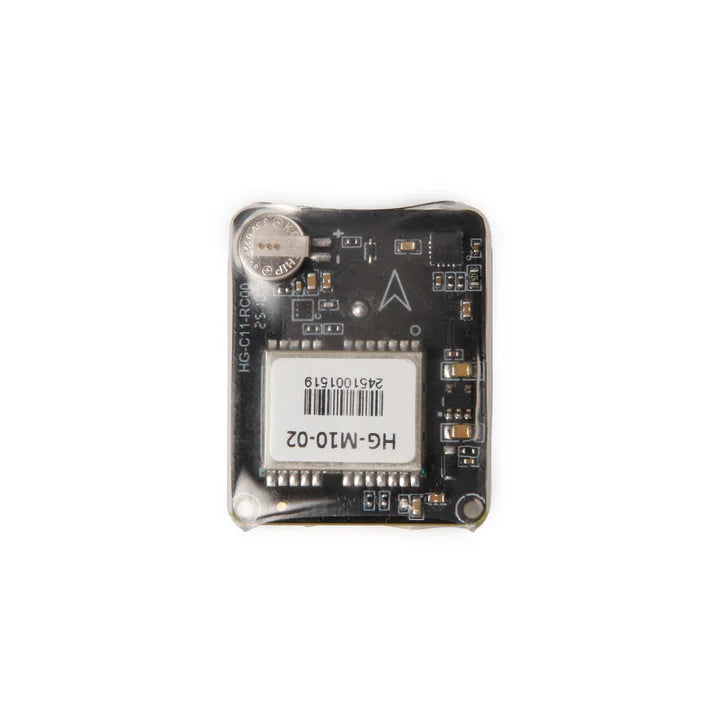

| Other | - LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator |
- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator |
Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
PIN MAP
Reference Link
