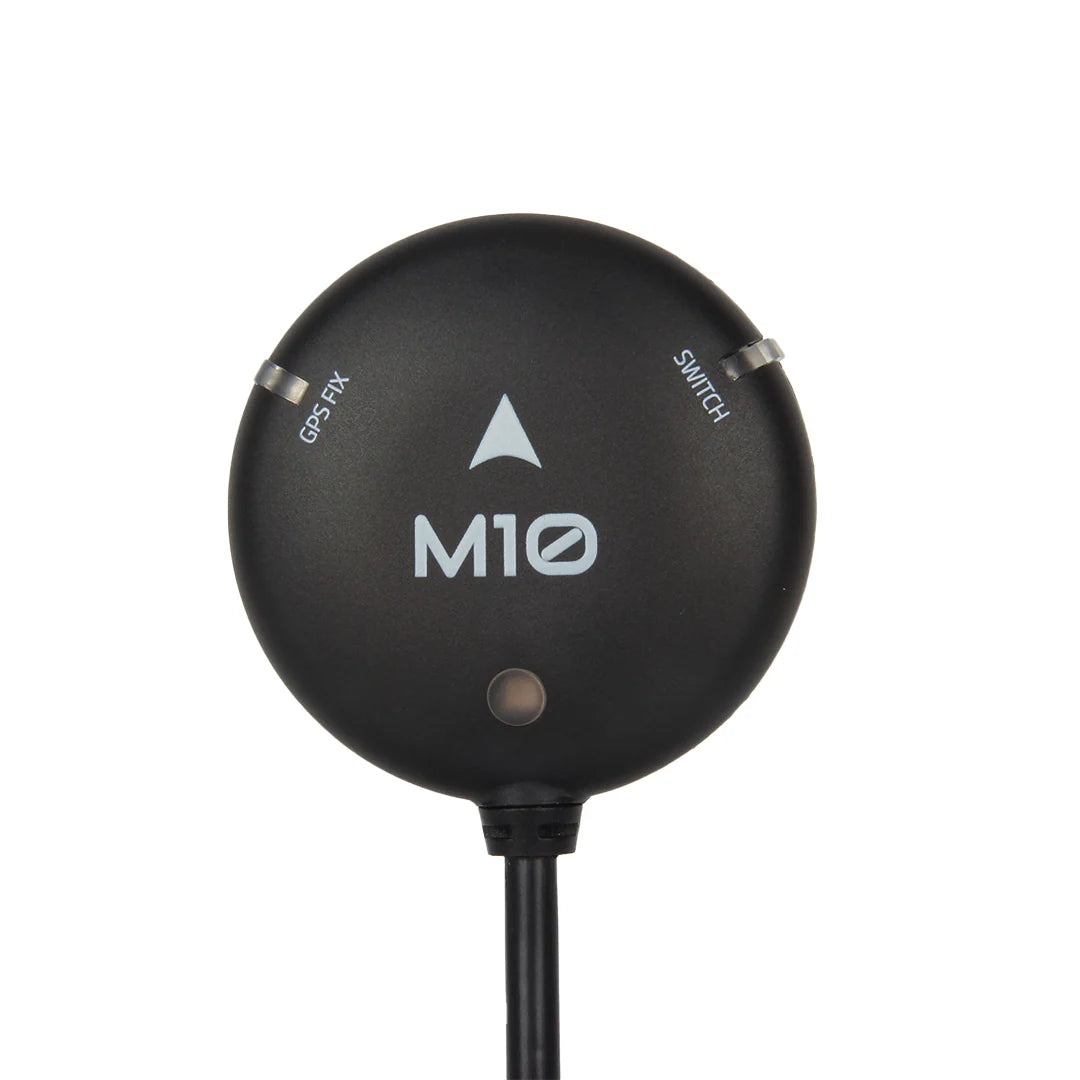

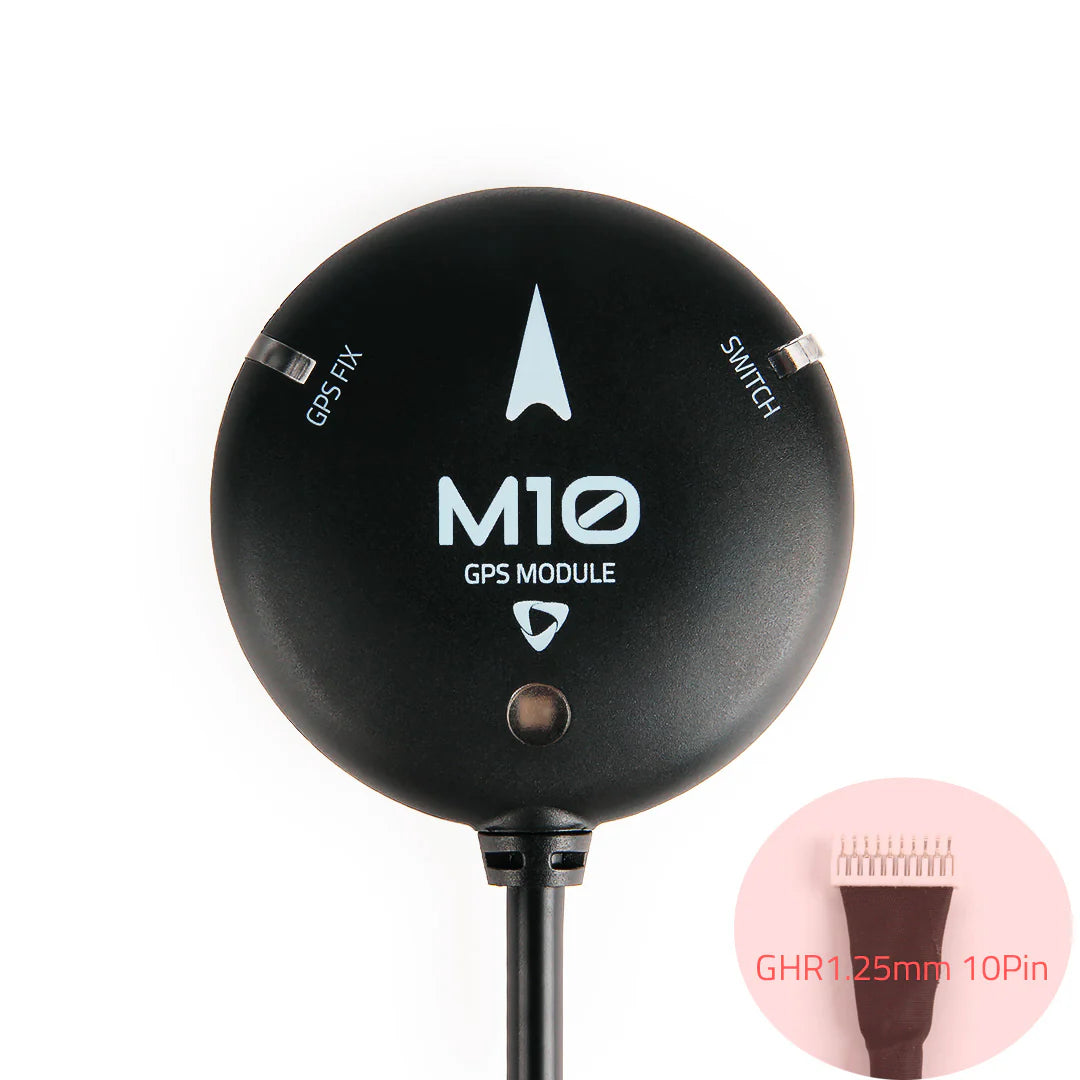

Holybro M10 GPS (Standard)

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

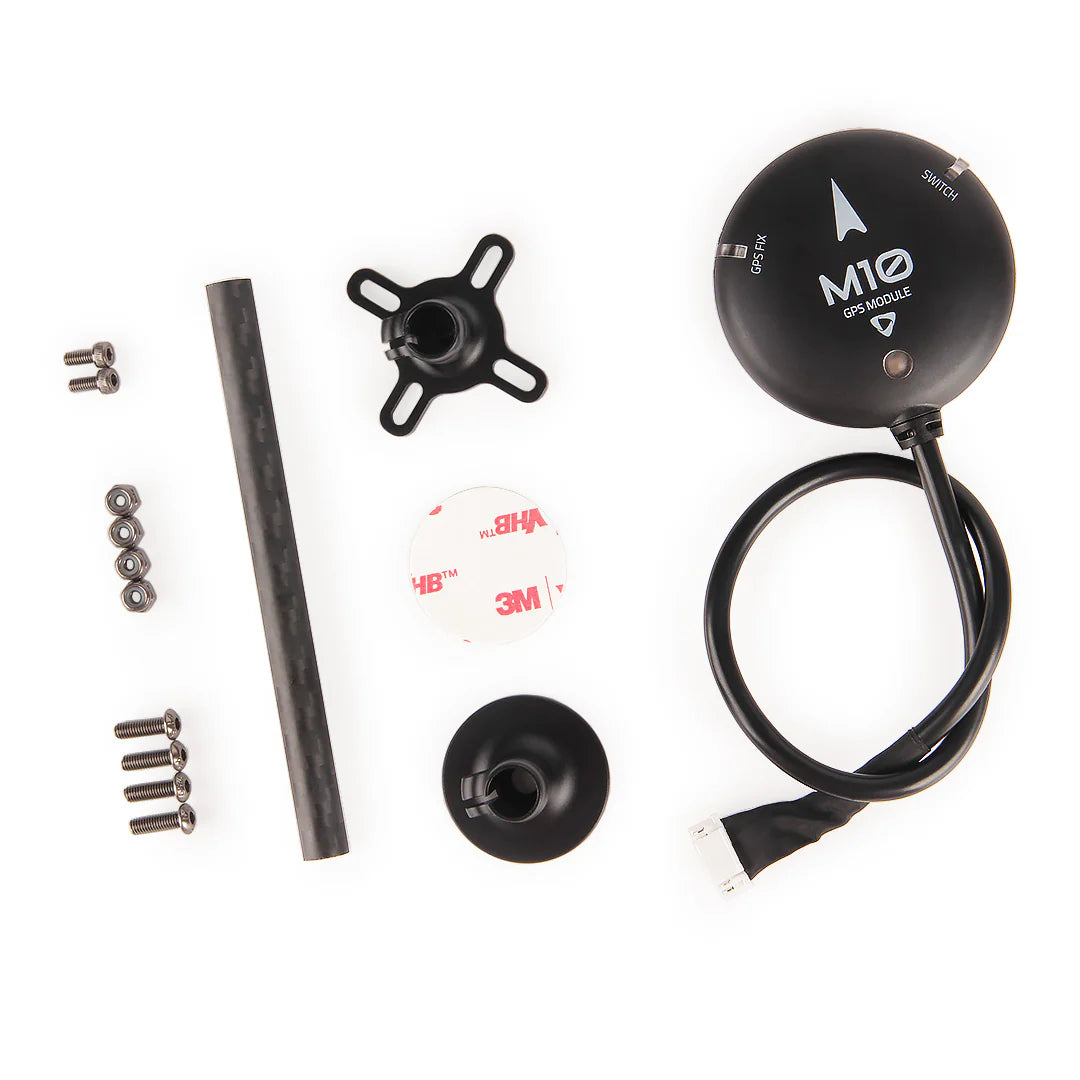

Package Includes:

1x M10 GPS Module

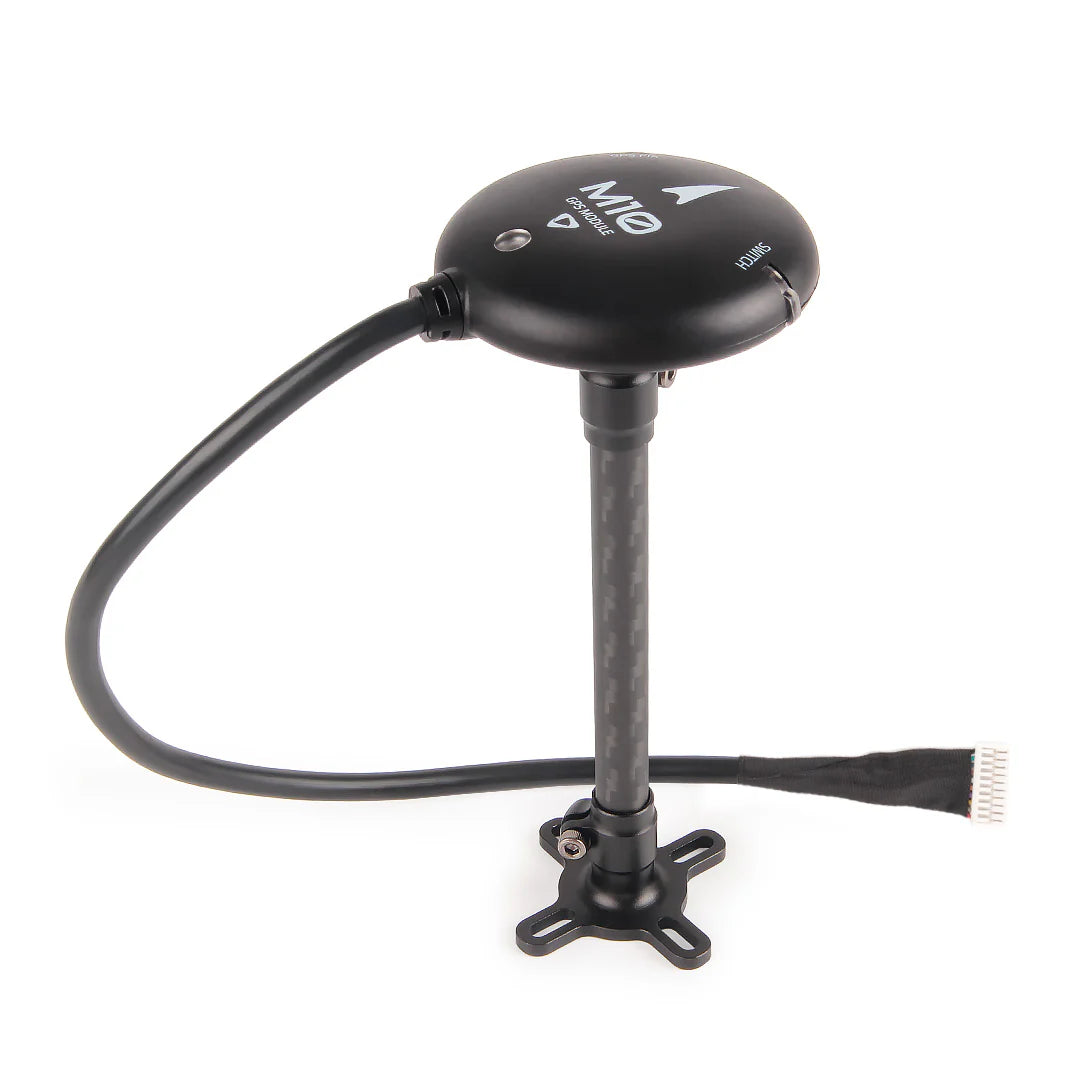

1x Fixed Carbon Fiber GPS mount

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

High-Speed Drone GPS Comparison

This blog post put Holybro M10, M9N, F9P and Matek M10Q was put to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Features:

• Newest Ublox 10th Gen GNSS
• Fast & Accurate Positioning
• High-gain 25*25*4mm antenna
• IST8310 Compass
• Internal Buzzer, Safety switch
• Ultra Bright UI RGB LED

Specifications:

Note

• PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
• The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

PIN MAP:

Note: For Ardupilot User, if you are unable to perform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.
