Holybro H-RTK F9P Helical (IST8310 Compass)

H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX ZED-F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.

We have designed different models of for you to choose, each with different size and antenna design to meet different customer needs.

RTK Testing & Comparison: Big GPS Round Up by Andrew Tridgell (Ardupilot)

Note: The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

Package Includes:

1x H-RTK F9P

1x High Precision GNSS Antenna(HANT-X603A)

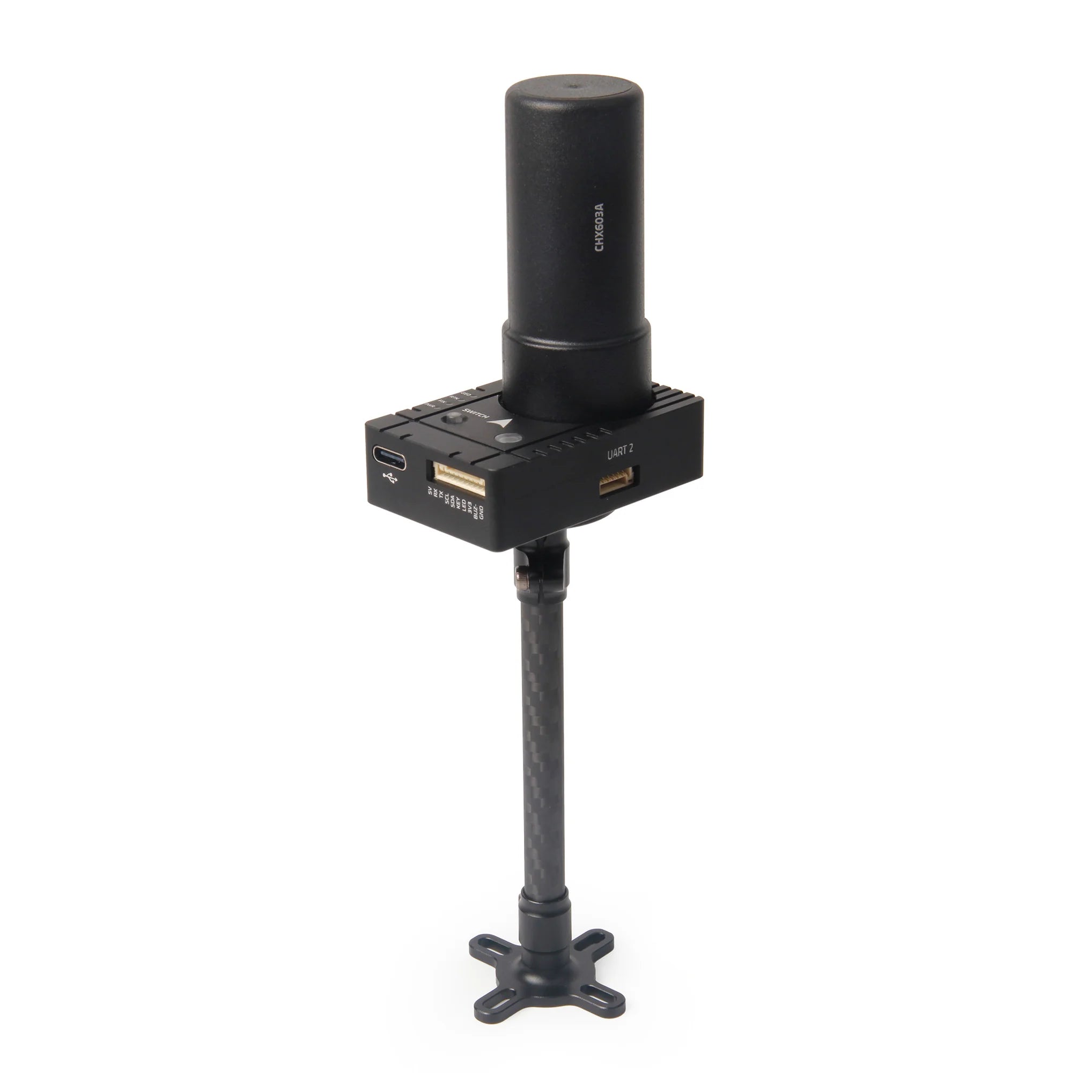

1x Fixed Carbon Fiber GPS mount(29mm)

1x GH 10P cable 150mm

1x GH 6P cable 300mm

1x GH 10P cable 400mm

1x USB type-c cable

Specifications:

Product Model	H-RTK F9P Rover	H-RTK F9P Helical (THIS PRODUCT)	H-RTK F9P Base
SKU	SKU12017 & SKU12025	SKU12018	SKU12022
Application	Rover (aircraft) only	Rover (aircraft) or base station	Base station only
GNSS	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b	GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
Antennas Peak Gain (MAX)	L1: 4.0dBi L2:1.0 dBi	2dBi	5.5dBi
LNA Gain (typical)	20.5±1dB	33±2dB	40±2dB
Time-TO-First Fix	Cold start:≤29s Hot start:≤1s	Cold start:≤25s Hot start:≤1s	Cold start:≤24s Hot start:≤1s
RTK-SurveyIn-Time	N/A	≤5 minute @2.0mCEP	≤5 minute @1.5mCEP
Data and Update Rate	RAW: 20Hz Max RTK: 8Hz Max	RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max	RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max
Port	GH1.25 10pin cable or GH1.25 6pin cable	Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)	Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length	26cm	GH 10P: 150mm GH 10P: 400mm GH 10P to 6P: 300mm	SMA-TNC: 5m
Antenna Connection Type	N/A	Board: SMA female Antenna: SMA male	Board: SMA female Antenna: TNC female Male-male SMA-TNC cable length: 5m (included)
Baud rate:	115200 5Hz (default) can be set	115200 5Hz (default) can be set	115200 5Hz (default) can be set
Working voltage:	4.75V~5.25V	4.75V~5.25V	4.75V~5.25V
Current Consumption	~250mA	~250mA	~250mA
Dimensions	Diameter: 76mm Height: 20mm	Board: 34.8*52.7*12.9mm Antenna Diameter: 27.5mm Antenna height: 59mm	Board: 34.8*52.7*12.9mm Antenna Diameter: 152mm Antenna height: 62.2mm
IP Rating	IPX6	N/A	N/A
Weight	106g	49g	469g

• Other technical information can be found in our Holybro Documentation Page.

Reference Links

• RTK Testing & Comparison by Andrew Tridgell (Ardupilot)
• User Guide: Setup & Getting started (Ardupilot)
• Using H-RTK with Cube Pilot
• Ardupilot IST8310 Compass Orientation
• User Guide: Setup & Getting started (PX4)
• GPS Heading/Yaw (Aka Moving baseline) Guide
• H-RTK Pinout

• Dimensions

• Downloads

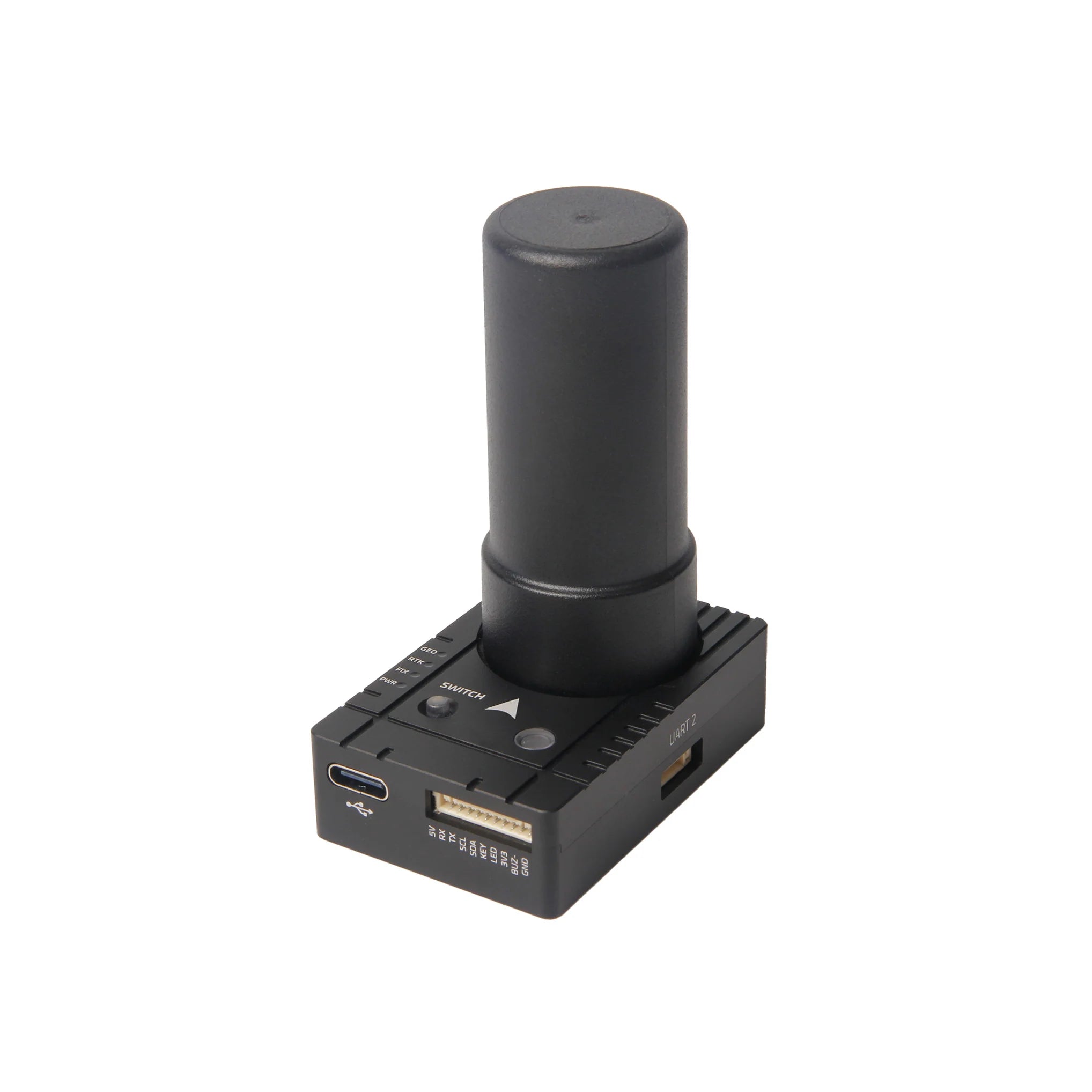

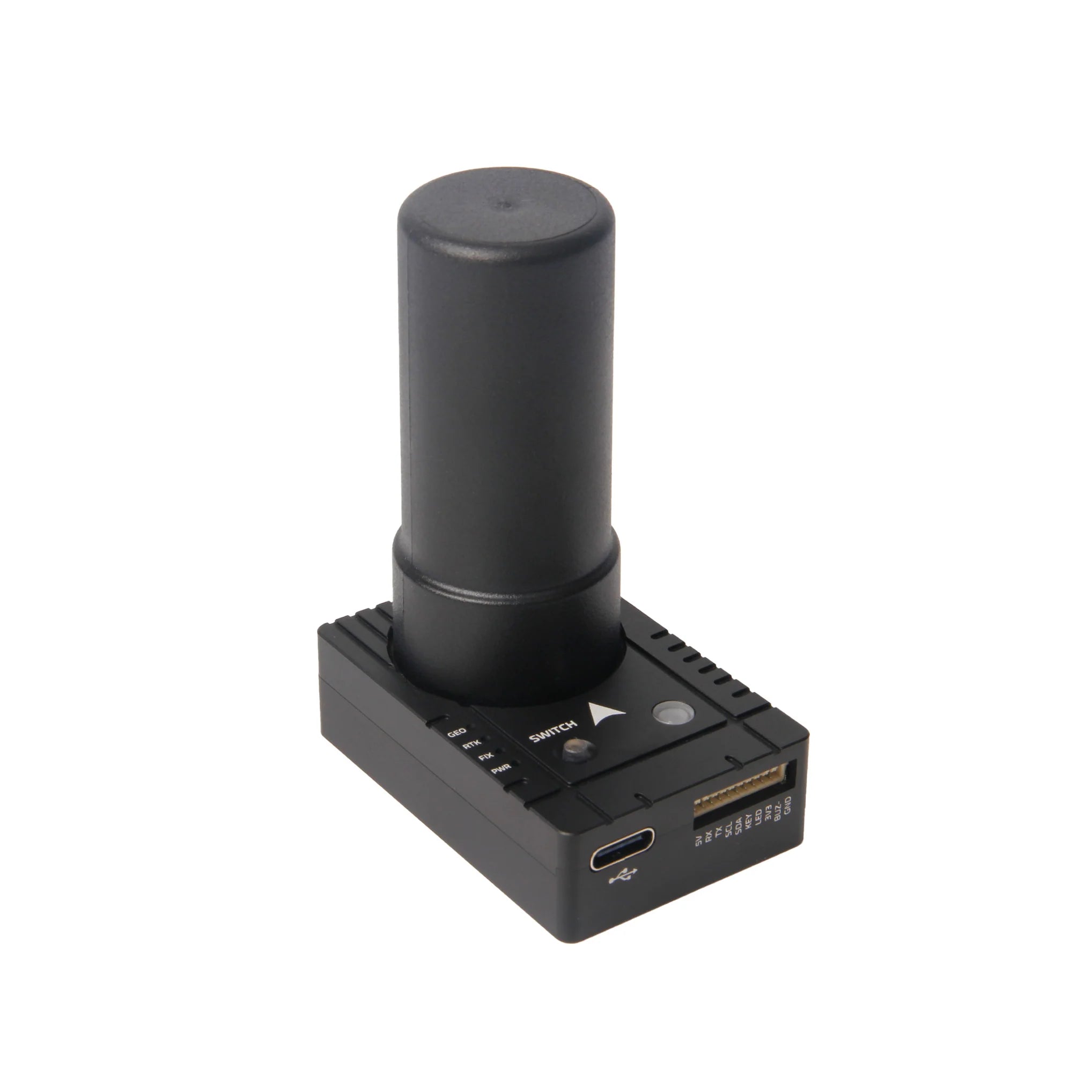

H-RTK F9P Helical (SKU12018)

This model uses a helical antenna, which has better performance than the lite version. This model can be used both on a rover (aircraft) or as a base station. The aluminum alloy shell design also has an integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk-Standard Controller.
