Holybro | ID: H-R1-50

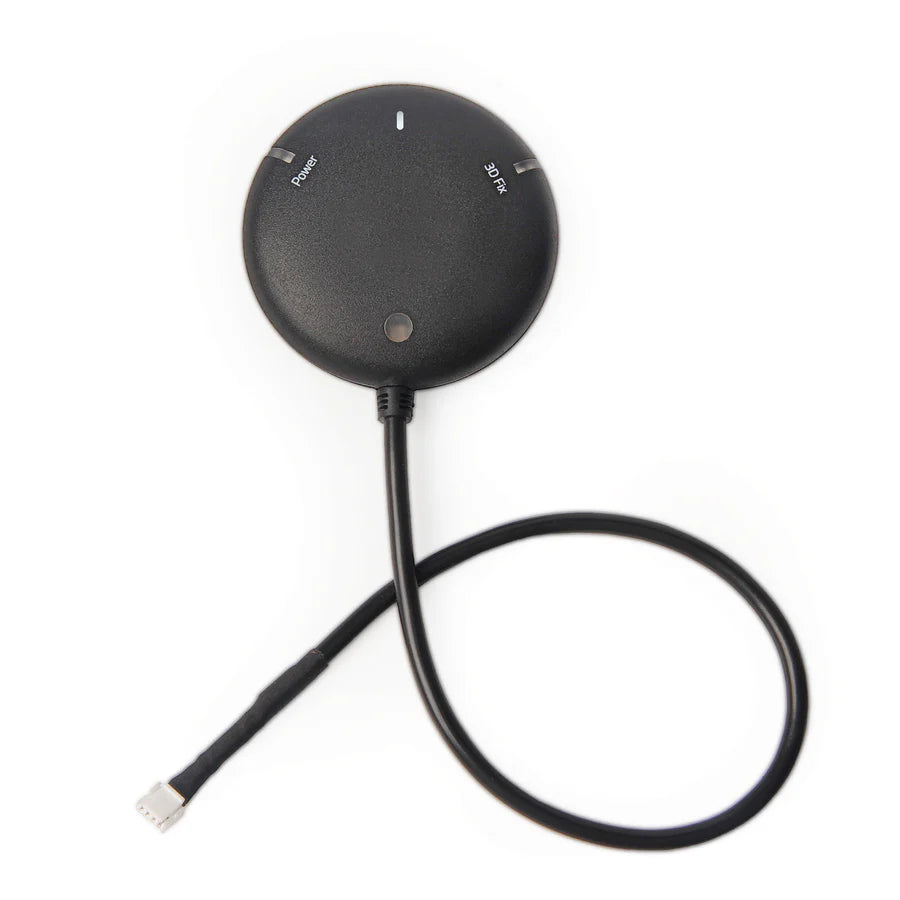

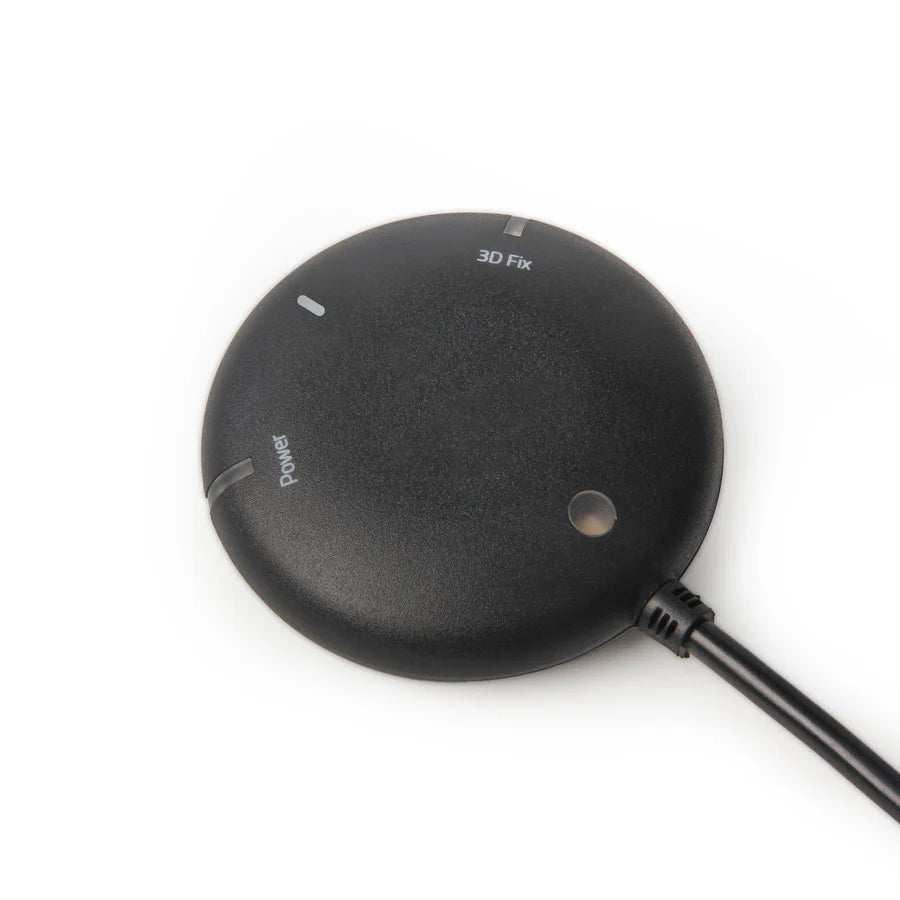

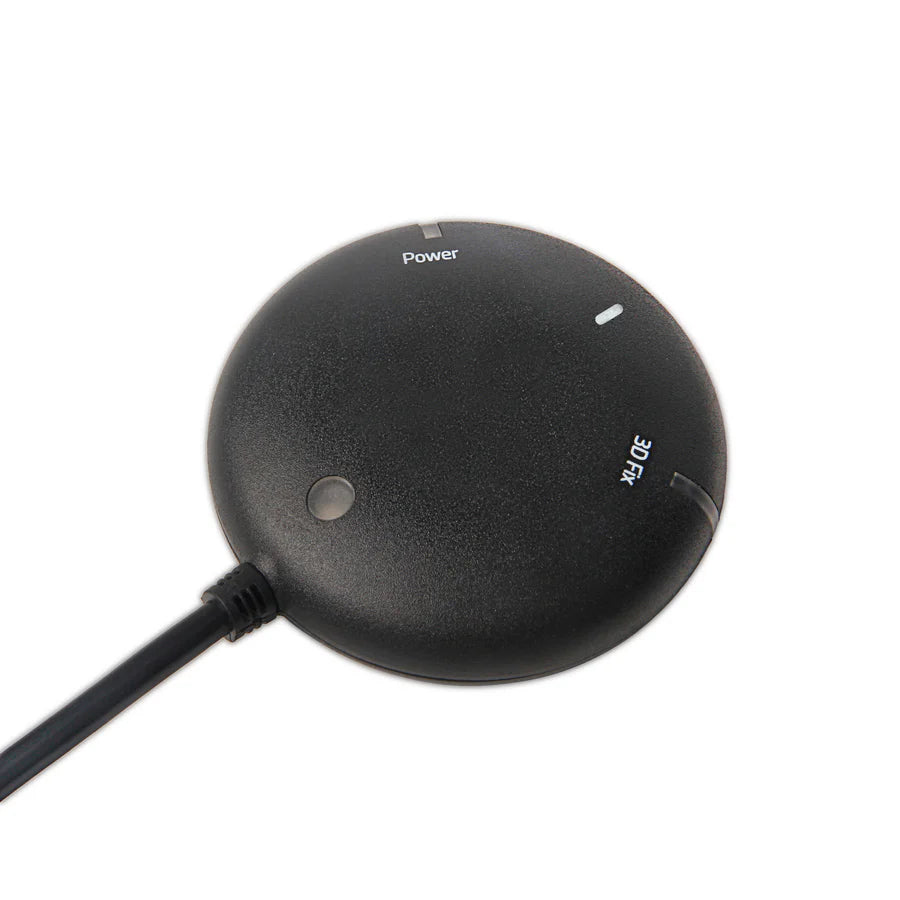

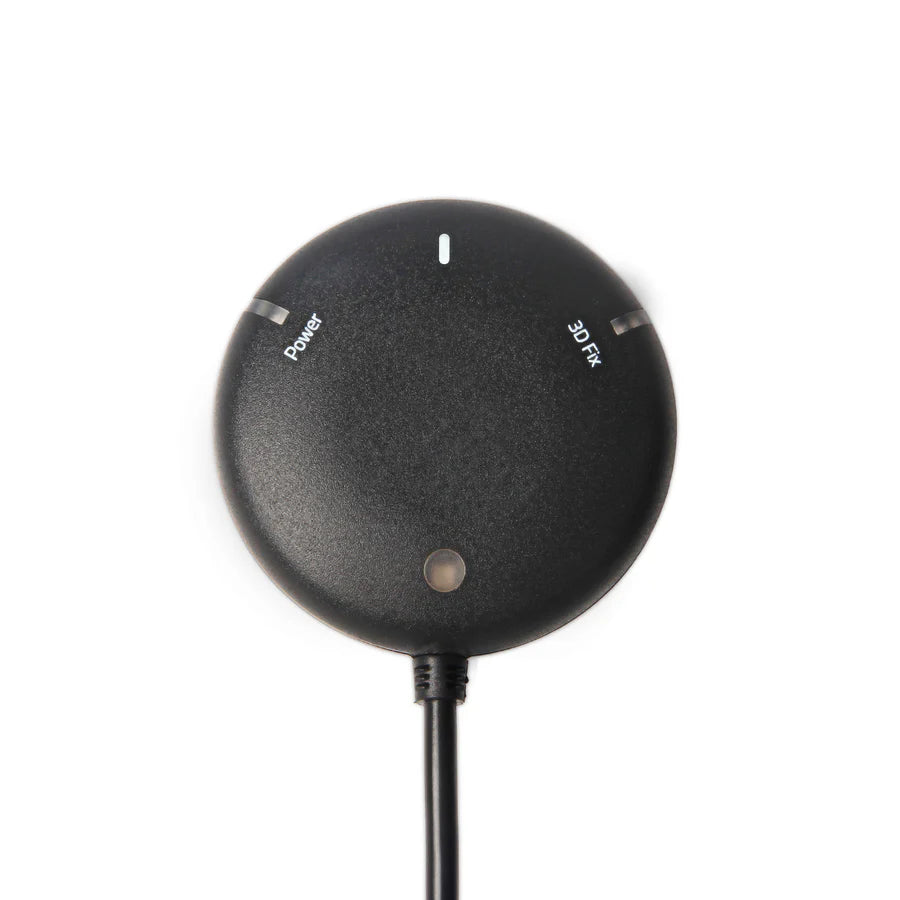

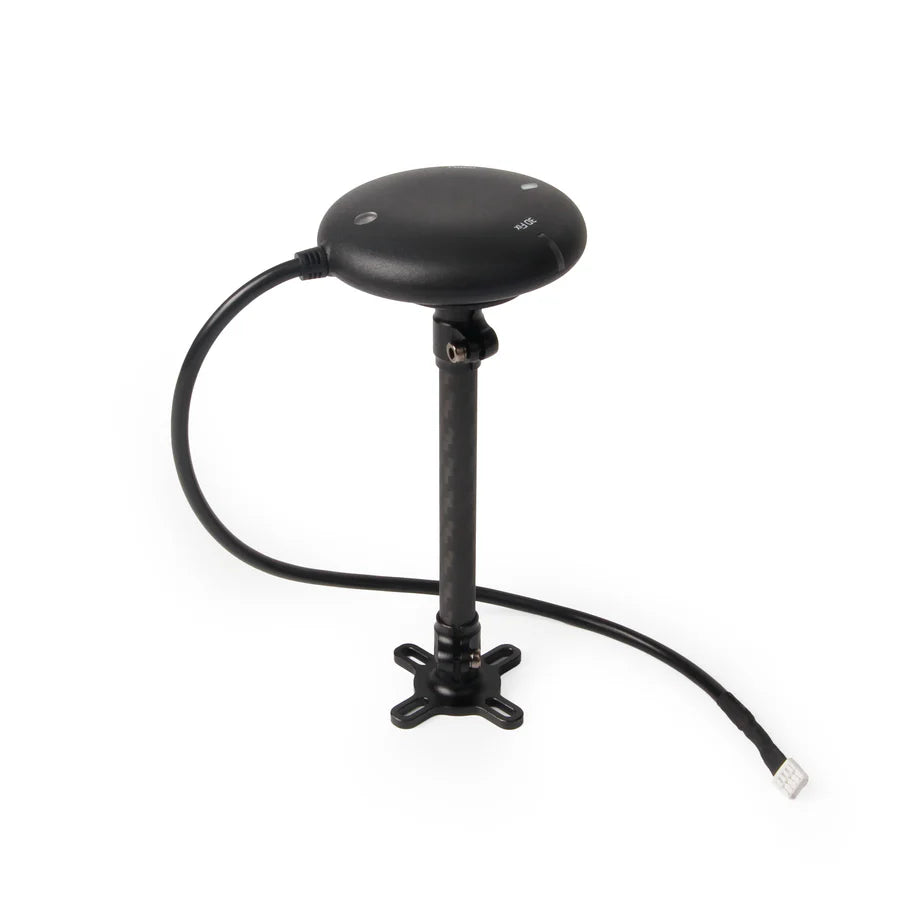

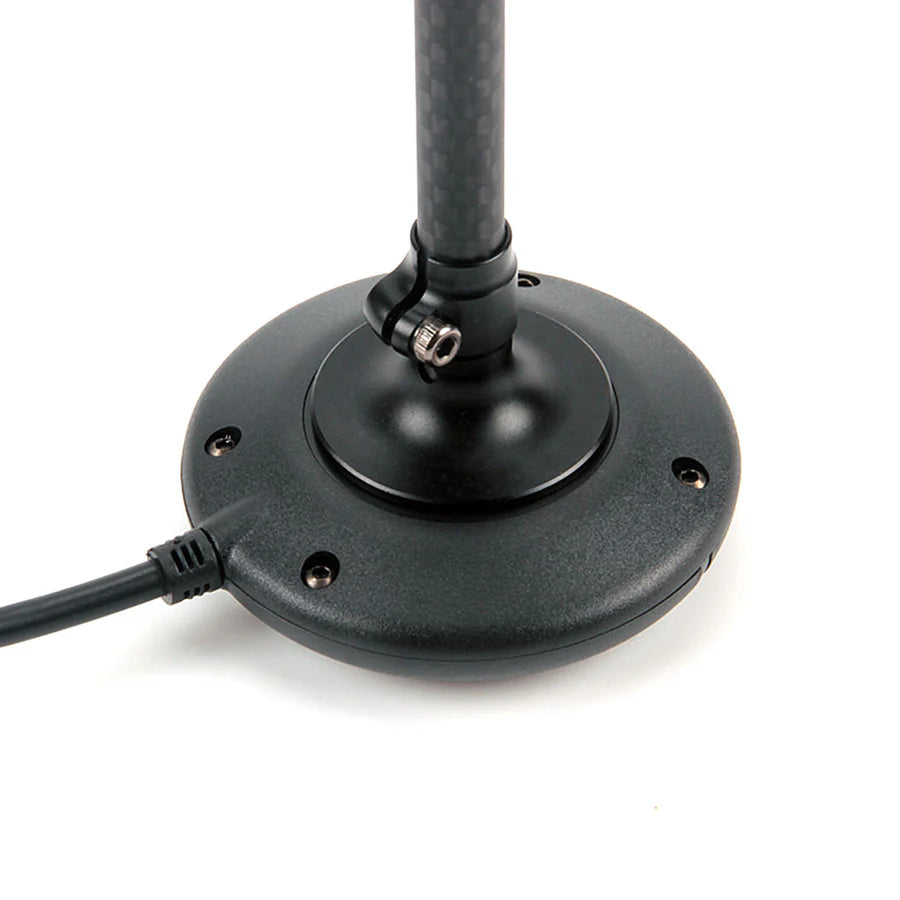

Holybro DroneCAN M9N GPS
The Holybro DroneCAN GPS has a u-blox M8N or M9N module, BMM150 compass, and tri-colored LED indicator. It has the STM32G4 Processor and adopts the DroneCAN protocol for communication, making it more reliable and better at dealing with electromagnetic interference compared to a serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.
Current and future batch now support software toggle for CAN termination resistance

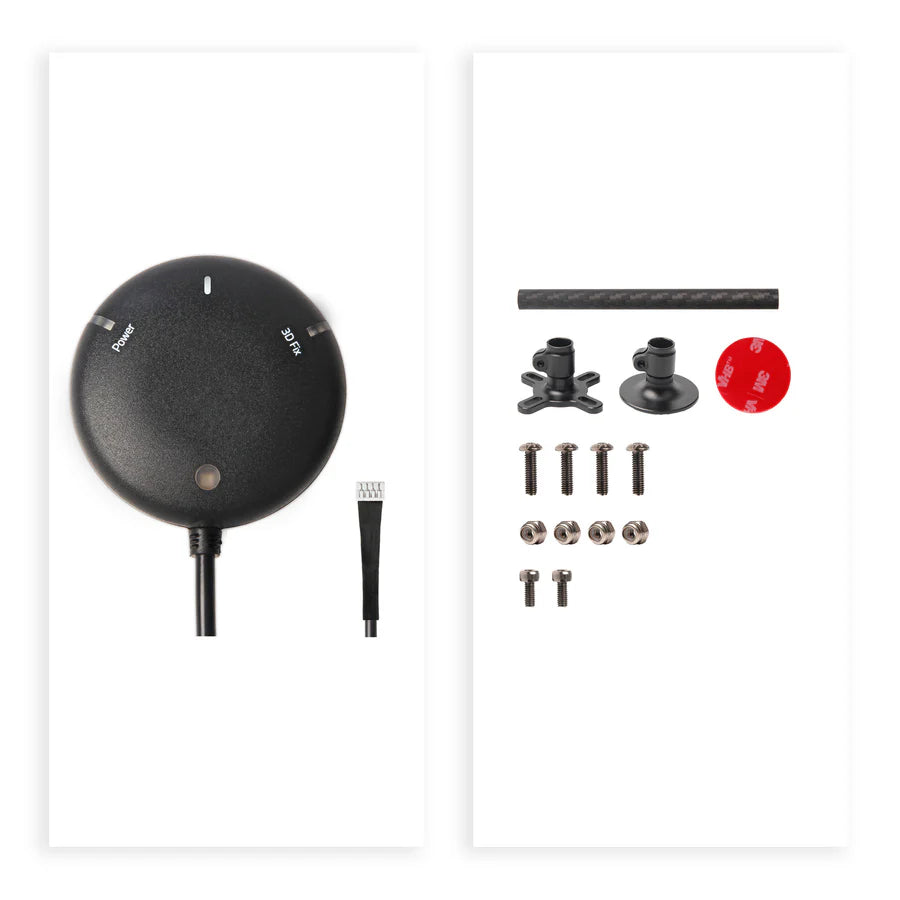

Package Includes:
1x DroneCAN M9N GPS
Specifications:
| DroneCAN M9N | ||
| GNSS Receiver | Ublox NEO M9N | |
| Number of Concurrent GNSS | Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou) | |
| Processor | STM32G4 (170MHz, 512K FLASH) | |
| Compass | BMM150 or IST8310 | |
| Frequency Band | GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C | |
| GNSS Augmentation System | SBAS: WAAS, EGNOS, MSAS, QZSS | |
| Navigation Update | 5Hz Default(10Hz MAX) | |
| Accuracy | 2.5m | |
| Speed Accuracy | 0.05 m/s | |
| Max # of Satellites | 22+ | |
| Communication Protocol | DroneCAN @ 1 Mbit/s | |
| Supports Flight Controller FW | PX4, Ardupilot | |
| Port Type | GHR-04V-S | |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | |
| Antenna Gain | 1.5dbi | |
| Antenna LNA Gain | 22dB | |
| Power consumption | Less than 200mA @ 5V | |
| Voltage | 4.7-5.2V | |
| Operating Temperature | -40~80℃ | |
| Size | Diameter: 54mm, Thickness: 14.5mm | |
| Weight | 36g | |
| Cable Length | 27cm | |
| Other Notes | - LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low-noise 3.3V regulator |
|
For other technical information, please go to https://docs.holybro.com/DroneCAN
DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification, and multiple open implementations.
DroneCAN Development
The DroneCAN project has an active development community.
- discussions on discord at https://dronecan.org/discord
- development on github at https://github.com/DroneCAN
Additional DroneCAN Information: https://dronecan.github.io/
