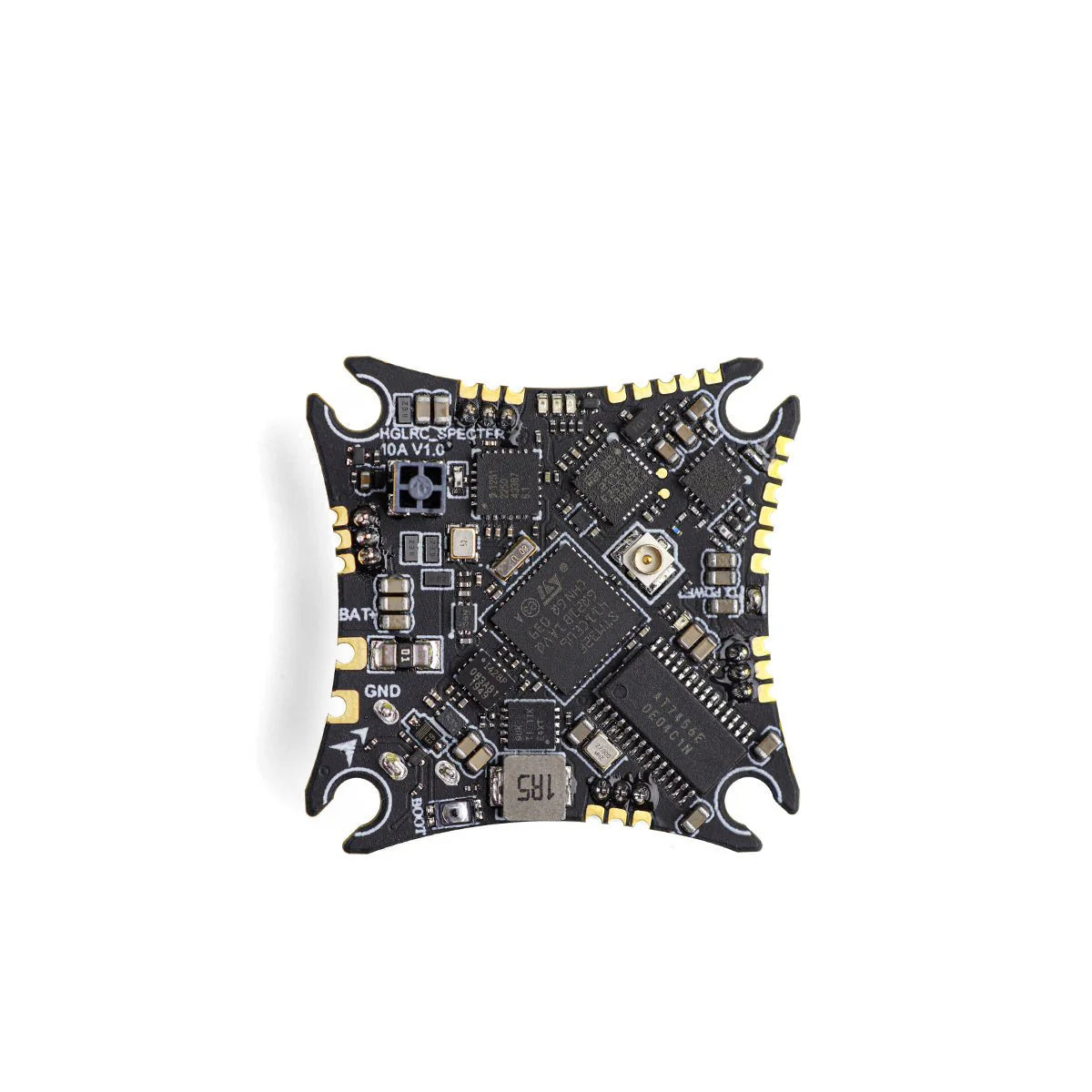

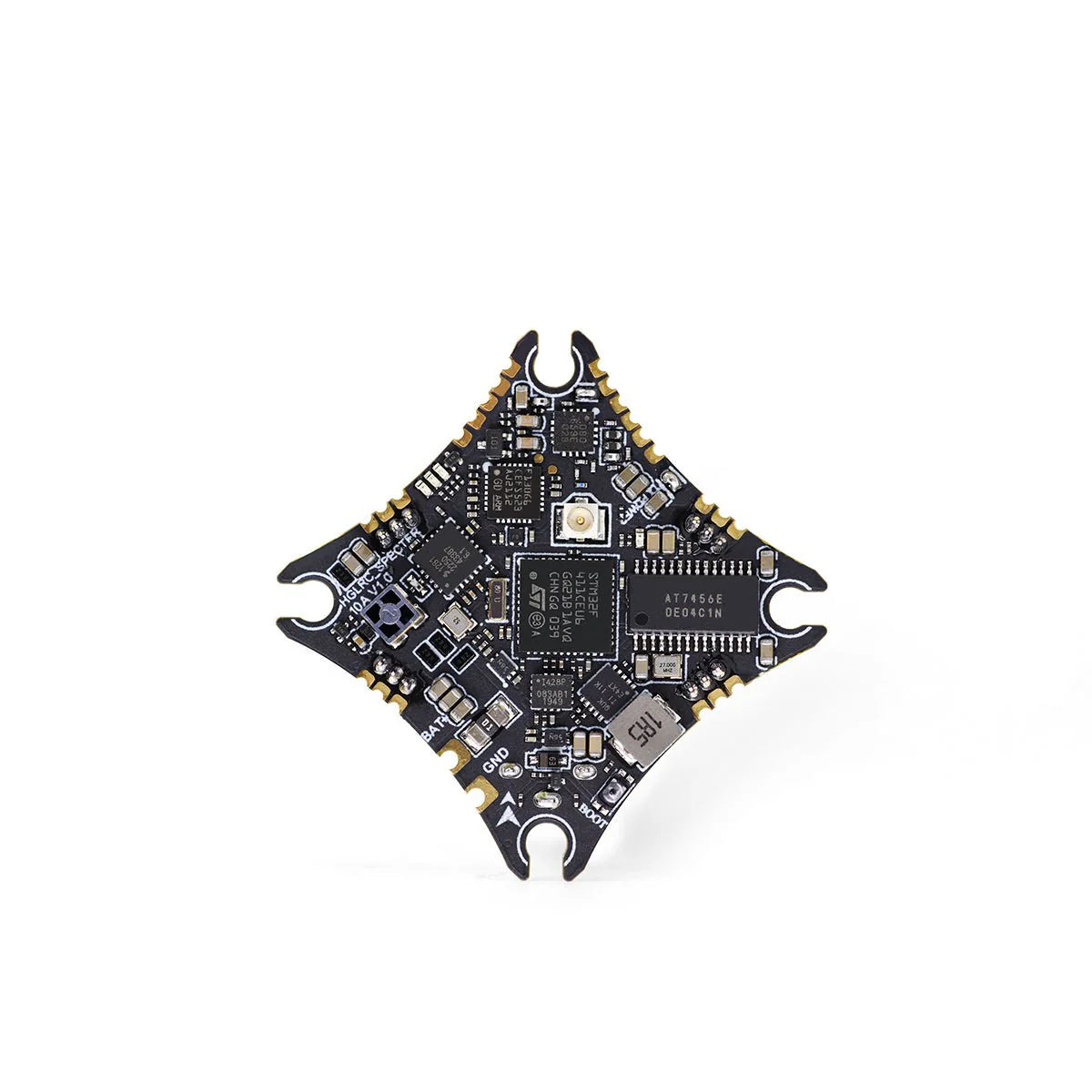

HGLRC SPECTER 10A 1-2S ELRS AIO VTX 400mW F411 AIO

Experience a high-performance, ultra-light AIO product with the HGLRC SPECTER 10A 1-2S ELRS AIO VTX. This brushless flight controller, equipped with integrated SPI ExpressLRS 2.4G receiver, and 400mW 5.8GHz power video transmission capabilities, offers a solution to the short-distance limitations of the ancient SIP D8/D16 protocol. With patch ceramic antennas and 400mW high-power video transmission, this ELRS receiver enhances flight precision and is perfect for navigating indoor environments. Designed with high sensitivity, refresh rate, and low delay, this AIO flight controller is a favorite among FPV enthusiasts. Plus, it's fully compatible with a variety of frames on the market, including 65/75/85mm, lightweight toothpick, and whoop series drones.

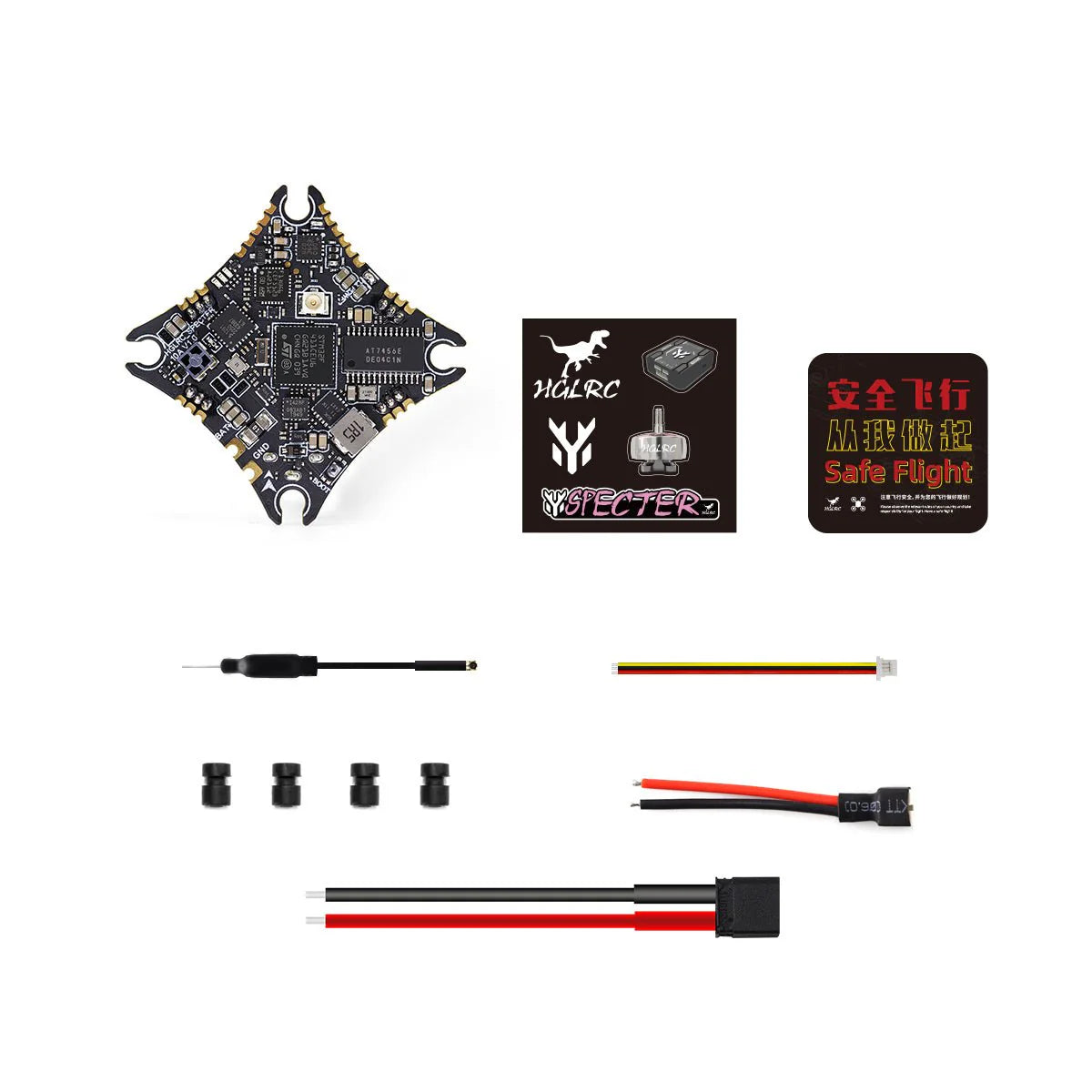

Package Includes:

1x SPECTER 10A 1-2S AIO

1x XT30U-M 22AWG 70mm male power cord

1x PH2.0-2P 22AWG 35mm male power cord

1x MX1.25-3P 30AWG 75mm camera cable

4x M2*6.6 Shock-absorbing column

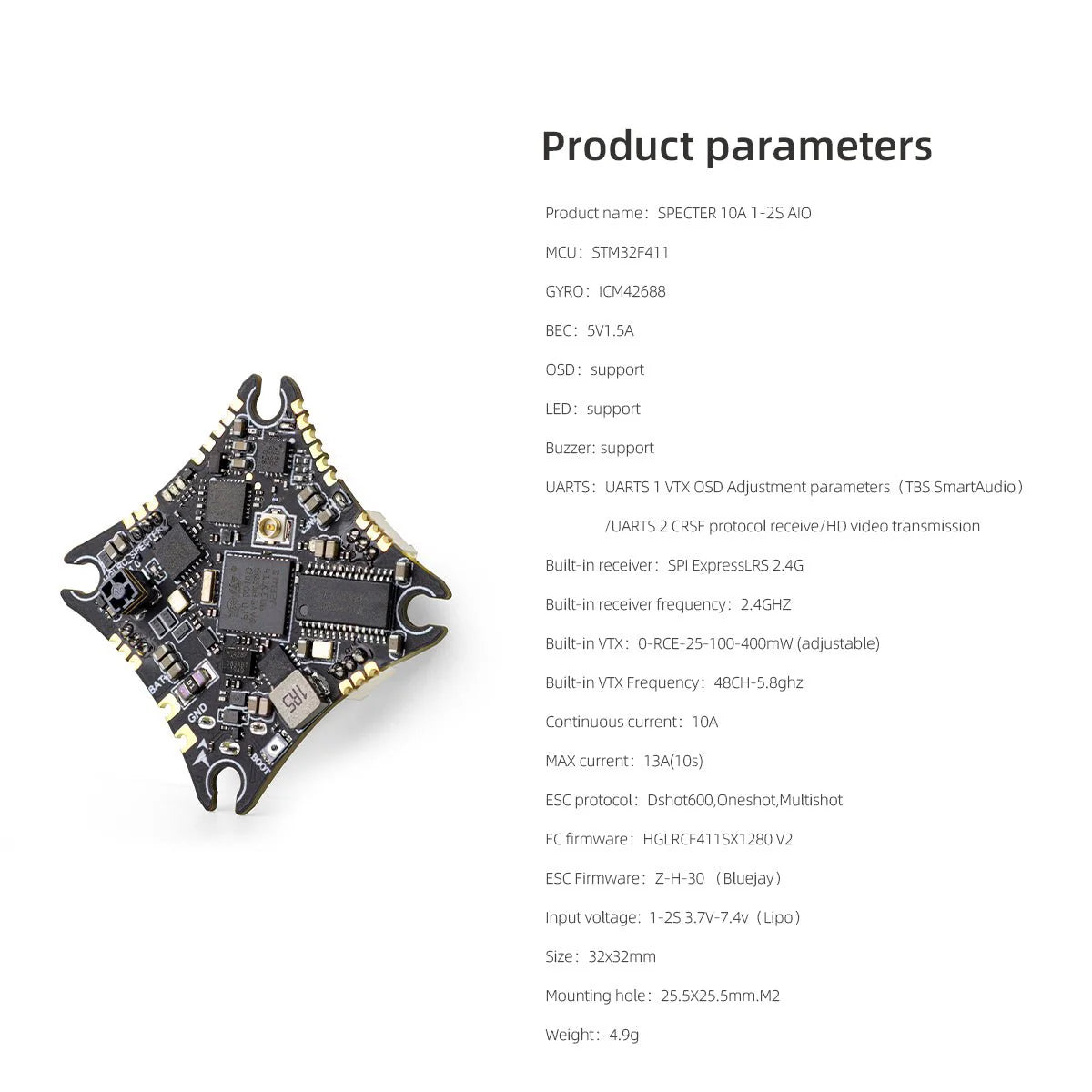

Specifications:

Product name: SPECTER 10A 1-2S AIO

MCU: STM32F411

GYRO：ICM42688

BEC: 5V1.5A

OSD: support

LED: support

Buzzer: support

UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD

Built-in receiver: SPI ExpressLRS 2.4GBuilt-in receiver frequency: 2.4GHZ

Built-in image transmission: 25-REC-100-400mW (adjustable)

Built-in image transmission frequency: 48CH-5.8ghz

Continuous current: 10A

Peak current: 13A (10s)

ESC protocol: Dshot600, Oneshot, Multishot

Flight control firmware: HGLRCF411SX1280 V2

ESC firmware: Z-H-30 (Bluejay)

Input voltage: 1-2S 3.7V-7.4V (Lipo)

Size: 32x32mm

Mounting hole: 25.5X25.5mm.M2

Weight: 4.9g
