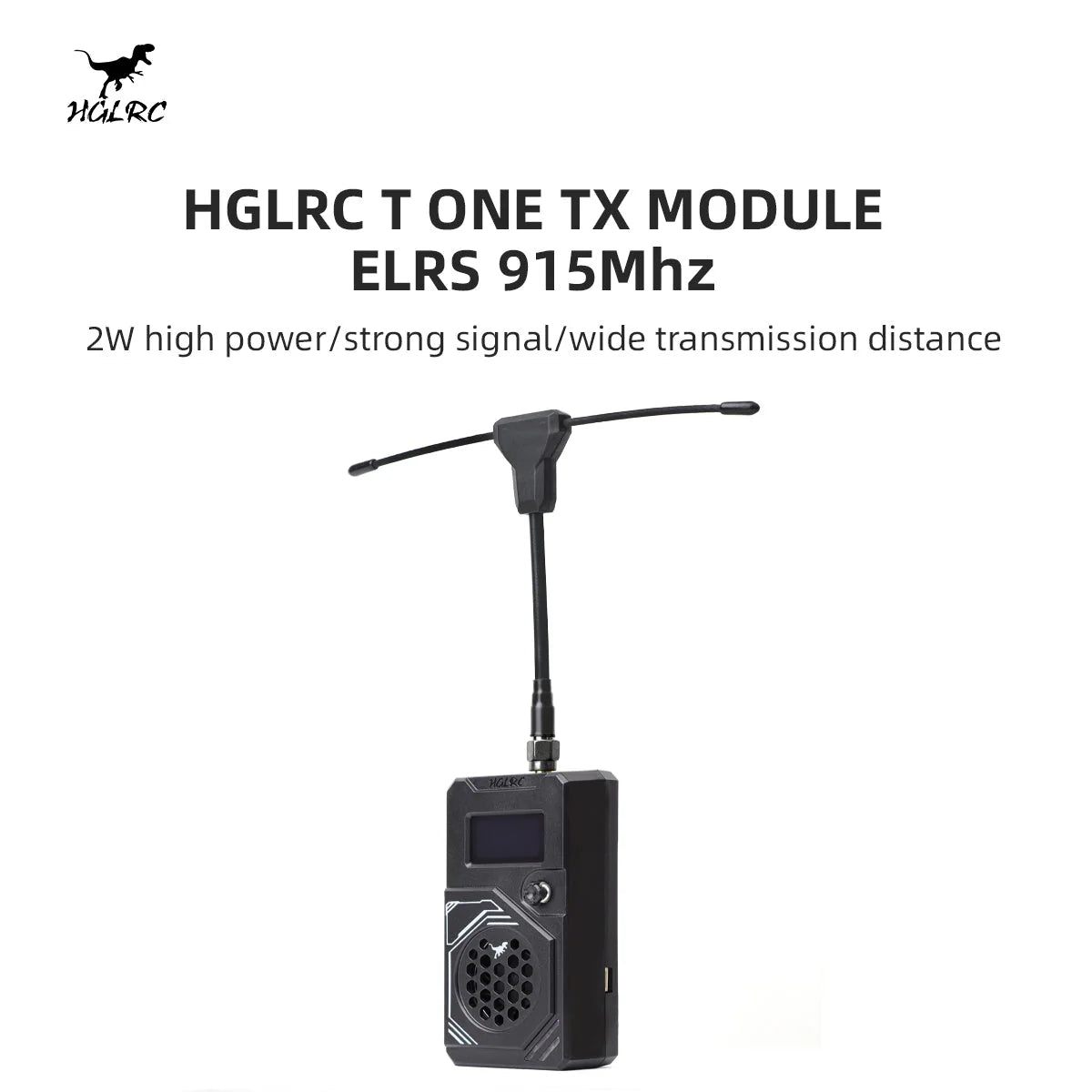

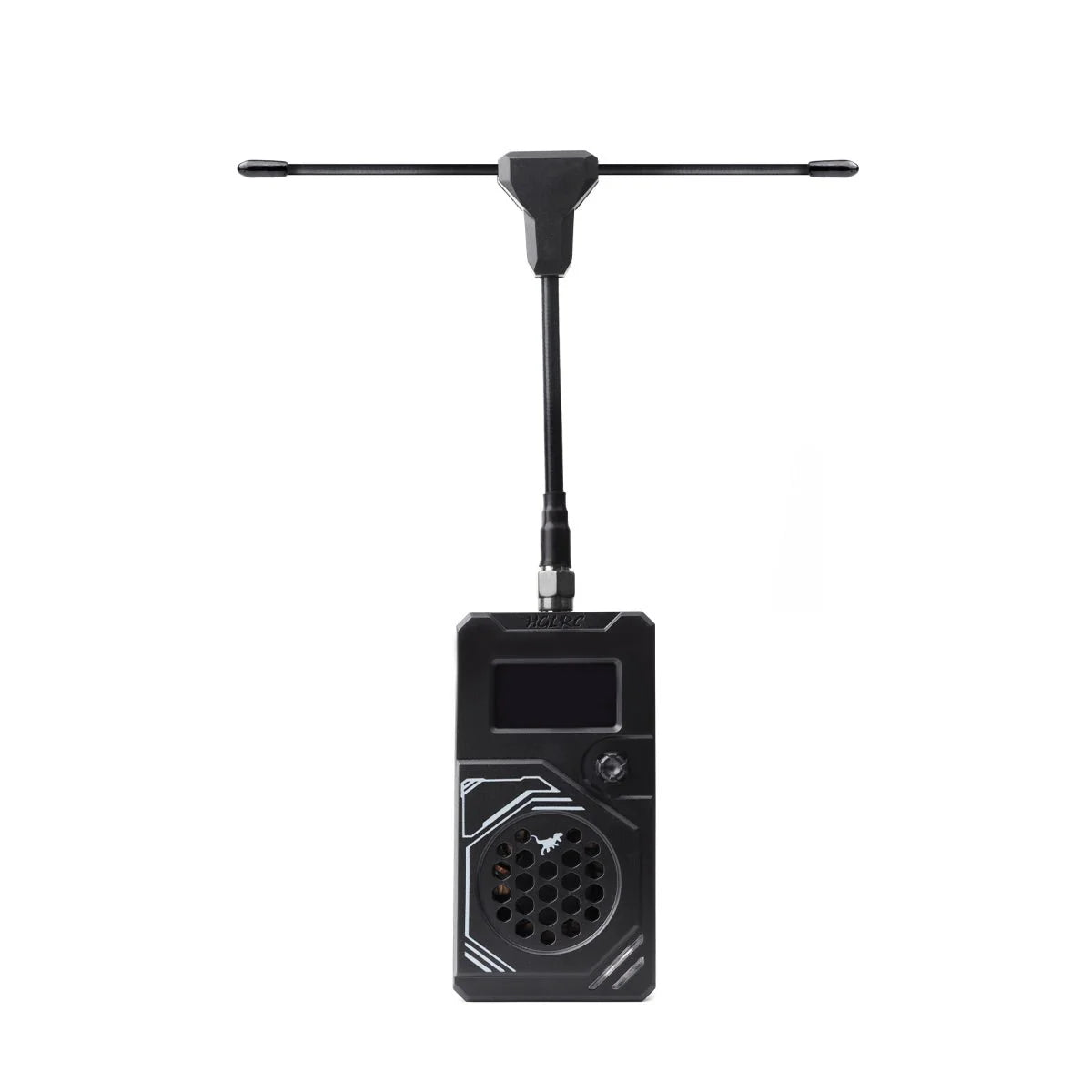

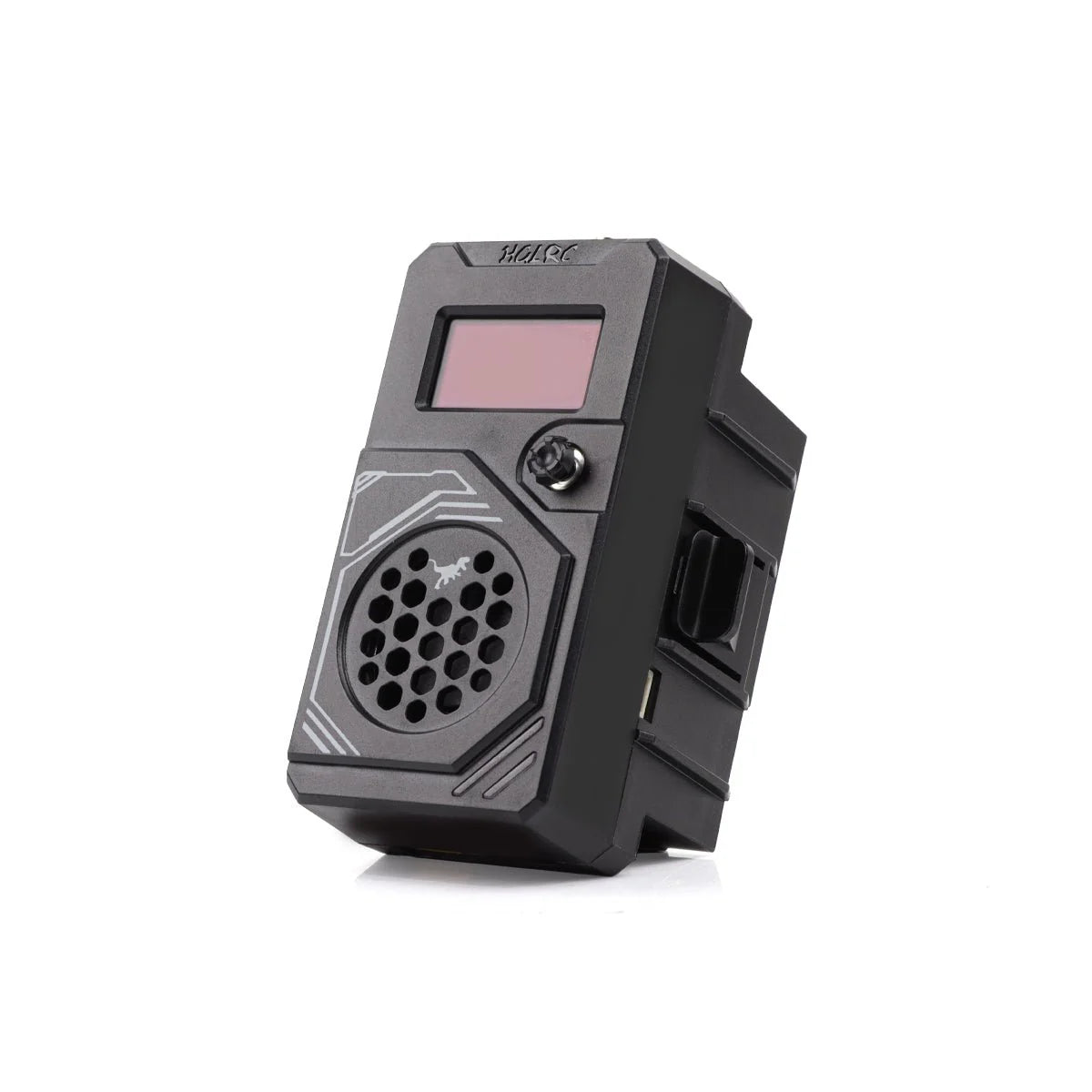

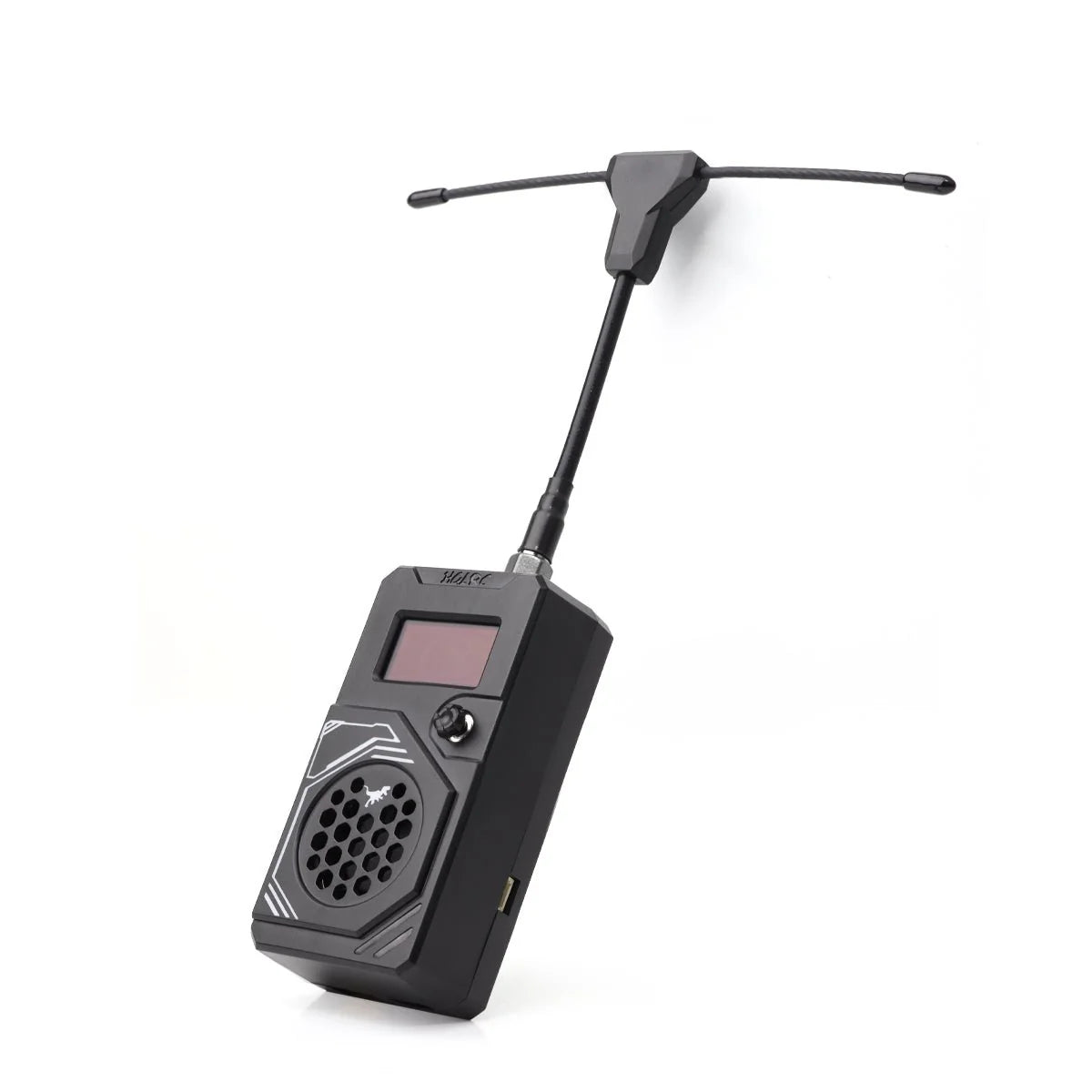

HGLRC ELRS T ONE TX Module 2W

The HGLRC ELRS T ONE TX Module is designed with a high power of 2W, making it ideal for long-distance flights. Its heat sink is built to withstand high power and extended usage. Additionally, it features two interchangeable bottom shells that are fully compatible with most remote controls on the market, ensuring a perfect fit. Based on the ExpressLRS project, an open source RC link for RC applications, this module is the perfect choice for customers seeking a reliable and powerful option.

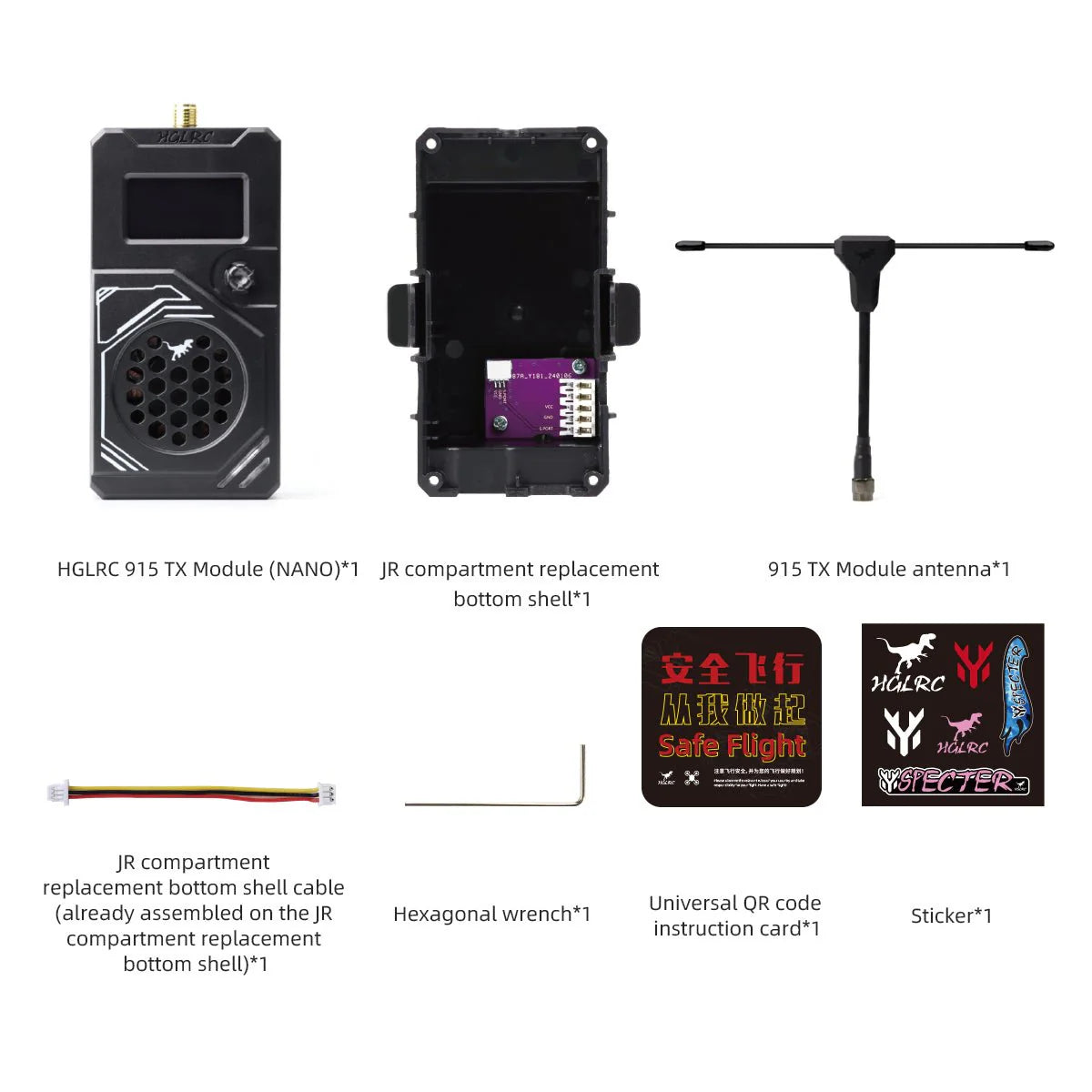

Package Includes:

1x 915 TX Module (NANO)

1x JR compartment replacement bottom shell

1x JR compartment replacement bottom shell cable (already assembled on the JR compartment replacement bottom shell)

1x 915 TX Module antenna

1x Hexagonal wrench

Specifications:

Product model: T ONE TX Module

Working frequency band: 868-915MHz FCC

Output power: 100mw/250mw/500mw/1000mw/2000mw

Refresh rate: 25Hz/50Hz/100Hz/200Hz

XT 30 external power supply port voltage: DC 7.4V~25.2V (2S~6S)

Adaptive position: JR standard 5-pin/NANO standard 8-pin

Display: OLED

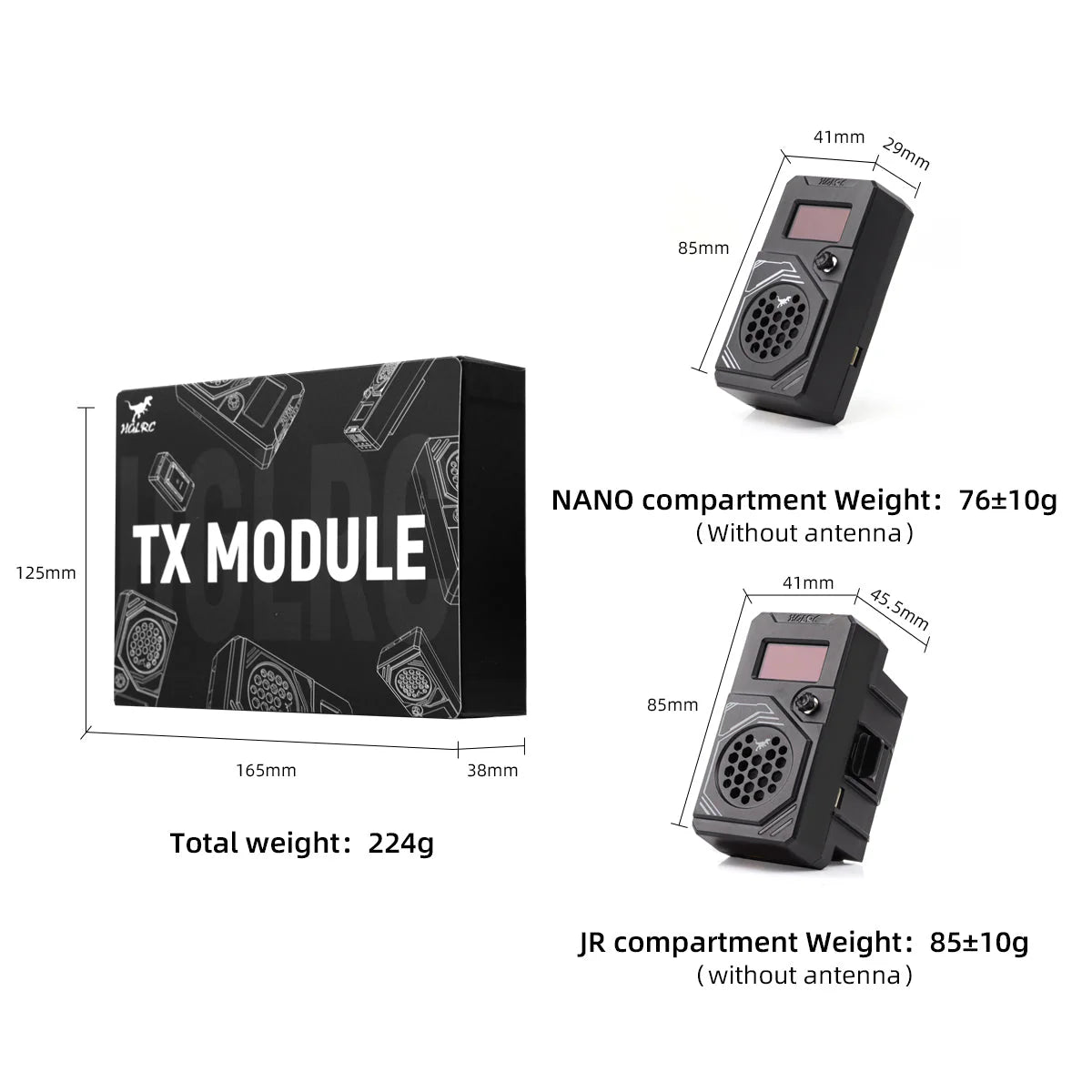

Weight: 76g (Nano without antenna)

85g (JR without antenna)

Dimensions: 41*85*29 (NANO bottom shell without antenna)

41*85*45.5 (JR bottom shell without antenna)
