HappyModel | ID: I-R7-2

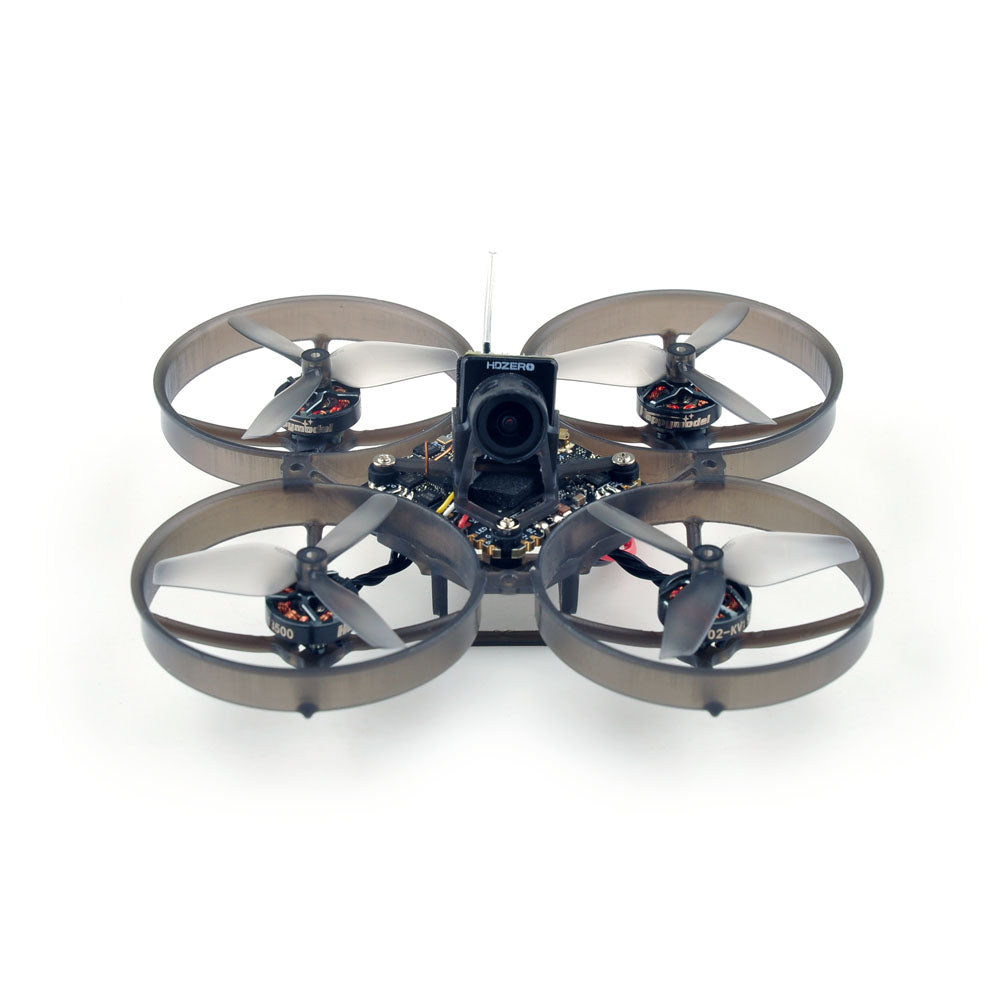

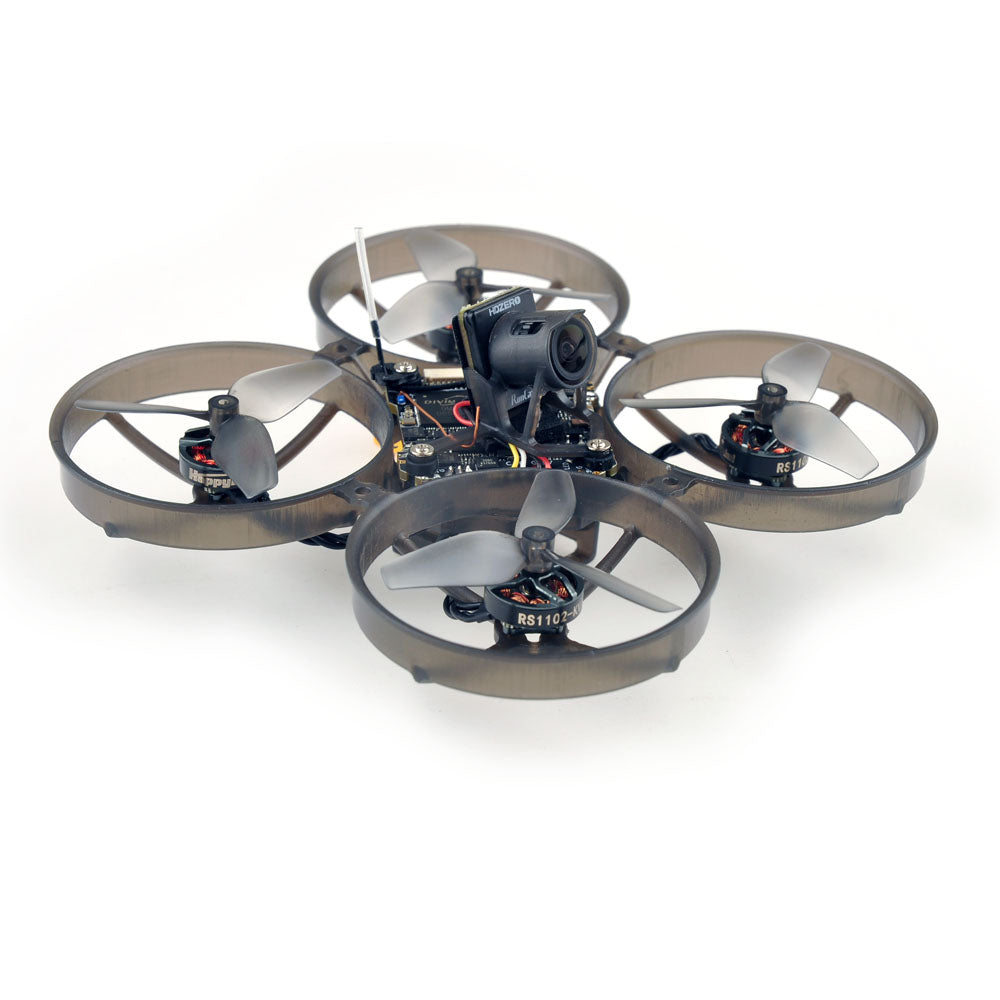

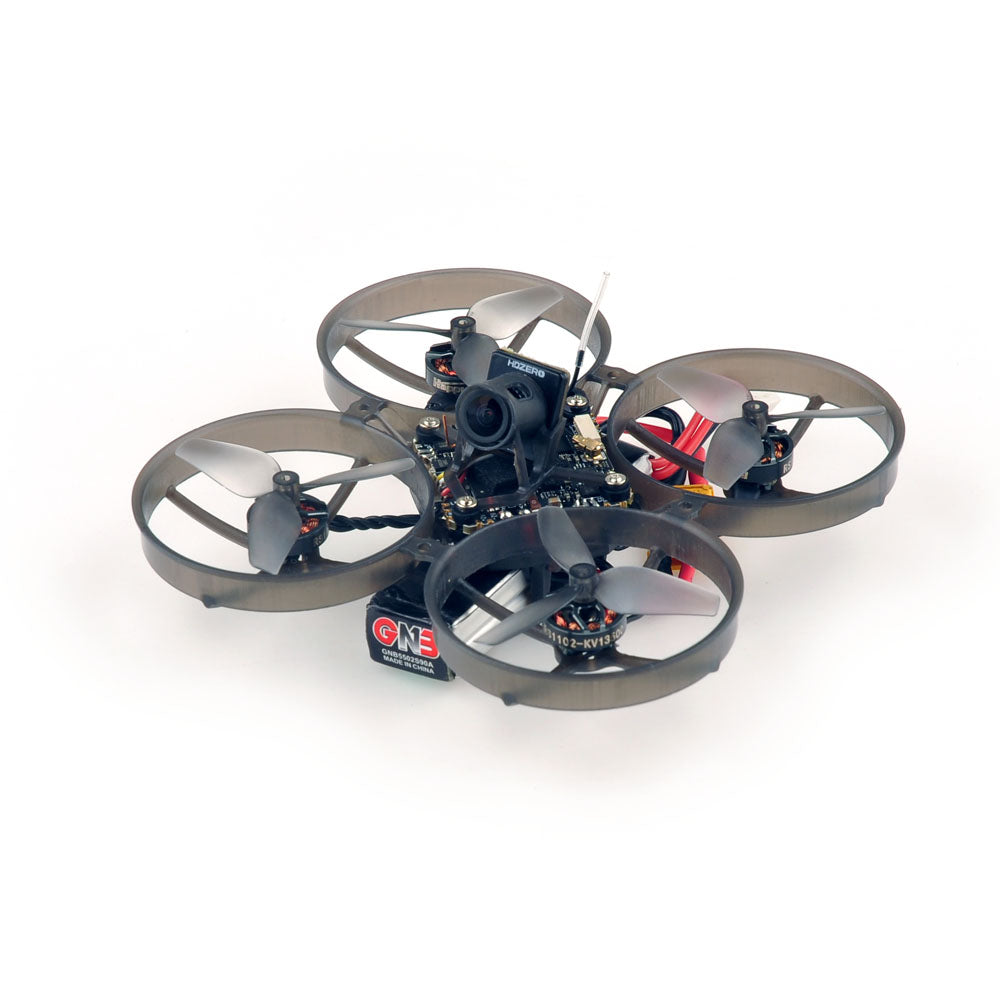

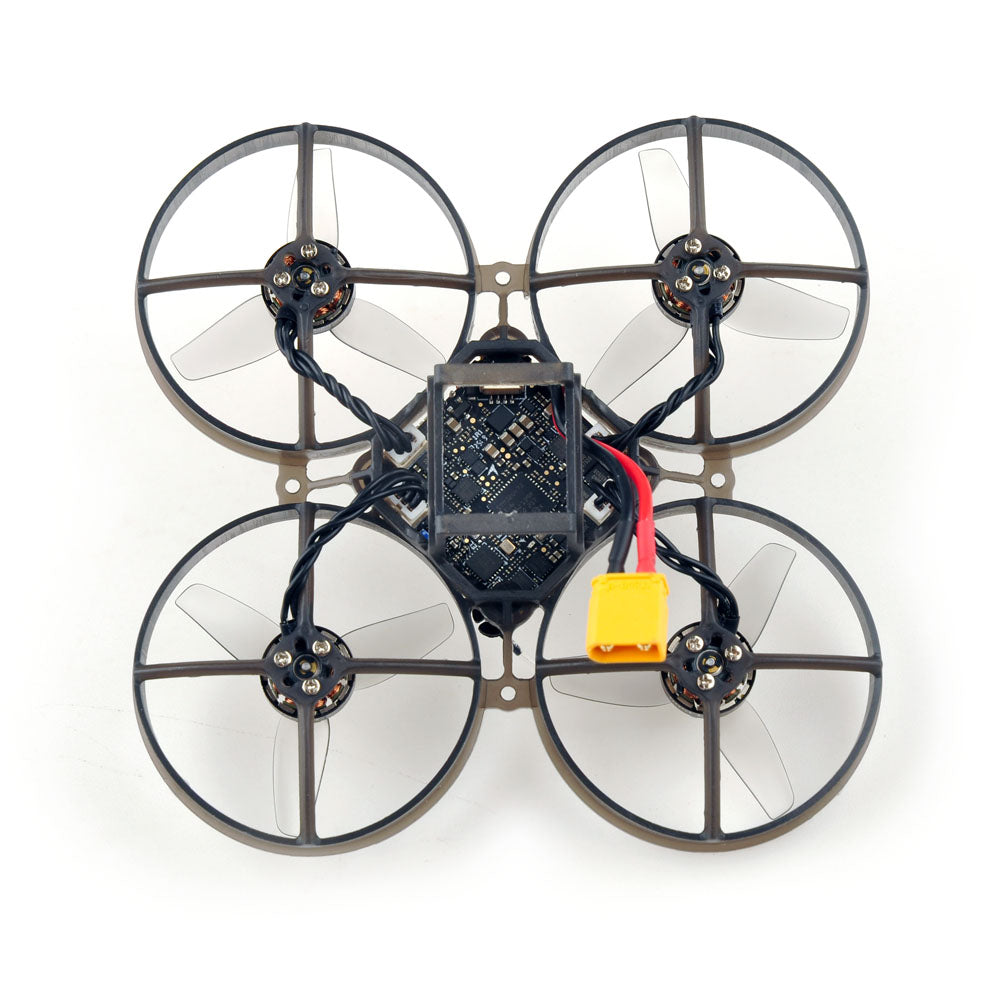

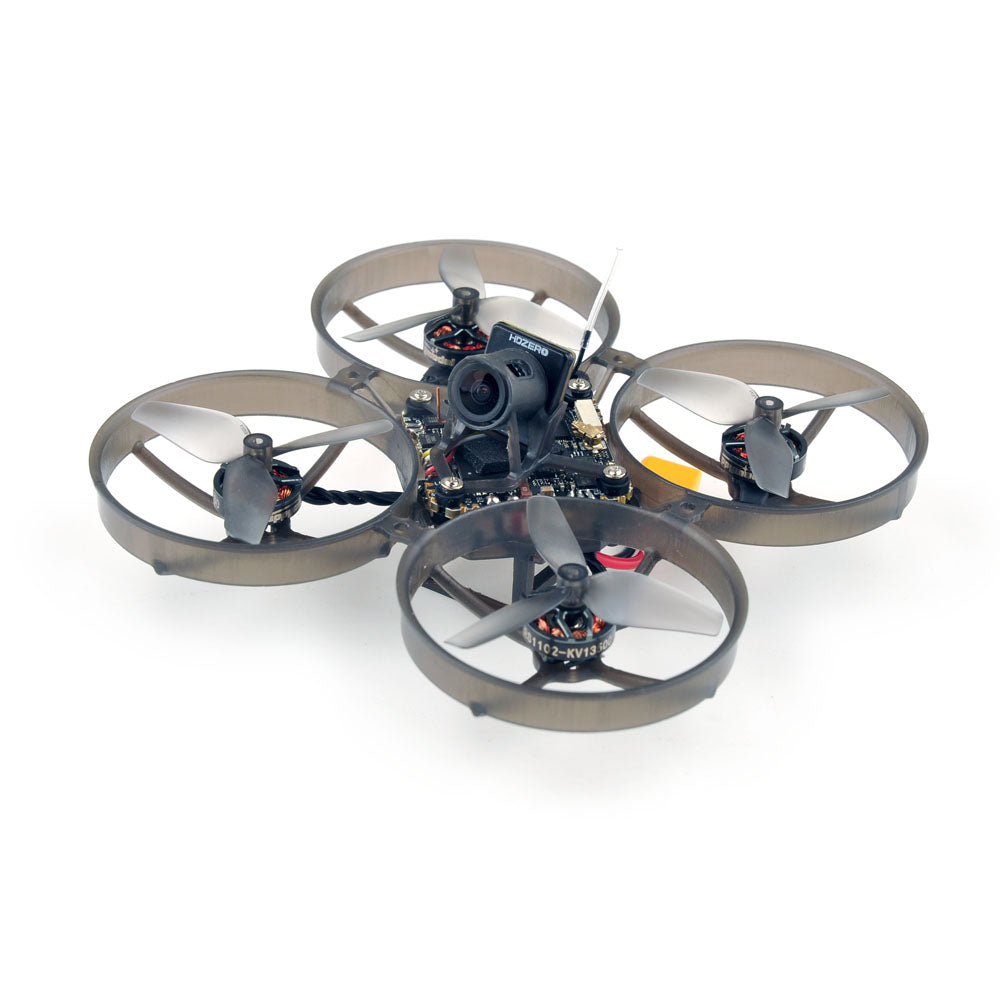

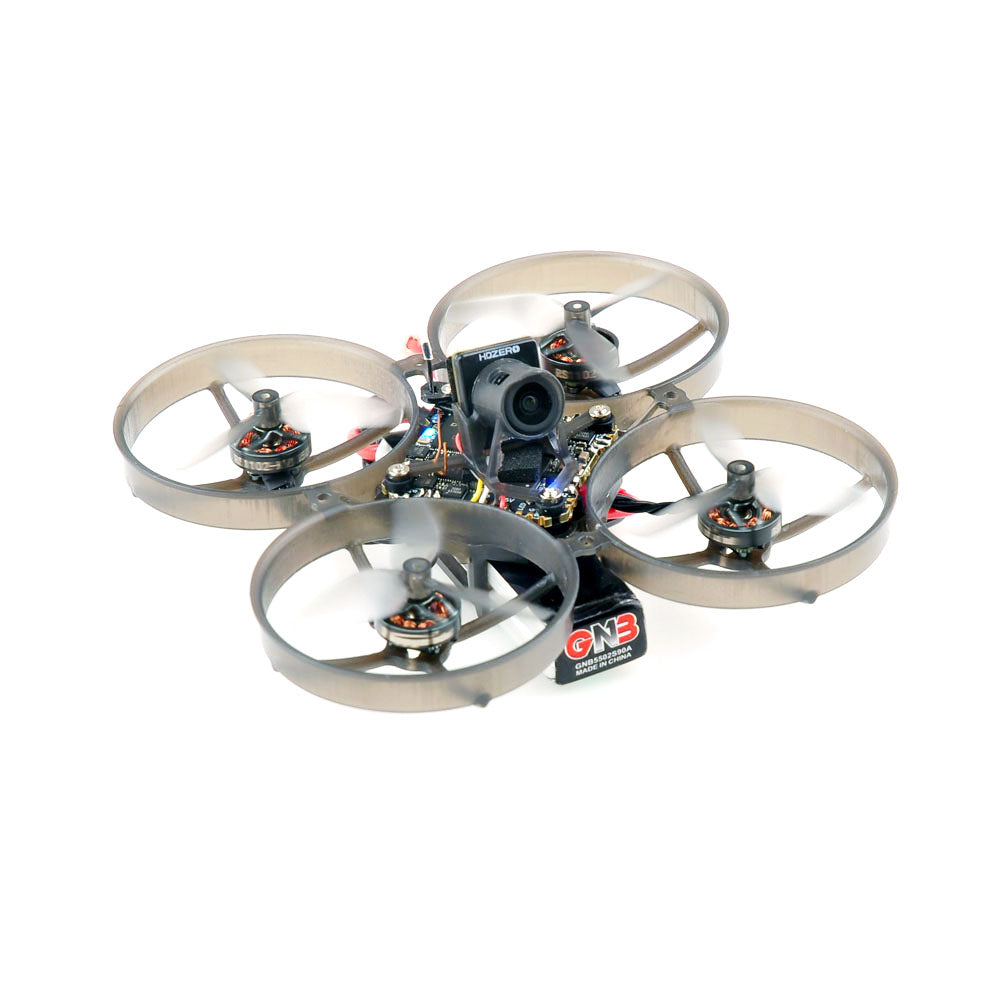

HappyModel Mobula8 Freestyle HDZero (ELRS)
The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.
Package Includes:
| Item Name | Qty |
| Happymodel M80 Frame | 1 |
| HDZERO AIO15 5-IN-1 Flight controller | 1 |
| RS1102 KV13500 brushless motor | 4 |
| HQPROP 45MMX3 tri-blade propellers(4cw+4ccw) | 1 |
| HDZERO LUX Camera | 1 |
| Canopy | 1 |
| Screw driver | 1 |
Features:
- Equipment with the New HDZERO AIO15 5-IN-1 flight controller
- 2S battery support Powerful and Smooth freestyle flying experience
- UART ExpressLRS receiver support stable control link
- Lighter but powerful for backyard FPV
- HDZERO lighter and good quality Camera
Specfications:
80mm wheelbase
45mm propellers
Weight only 33.5gram
RS1102 KV13500 high speed motors
Recommend 2S 550mah battery(Exclude)
2.4G ExpressLRS ready
Flight time: around 5 minutes
Specifications:
| Motor | Mode: RS1102 KV13500 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.33g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm |
| Flight controller | MCU: STM32G473 (170MHz, 512K Flash) Gyro: ICM42688 On board voltage and amperage meters Built-in 15A(each) Blue Jay 4-in-1 ESC Built-in 5.8G HDZero VTX RF output: 25mw/200mW Supported channels: R1-R8, F2/F4, L1-L8 UFL connector (ultra-lite linear antenna included) Built-in Serial ExpressLRS 2.4GHz receiver Built-in 5V 3A BEC Flight controller firmware target: HDZERO_AIO15 Power supply: 2S battery (6.4v~8.7v) Fully compatible with the popular whoop frames Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size Weight:7.2g (with motor plugs) |
| Onboard 4in1 ESC | Power supply: 2S LiPo/LiPo HV Current: 15A continuous,18A peak (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz RF Frequency: 2.4GHz Antenna: Pre-soldered enameled copper wire 31mm length Telemetry output Power: <12dBm |
| LUX camera | HDZero Lux Camera Sensor size: 1/2 inch Resolution: 720p60 4:3 and 16:9 FOV: D:155° H:126° V:94°(4:3) FOV: D:145° H:126° V:70°(16:9) WDR |
