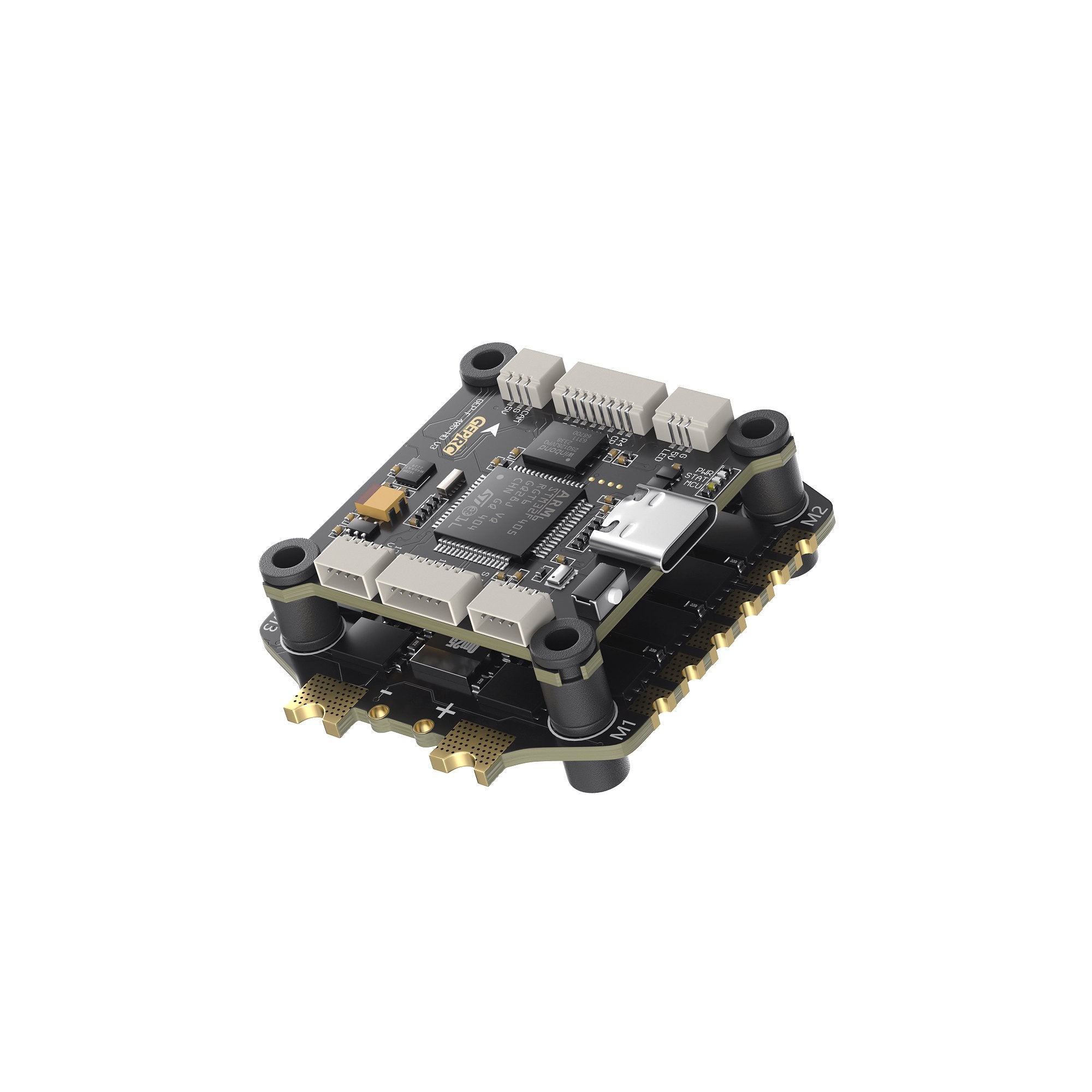

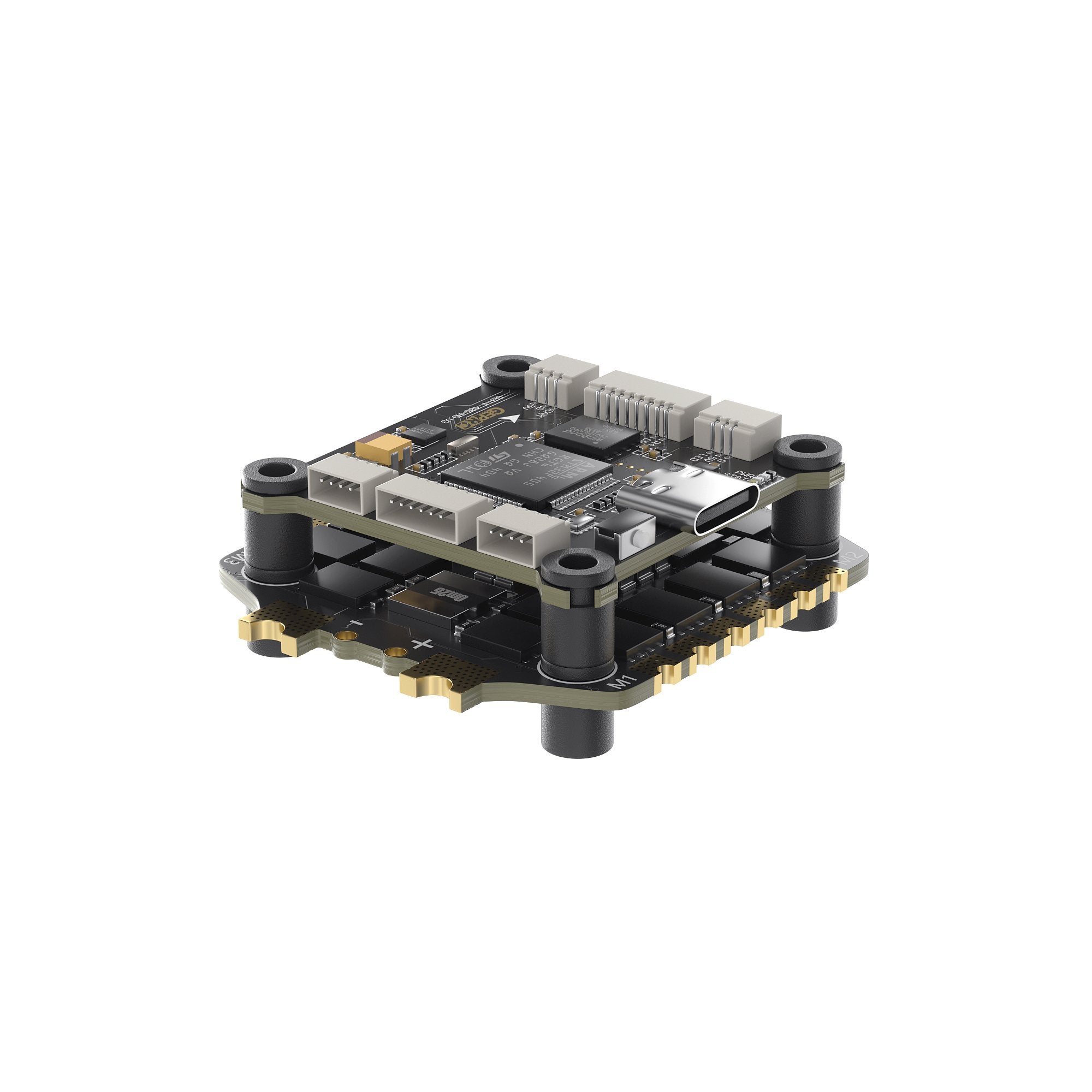

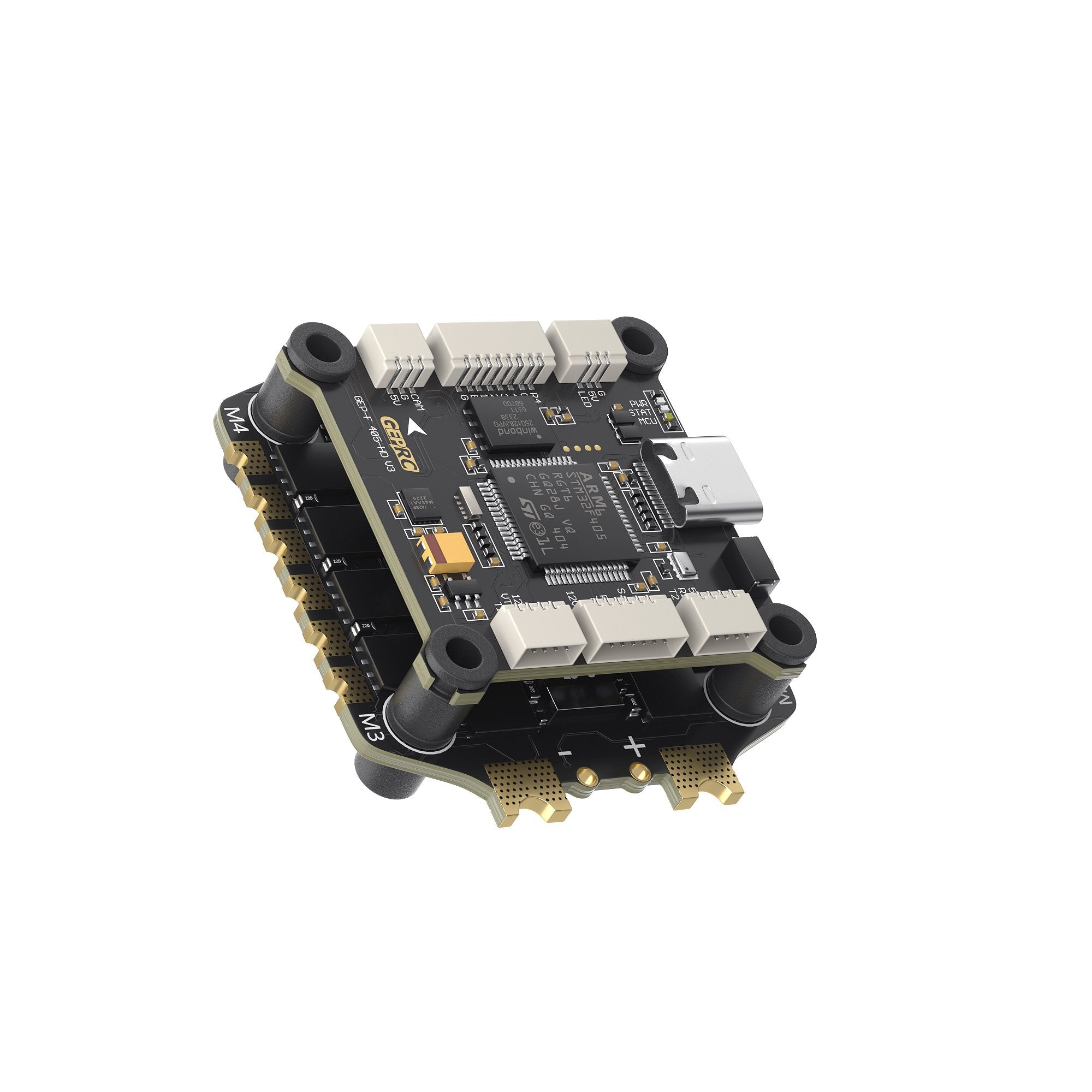

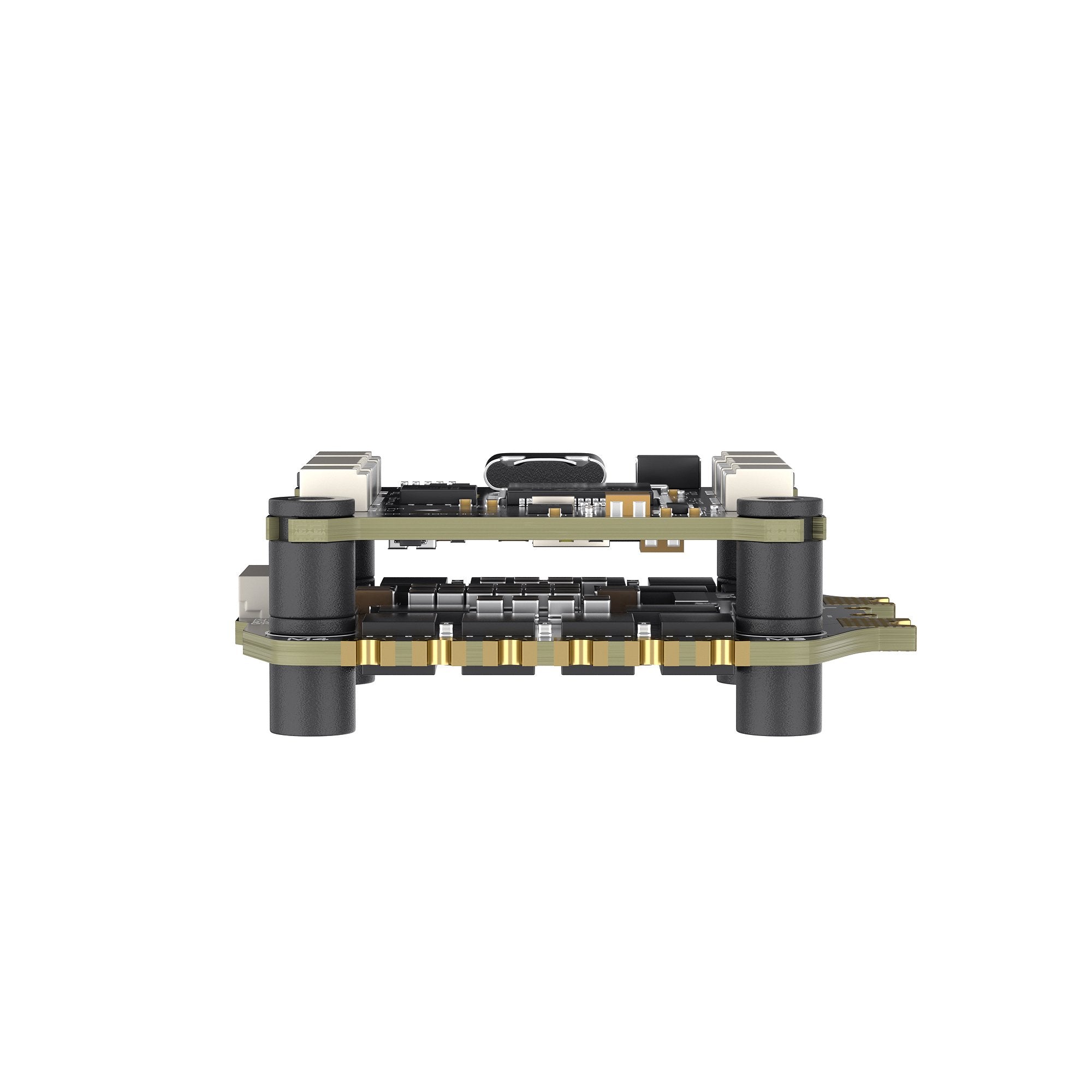

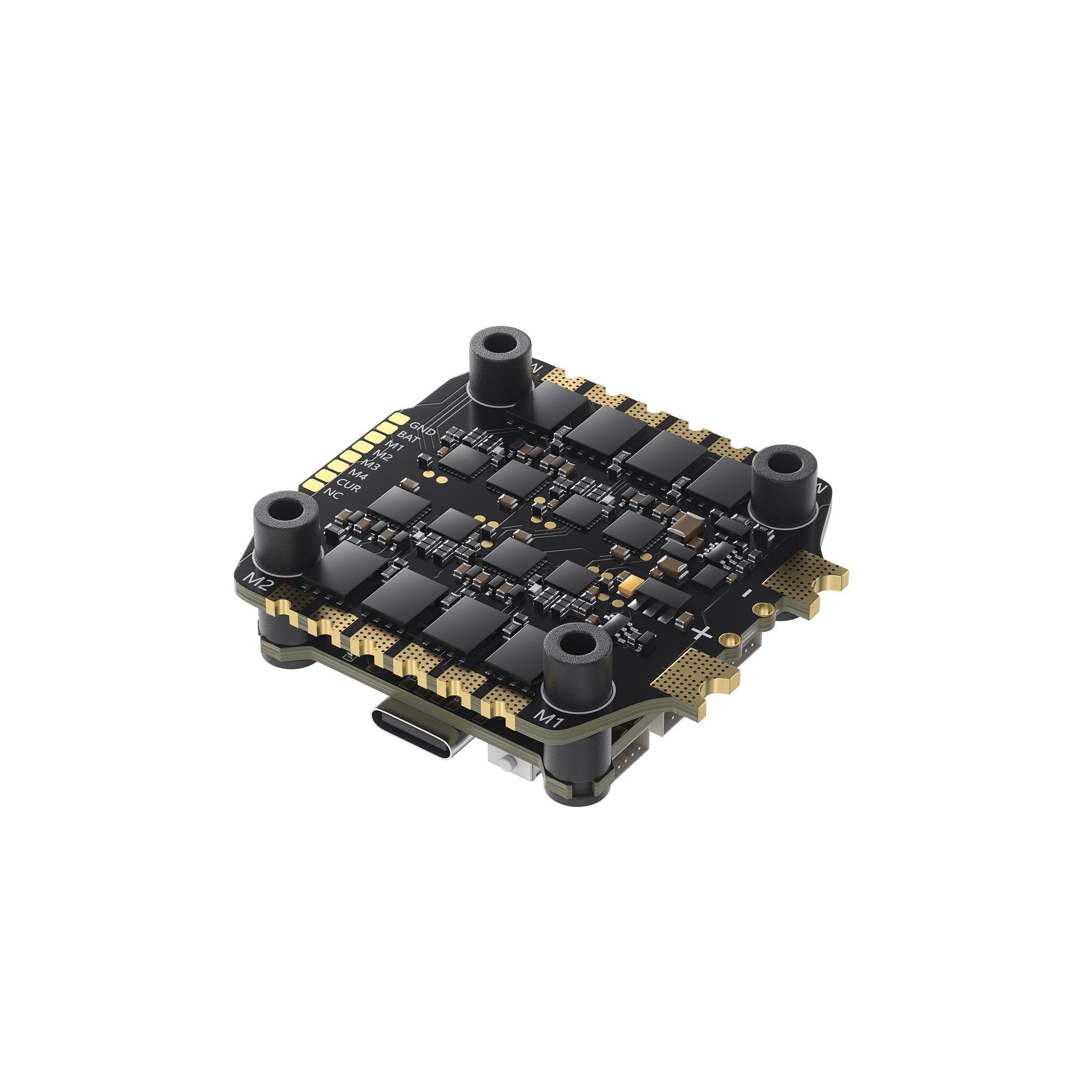

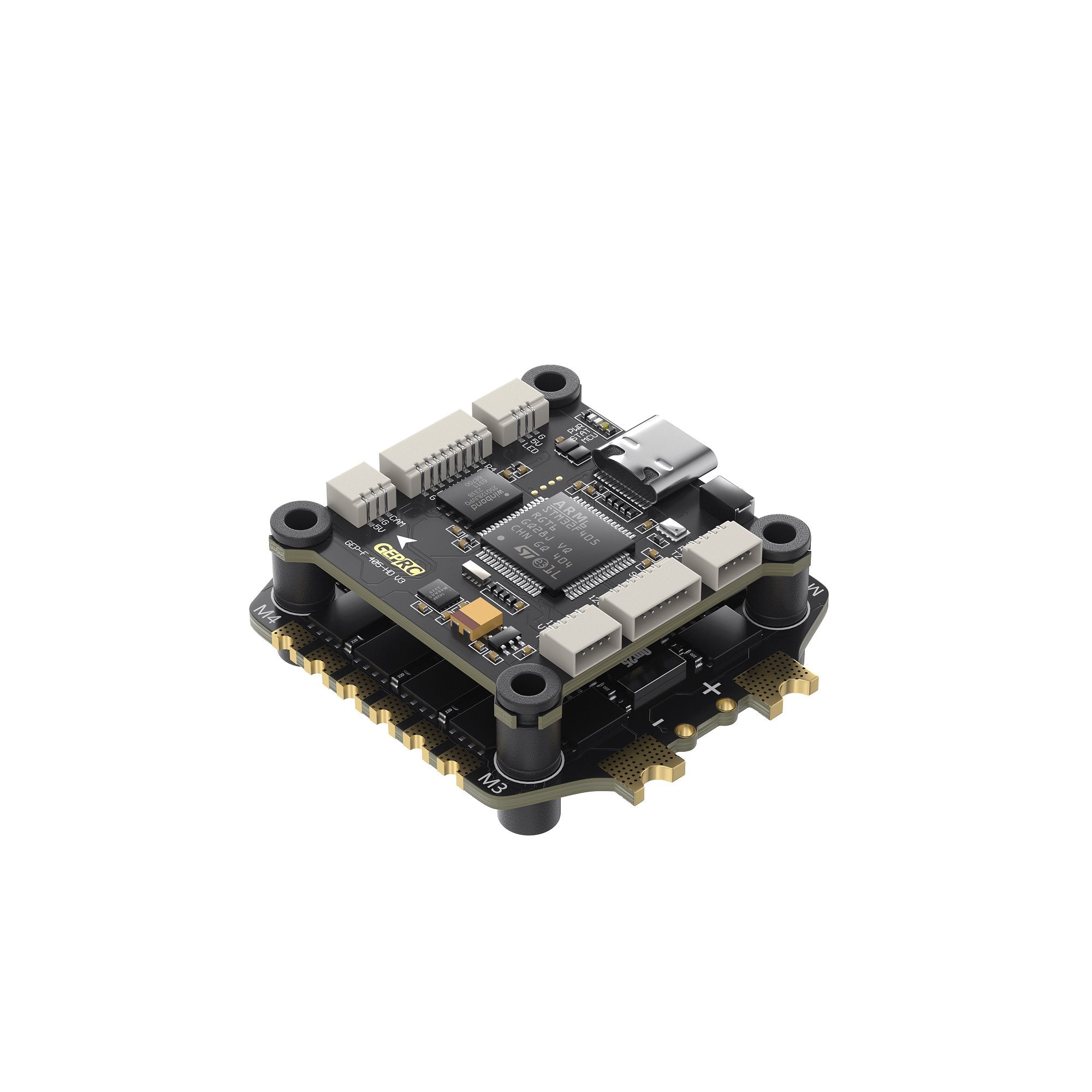

GEPRC Taker F405 BLS 65A V2 Stack

The GEPRC Taker F405 BLS 65A V2 Stack features a high-performance STM32F405 processor paired with the advanced 42688-P gyroscope for precise flight control. It includes 16MB black box storage and an integrated LC filter for signal clarity. The upgraded Type-C USB interface allows direct connection to the DJI Air Unit. Combined with the TAKER H65_8S_BLS 65A 4IN1 ESC, it delivers smooth and responsive flying. The easy installation design and shock absorber ensure stable gyroscope operation, supported by dual independent BEC outputs at 12V@2.5A and 5V@3A for reliable power distribution.

Package Includes:

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pin silicone cable

1 x Camera connection cable

Specifications:

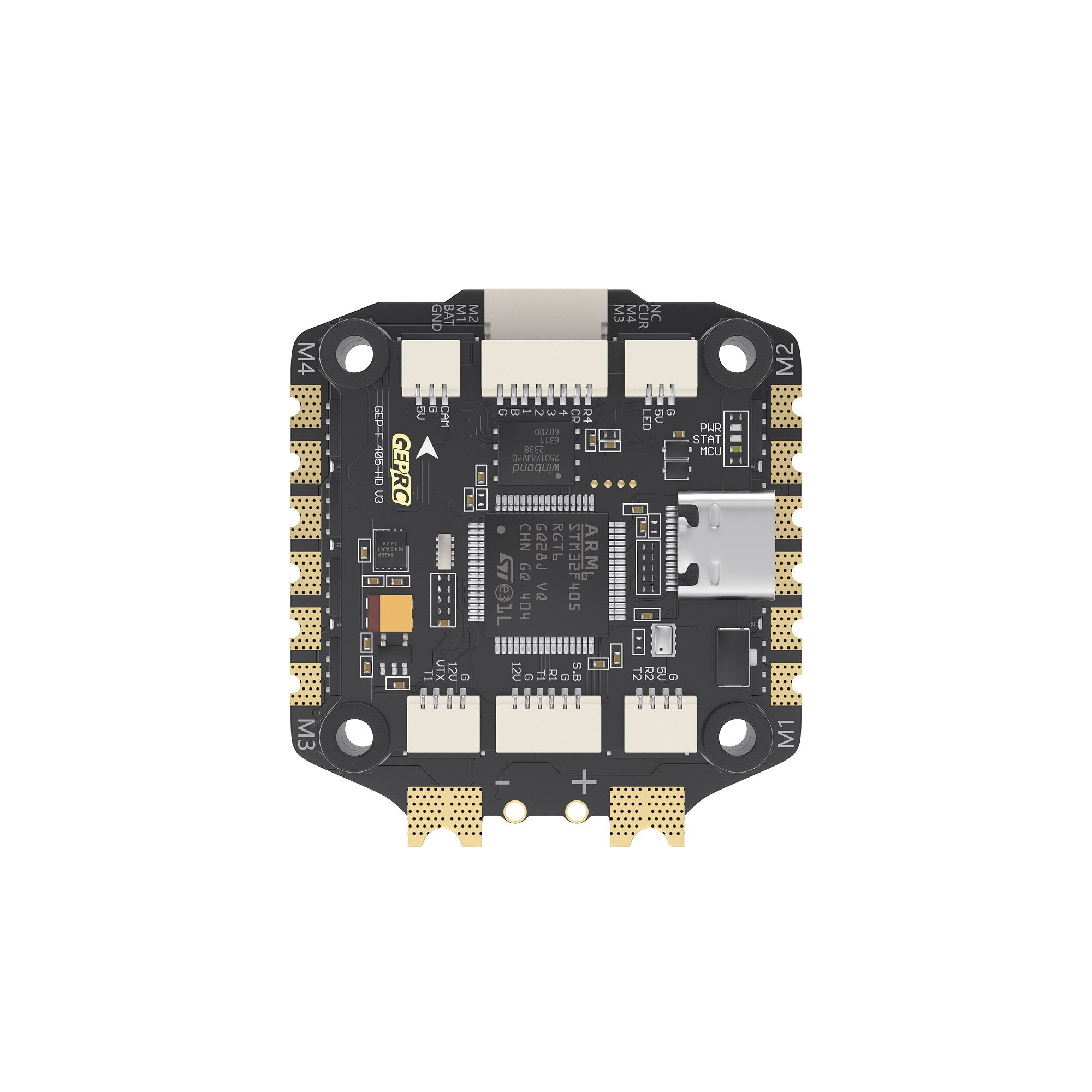

GEP-F405-HD V3 Flight Controller

MCU：STM32F405

IMU：ICM42688-P(SPI)

Air Unit Connection：Direct plugging into DJI Air Unit

Black Box：16M onboard

Barometer: support

Motor outputs：M1-M6

USB Interface：Type-C

OSD：BetaFlight OSD w/ AT7456E chip

BEC：5V@3A,12V@2.5A dual BEC

Firmware Target：GEPRCF405

Size：37.15×37.15mm

Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle

Input Voltage：3-6S LiPo

UART：6 UARTs

Power Filter： Integrated LC filter

Weight：7.3g

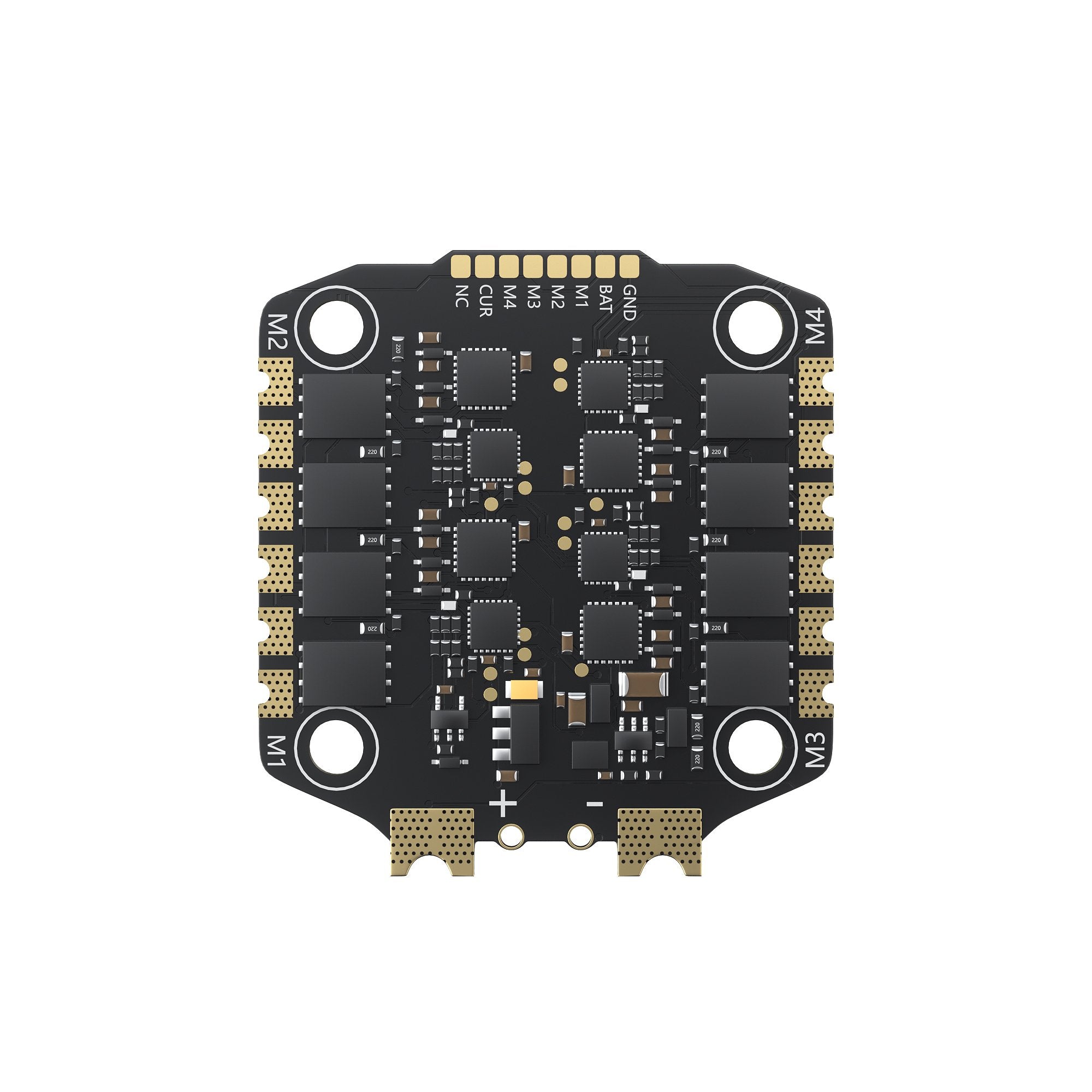

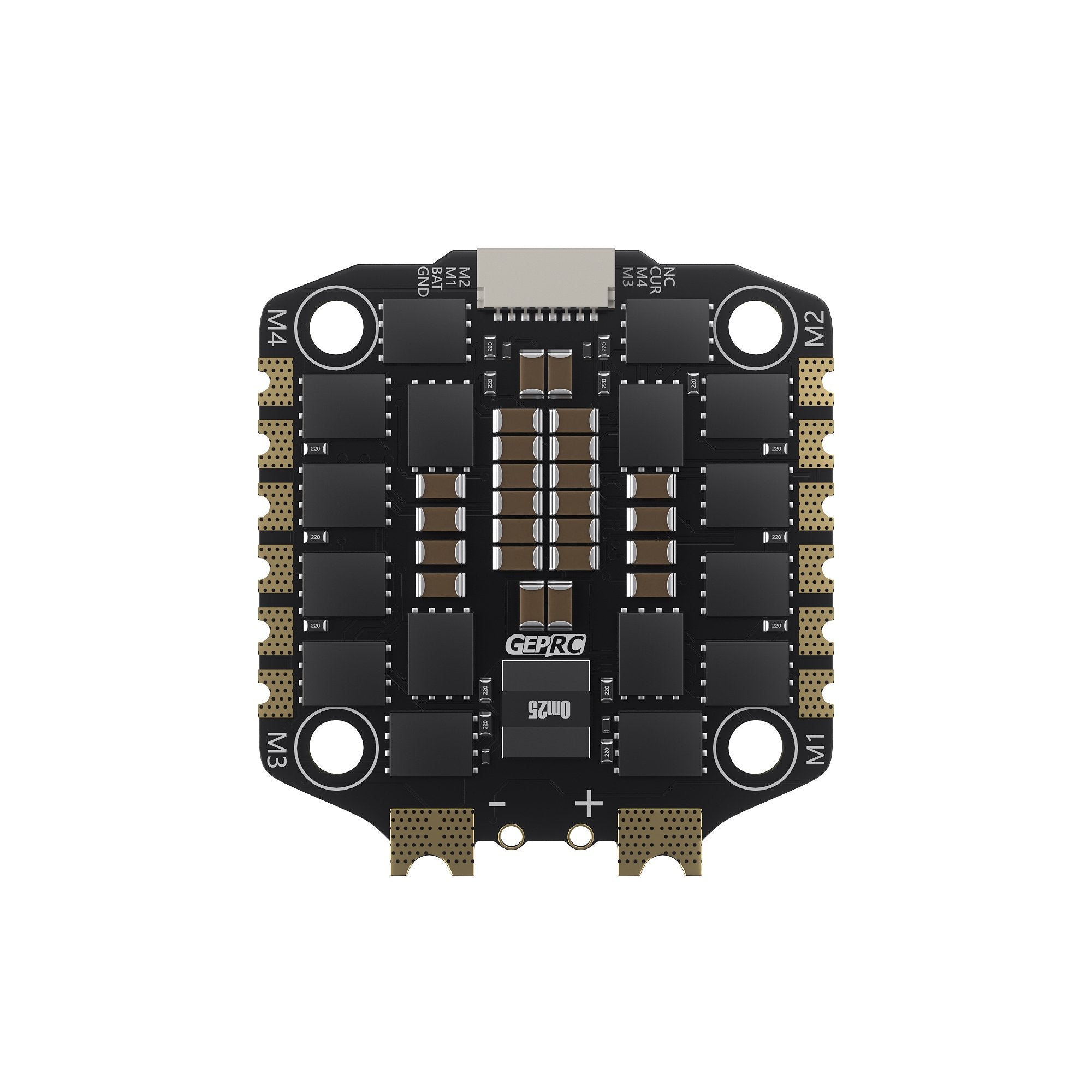

TAKER H65_8S_BLS 65A 4IN1 ESC

Input Voltage: 3-8S Lipo

Ammeter: Support

Continue Current：65A

Burst Current：70A（5 second）

Support Protocol: Dshot 150/300/600

Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.

Weight: 14.9g

Target: B_X_30
