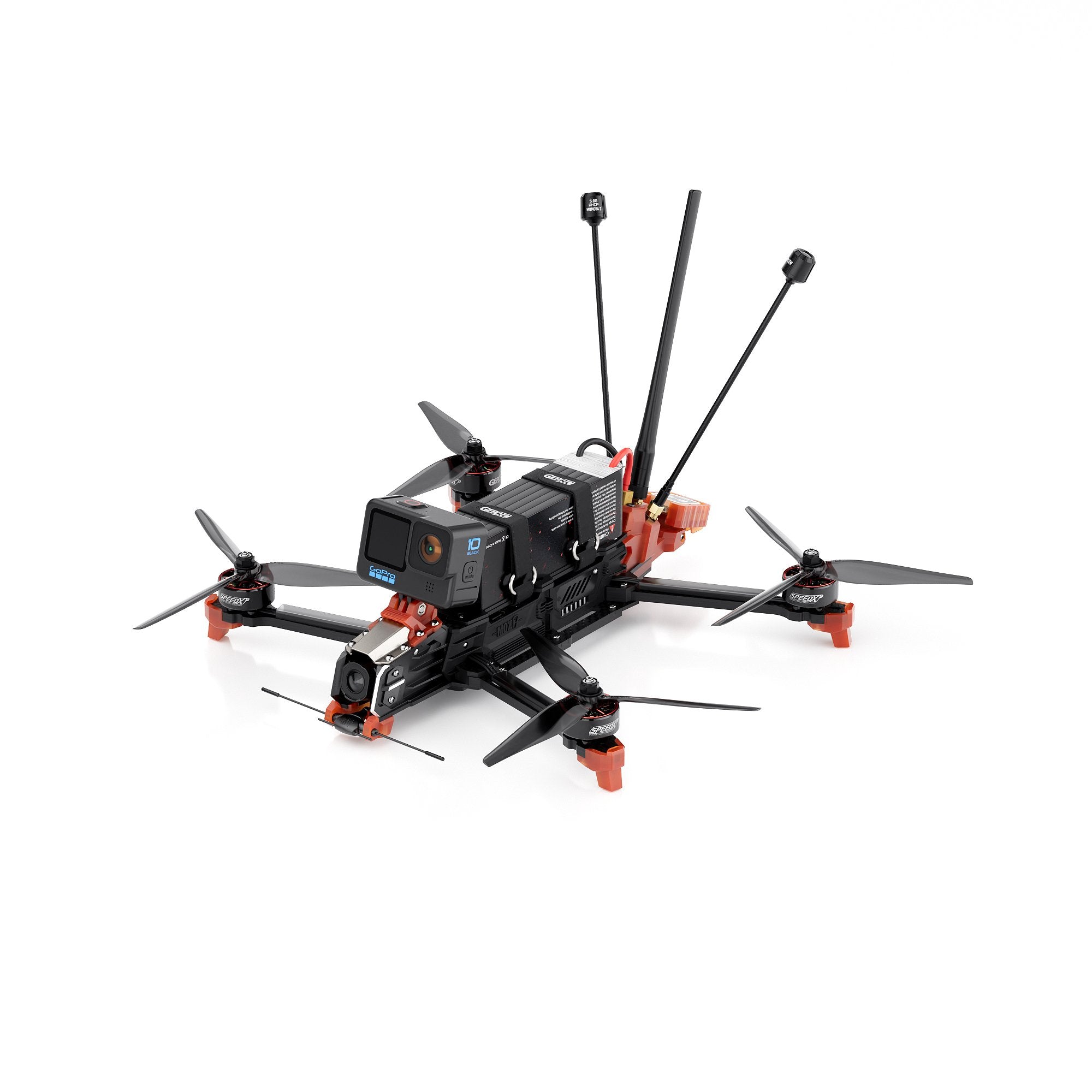

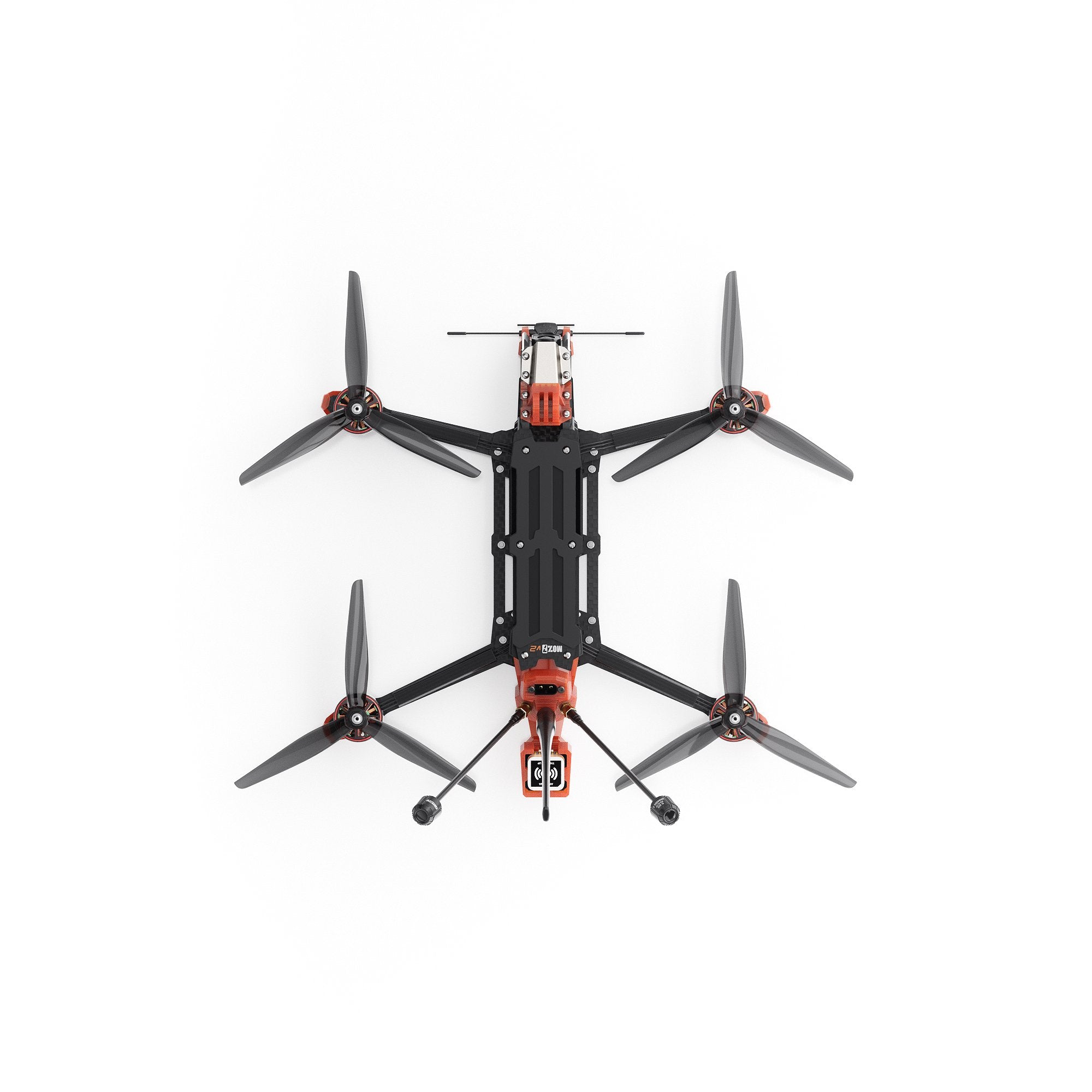

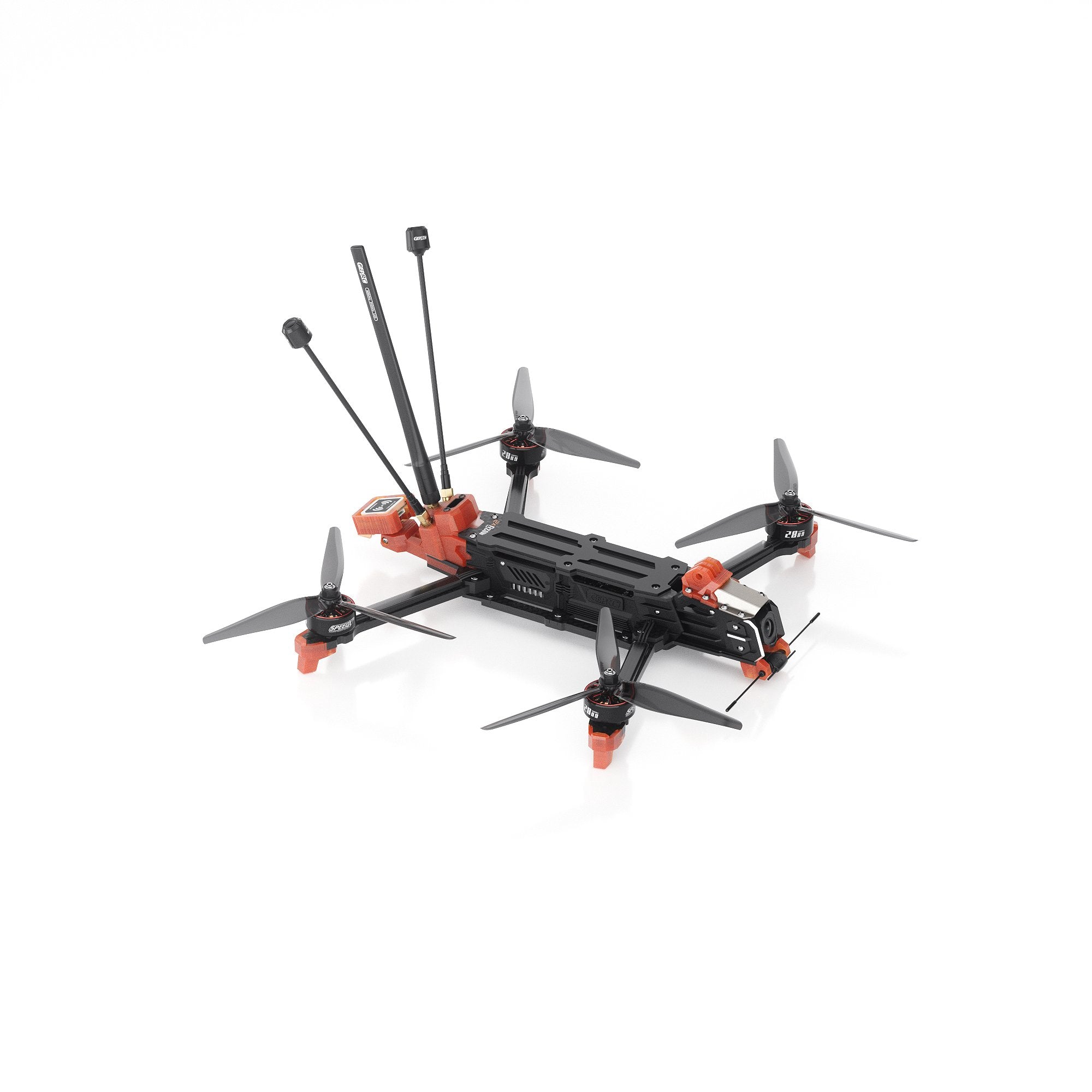

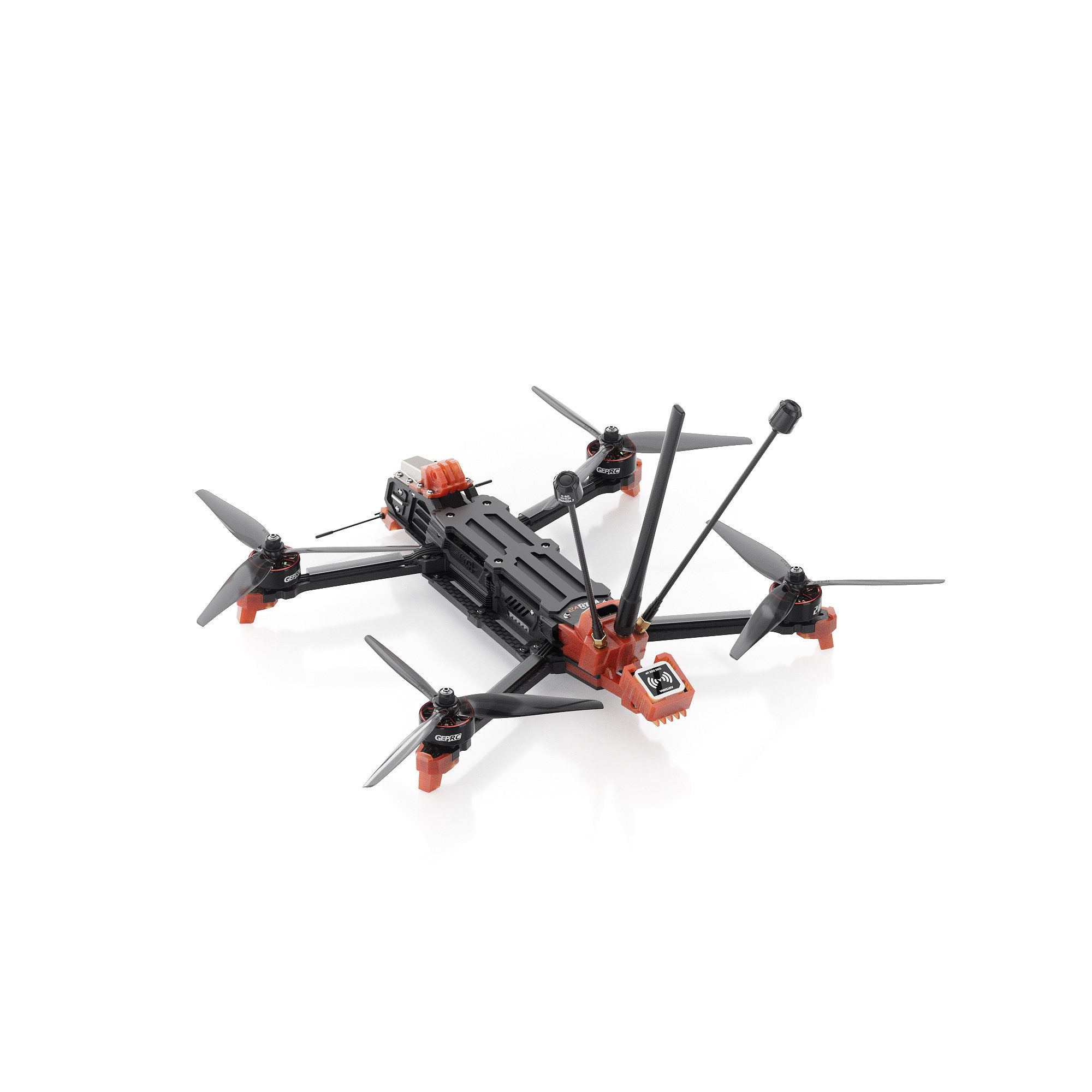

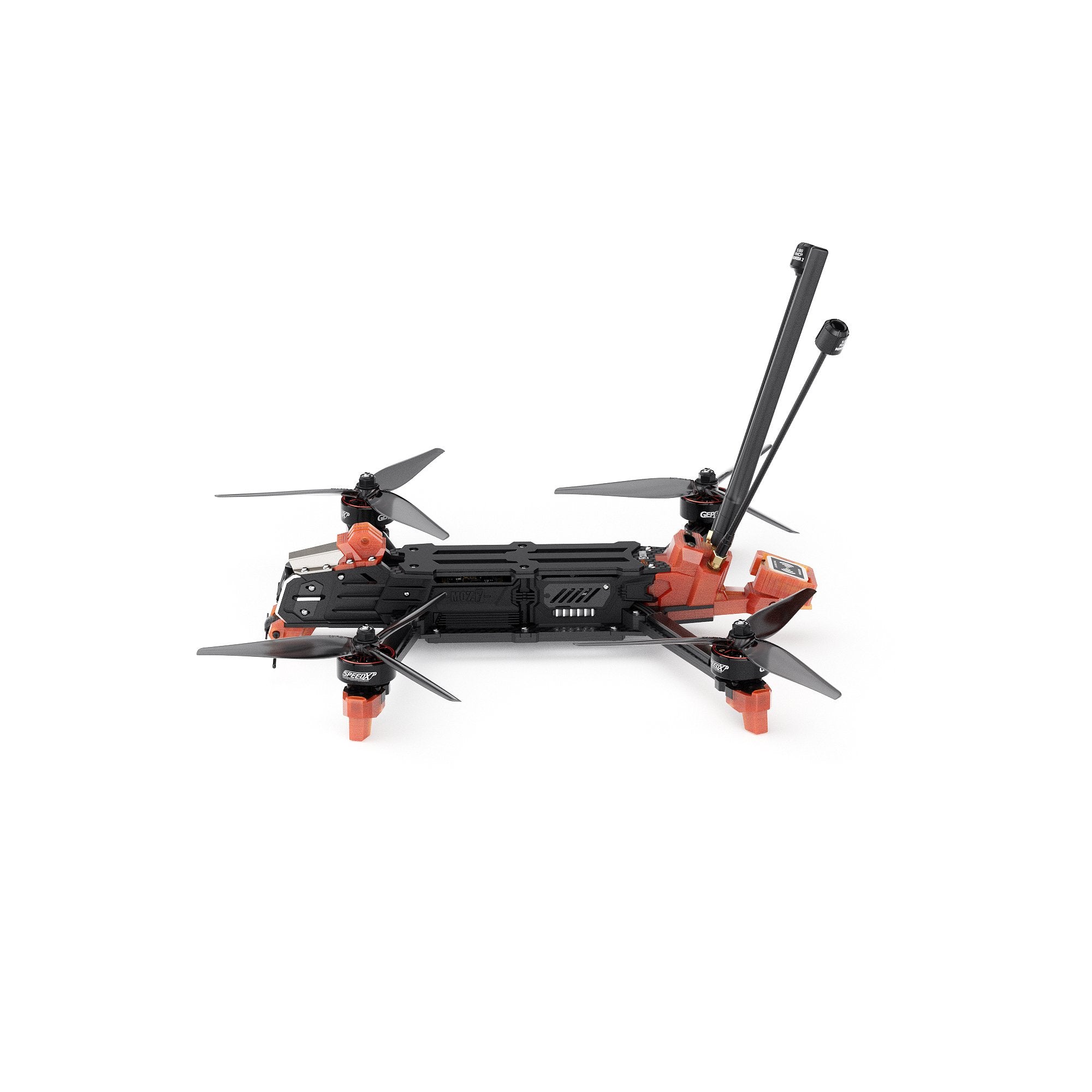

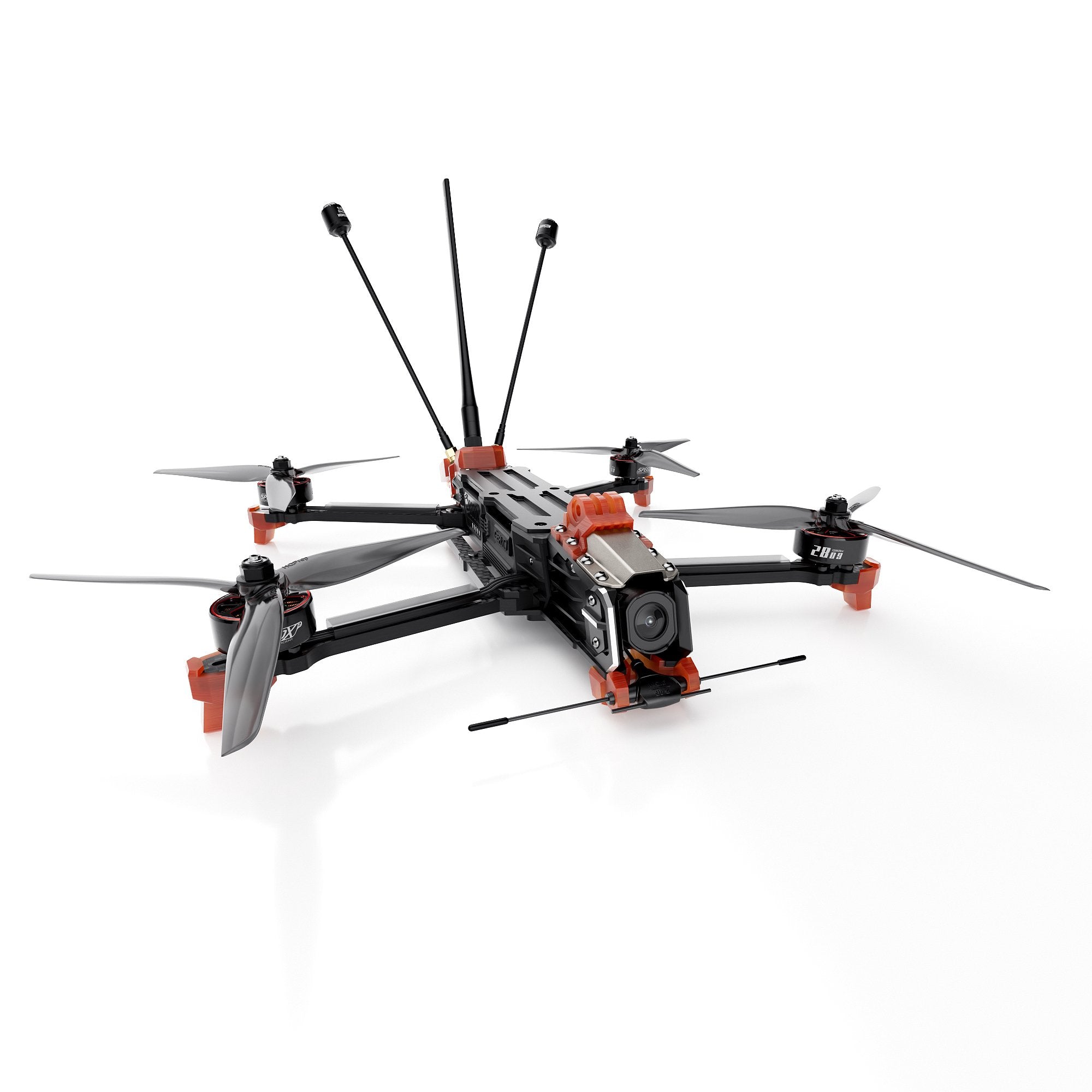

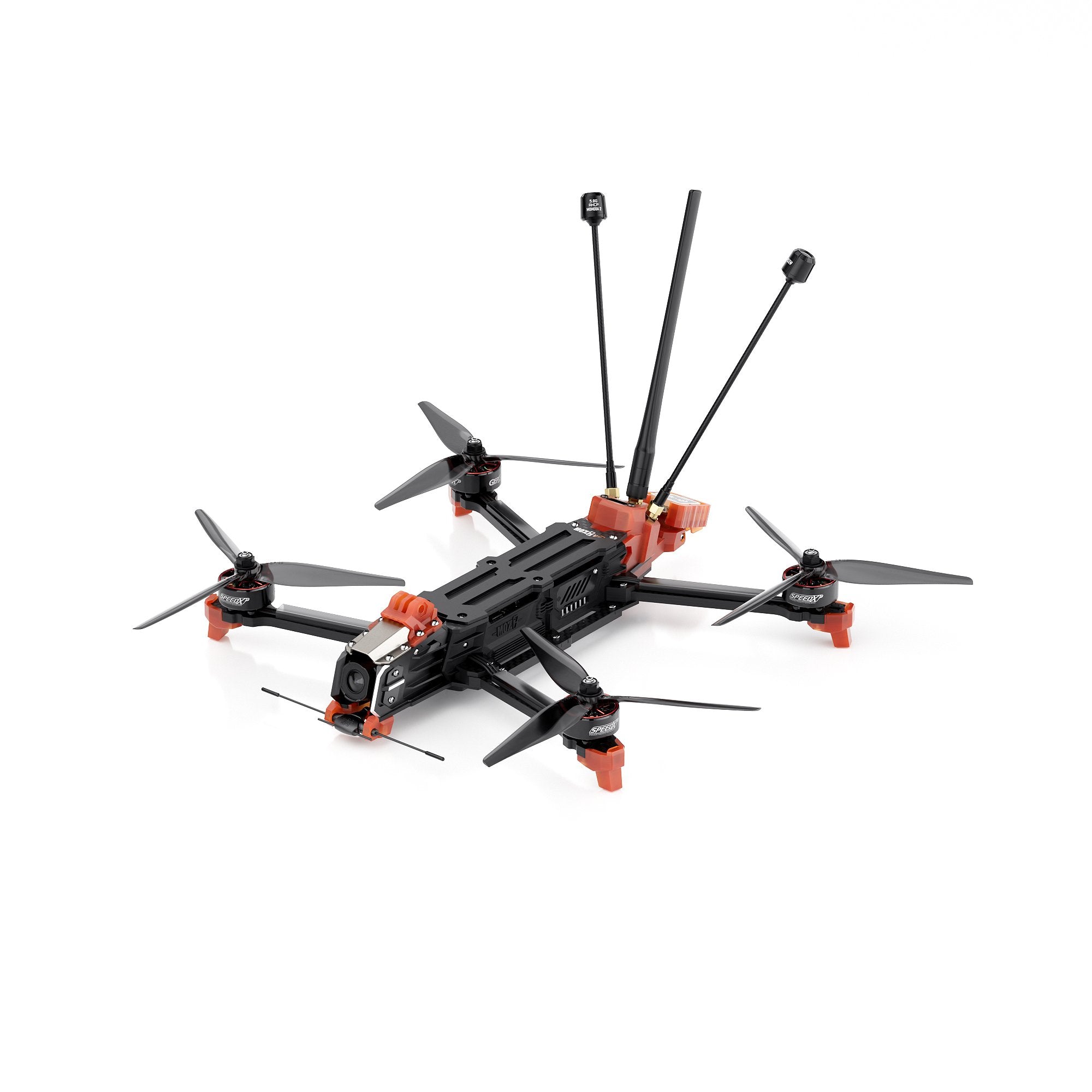

GEPRC Moz7V2 O4 Pro Long Range FPV Drone

The MOZ7 has been enhanced with the DJI O4 Air Unit Pro, featuring a 1/1.3-inch sensor that delivers a broader dynamic range and improved low-light capabilities. Its 155° ultra-wide field of view optimizes high-speed and low-altitude flight. Video transmission supports 1080p at 100fps in H.265, with recordings up to 4K at 120fps. Transmission range reaches 15 km, while the 10-bit D-Log M color profile ensures vivid visuals. Upgrades include a reinforced frame, repositioned center of gravity, and a 7075 aerospace aluminum camera protector for clear FPV footage free of prop wash. Equipped with an H743 flight controller, GEP-M1025 GPS, and ELRS 915M/2.4G dual-band receiver, plus dual mounting options, the MOZ7 V2 delivers exceptional long-range flying and creative potential.

Package Includes:

1x GEPRC MOZ7 V2 FPV (DJI O4 Pro)

2x HQ 7.5*3.7*3 (2CW+2CCW)

2x 15*250mm battery strap

1x L-shaped screwdriver 1.5mm

1x L-shaped screwdriver 2.0mm

1x L-shaped screwdriver 3.0mm

1x Spare screw pack

2x Battery anti-slip pad

1x Frequency pairing ejector pin

2x VTX antenna

1x tri-band stick antenna

Features:

• 1. Reinforced frame for better stability.
• 2. DJI O4 Air Unit Pro supports 4K/120fps and 1080p/100fps H.265 image transmission.
• 3. Upgraded V1.1 version 2809 1280KV motors provide up to 25 minutes of flight time.
• 4. ELRS 915M/2.4G Gemx Dual-Band Receiver minimizes signal dead zones with its front-horizontal and rear-vertical setup.
• 5. GEP-M1025 GPS offers a quick, stable satellite connection.
• 6. Reinforced side bars ensure a balanced center of gravity.
• 7. Swappable action camera mount for versatile positioning.
• 8. Two battery mounting options for flexible setup.
• 9. Paired TAKER H743 BT FC with MPU6000&ICM42688-P gyro for fast data processing and stable flight.
• 10. Equipped with TAKER H65_8S_32Bit 65A 4IN1 ESC 32-bit delivers smooth, responsive control.

Specifications:

Model: GEPRC MOZ7 V2 O4 Pro

Frame: GEP-MOZ7 V2

Wheelbase: 336mm

Top Plate Thickness: 2.5mm

Base Plate Thickness: 2.5mm

Middle Plate Thickness: 3mm

Arms Thickness: 6mm

FC: TAKER H743 BT

MCU: STM32H743

Gyroscope: MPU6000&42688-P dual

Barometer: Yes

GPS: GEP-M1025

OSD: BetaFlight OSD w/ AT7456E chip

ESC: TAKER H65_8S_32Bit 65A 4IN1 ESC

VTX: DJI O4 Air Unit Pro Air Unit module

Camera DJI O4 Air Unit Pro camera module

Antenna: Momoda2-SMA-LHCP right rotate-RG141 black wire- 170mm- inner threads

Power Connector: XT60E-M

Motor: SPEEDX2 2809 1280KV V1.1

Prop: HQ 7.5*3.7*3 3-blade_transparent grey

Version Weight: HD 750±10g

Receiver: PNP / ELRS 915M/2.4G GemX / TBSNanoRX

Recommended Battery: LiPo 6S 3300mAh / Lilon 8000mAh

Flight Time: 25 mins (Tested at slow cruising speeds; the actual may vary due to product differences, firmware version, flying style, and environment.）
