DarwinFPV | ID: I-R6-12
DarwinFPV FPVCycle Whoop Stack Flight Controller 6S 45A Stack

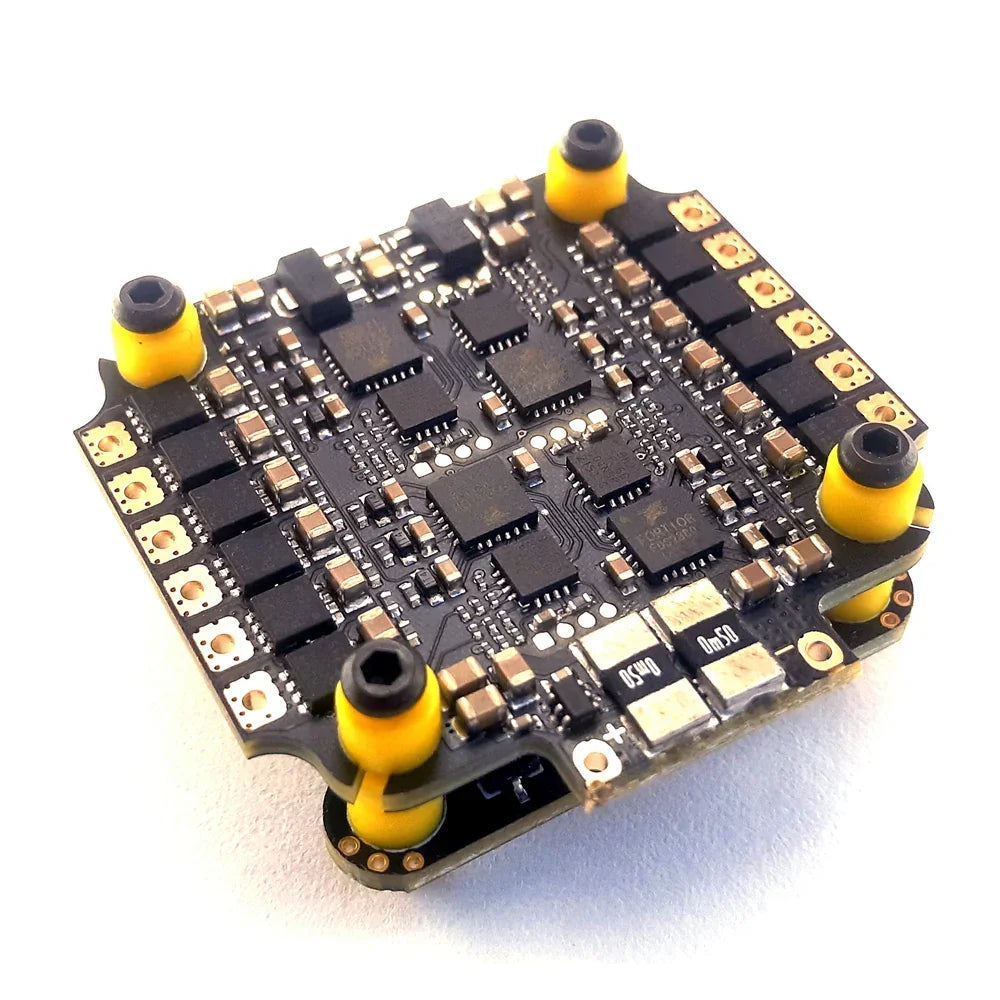

The DarwinFPV FPVCycle Whoop Stack features a 25.5x25.5 M2 mount pattern compatible with FPVCycle frames and scalable from Whoop class through 7" platforms. The split ESC and FC design maximizes accessibility—the FC sits within the ESC footprint with all solder pads on top for easy assembly and soldering.
Package Includes:
1x FPV Cycle Darwin FPV F722 25x25 Flight Controller
1x FPV Cycle Darwin FPV 45A 3-6S 25x25 4in1 ESC
1x XT60-7CM-14AWG Power cables
1x 25V 470uF capacitor
8 x M2*6.5mm Damping rings
4 x M2 nuts
Specifications:

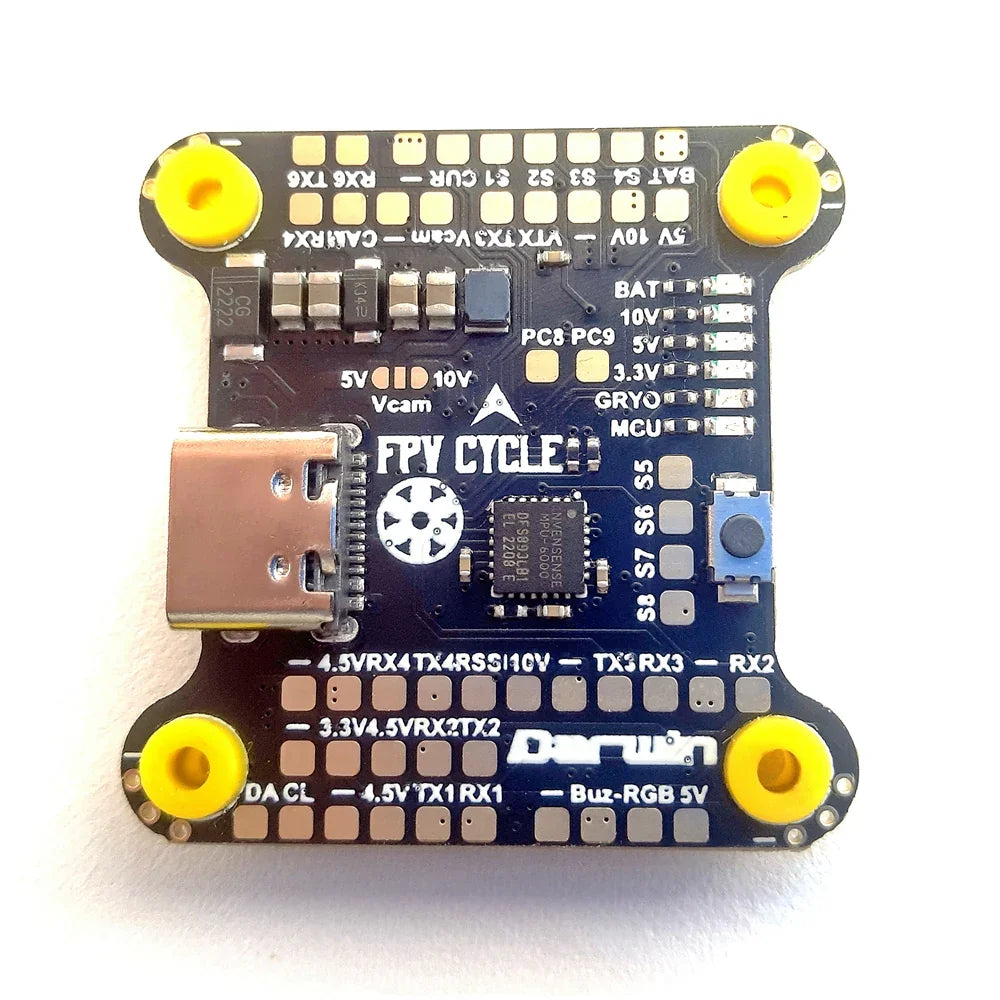

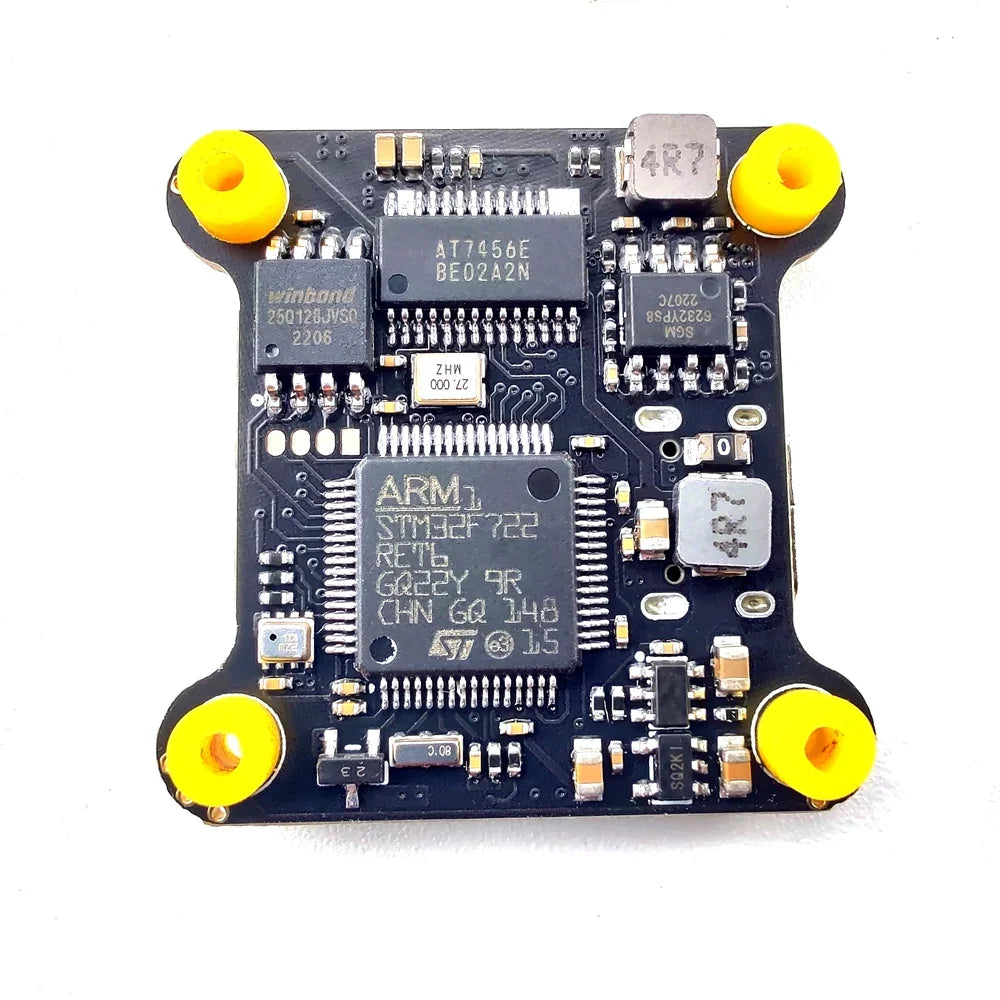

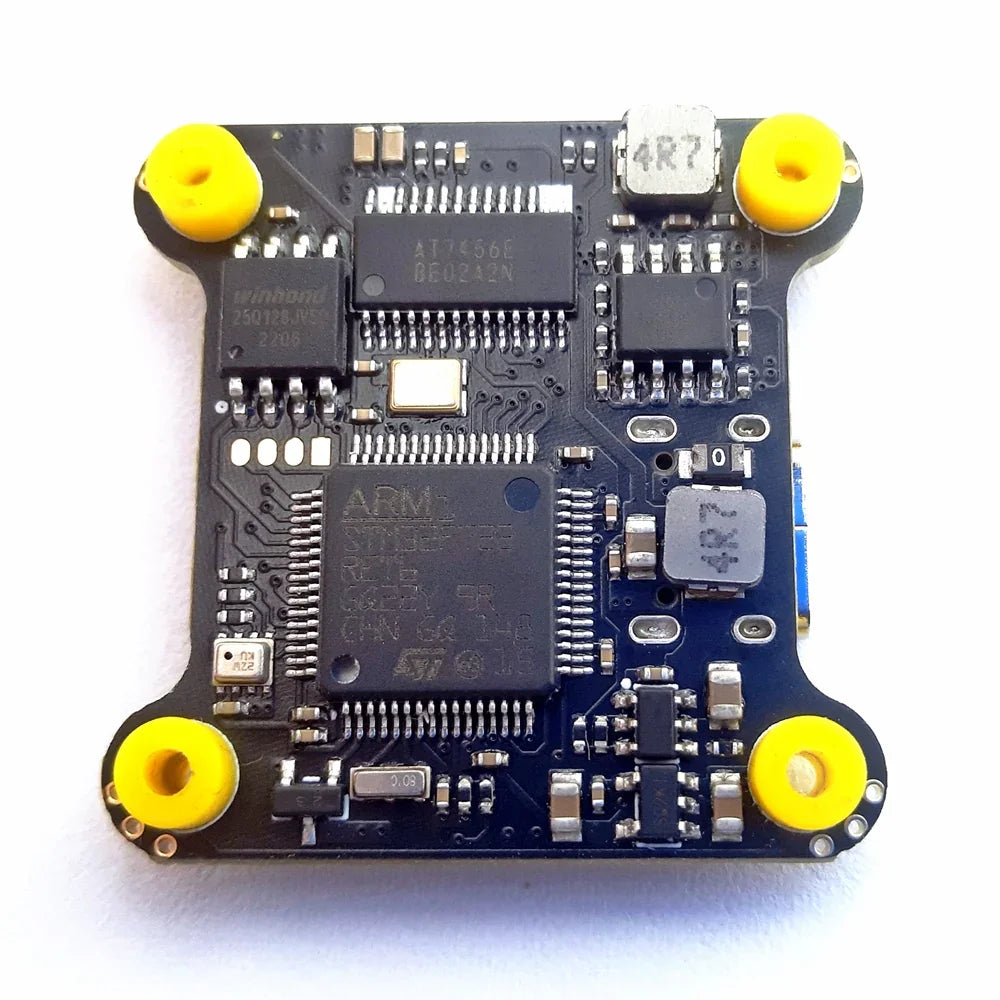

F722
- MCU: STM32F722RET6(216MHz)
- Gyro: MPU6000
- Barometer: BMP280(I2C)
- OSD Chip: Betaflight OSD AT7456E
- Blackbox: 16MB
- UARTS: 5
- I2C: SDA / SLA pads
- LED: Yes
- Beeper: Yes
- Firmware Target: DARWINF722HD
- FC Mounting Pattern: 25.5x25.5mm
- Dimensions: 37x36x10.8mm

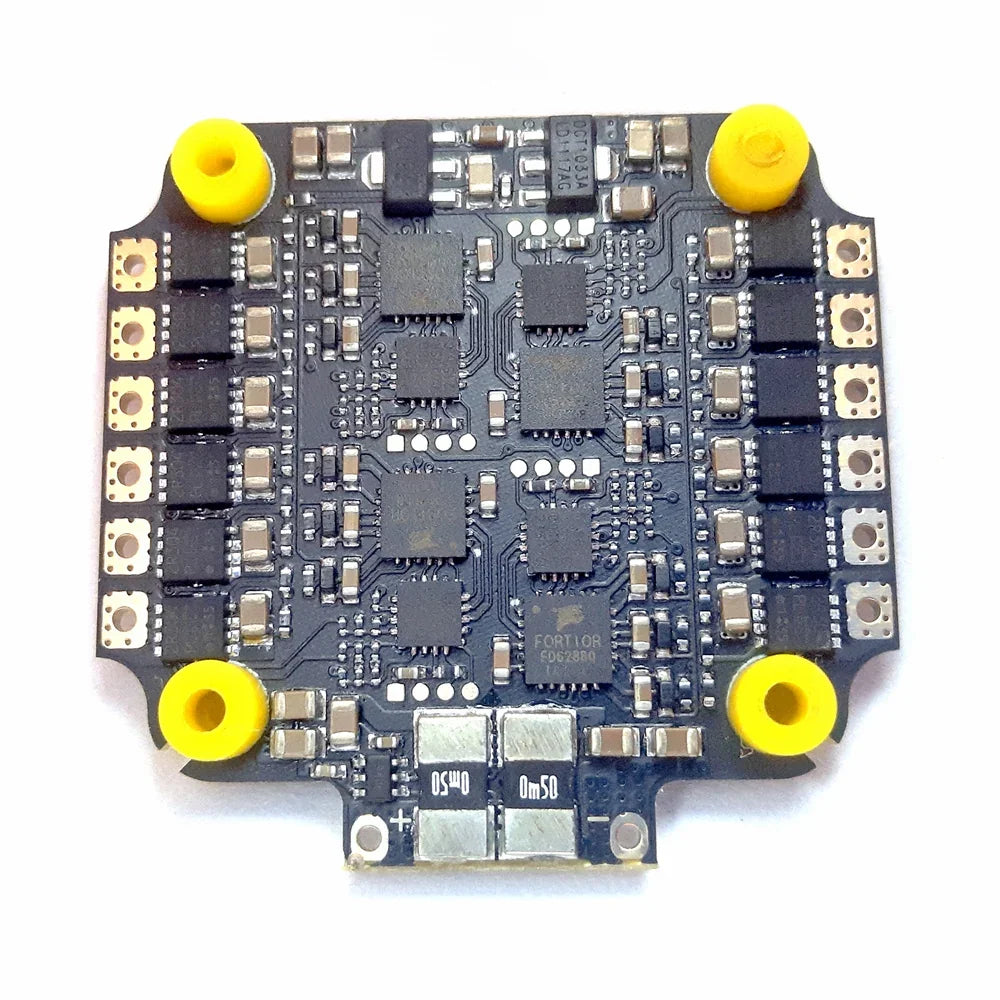

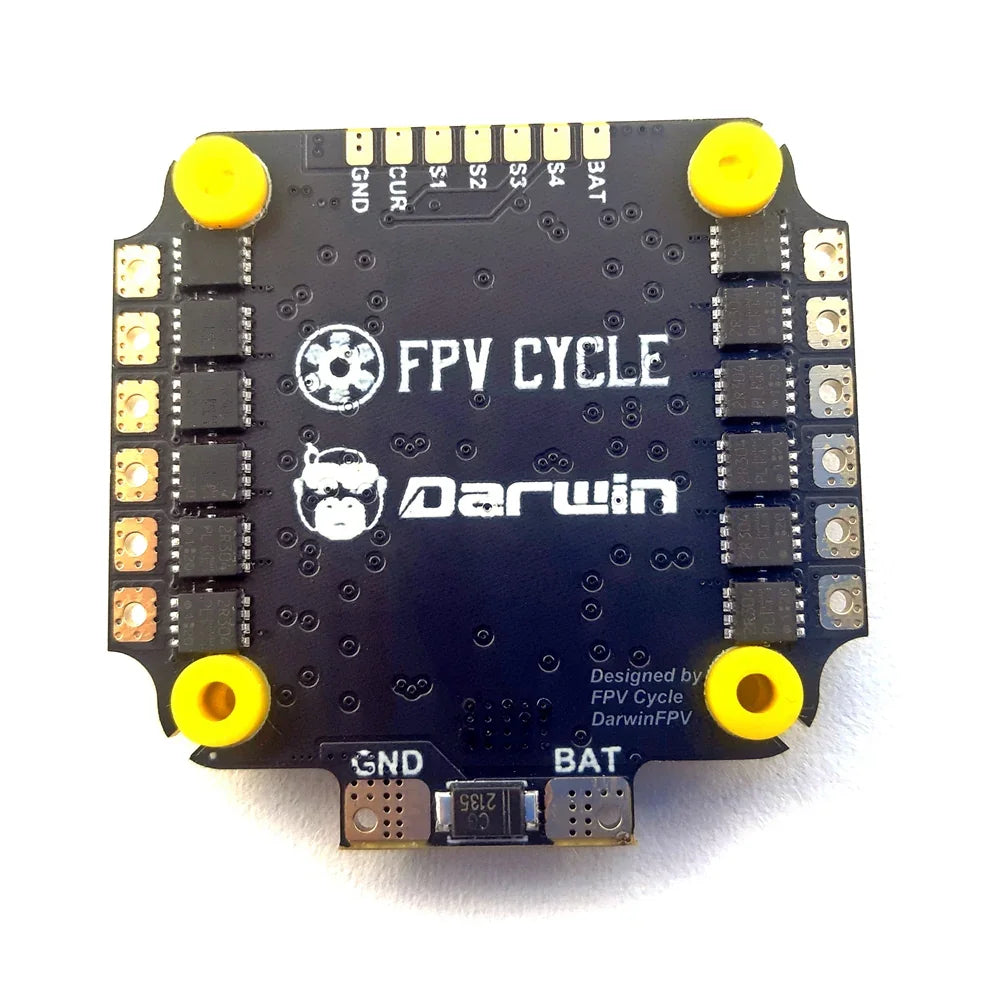

4in1 ESC
- Input Voltage: 3-6S
- Max. Continuous Current: 45A
- Max. Burst Current: 60A
- MCU: EFM8BB21F16G
- BEC: 5V/2A and 10V/2A
- Current Sensor: Yes (Scale 125)
- Mounting Dimensions: 25.5x25.5mm(M2)
- Dimensions 37x36x10.8mm
