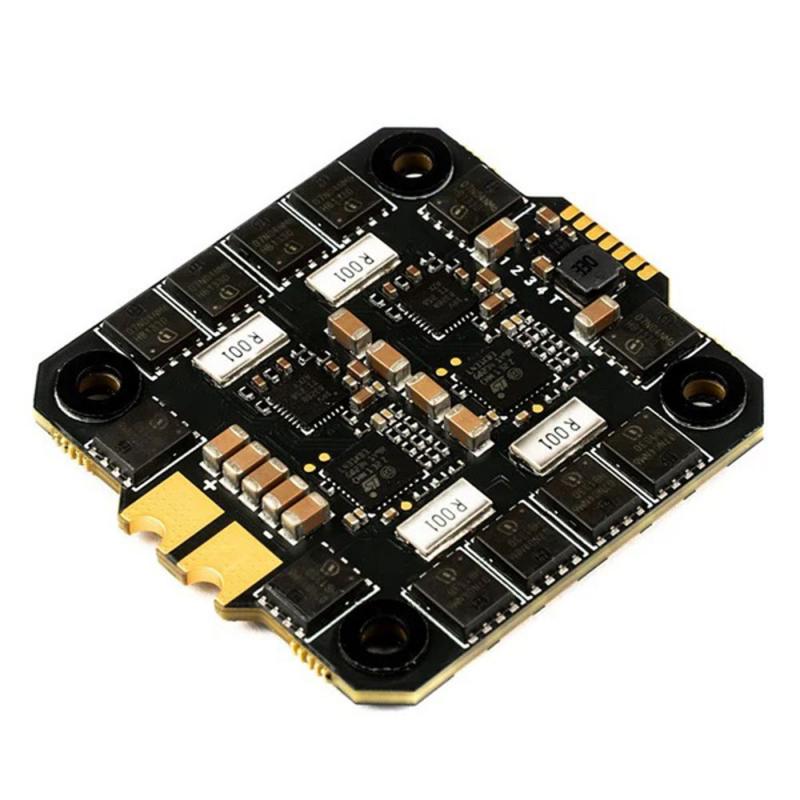

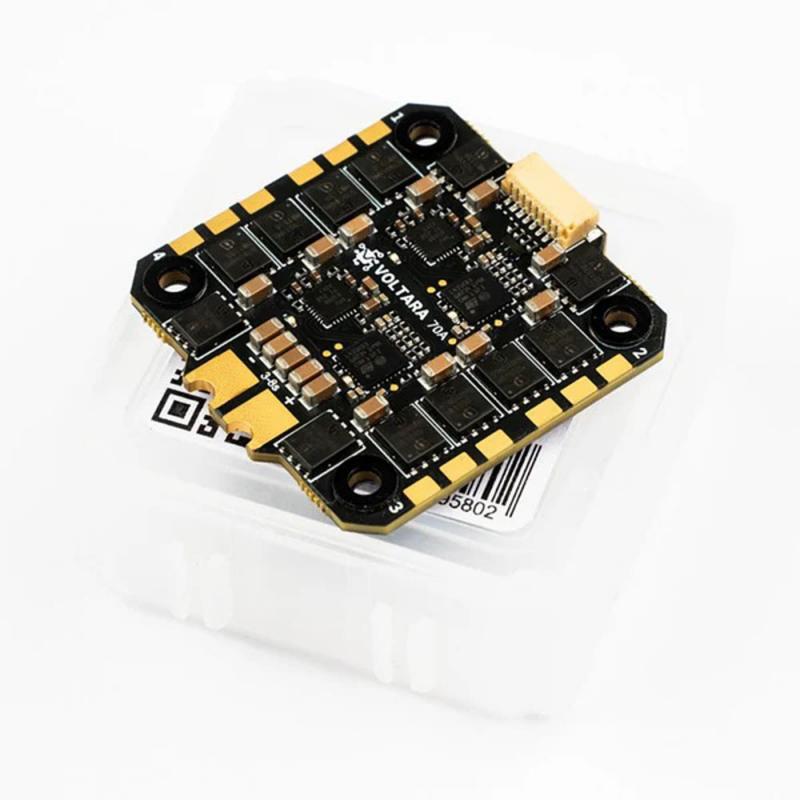

Voltara 70A ESC

Hardware:

• Size: 40x39mm (40mm—42,8mm with wings)
• Weight: ~17g
• Mounting: M3 30.5mm—30.5mm pattern
• Input: 3s-8s (absolute values 5v-40v)
• Current: 80A / ESC OUT (4x80A requires temperature attention)
• PCB nano-coating: Hydrophobic coating(protects components from water)

Package Includes:

1x ESC

1x Capacitor

1x Data Wire

Features:

• Proprietary firmware.
• Signal input: Dshot 150/300/600/1200/2400 (recommended is Dshot2400)
• Telemetry: Voltage, Current, Temperature, RPM, mAh used.
• Plug & Play with KISS ULTRA FlightControllers
• Compatible with FlightControllers providing Dshot signals

Protections:

• Hardware: 2 x extreme overcurrent protections (motor&hardware saving)
• Software: current, temperature & stall protections
• Available settings (using KISS ULTRA OSD / Crossfire devices / KKC):
• Current Limit(adjustable): Default 80A (when tripped throttle reduced)
• Temperature Limit(adjustable): Default 100C (when tripped throttle reduced)
• Voltage Calibration(adjustable): to account for component variations
• Current Calibration(adjustable): to account for component variations
• Soft Start: The motor starts slowly from 0 (configurable ON/OFF)
• Soft Ramp: If Soft Start is ON motor speed will slowly ramp to the arming value (configurable ON/OFF)
• Rotation Direction: Normal/Reverse configurable through any FC with Dshot commands or KISS ULTRA GUI.
• Beeper Volume: 0(silent)-200. Default: 100
• Beacon Time: 0(disabled)-60 minutes. Default: 0
