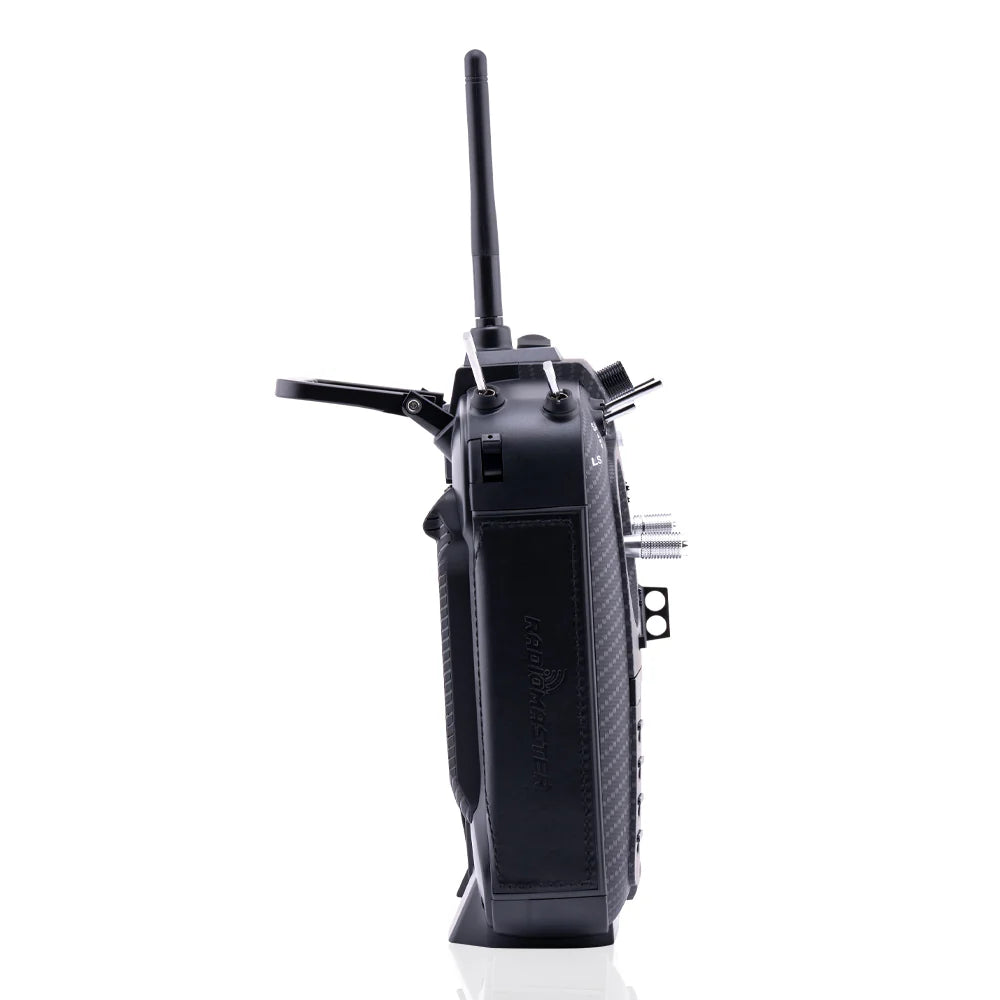

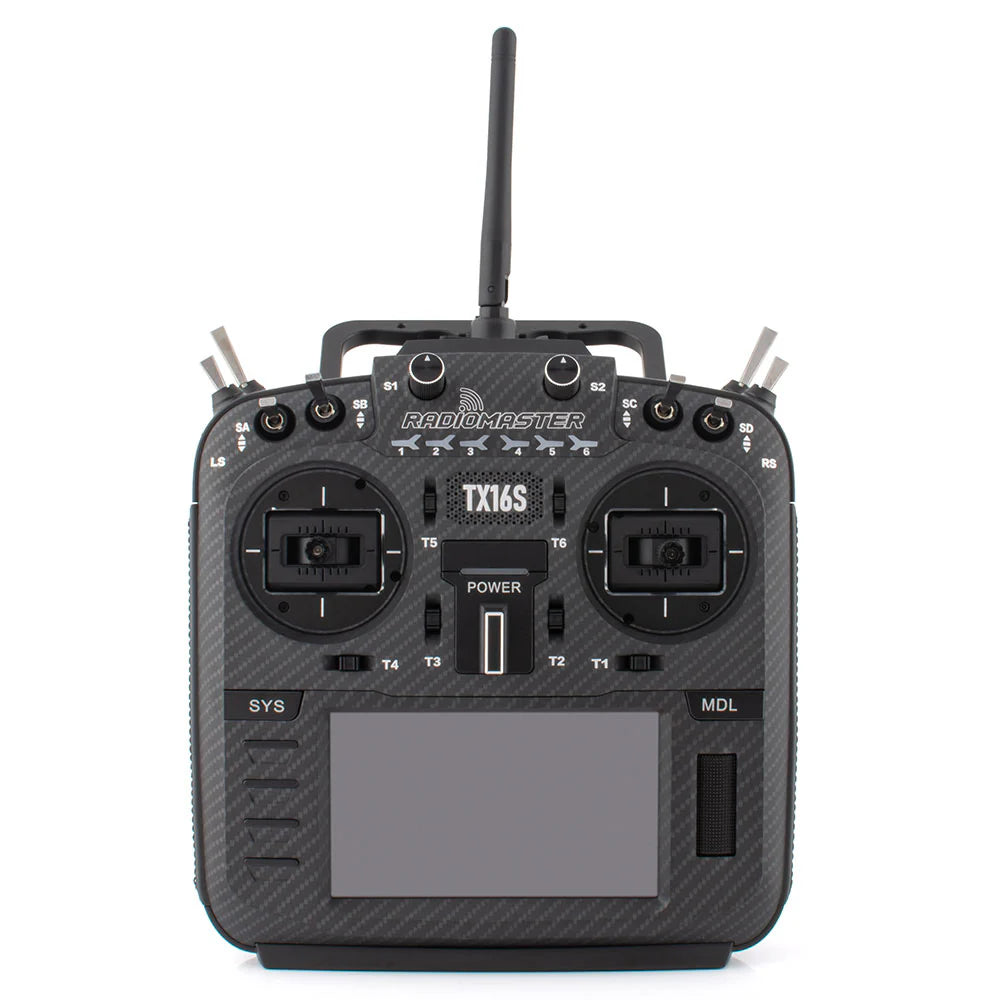

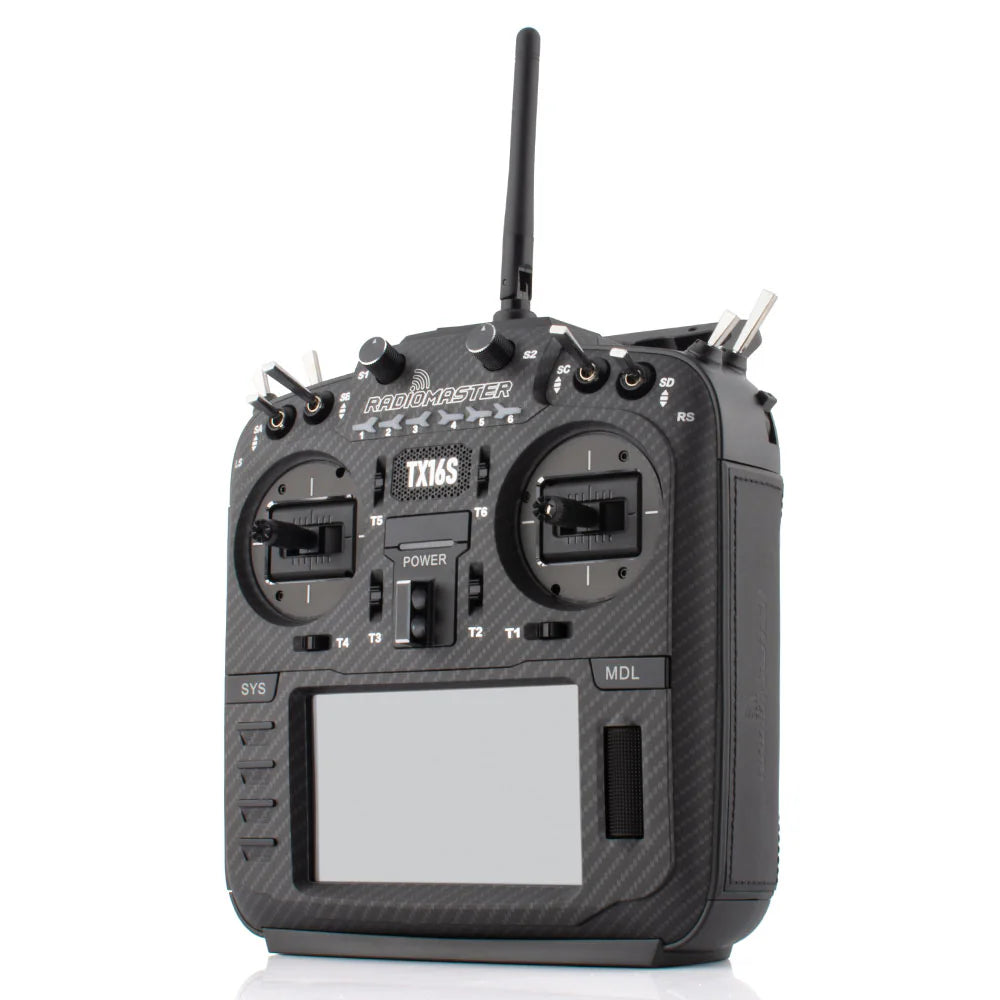

TX16S Mark II Max Radio Controller 4-In-1 (Carbon Black)

The TX16S Mark II series elevates open-source radio control to a new level. This lineup includes the standard TX16S Mark II, the TX16S Mark II Max, the TX16S Mark II Max Radio Controller (Joshua Bardwell Edition), and the TX16S Mark II MAX Pro MCK Version, each designed to meet the highest standards of performance and versatility.

Package Includes:

Features:

• Improved internal circuitry and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge IC now allows up to 2.2A internal USB-C charge current.
• Rear-mounted audio jack provided headphone output.
• V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
• Optional high/low rear grips are included for improved ergonomics.
• Improved S1/S2 knobs with clear center detents.
• Improved LS/RS Sliders with smoother feel and better center detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalized mods.
• Improved internal plastics for better longevity.
• Built-in ExpressLRS Backpack and 4in1 versions.

Specifications:

Items: TX16S Mark II Max

Size: 287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHz

Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)

SD card: 256MB by default, 8GB maximum

Antenna gain: 2db (transmit power adjustable)

Working current: 400mA

Working voltage: 6.6-8.4v DC

Radio firmware: EdgeTX

Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)

Channels: Up to 16 channels (depending on the receiver)

Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272

Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor

Module Bay: JR compatible module bay

Upgrade method: Supports USB-C online / SD card offline upgrade
