ToolkitRC | ID: J-R6-7

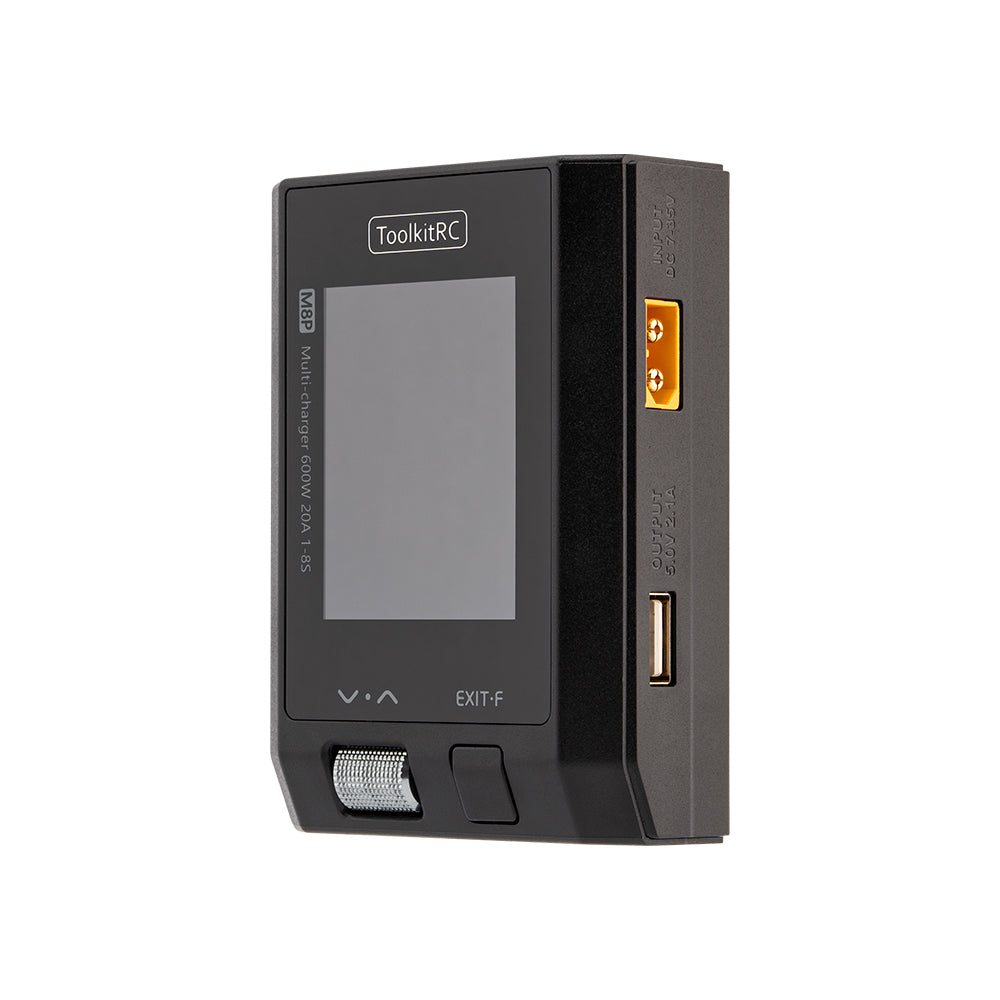

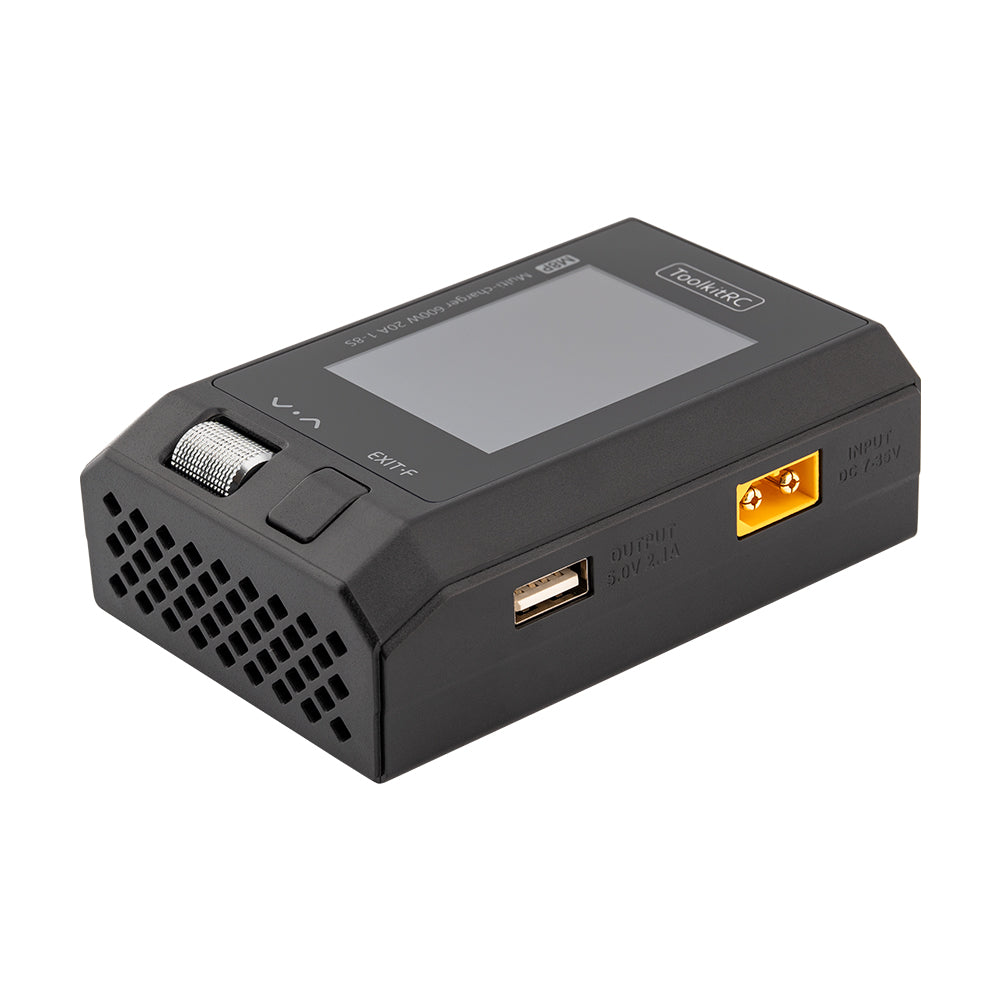

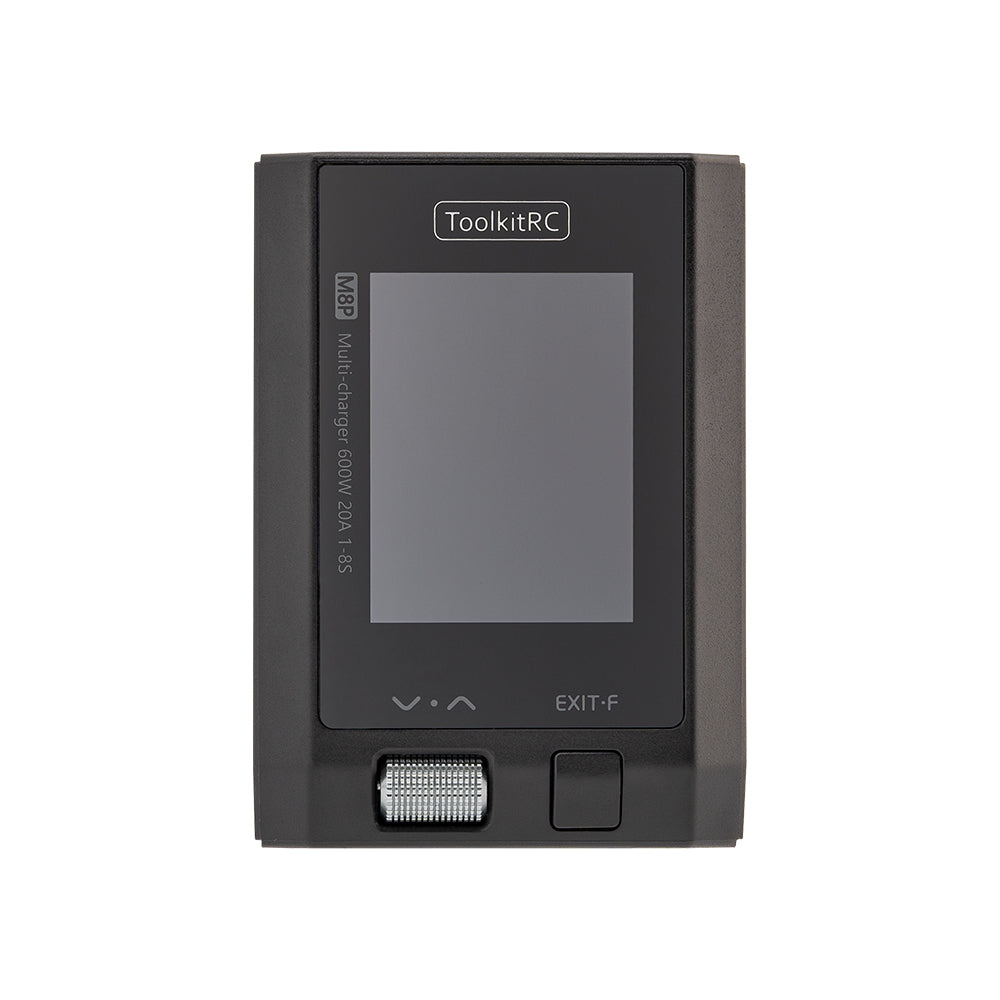

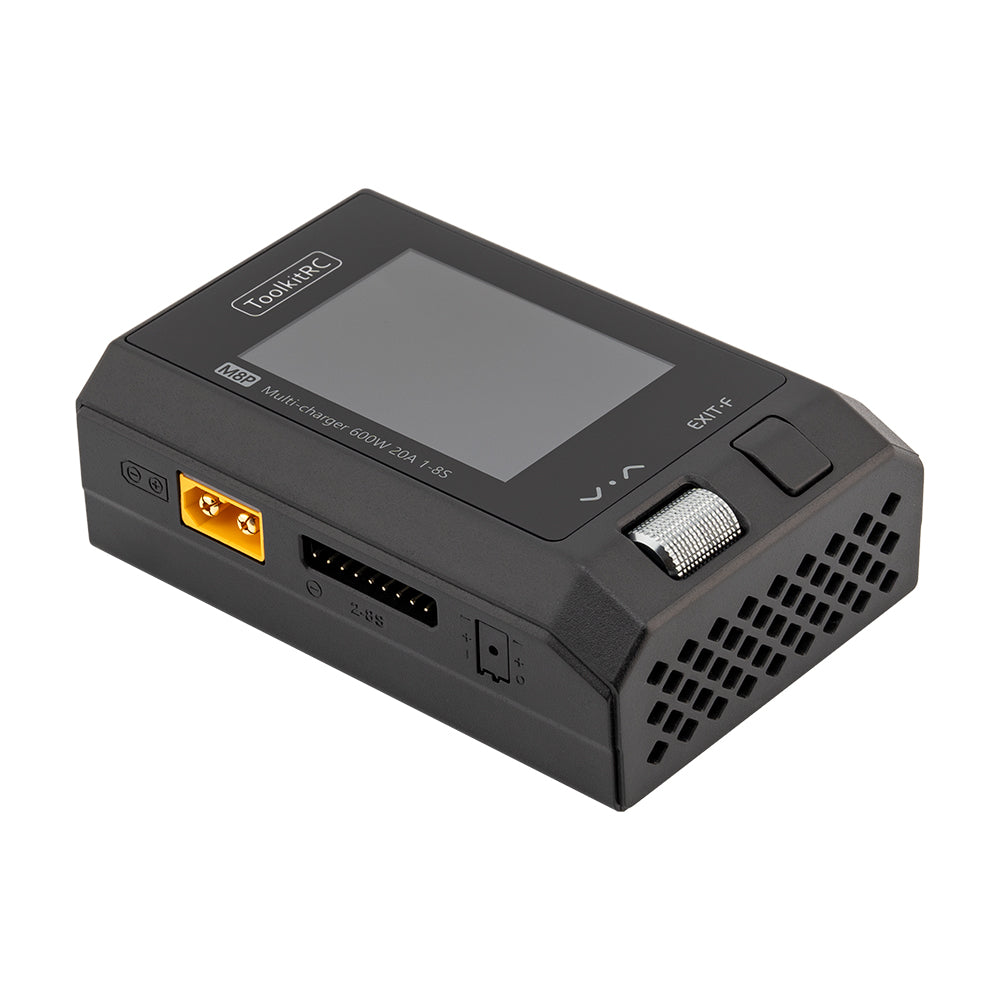

ToolkitRC M8P 600W 20A 1-8S DC Charger
Ideal for smaller drones.
Package Includes:
1x Battery
Specifications:
|
Product size |
99×72×35mm |
|
Product weight |
180g |
|
Packing size |
125×81×41mm |
|
Packaging weight |
250g |
|
LCD |
IPS 2.4″ LCD 320×240px |
|
Input voltage |
7.0-35.0V @MAX 25A |
| Battery type | LiPo LiHV LiFe Lilon LTO@1-8S NiMH @1-20S Pb @1-12S |
| Balance current | 1000mA @ 4.2V |
| Charging power | 600W @MAX 20A |
| Discharging power | 600W @MAX 20A Recycle mode 20W@3A Normal mode |
| USB | 2.1A@5.0V or Upgrade |
|
PWM |
880-2200us @ 20-400Hz |
|
PPM |
880-2200us×8CH @ 20-50Hz |
|
SBUS |
880-2200us×16CH @ 20-100Hz |
|
Voltage |
1.0-5.0V @ 1-8S |
|
Internal resistance |
0.1 mR-99R @ 1-8S |
|
ESC |
600W @ 20A |
|
PWM |
500-2500us @ 20-1000Hz |
|
PPM |
880-2200us×8CH @ 20-50Hz |
|
SBUS |
880-2200us×16CH @ 20-100Hz |
|
Power supply |
1.0-35.0V @1.0-20A mode:CC CV |
|
Overcurrent response |
<5ms |
