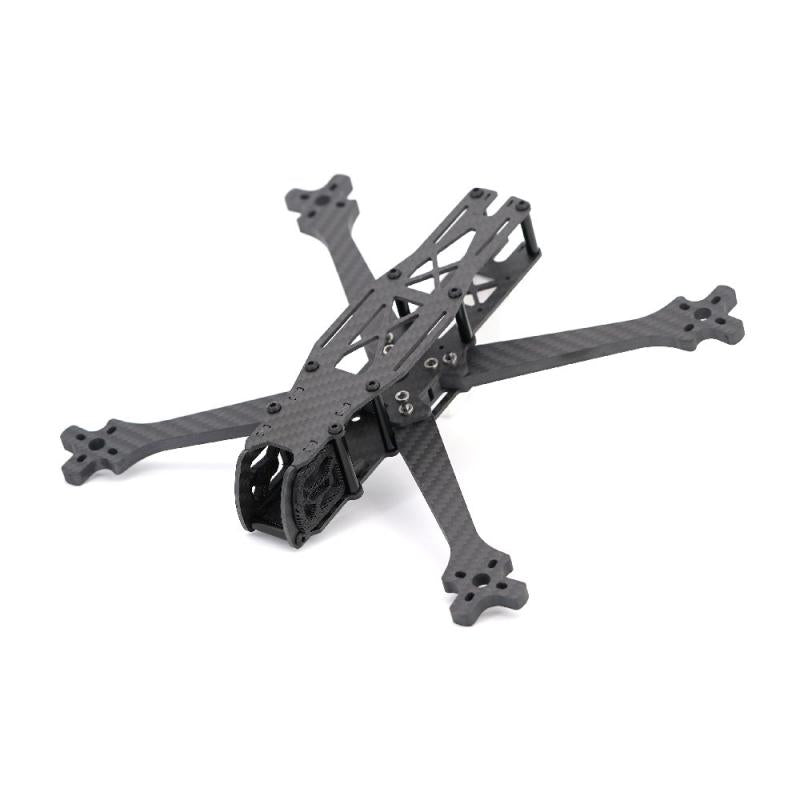

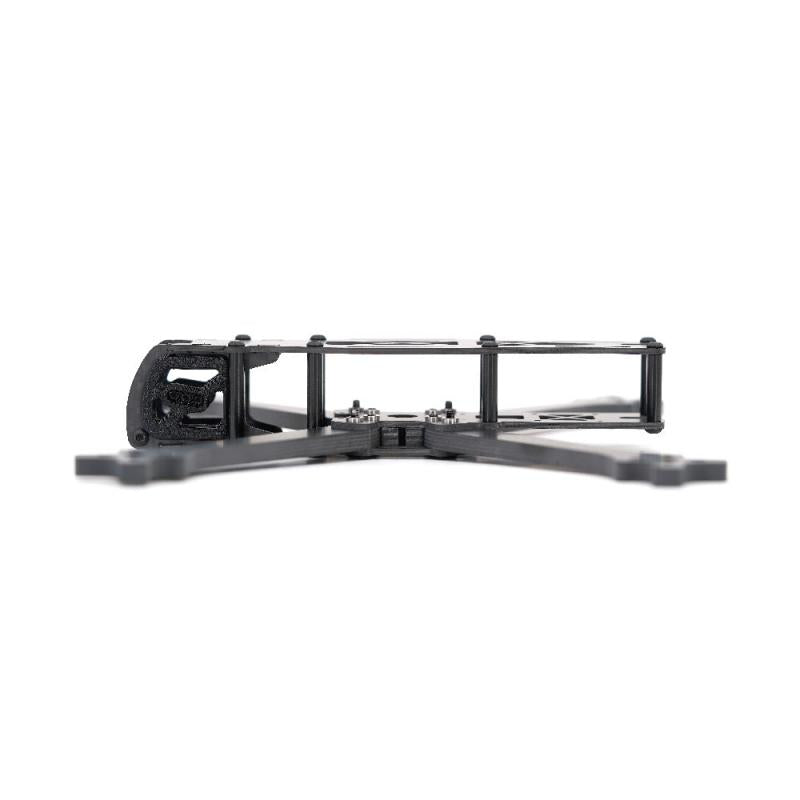

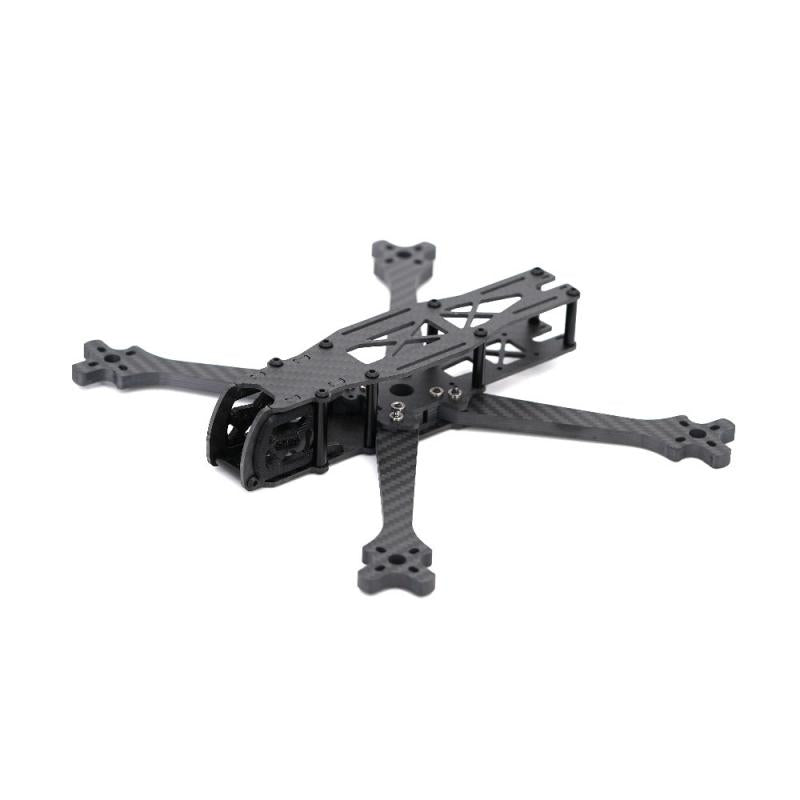

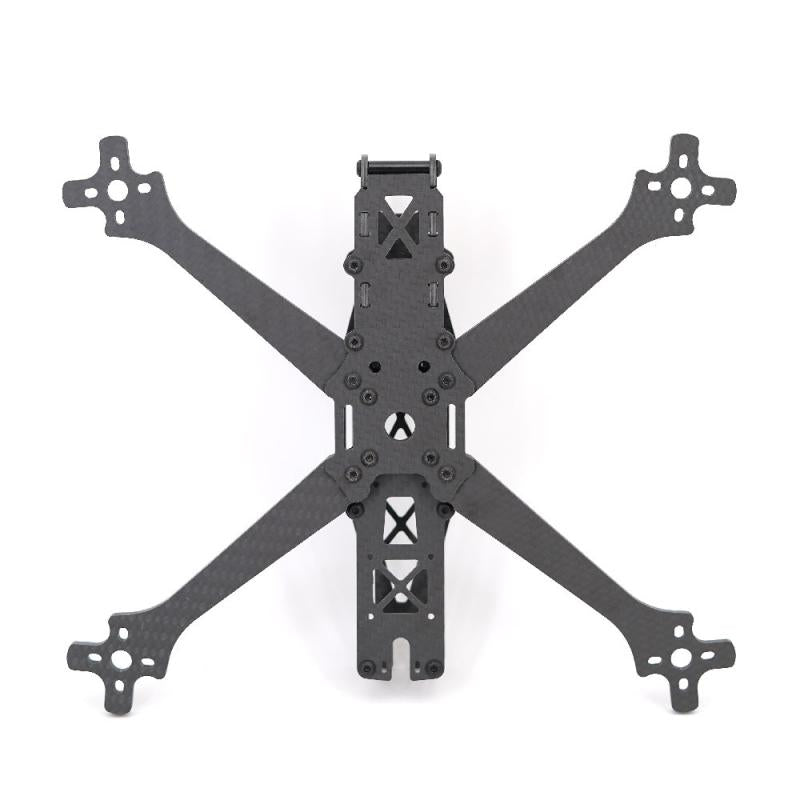

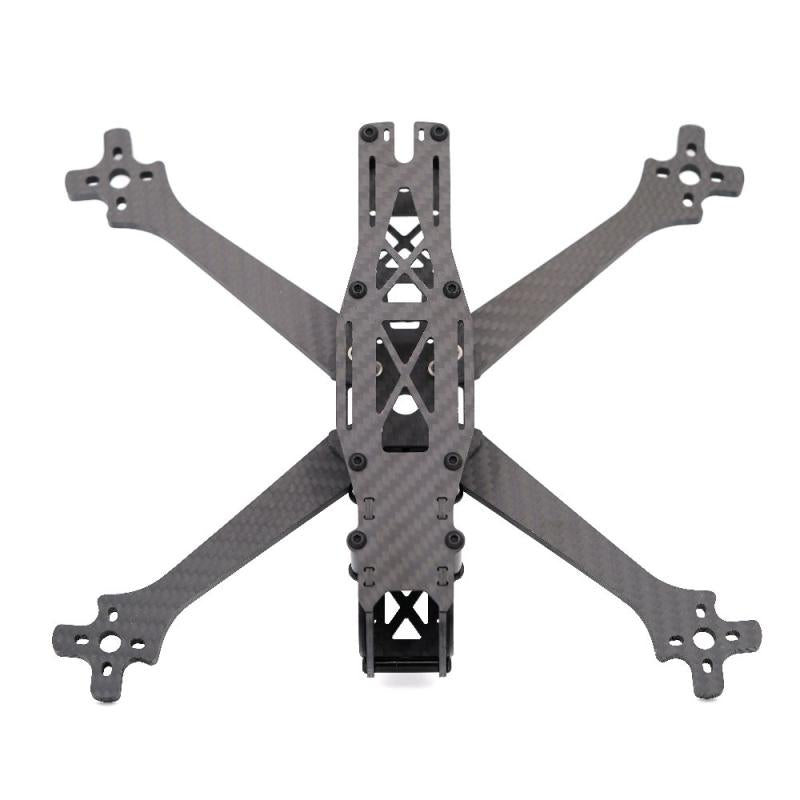

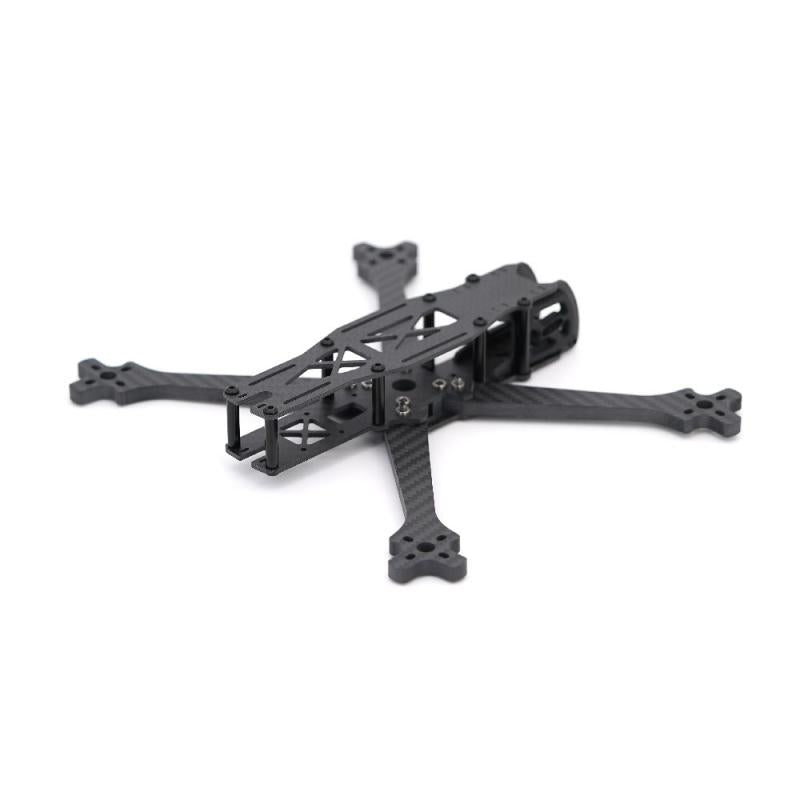

TBS Source One V6 5inch Frame

$44.99
结账时计算运费

21有现货,可随时发货
TBS-494

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

Package Includes:

1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)

1x Screw & Standoff set

Hardware:

20X M3x10 allen screw

4X M3x12 allen screw

4X M3x14 allen screw

4X OD 5mm M3 30mm standoff

4X OD 5mm M3 22mm standoff

1X OD 5mm M3 20mm standoff

8x M3 press insert nut

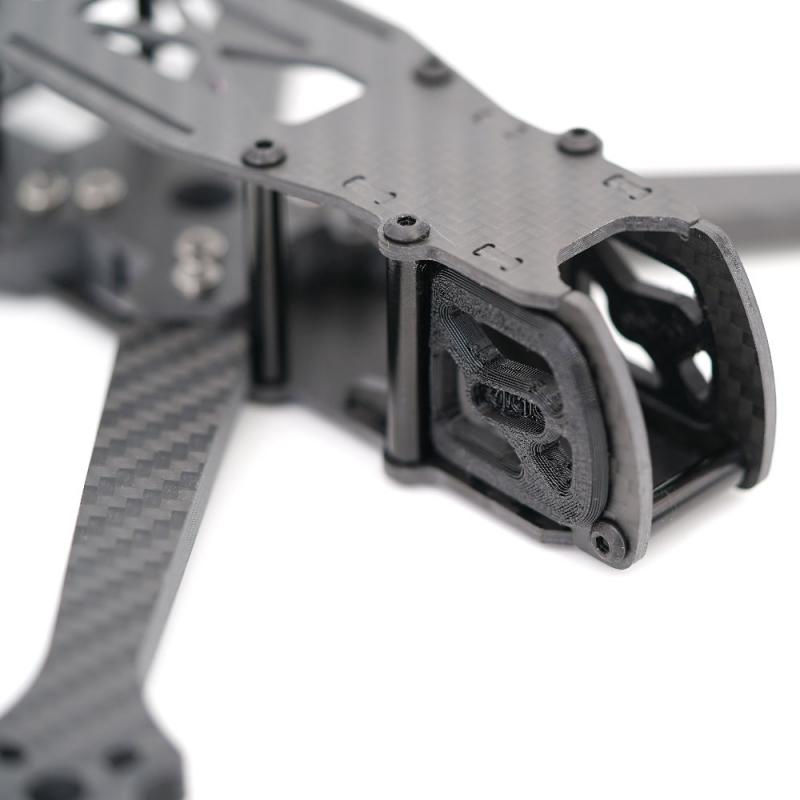

TPU 3D Printed Camera Mount

About the project

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Get involved!

Technical specifications:

Wheelbase 5" 240
Top Plate 2mm
Middle Plate 2mm
Bottom Plate 2.5mm
Arms Spacer 6mm
Camera plate 2mm
Standoff height 30 and 22mm
Arm thickness 5" 6mm
Stack Mounting 30.5 × 30.5mm & 20 x 20
Weight 5" *136.5g
