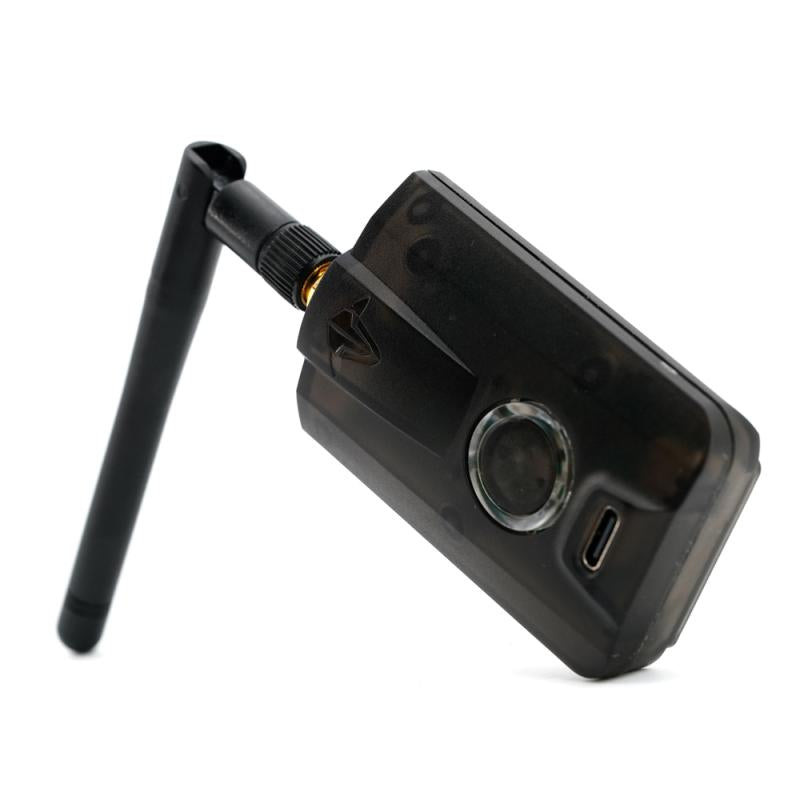

TBS MPM

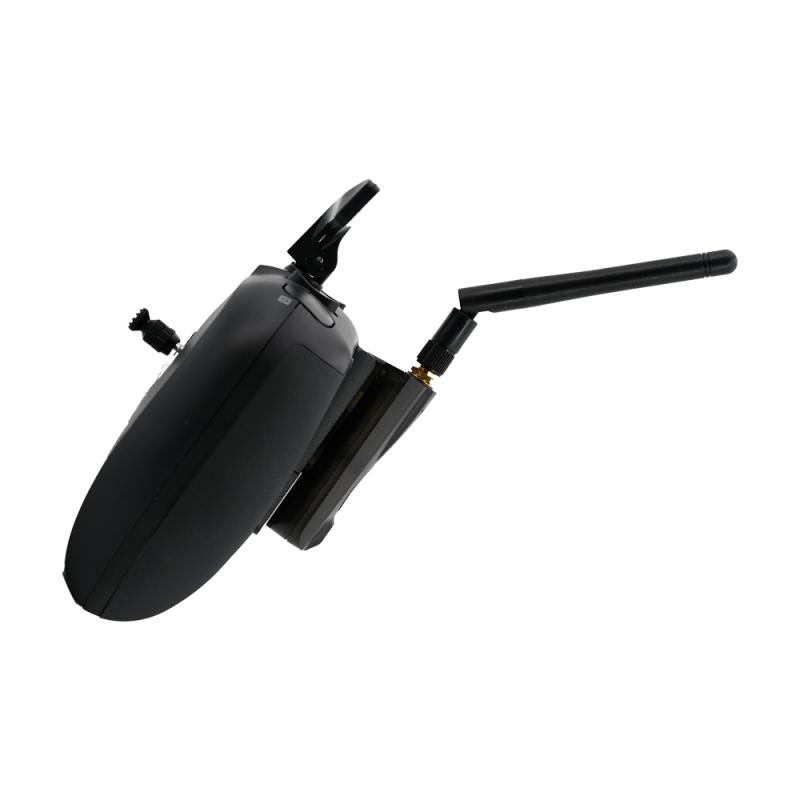

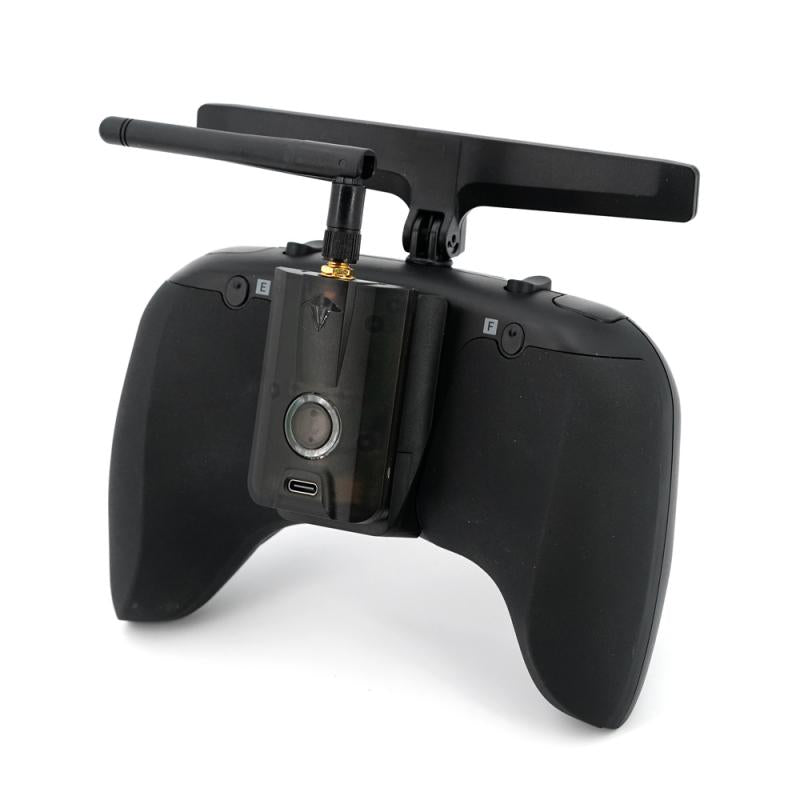

TBS Multi Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite and X9 Lite (X9 lite needs adapter, sold separately below!)
The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105 and CYRF6936) all integrated in a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides competitive range.
Package Include:
1x TBS MPM
Firmware Upgrade:
- [Download Link]
- Target: Team Blacksheep TBS MPM
- Module Type: STM32 4-in-1
Specifications:
- Input Voltage: 6 to 9V
- Frequency bands: 2.4GHz ISM
- Update Rate: 150Hz
- Output Power: +20DBM (100mW)
- Channels: Variable
- Interface: JR
- Protocol: Multiple
- Bluetooth: N/A
- Wifi: N/A
- Built-in Display: N/A
- External Power Support: N/A
- Size: 65 x 48 x 22 mm (JR module size)
- Weight: 50g
- Antenna Connector: Standard SMA
- Main Chipset: STM32
- Opensource Repo: Github
- Firmware updatable via USB-C port
Compatible Protocols
