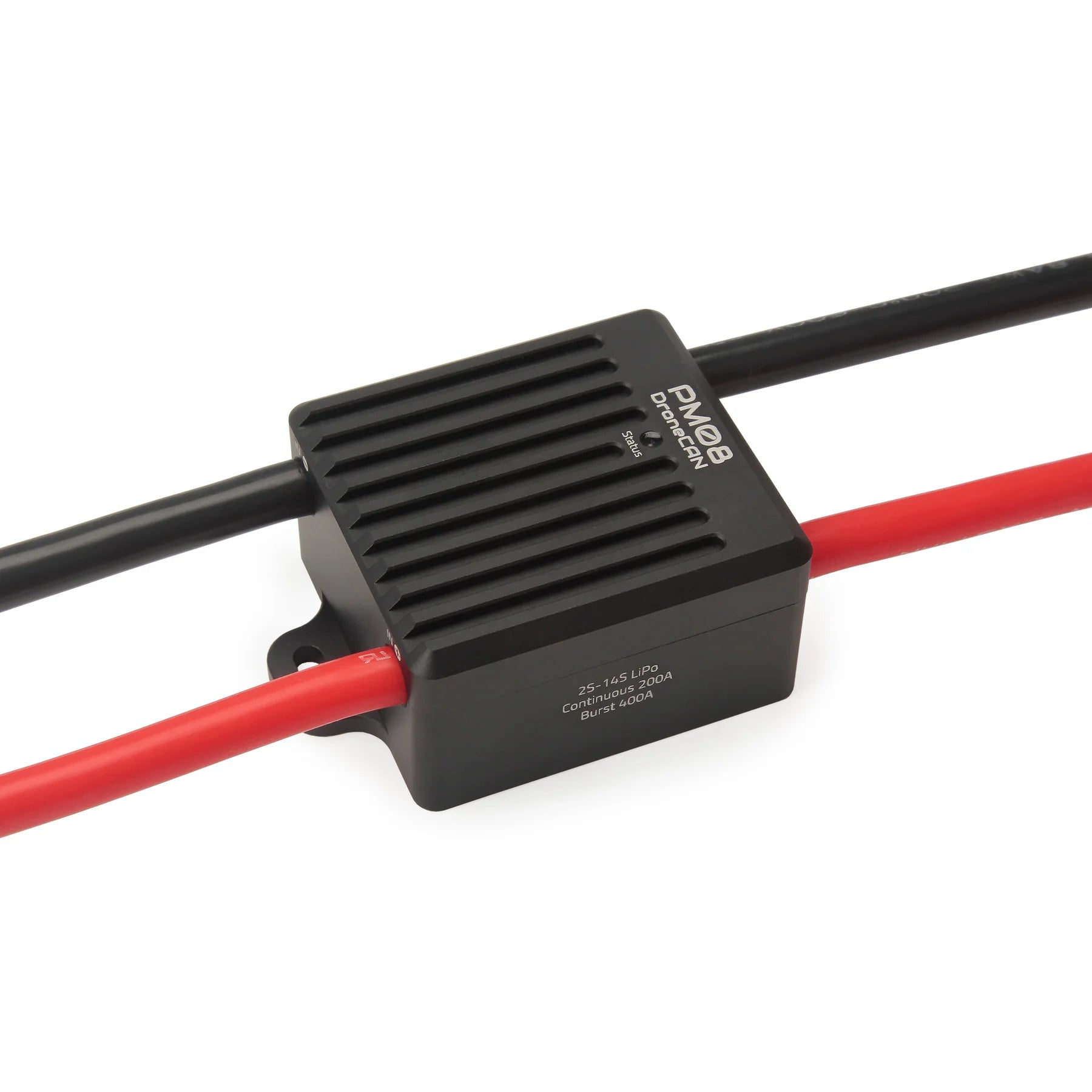

PM08-CAN Power Module 14S, 200A (Tinned Wires)

This contains one PM08-CAN Power Module 14S, 200A (Tinned Wires).

Package Includes:

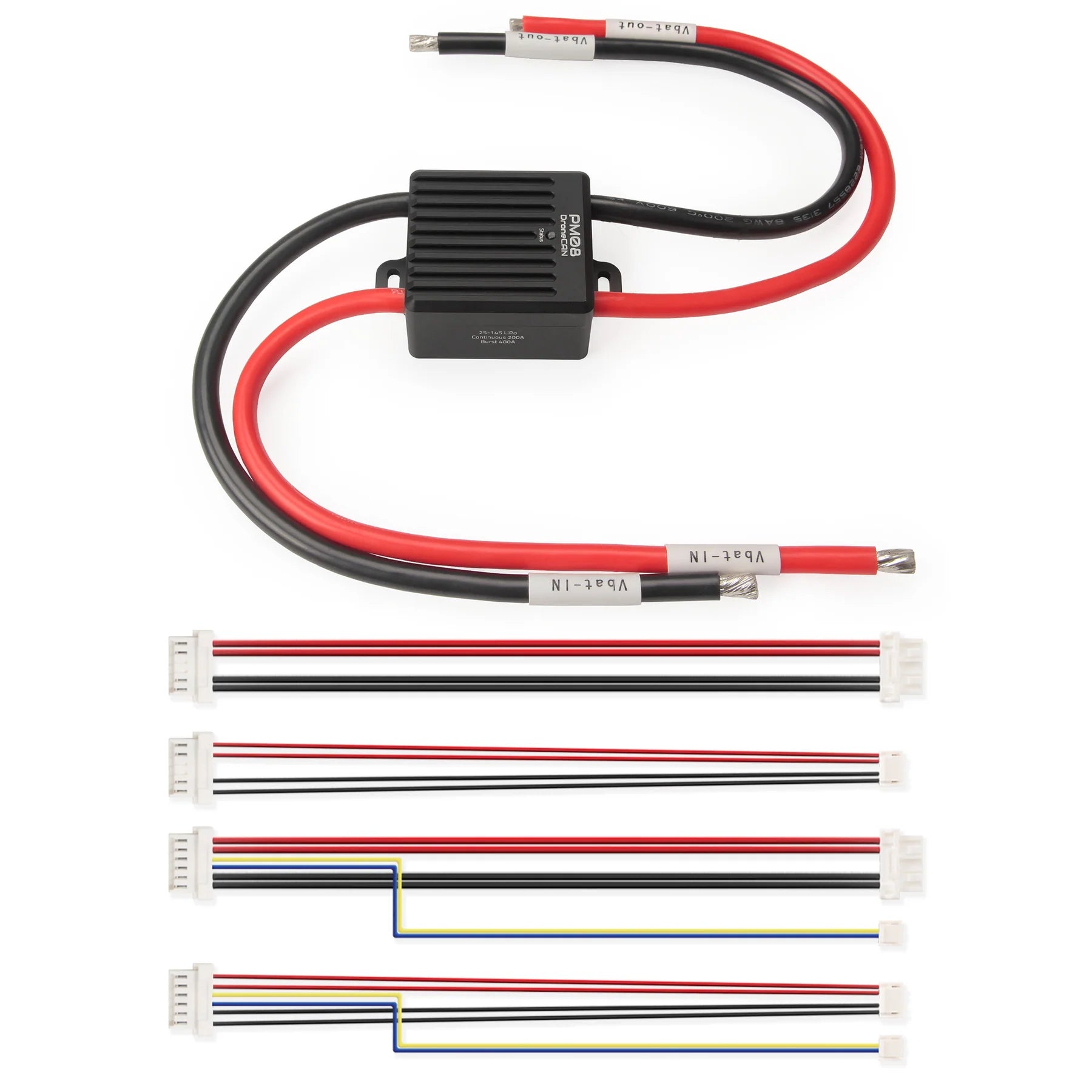

1x PM08-CAN Power Module 14S, 200A (Tinned Wires)

Info:

Features:

• Supports 2-14S & 200A Cont, 400A Burst
• DroneCAN Communication Protocol
• Small & Compact Design
• Two 5V Outputs with Independent BEC IC and Circuitry
• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

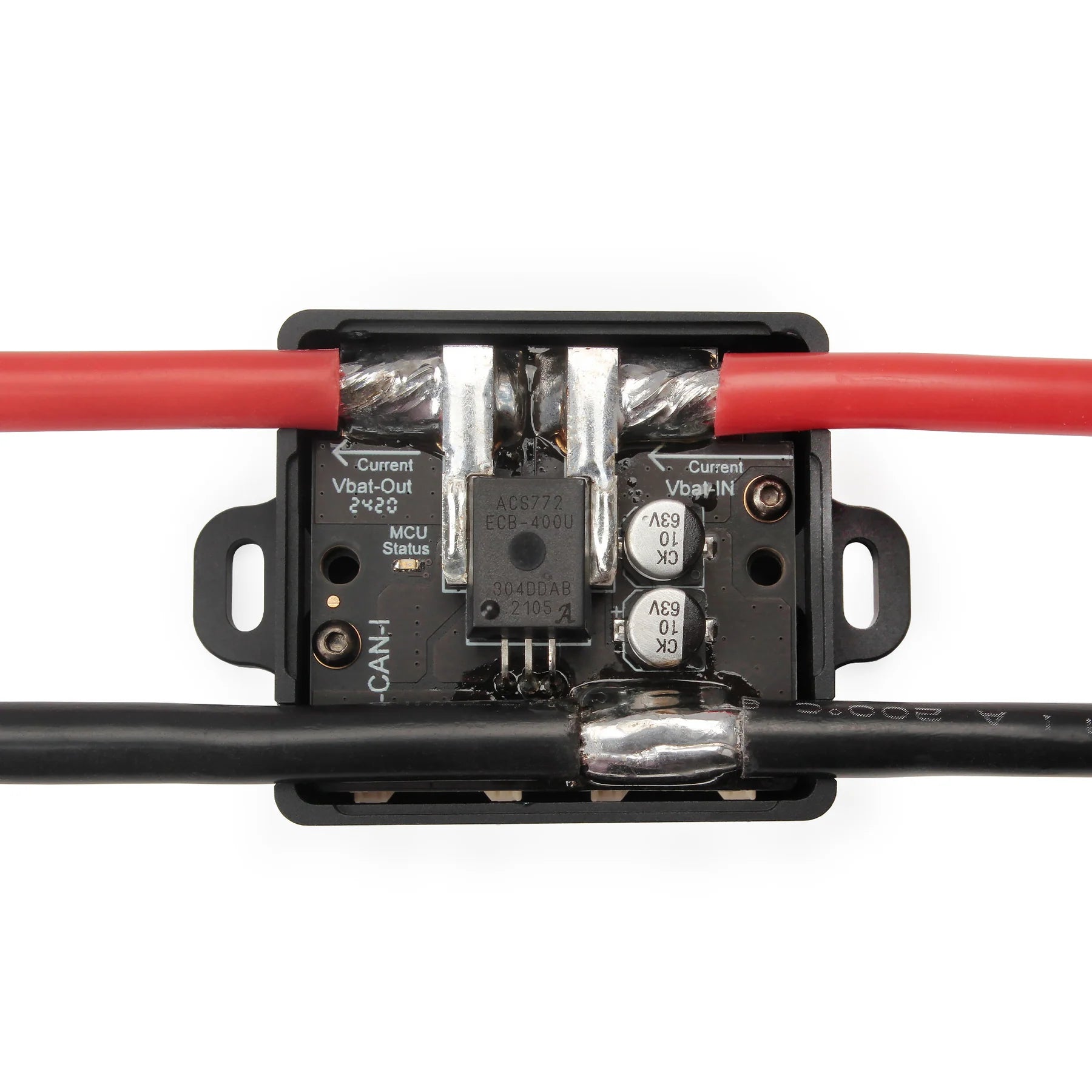

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
• High Accuracy Temperature Sensor for Temperature Monitor

• High-Efficiency Aluminum Heat Dissipation Shell

• Software toggle for CAN termination resistance

Specifications:

• Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
• Voltage input: 7~60.9V (2S~14S)
• Continuous current:200A
• Burst current
  • 400A @ 25℃ 1 sec
  • 1000A @ 25℃ < 1 sec
• Max current sensing: 376A
• Voltage accuracy: ±0.1V
• Current accuracy: ±5%
• Temperature accuracy:±1℃
• Wire gauge: 8 AWG (high-strand silicon-insulated)

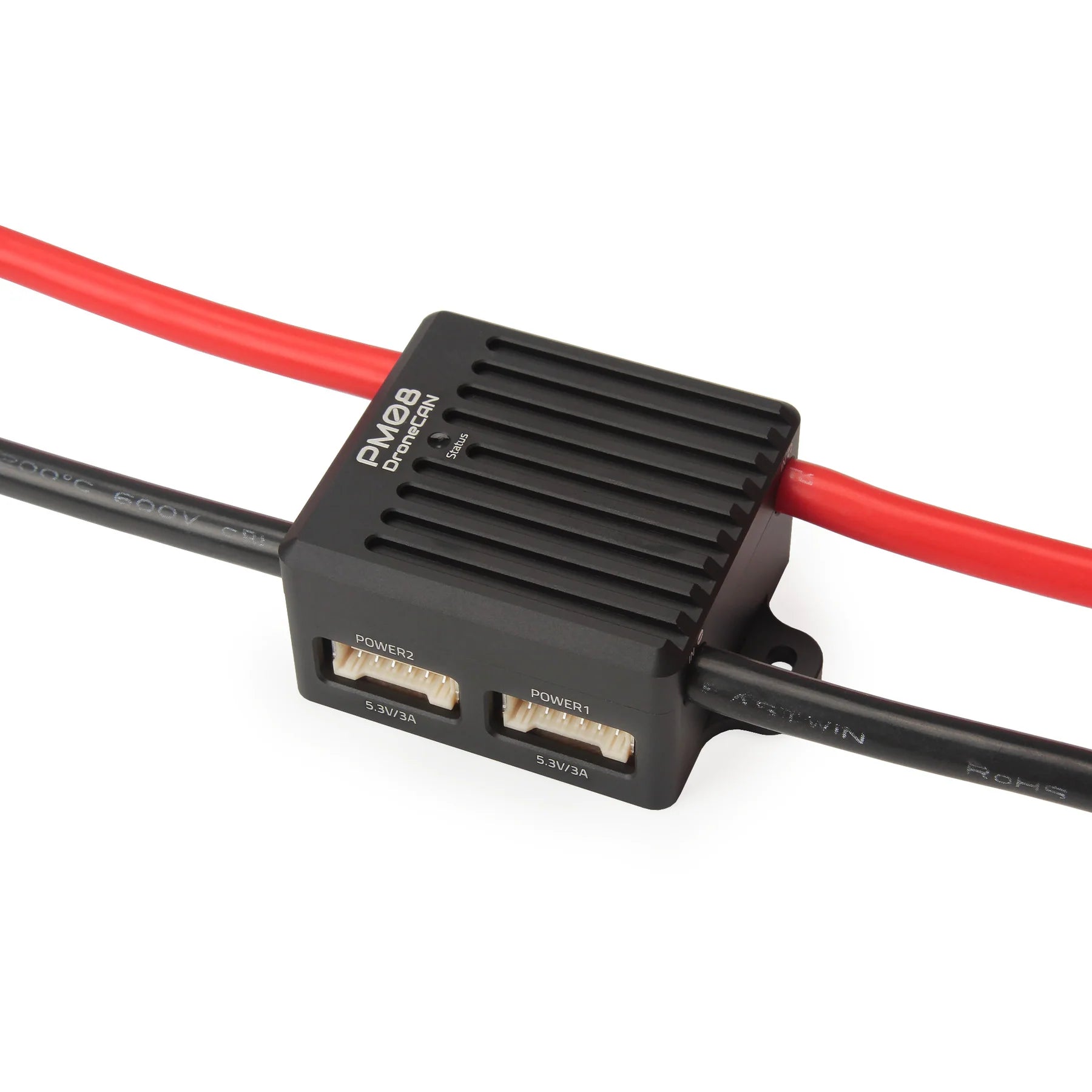

• Power port output: 5.3V/3A each port
• Protocol: DroneCAN
• Operating temperature:-25℃~85℃
• Software-Controlled CAN Termination
• Firmware upgrade: Support
• Calibration: Support

Interface Type

• Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
• Battery IN/OUT Options:
  • XT90 Connectors

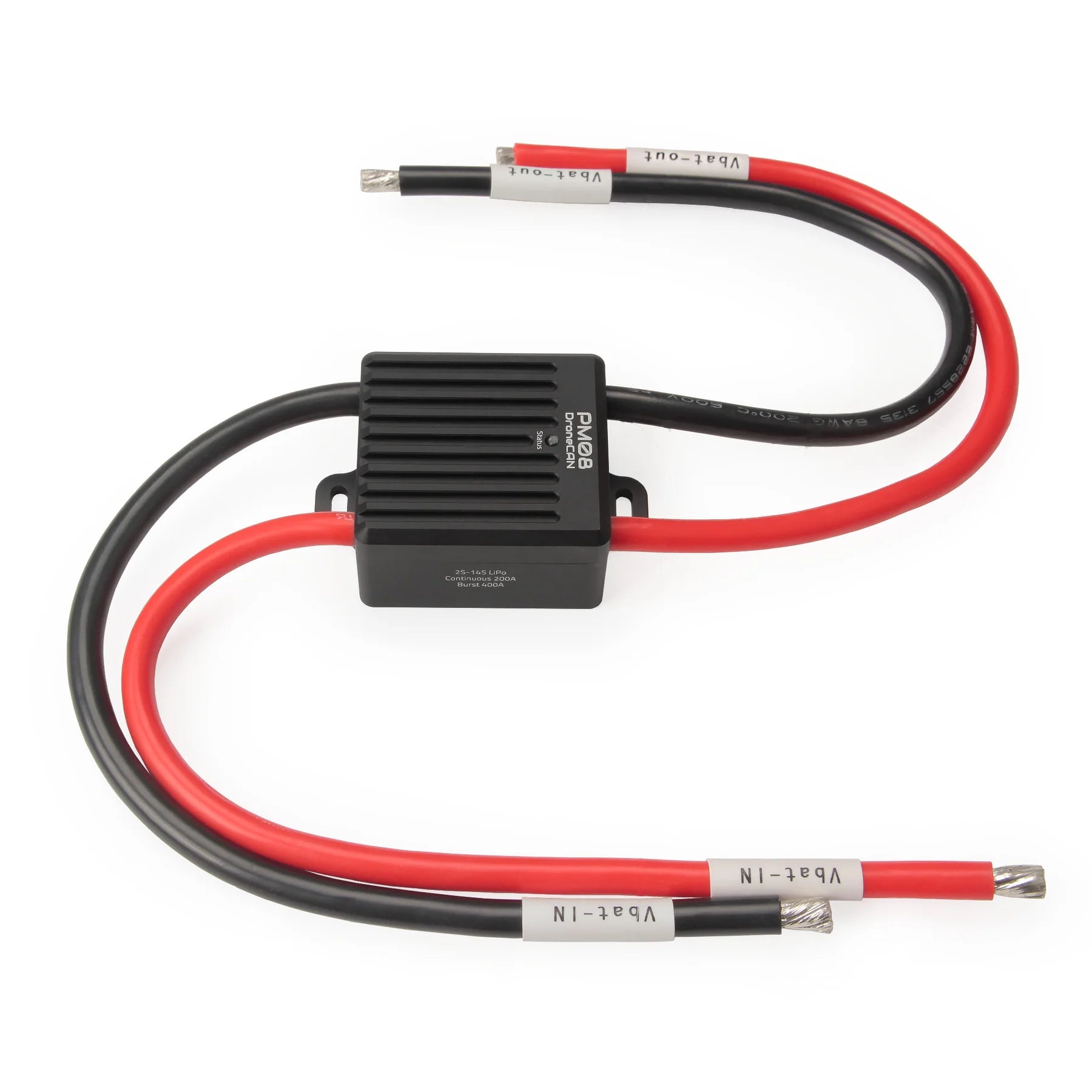

  • Tinned Wires
  • XT90 & Ring Terminals

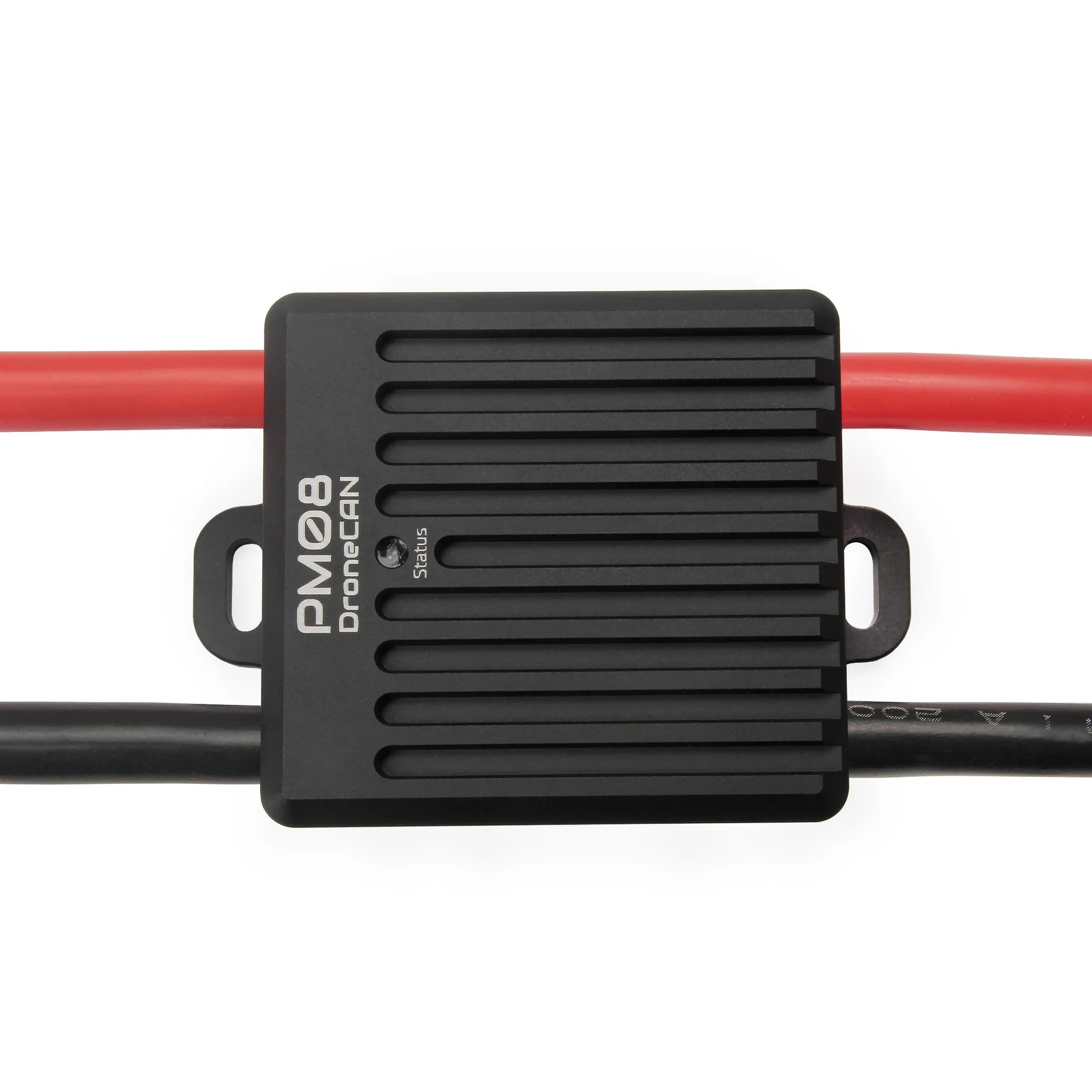

Status LED

• Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flashed
• Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
• Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

• Size: 45mm×41mm×26mm (Not Include Cable)

• Weight: 185g (Include Cable)

Reference Links

• PX4 & Flight Controller Setup Instruction
• PM08CAN 3D CAD File Download
• Power Module Dimension
