Holybro | ID: N-R3-1

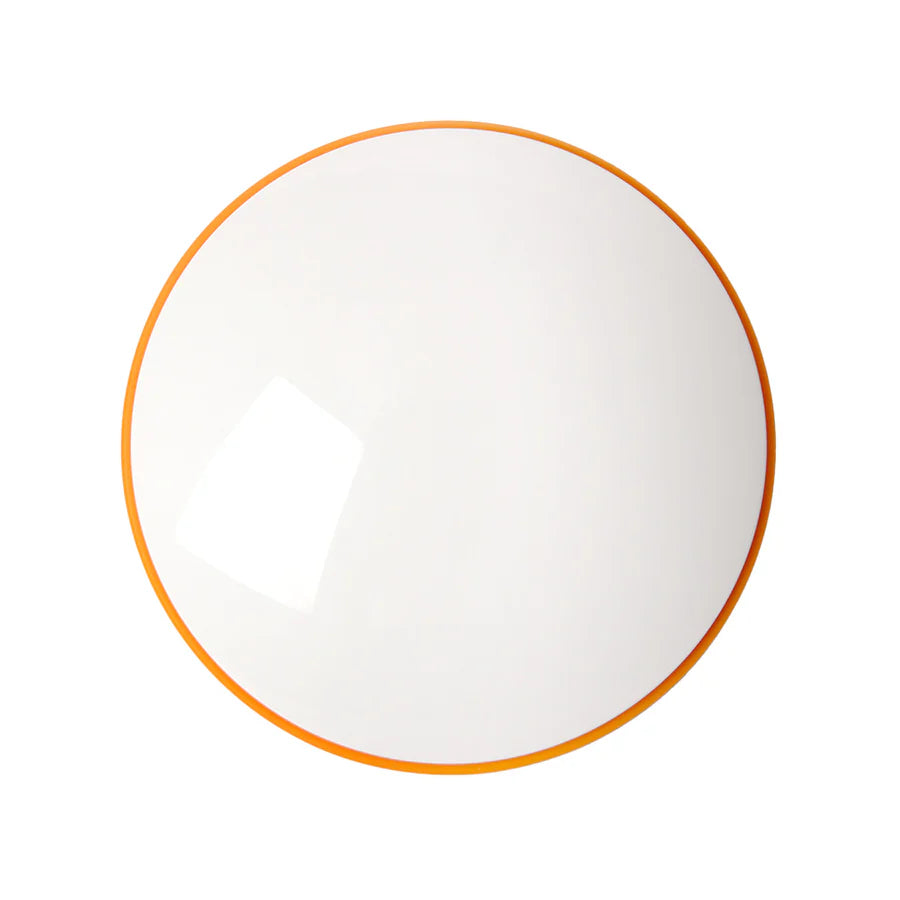

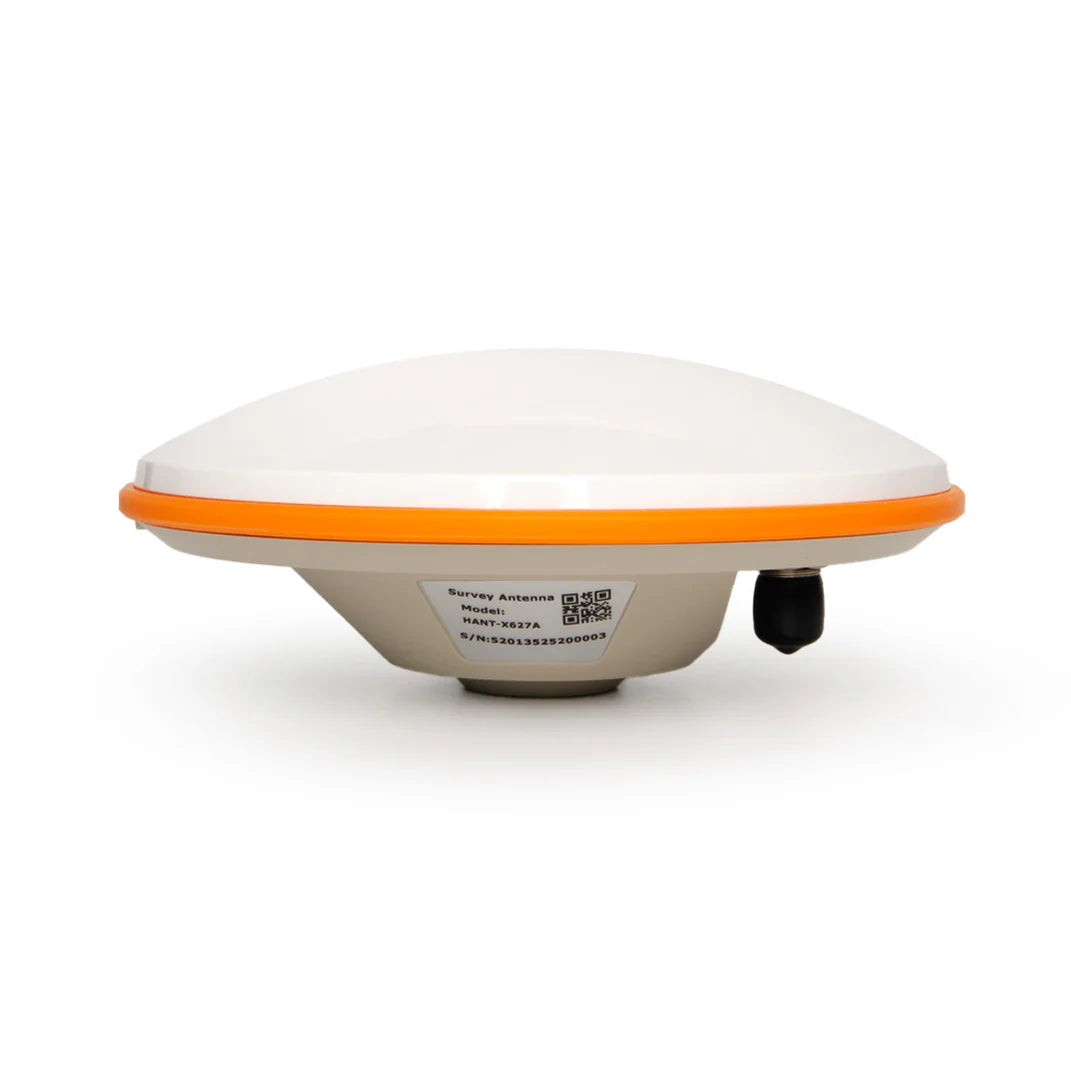

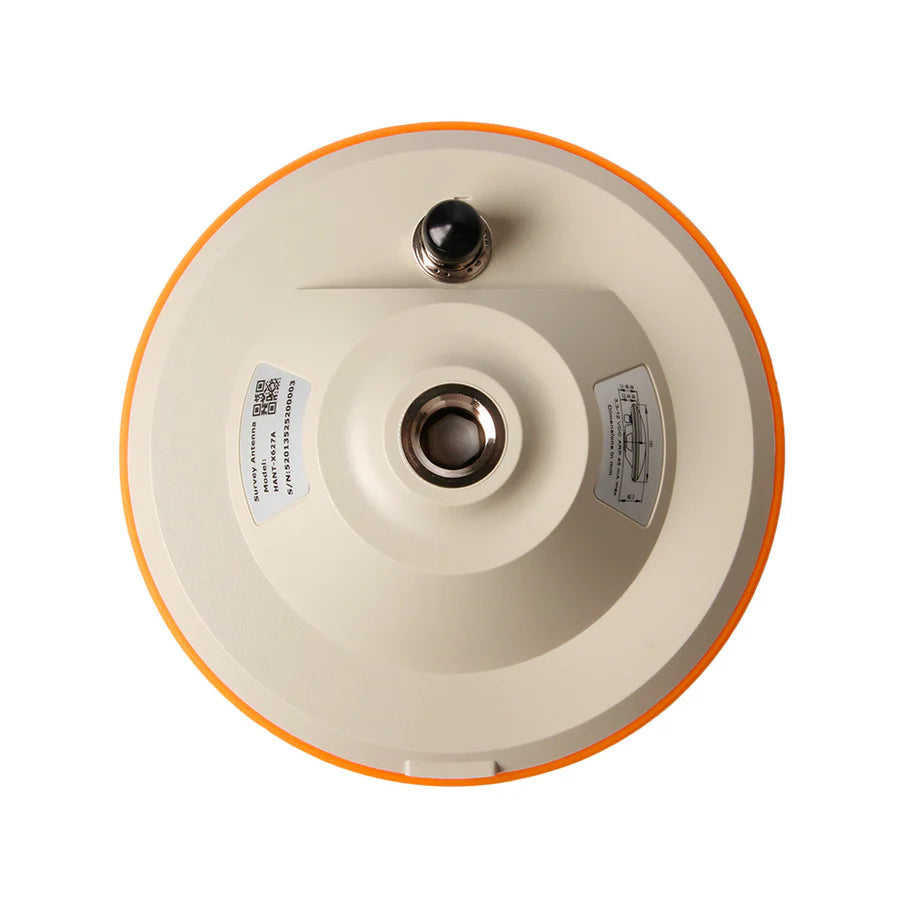

Holybro HANT-X627A RTK GNSS Antennas
The Holybro HANT-X627A is ideal for RTK base stations.

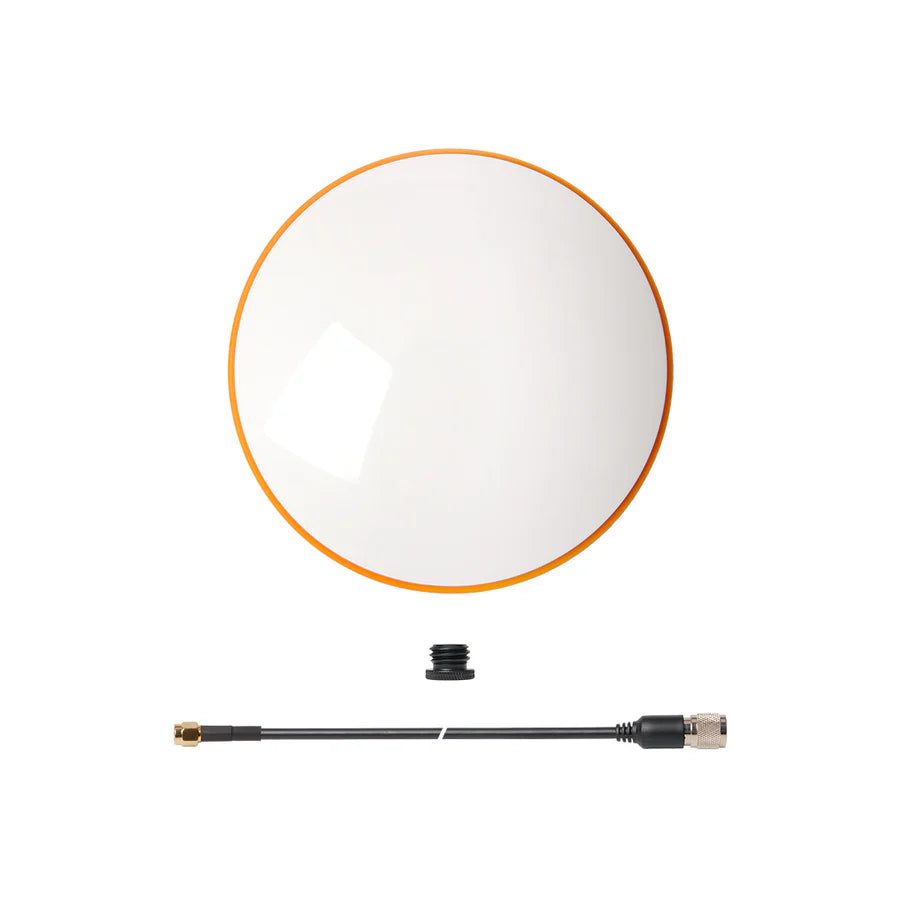

Package Includes:
1x High Precision GNSS Antenna(HANT-X627A)
1x Male-male SMA-TNC cable(length: 5m)
1x 1/4'' Female to 5/8'' -11 Male Adapter
Specifications:
| HANT-8605A | HANT-X622A | HANT-X603A | HANT-X623A | HANT-X627A (THIS PRODUCT) | |
|---|---|---|---|---|---|
| Photo |
 |
 |
|
 |
 |
| SKU | 31265 | 31267 | 31264 | 31266 | 31268 |
| Support Band |
GPS L1/L5 |
GPS L1/L2/L5 |
GPS L1/L2/L5 |
GPS L1/L2/L5 BDS B1/B2/B3 GLONASS L1/L2 Galileo E1/E5a/E5b QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band |
GPS L1/L2/L5 BDS B1I/B2I/B3I/B1C/B2a/B2b Galileo E1/E5a/E5b/E6 GLONASS L1/L2/L3 QZSS L1/L2/L5/L6 IRNSS L5 L-Band |
| Polarization | RHCP | ||||
| Max Gain | 2dBi | 3.5dBi | 2.5dBi | 2.8dBi | 5.5dBi |
| LNA Gain | 23±2dB | 33±2dB | 33dB (typical) | 33±2dB | 40±2dB |
| Operation Voltage | +3.3～+12VDC | +3.3～+12VDC | +3.3～+12VDC | +3.3～+5VDC | +3.3～+12VDC |
| Operation Current | ≤35mA | ≤55mA | ≤35mA | ≤55mA | ≤45mA |
| Connector Type | SMA Male | TNC female | |||
| IP Rating* | IP65 | IP67 | IP65 | IP67 | IP67 |
| Dimensions | Φ27.5*59mm | Φ40*75.2mm | Φ27.5*59mm | Φ43.6*40.8mm | Φ152*62.2mm |
| Weight | ≤25g | ≤38g | ≤25g | ≤30.5g | ≤500g |
Downloads:
