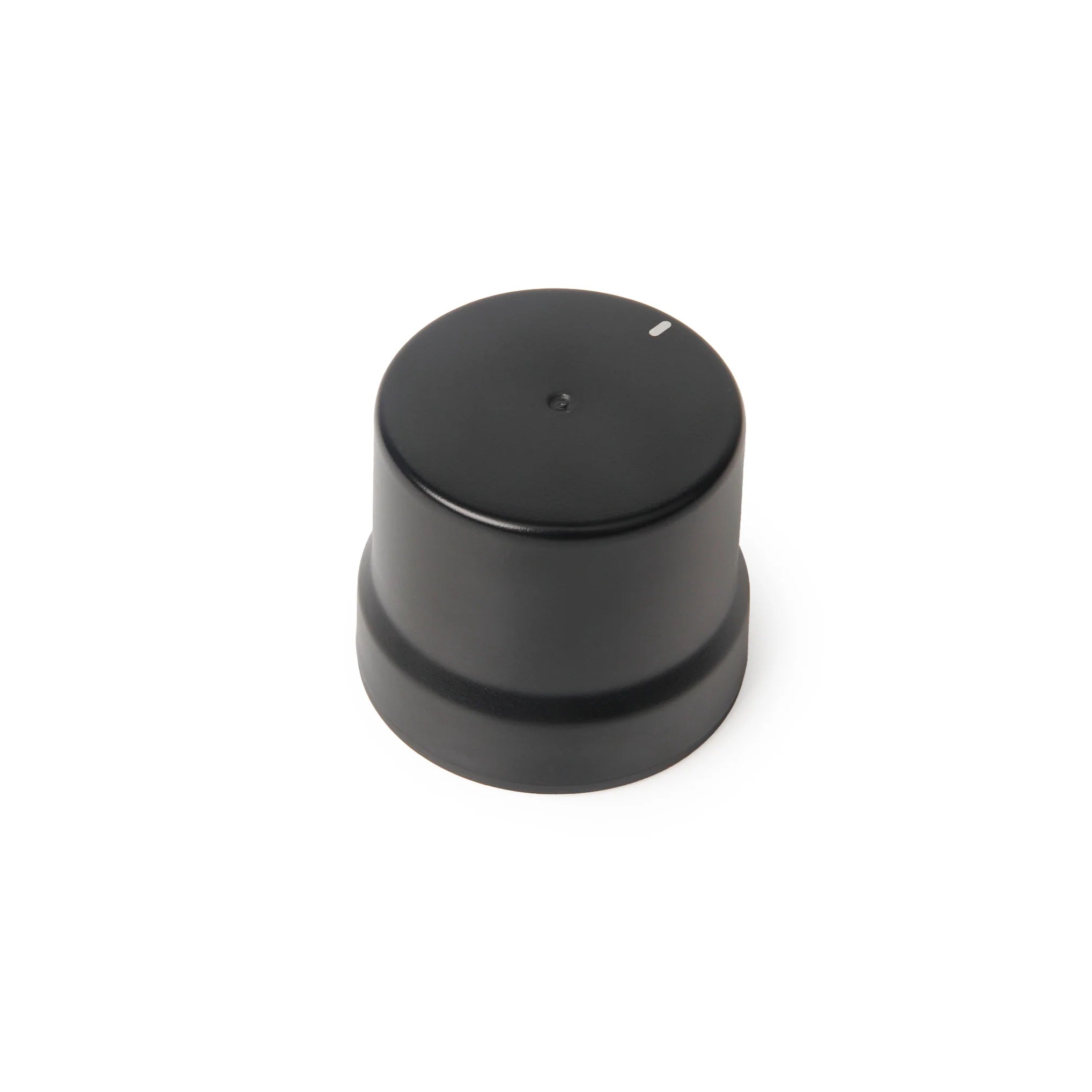

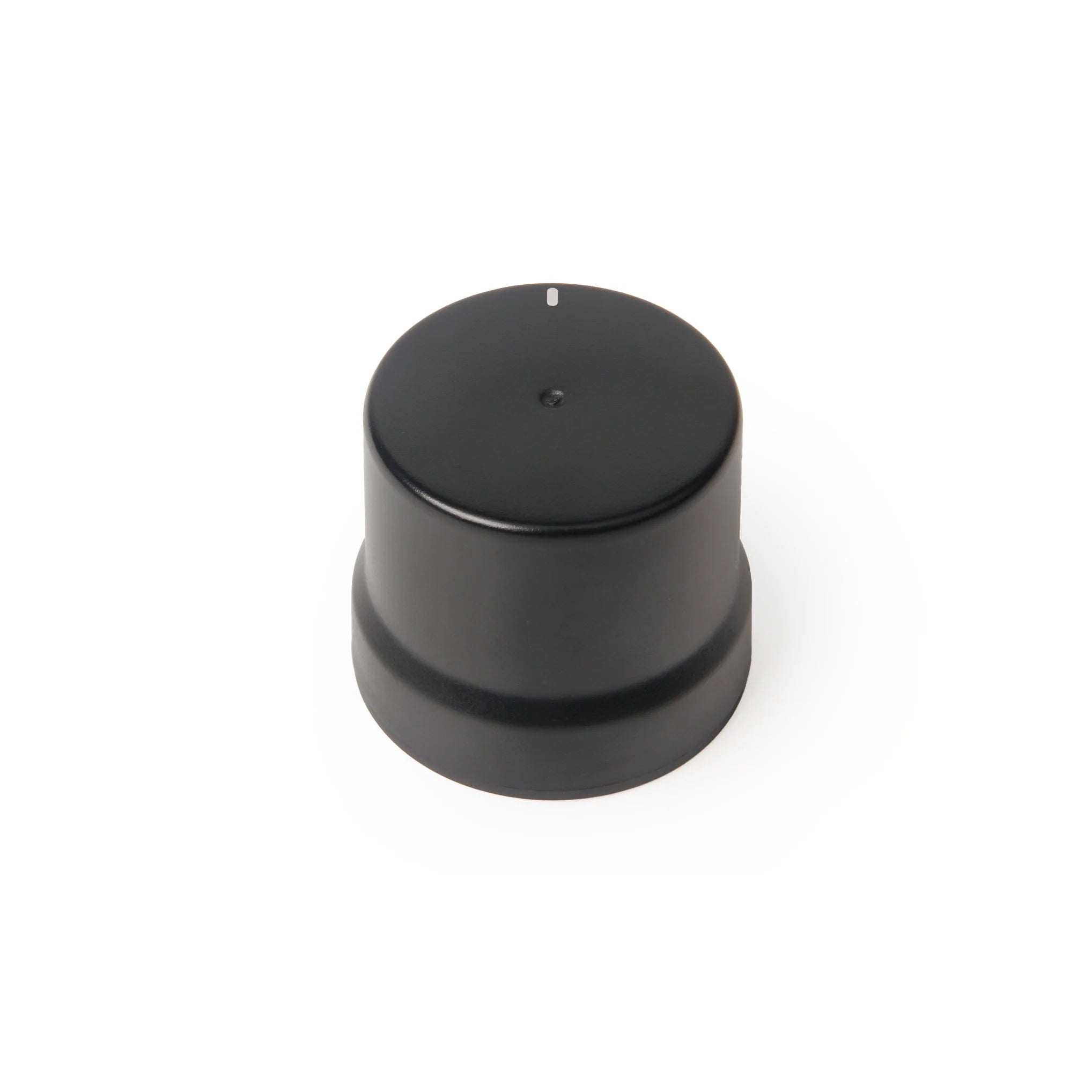

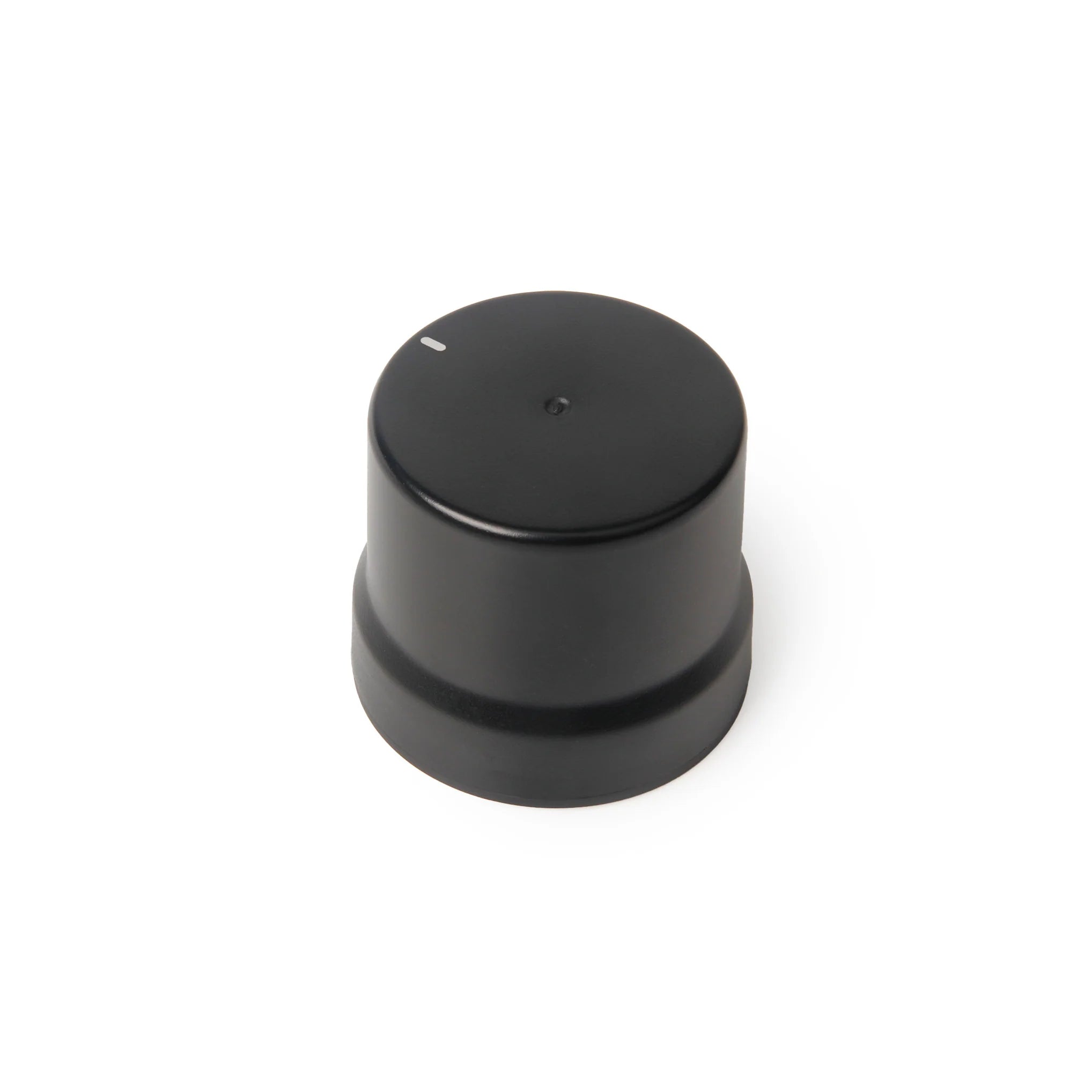

Holybro H-RTK ZED-F9P Ultralight
H-RTK F9P Ultralight is an ultra-lightweight RTK GNSS module with U-blox ZED-F9P, an IST8310 compass, and an integrated helical antenna. It is designed specifically for weight-conscious applications where every gram counts.
The H-RTK F9P Ultralight can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be received concurrently. All satellites in view can be processed to provide an RTK navigation solution when used with correction data.
It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.
Package Includes:
1x Holybro H-RTK ZED-F9P Ultralight
1x GH 10P cable 400mm
1x GH 6P cable 400mm
Features:
- U-blox ZED-F9P GNSS module
- Ultralight weight, less than 25 grams
- Integrated helical antenna
- IST8310 compass
Specifications:
| GNSS module | u-blox ZED-F9P | ||||||||||
| Compass | IST8310 | ||||||||||
| Application | Rover (Aircraft) | ||||||||||
|
GNSS |
GPS / QZSS, GLONASS, Galileo, BeiDou |
||||||||||
|
GNSS Band |
L1C/A, L2C, L1OF, L2OF, E1B/C, E5b, B1I, B2I |
||||||||||
|
Sensitivity |
Tracking |
-163dBm |
|||||||||
|
Reacquisition |
-147dBm |
||||||||||
|
Time-To-First-Fix¹ |
Cold Start |
≤35 s |
|||||||||
|
Warm Start |
20s |
||||||||||
|
Hot Start |
1 s |
||||||||||
|
Position accuracy² |
Autonomous |
2.0 m CEP |
|||||||||
|
DGNSS |
0.5m CEP |
||||||||||
|
RTK |
1cm+1ppm (Horizontal)3 |
||||||||||
|
Accuracy of time pulse signal |
RMS |
30ns |
|||||||||
|
Velocity accuracy |
GNSS |
0.1 m/s |
|||||||||
|
D-GNSS |
0.05 m/s |
||||||||||
|
Operational limits4 |
Dynamics |
≤ 4 g |
|||||||||
|
Altitude |
18000 m |
||||||||||
|
Velocity |
515 m/s |
||||||||||
|
Baud Rate |
38400-230400 bps（Default 115200 bps） |
||||||||||
|
Max navigation update rate |
|
||||||||||
|
1. All satellites at ≥-130dBm 2. CEP, 50%, 24 hours static, ≥-130dBm, > 8SVs 3. Based on 30km, the accuracy error increases by 1cm every 10km from the base station 4. Assuming Airborne < 4 g platform |
|||||||||||

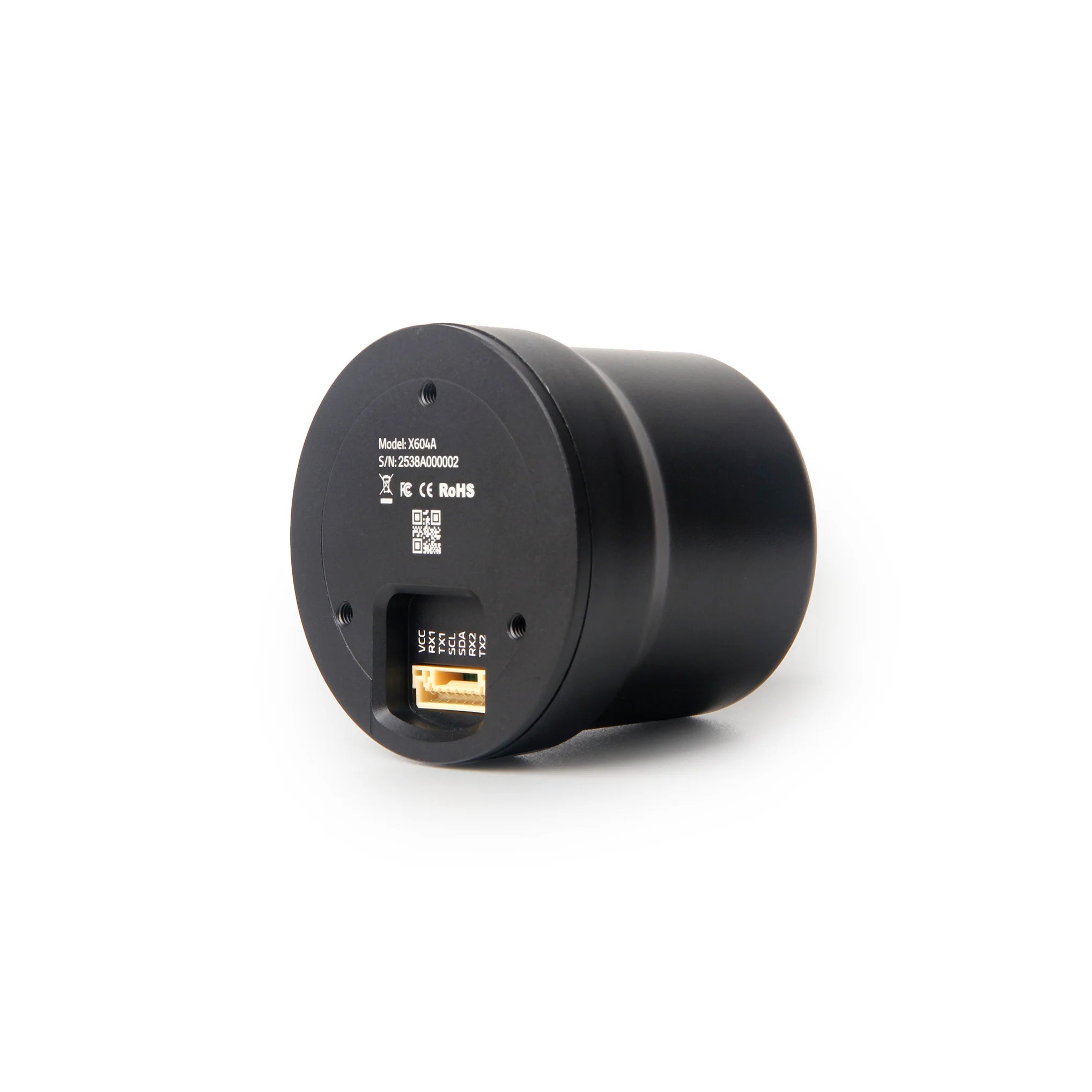

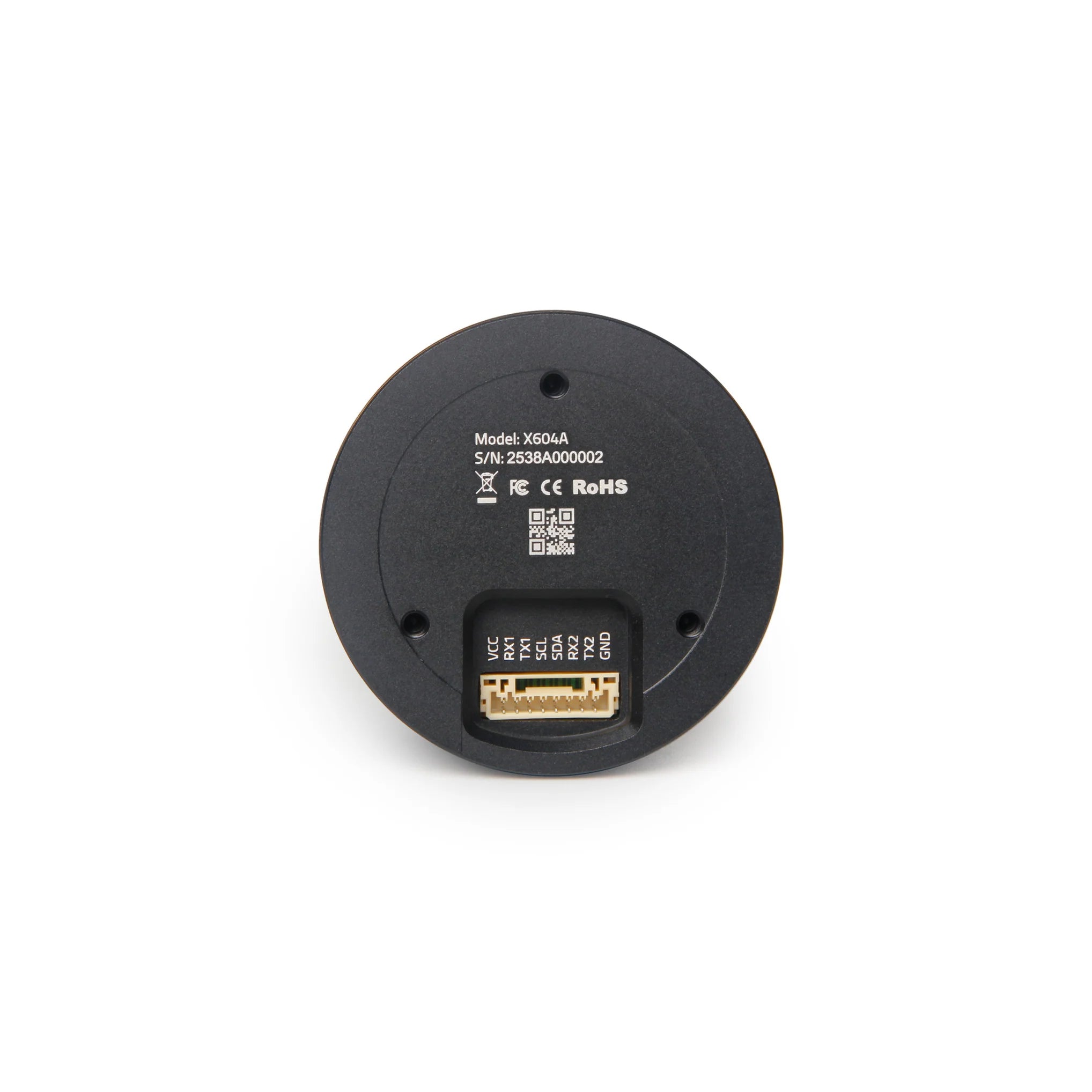

Pin Map
New Version:
Dimensions:
New Version:
Note: The bottom 3 mounting holes are made for self-tapping screws. They are 1.7mm holes with 4mm of depth.
You can use PA2.0*4 or KA2.0*4. But the actual specification of the screw to be used depends on what it is to be installed on and how thick it is. The required torque is about 0.08-0.15N/M.
Reference Link
