HGLRC | ID: L-R3-20
HGLRC H743 8S MINI V1 FC
The HGLRC H743 8S MINI V1 FC is a compact flight controller engineered for high-performance FPV drones. Built around the STM32H743 MCU, it delivers rapid processing and responsive control. The ICM42688P gyroscope ensures exceptional stability during aggressive maneuvers. With 16MB of onboard Blackbox storage, you can capture and analyze every flight for tuning and troubleshooting.

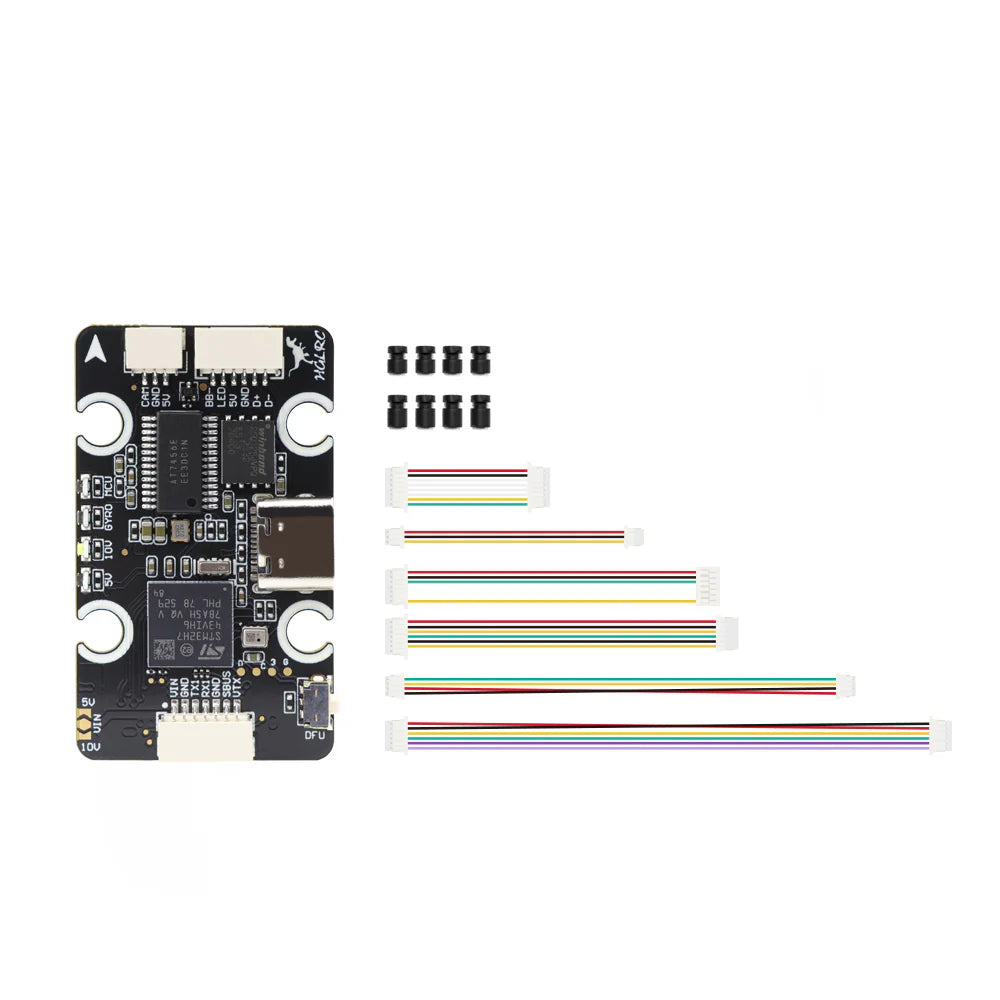

Package Includes：
1x HGLRC H743 8S MINI V1 FC
1x 30AWG 25mm Double-ended SH1.0-8P Cable 1x 30AWG,100mm Double-ended SH1.0
4P Receiver Cable 1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable
1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable
1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable
1x 30AWG，120mm total length, Double-ended SH1.0-6P GPS Cable
4x 3*8 Vibration Damping Standoffs
4x 3*6.6 Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card

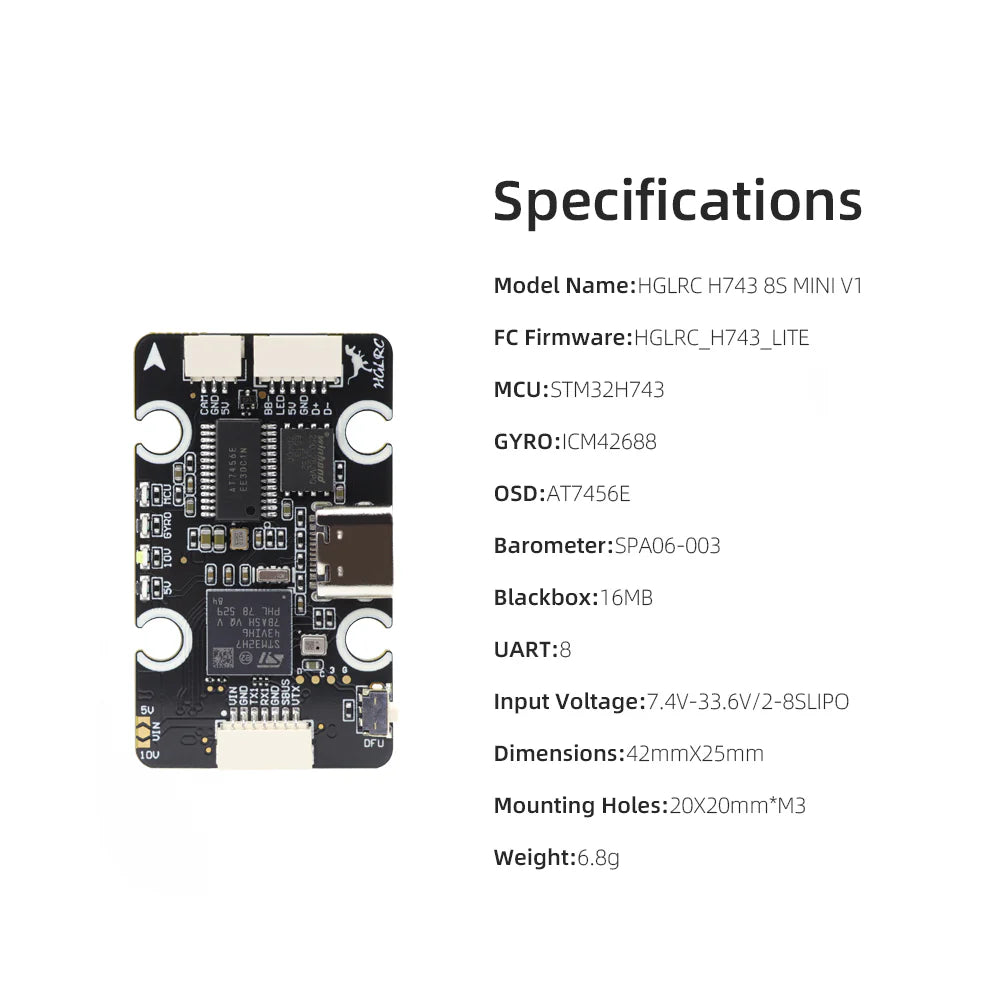

Specifications:
Model Name:HGLRC H743 8S MINI V1
FC Firmware:HGLRC_H743_LITE
MCU:STM32H743
GYRO:ICM42688
OSD: AT7456E
Barometer:SPA06-003
Blackbox:16MB
UART:8
Input Voltage:7.4V-33.6V/2-8SLIPO

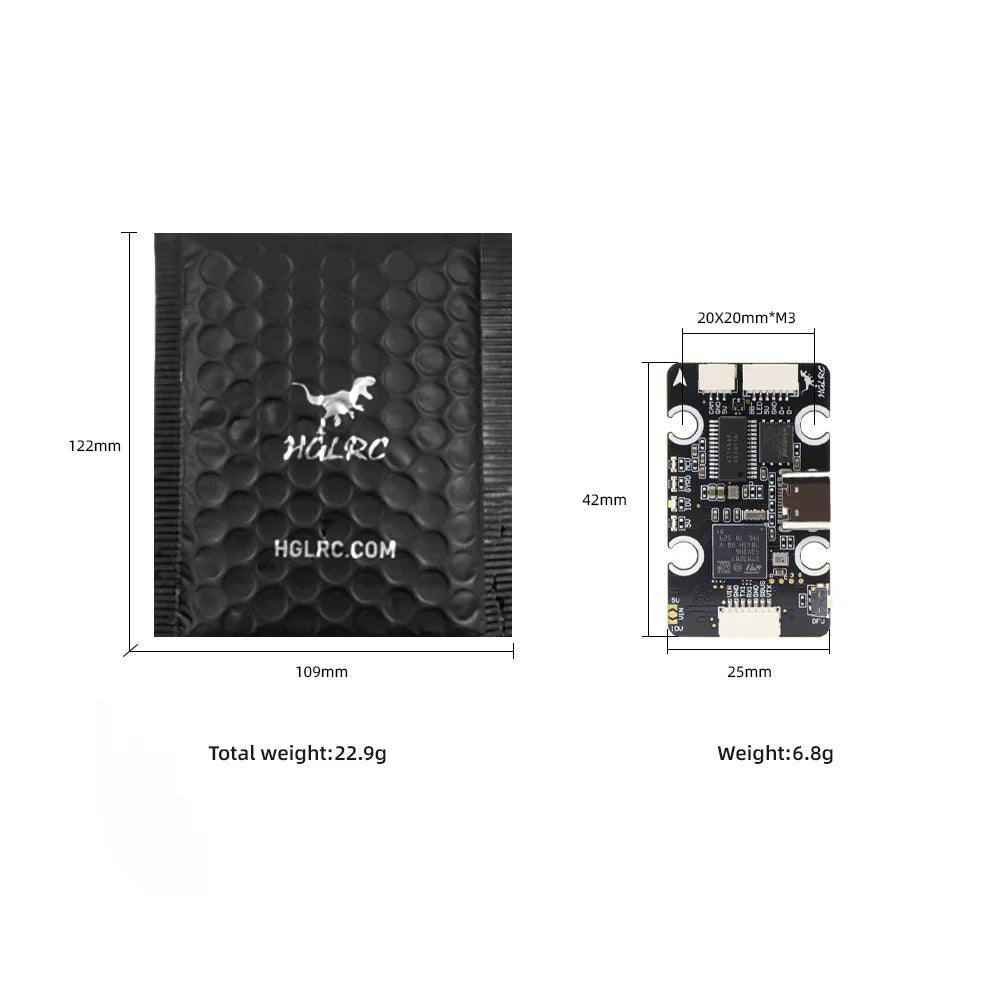

Dimensions:42mmx25mm
Mounting Holes:20x20mm，M3
Weight:6.8g
