Flywoo | ID:

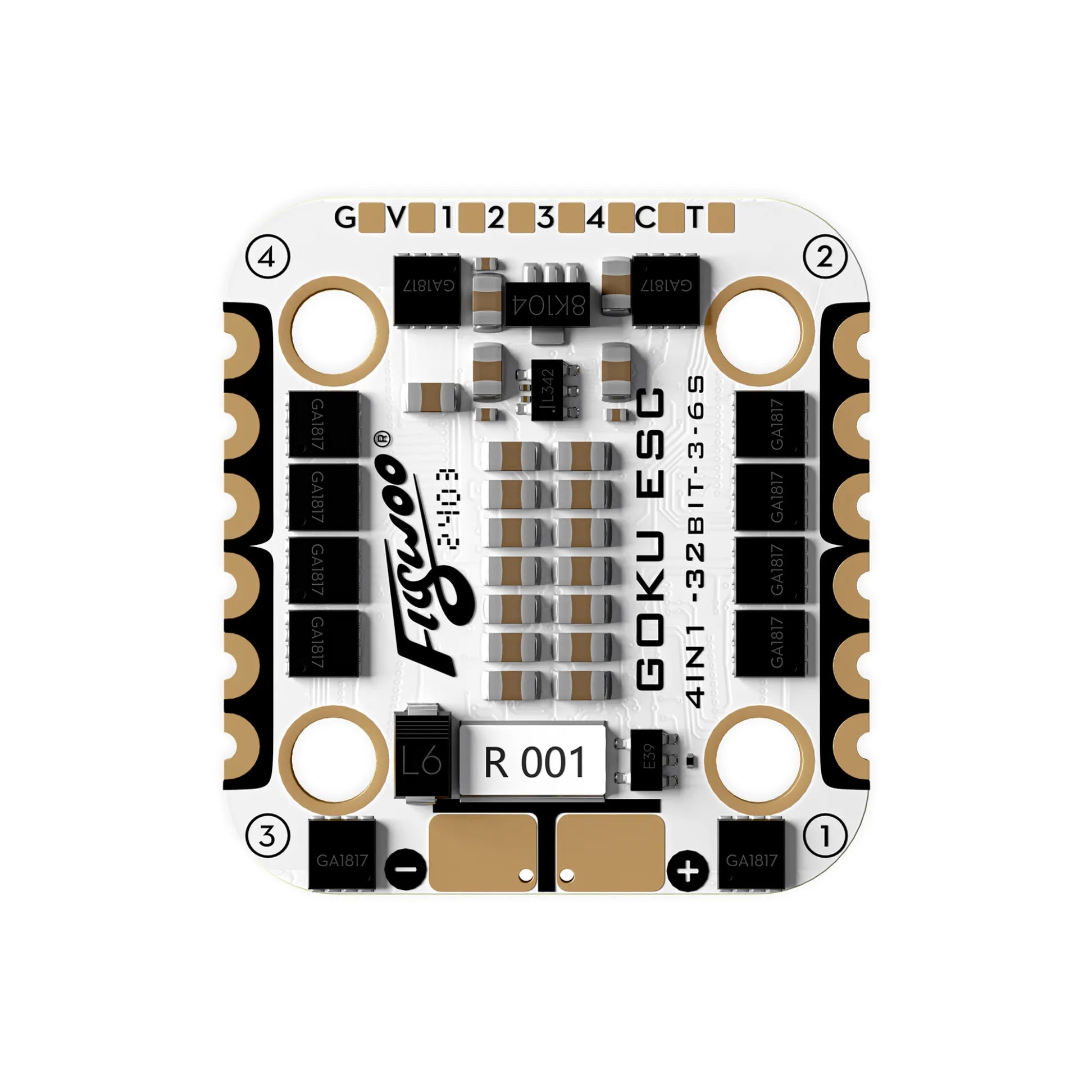

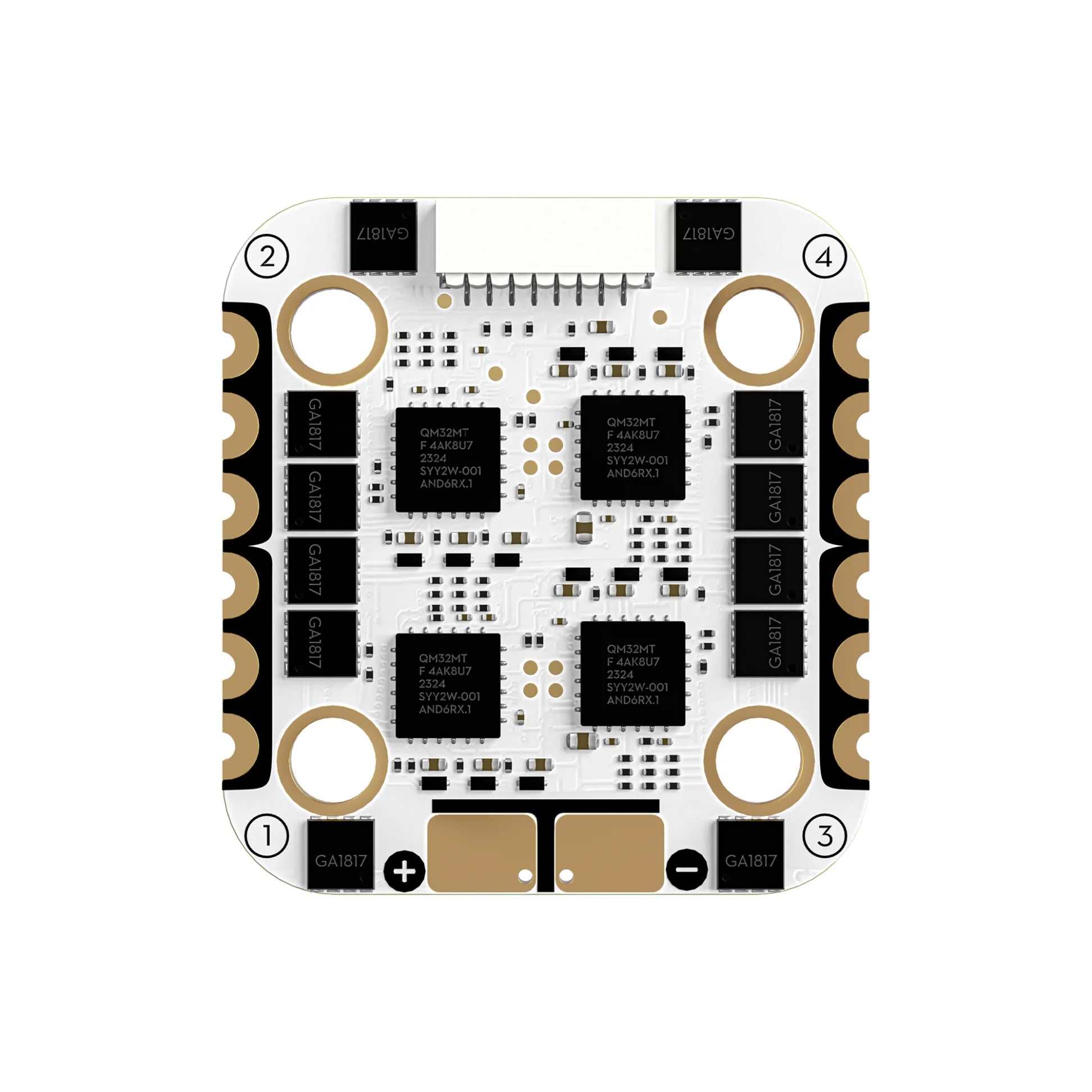

Flywoo GOKU G45M 32BIT 128K 3-6S 45A ESC (20x20)
The GOKU G45M is a high-performance ESC with a 45A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K.
Key features include the AT32 dual-in-one chip, imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G45M ensures an exceptional flying experience.
Package Includes:
1x FC to ESC connection Cable
1x Capacitor
4x M2 Shock-Absorbing Ball
1x XT30 Cable
Specifications：
- Name: GOKU G45M AM32 4in1 ESC
- Support AM32
- Support Dshot300, Dshot600,Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 45A
- Firmware: GOKU_F4A32_PRO

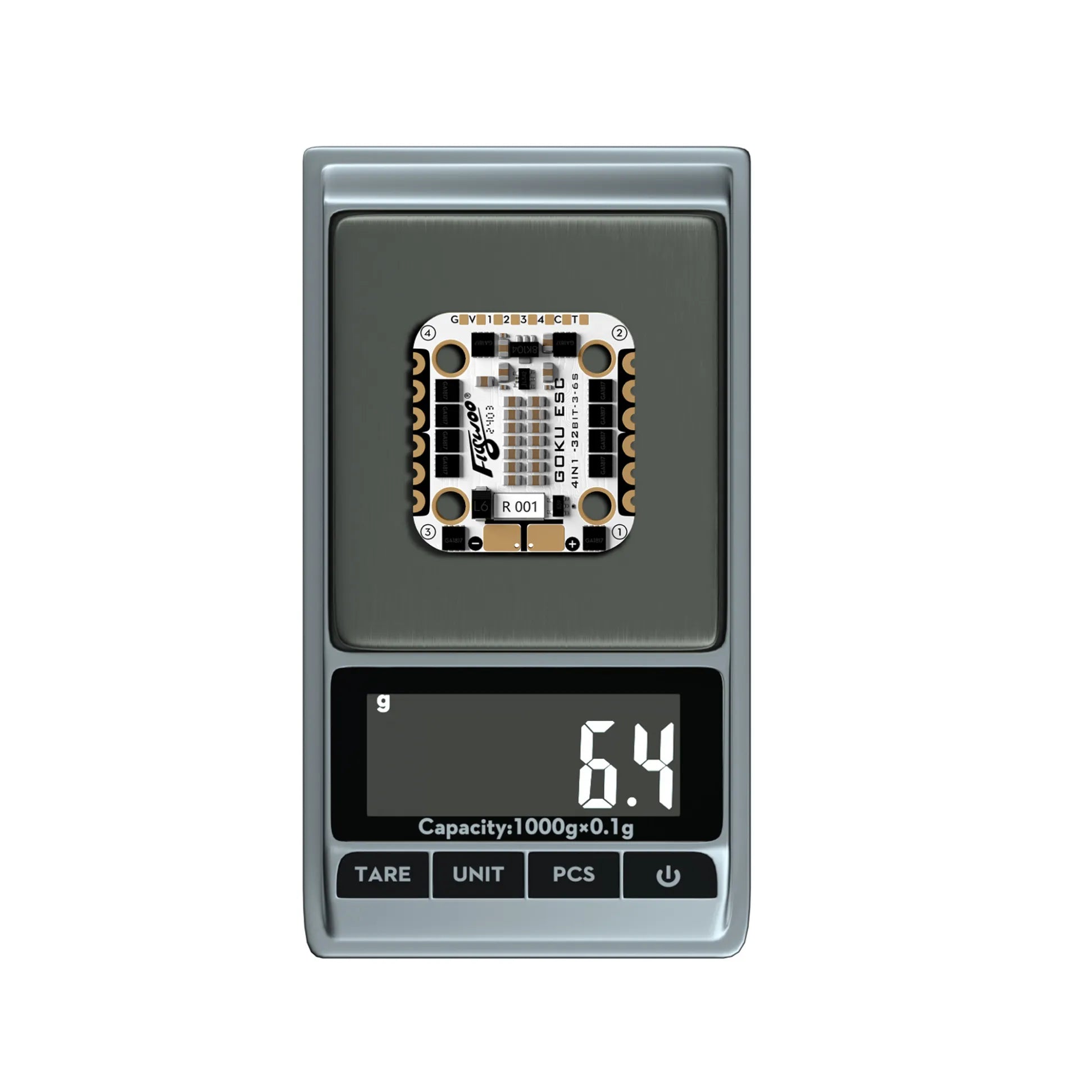

- Weight: 6.4g
|
Parameter
|
Value
|
|
Continuous / Peak Current
|
45A x4 / 50A x4 (10s)
|
|
Battery Cells
|
3-6S LIPO
|
|
Power Connector
|
XT30/60
|
|
Output Wires
|
None, reserved solder pads
|
|
Dimensions
|
33x30x6.1mm
|
|
Firmware
|
GOKU_F4A32_PRO
|
|
Programming and Tuning
|
Supported
|
|
Programming Method
|
AM32
|
|
DEO
|
Supported
|
|
Throttle Range Calibration
|
Supported
|
|
Oneshot123 Throttle Mode
|
Supported
|
|
Oneshot42 Throttle Mode
|
Supported
|
|
MultiShot Throttle Mode
|
Supported
|
|
DSHOT150/300/600/1200
|
Supported
|
|
PWM Refresh Rate
|
24K-128K
|
|
Timing Adjustment
|
Supported
|
|
Motor Direction Setting
|
Supported
|
