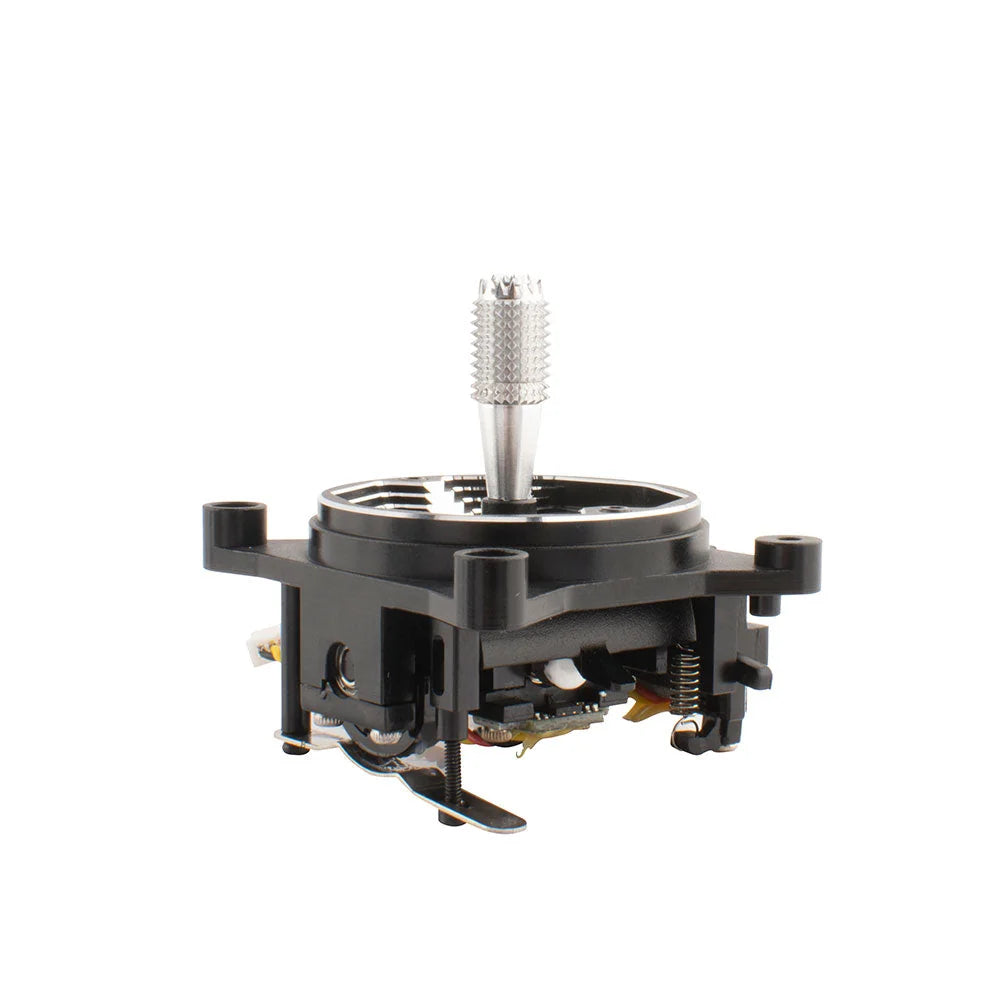

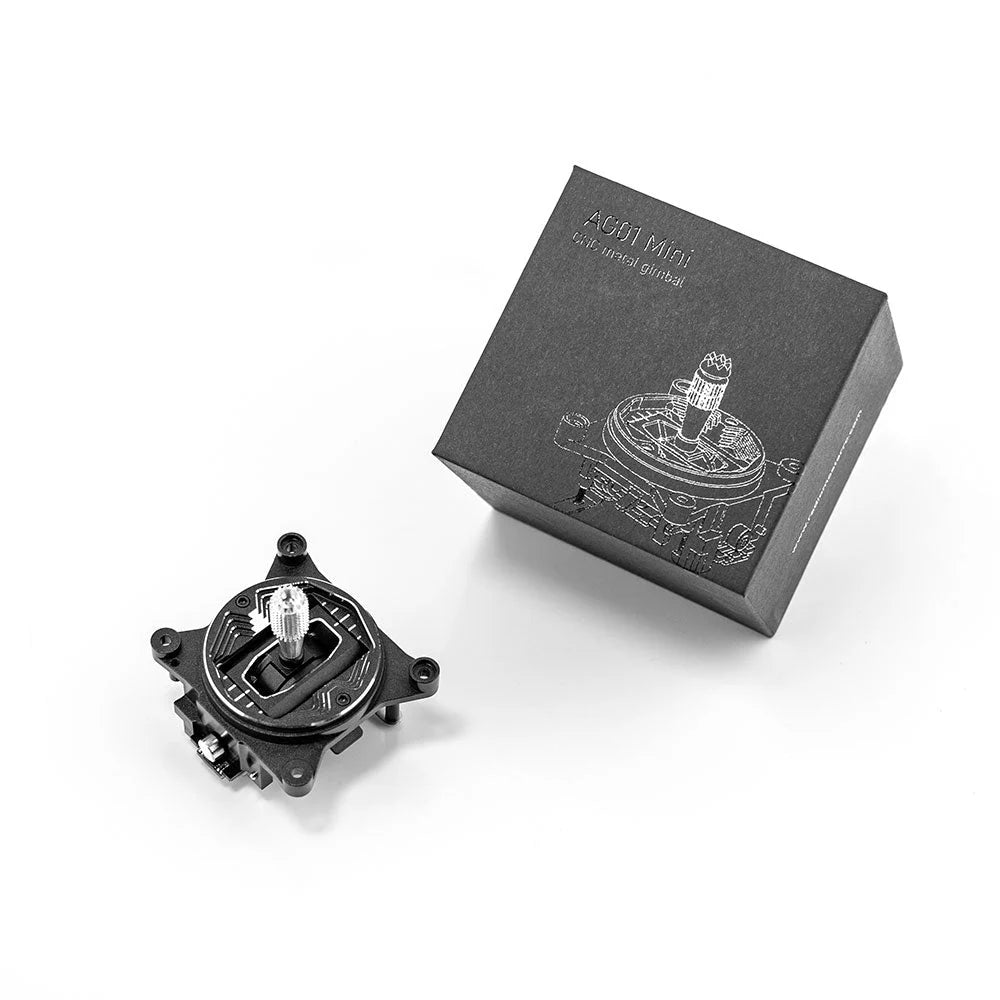

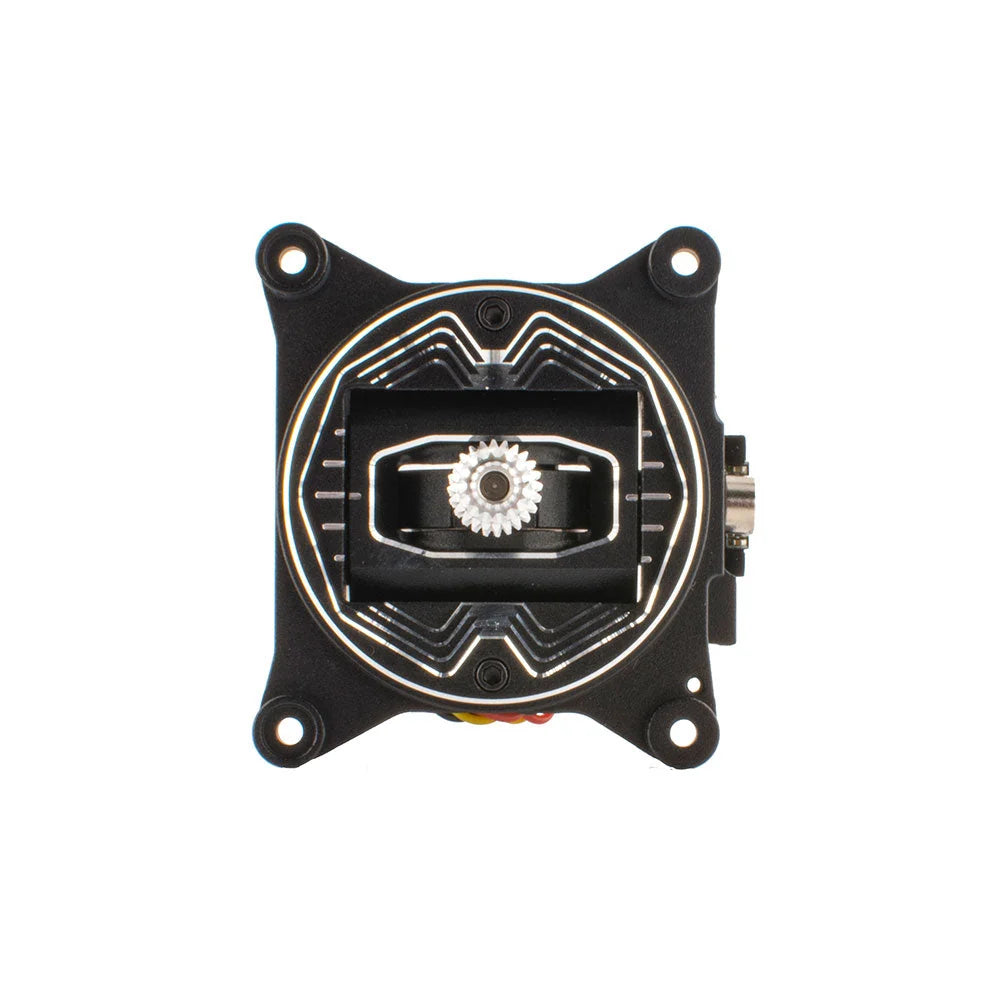

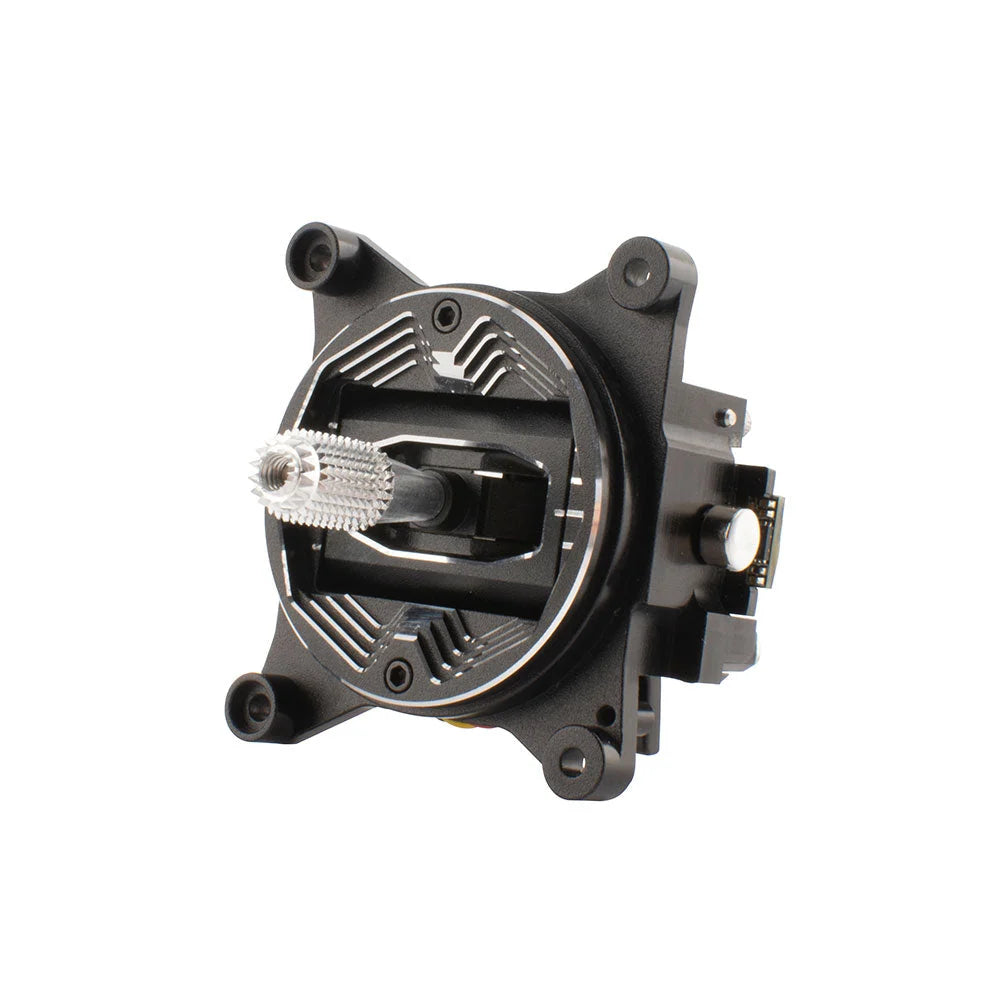

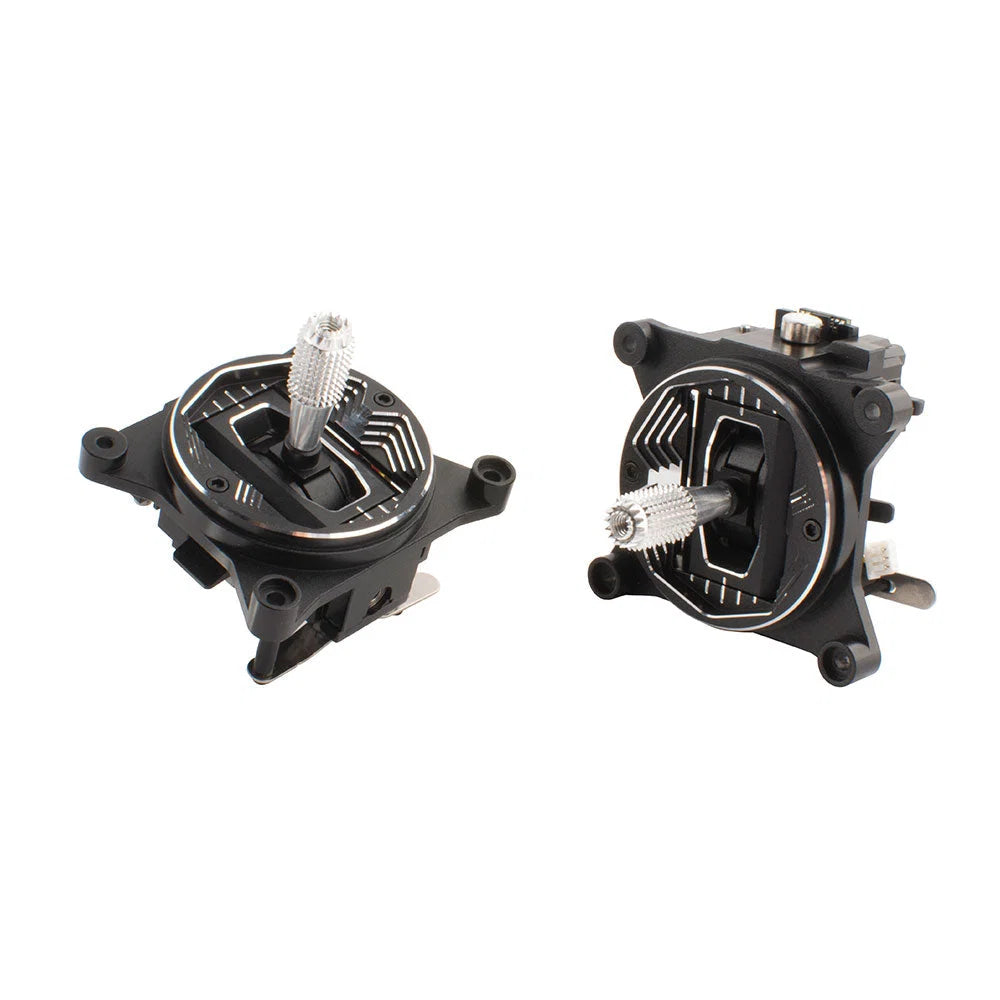

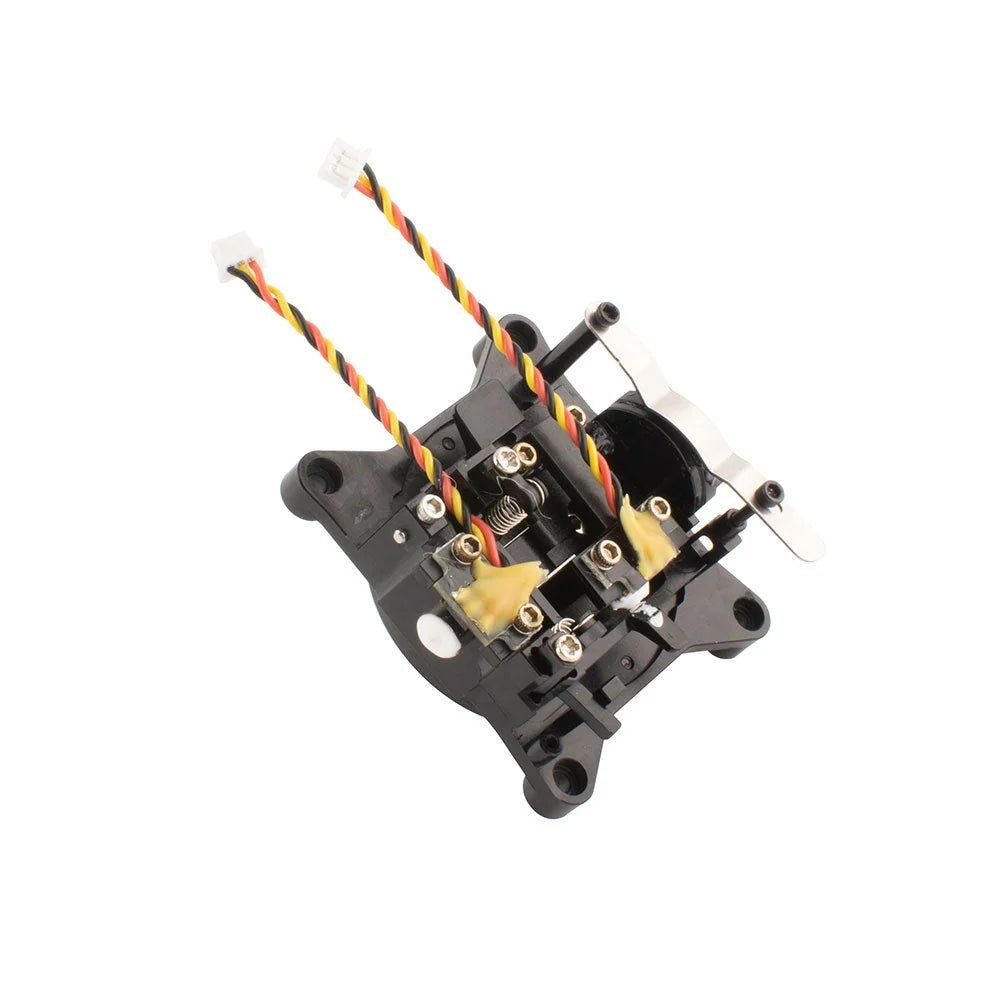

RadioMaster AG01 MINI CNC Hall Gimbals for TX12 & Zorro Set (Black)

Package Includes:

1x AG01 MINI CNC Hall Gimbals for TX12 & Zorro Set (Black)

Features:

• Made with CNC processed aviation grade aluminum.
• Sticky360 Mini Gimbal Sticks as standard.
• Non contact hall sensors for accurate control inputs and precise centering.
• Quad precision bearings for unparalleled stick feel.
• Adjustable vertical travel angle (Min. 38°, Max. 54°).
• Custom designed for RadioMaster Zorro & TX12.

Specifications:

Name: AG01 Mini CNC Hall Gimbal

Sensor type: Hall Sensor

Working voltage: DC 3.3V

Linearity: Real-time (No delay)

Adjustable vertical travel range: 38°—54°

Self-centering adjustment : Yes

Easy mode adjustment

Adjustable tension : Yes

Quad bearing: Yes

Temperature range: -20°C-85°C

Size: 49*42*48mm

Weight: 42g(±0.3g)

Installation for Zorro & TX12

The AG01 Mini gimbals are shipped as self-centering by default and are compatible with both the Zorro and TX12 Radios.

For Zorro

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

For TX12

One gimbal must be set as throttle and one as self-centering before installation in the radio.
1. Use the included screw (see parts bag) to hold down the centering lever and set the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar until the desired tension is achieved.

How to install AG01 MINI on Zorro

It’s not the easiest job to install these gimbals in the Zorro, but it’s doable with a little patience and planning. Thanks to Oscar Liang for the detailed graphic installation tutorial.  Click here to check more details.
